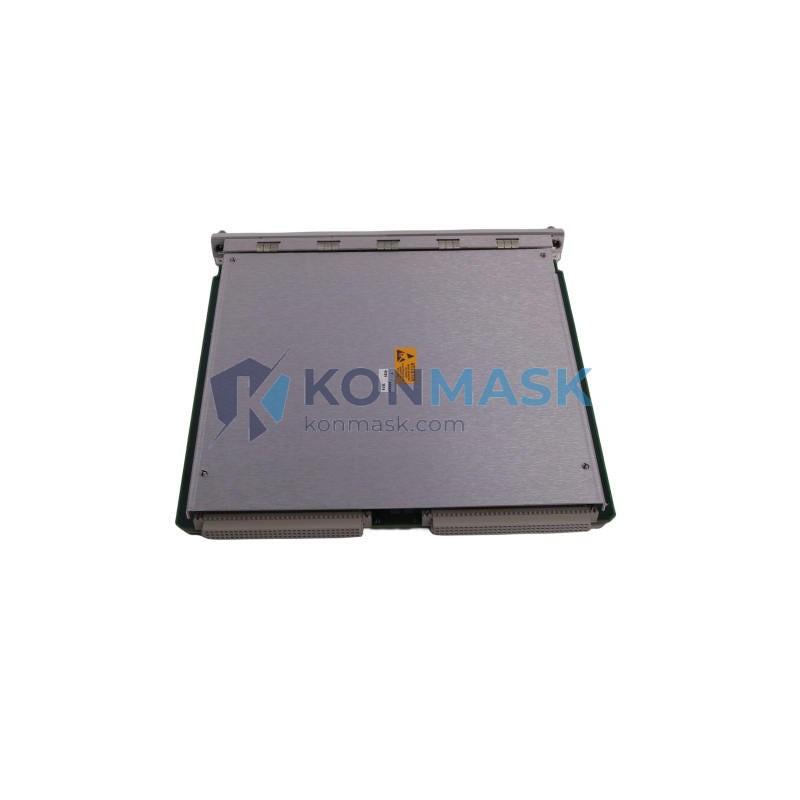

Bently Nevada 173186-01 Temperature Monitor | 3500 Series Machinery Protection System
Engineering Background
The Bently Nevada 3500 Series is the industry benchmark for continuous machinery protection in rotating equipment applications. Deployed across power generation, oil & gas, petrochemical, and heavy industrial facilities worldwide, the 3500 platform provides real-time monitoring of critical machine parameters to prevent catastrophic failure and unplanned downtime.
Product Positioning
The Bently Nevada 173186-01 is a dedicated Temperature Monitor module within the 3500 rack-based system. It is engineered to accept thermocouple and RTD inputs, process temperature signals with high accuracy, and trigger protective relay outputs when user-defined alarm thresholds are exceeded. This module is the preferred choice for procurement engineers specifying temperature protection on turbines, compressors, pumps, and generators where API 670 compliance is required.
Complete Technical Specifications
| Part Number | 173186-01 |
| SKU / Order Code | 3500/60 173186-01 |
| Platform | Bently Nevada 3500 Series |
| Module Type | Temperature Monitor |
| Input Types | Thermocouple (J, K, T, E, R, S, B) / RTD (Pt100, Pt1000) |
| Number of Channels | Up to 16 channels per module (configuration-dependent) |
| Measurement Range | -200°C to +1820°C (input-type dependent) |
| Accuracy | ±1°C typical (RTD); ±2°C typical (thermocouple) |
| Alarm Outputs | Alert / Danger relay outputs, configurable per channel |
| Communication | 3500 Rack backplane bus; Modbus RTU / TCP optional |
| Power Supply | Supplied via 3500 rack (24 VDC backplane) |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Compliance Standards | API 670, CE, UL, CSA |
| Form Factor | Single-slot 3500 rack module |
| Weight | Approx. 800 g |
| Country of Origin | USA |
Proven Application Environments
- Power Generation: Gas turbines, steam turbines, and generator bearing temperature monitoring
- Oil & Gas: Upstream compressor trains, pipeline booster stations, LNG liquefaction trains
- Petrochemical & Refining: Reactor feed pumps, cracked gas compressors, critical agitators
- Marine & Offshore: Propulsion turbines, FPSO rotating equipment
- Pulp & Paper / Mining: High-availability fan and pump protection systems
Engineering Advantages
- API 670 Compliant: Meets the international standard for machinery protection systems — mandatory for most EPC and owner-operator specifications
- Multi-Input Flexibility: Accepts both thermocouple and RTD sensor types within a single module, reducing spare-parts inventory complexity
- Rack-Integrated Architecture: Seamless integration with existing 3500 racks — no additional wiring infrastructure required
- Configurable Alarm Logic: Independent Alert and Danger setpoints per channel with latching/non-latching relay options
- High Channel Density: Maximizes rack slot utilization in space-constrained control rooms and skid-mounted panels
- Proven Field Reliability: Bently Nevada 3500 modules are deployed in tens of thousands of installations globally with documented MTBF exceeding 100,000 hours
System Architecture & Signal Flow
The 173186-01 installs into any available slot of a Bently Nevada 3500 rack alongside the System Monitor (3500/20) and I/O modules. Signal flow is as follows:
- Sensor Input: Thermocouple or RTD wired to the I/O module terminal block
- Signal Conditioning: Cold-junction compensation (thermocouple) or 4-wire resistance measurement (RTD) performed on-module
- Alarm Processing: Configurable Alert / Danger thresholds evaluated in real time; relay outputs activated on threshold breach
- Data Output: Processed temperature values transmitted over 3500 rack backplane to System Monitor for display, logging, and DCS/SCADA integration via Modbus or OPC
- Rack Communication: Full integration with Bently Nevada System 1 software for trend analysis, event logging, and predictive maintenance workflows
Sourcing & Quality Verification
- Source: Konmask.com sources Bently Nevada modules from authorized distribution channels and verified surplus inventories with documented chain of custody
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-shipment checks
- Authenticity: Firmware version and hardware revision documented on request; counterfeit screening performed on all incoming stock
- Condition: New, refurbished, and tested-used grades available — condition stated explicitly on each order confirmation
- Documentation: Certificate of conformance, test report, and packing list provided with every shipment
Procurement Process
- Submit RFQ: Email support@konmask.com with part number, required quantity, and delivery timeline
- Receive Quotation: Formal quotation with unit price, lead time, and shipping options returned within 1 business day
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net-terms accounts
- Shipment: DHL / FedEx / UPS express options available; export documentation (commercial invoice, packing list, COO) included
- After-Sales Support: 12-month warranty on new units; technical support available via email and phone
Technical FAQ
Q: Is the 173186-01 compatible with all 3500 rack configurations?
A: Yes. The module is designed for the standard 3500 rack backplane and is compatible with all 3500 Series rack sizes (4-slot, 7-slot, 14-slot).
Q: Can this module replace a 3500/60 in an existing installation?
A: The 173186-01 is the I/O module component of the 3500/60 Temperature Monitor. Confirm your existing rack configuration and firmware version before substitution. Contact our technical team for a compatibility assessment.
Q: What sensor types are supported?
A: The module supports J, K, T, E, R, S, and B type thermocouples, as well as Pt100 and Pt1000 RTDs in 2-wire, 3-wire, and 4-wire configurations.
Q: Is System 1 software required for operation?
A: No. The module operates standalone within the 3500 rack for protection functions. System 1 software is optional and used for advanced trending, diagnostics, and predictive maintenance.
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–3 business days. Contact us to confirm current availability.
