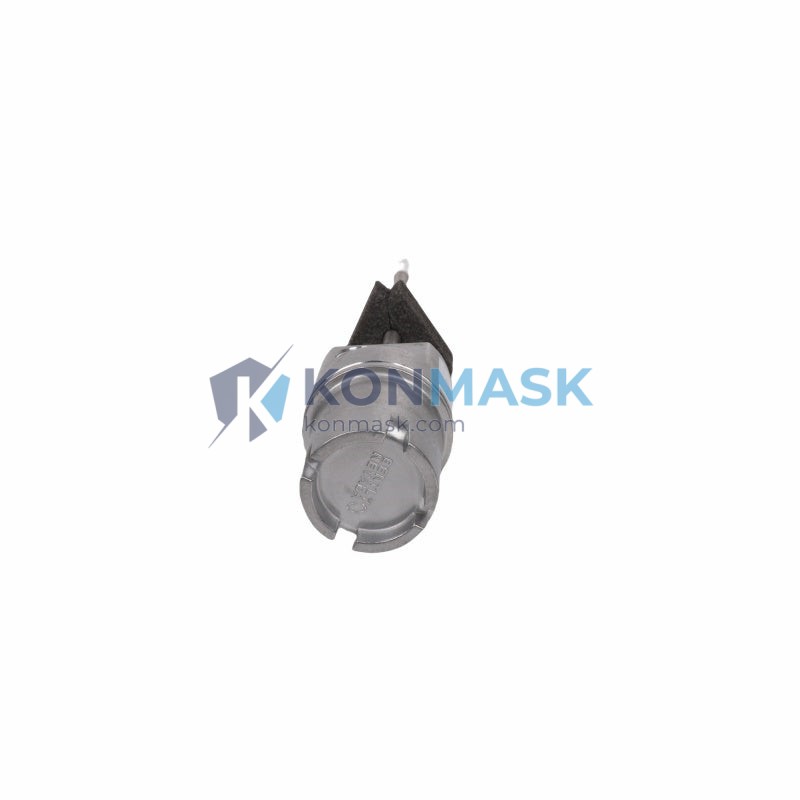

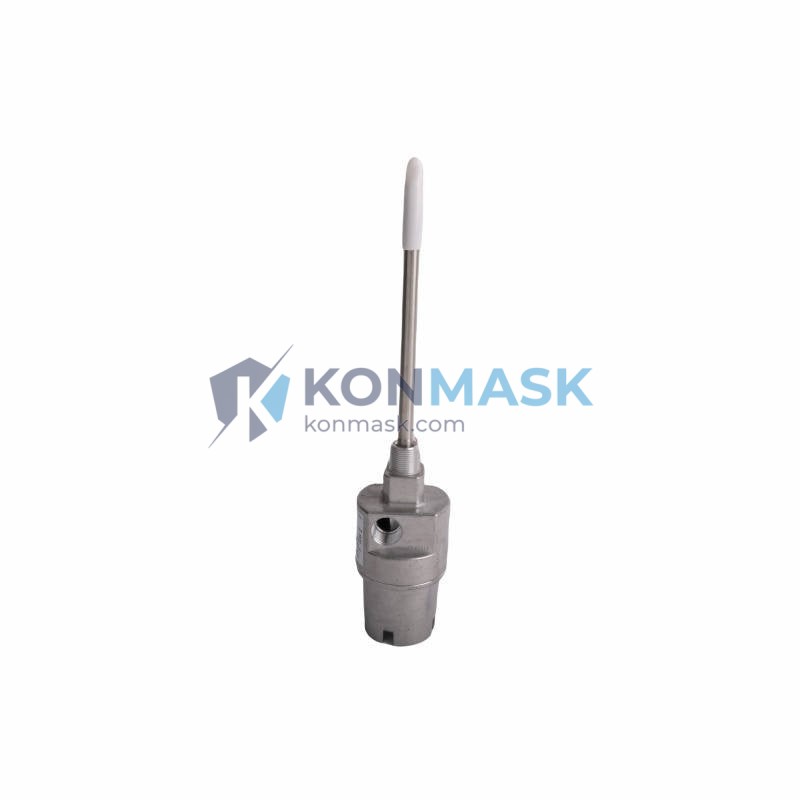

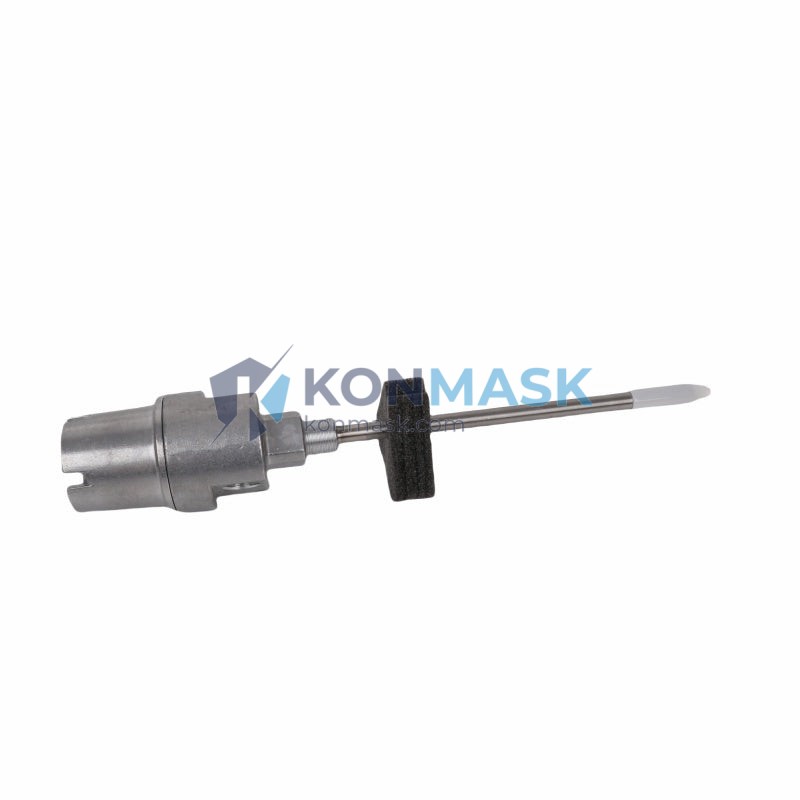

Bently Nevada 21000-16-10-00-118-03-02 Proximity Probe Housing Assembly – 3300 XL 8mm Eddy Current Series
When a proximity probe housing fails in a rotating machinery protection system, the consequences are immediate and severe. Without a properly sealed and aligned housing assembly, the eddy current probe loses its calibrated gap, signal integrity degrades, and the entire vibration monitoring loop becomes unreliable — leaving turbines, compressors, and pumps running blind. Unplanned shutdowns, catastrophic bearing failures, and costly production losses follow. The Bently Nevada 21000-16-10-00-118-03-02 Proximity Probe Housing Assembly is the precision-engineered solution that keeps your monitoring system performing to specification.
The 21000-16-10-00-118-03-02 is a purpose-built housing assembly within Bently Nevada’s globally trusted 3300 XL 8mm Eddy Current Proximity Probe System — one of the most widely deployed machinery protection platforms in the oil & gas, power generation, and petrochemical industries. This specific configuration (8mm probe diameter, 10-32 UNF thread, 00-118 cable designation, 03-02 connector variant) is engineered for installations requiring precise mechanical integration in confined or high-vibration environments. As an OEM-specified component, it is referenced in API 670-compliant monitoring systems across hundreds of industrial facilities worldwide.
Technical Specifications
- Part Number: 21000-16-10-00-118-03-02
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL 8mm Eddy Current Proximity Probe System
- Component Type: Proximity Probe Housing Assembly
- Probe Diameter: 8mm
- Thread: 10-32 UNF
- Cable Designation: 00-118
- Connector Variant: 03-02
- Weight: Approx. 1,080 g (complete assembly)
- Compliance: Designed for API 670 machinery protection systems
Note: All specifications are based on Bently Nevada published documentation. Always verify against the official datasheet for safety-critical installations.
Key Features & Benefits
- Precision Mechanical Alignment: Housing geometry maintains the critical probe-to-target gap for accurate eddy current measurement, eliminating signal drift from misalignment.
- Robust Industrial Construction: Engineered for continuous operation in high-vibration, high-temperature environments typical of rotating machinery installations.
- OEM-Specified Configuration: Exact part number ensures full compatibility with existing 3300 XL system wiring, connectors, and monitor inputs — no field modifications required.
- Drop-in Replacement: Direct replacement for worn or damaged housing assemblies, minimizing maintenance downtime during scheduled outages.
- API 670 Ready: Supports compliance with API Standard 670 for machinery protection in critical rotating equipment.
- Global MRO Availability: Stocked and sourced through Konmask.com with competitive lead times for both MRO and project procurement.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumping stations
- Power Generation: Steam turbines, hydro generators, gas turbine-generators
- Petrochemical & Refining: Process compressors, reactor agitators, boiler feed pumps
- Marine & Offshore: Propulsion systems, offshore platform rotating equipment
- Mining & Pulp/Paper: High-speed fans, crushers, and mill drive systems
System Integration & Compatible Parts
The 21000-16-10-00-118-03-02 housing assembly integrates with the Bently Nevada 3300 XL 8mm Proximity Probe System. Commonly paired components include:
- Bently Nevada 3300 XL 8mm Proximity Probes (21000 series variants)
- Bently Nevada 3300 XL Extension Cables (330130 series)
- Bently Nevada 3300 XL Proximitor Sensors (330180 / 330101 series)
- Bently Nevada 3500 Series Vibration Monitoring Rack (3500/42M, 3500/40M)
- Bently Nevada TK-3 Proximitor Calibration Kit
Always confirm system compatibility using the Bently Nevada System 1 configuration tool or consult your instrumentation engineer before ordering.
Our Quality Assurance Process
- Source Verification: All parts are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Dimensional Inspection: Each unit undergoes physical inspection for connector integrity, thread condition, housing damage, and labeling accuracy.
- Documentation Package: Certificate of conformance and packing list provided with every shipment.
- Secure Packaging: Anti-static and shock-resistant packaging to protect sensitive probe assemblies during international transit.
How to Order
- Submit your inquiry via the Contact Us form or email [email protected] with your part number and required quantity.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange secure packaging and international shipping with full tracking.
- Post-delivery support available for documentation, customs clearance assistance, and technical queries.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, and instrumentation components — we speak your engineering language.
- Global Sourcing Network: Access to hard-to-find and obsolete parts across major automation brands including Bently Nevada, Emerson, ABB, Siemens, and Honeywell.
- B2B Inquiry-First Model: No pressure purchasing — get a verified quote before committing to any order.
- Technical Pre-Sales Support: Our engineers help you confirm compatibility and avoid costly ordering mistakes.
- Competitive Lead Times: Expedited sourcing for shutdown and turnaround (TAR) scenarios.
Frequently Asked Questions
- Q: Is the 21000-16-10-00-118-03-02 a genuine Bently Nevada part?
- A: We source from verified supply chains and provide documentation upon request. Contact us to confirm the specific origin and certification for your order.
- Q: Can this housing assembly be used with non-Bently Nevada probes?
- A: This housing is designed specifically for the Bently Nevada 3300 XL 8mm probe system. Using it with non-OEM probes may compromise measurement accuracy and system compliance. Consult your instrumentation engineer.
- Q: What is the typical lead time?
- A: Lead times vary by stock availability. Submit an inquiry and we will respond within 24 business hours with confirmed availability and estimated delivery.
- Q: Do you provide export documentation for international shipments?
- A: Yes. We provide commercial invoices, packing lists, and certificates of conformance. Additional documentation (e.g., MSDS, country-of-origin certificates) can be arranged upon request.
- Q: Can I order a single unit or only in bulk?
- A: We accommodate both single-unit MRO orders and bulk project procurement. Pricing is provided per inquiry.
