Vibration Monitoring Solution – Bently Nevada 24765-01-00 | 3500 Series Proximitor I/O Module

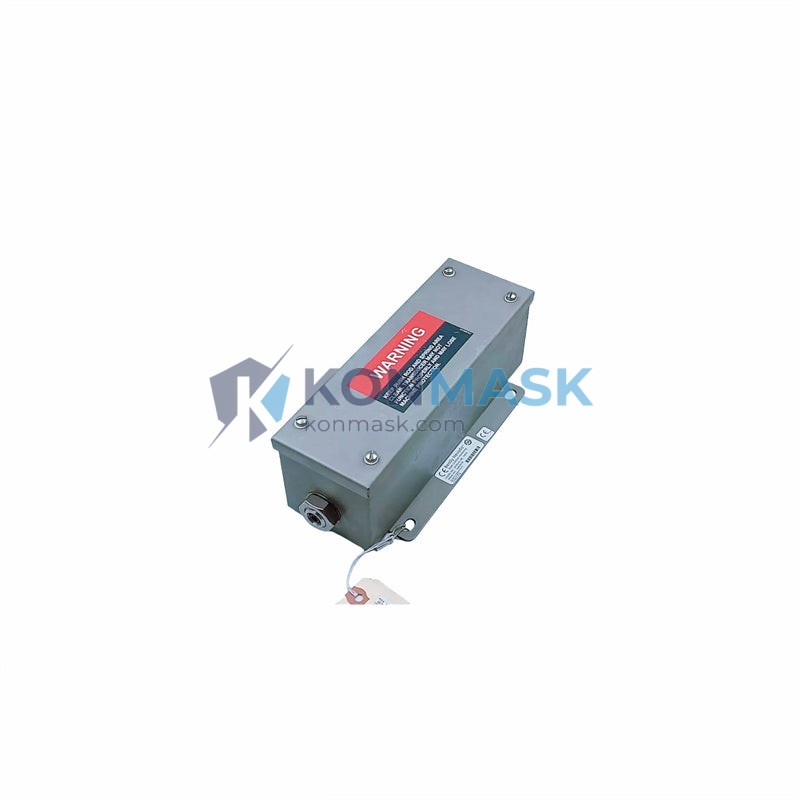

The Bently Nevada 24765-01-00 is a Proximitor I/O Module designed for the 3500 Series machinery protection system. It serves as the critical interface between proximity probes and the 3500 rack, enabling continuous, real-time vibration and position monitoring for rotating machinery in demanding industrial environments.
Where This Product Is Used
The 24765-01-00 is deployed across a wide range of heavy-industry applications where rotating machinery protection is mission-critical:
- Gas & Steam Turbines – Shaft radial vibration and axial position monitoring to prevent catastrophic failure.
- Centrifugal & Axial Compressors – Real-time displacement measurement for compressor trains in oil & gas plants.
- Pumps & Fans – Continuous bearing health monitoring in power generation and water treatment facilities.
- Gearboxes – Gear mesh frequency and shaft orbit analysis in petrochemical and refining operations.
- Marine Propulsion Systems – Shaft monitoring on vessels requiring ABS/DNV-certified protection systems.
- LNG & Offshore Platforms – Hazardous-area machinery protection where SIL-rated systems are mandated.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 24765-01-00 |
| Series | Bently Nevada 3500 |
| Module Type | Proximitor I/O Module |
| Input Channels | 4 (Proximity Probe Inputs) |
| Probe Compatibility | 3300 XL / 7200 Series Proximity Probes |
| Output Signal | –24 VDC Proximitor Supply |
| Communication | 3500 Rack Backplane Bus |
| Operating Temperature | 0°C to +60°C |
| Weight | 1,280 g (approx.) |
| Certifications | CE, FM, CSA, ATEX (rack-level) |
Why Engineers Specify This Model
- Seamless 3500 Rack Integration – Plug-and-play compatibility with all 3500 Series monitor cards and the 3500/20 rack.
- High-Accuracy Signal Conditioning – Delivers clean, low-noise DC gap voltage to downstream monitor modules.
- Redundancy Support – Compatible with 3500 dual-voting and redundant rack configurations for SIL 2 applications.
- Wide Probe Compatibility – Works with Bently Nevada 3300 XL 8mm, 11mm, and 7200 series proximity transducer systems.
- Proven Field Reliability – Installed base spanning 40+ years across global turbomachinery fleets.
Complete System Bill of Materials
For a complete 3500 Series vibration monitoring loop, the following components are typically required alongside the 24765-01-00:
- 3500/20 Rack (133388-01) – 19″ rack chassis with power supply
- 3500/22M Transient Data Interface (288055-01) – For waveform capture
- 3500/42M Proximitor Monitor (176449-02) – 4-channel radial vibration monitor
- 3300 XL 8mm Proximity Transducer System (330130-080-00-00) – Probe, extension cable, driver
- 3500/92 Communication Gateway (149986-02) – Modbus/TCP or OPC interface to DCS/SCADA
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition) compliant architecture
- IEC 61511 – Functional Safety for SIL-rated protection loops
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation standards
- ATEX / IECEx – Rack-level hazardous area certification (Zone 1/2)
- CE Marking – EU EMC and Low Voltage Directive compliance
Quality Assurance & Sourcing
- ✅ Genuine & Tested – All units sourced from authorized channels or verified surplus with full functional testing.
- ✅ Inspection Report Available – Pre-shipment inspection documentation on request.
- ✅ Warranty – 12-month warranty against manufacturing defects.
- ✅ Traceability – Serial number and firmware version recorded for every unit shipped.
- ✅ Packaging – ESD-safe anti-static packaging with foam cushioning for safe international transit.
How to Source This Part
- Add to Cart – Click Buy Now or Add to Cart to proceed directly.
- Request a Quote – Email support@konmask.com with your required quantity and delivery timeline.
- Bulk / Project Orders – Contact us for volume pricing and project-based procurement support.
- Lead Time – In-stock units ship within 2–5 business days. Ex-stock lead time quoted on request.
- Export & Customs – We handle export documentation, HS code classification, and customs declarations for international shipments.
Application-Specific FAQ
Q: Is the 24765-01-00 compatible with the 3500/42M monitor card?
A: Yes. The 24765-01-00 Proximitor I/O Module interfaces directly with the 3500/42M 4-channel radial vibration monitor within the same 3500 rack.
Q: Can this module be used with non-Bently Nevada proximity probes?
A: It is optimized for Bently Nevada 3300 XL and 7200 series probes. Third-party probes with matching sensitivity (–200 mV/mil or –7.87 V/mm) may be compatible but require validation.
Q: What is the difference between 24765-01-00 and 24765-02-00?
A: The -02-00 suffix denotes a hardware revision with minor PCB or firmware updates. Functionally both are interchangeable in standard 3500 rack configurations. Confirm with your system integrator for SIL-rated loops.
Q: Do you provide calibration certificates?
A: Yes. Calibration certificates traceable to NIST/PTB standards are available upon request for an additional fee.
Q: Can this part be shipped internationally?
A: All exports comply with applicable trade regulations including EAR. We will advise on any restrictions at the time of order.
