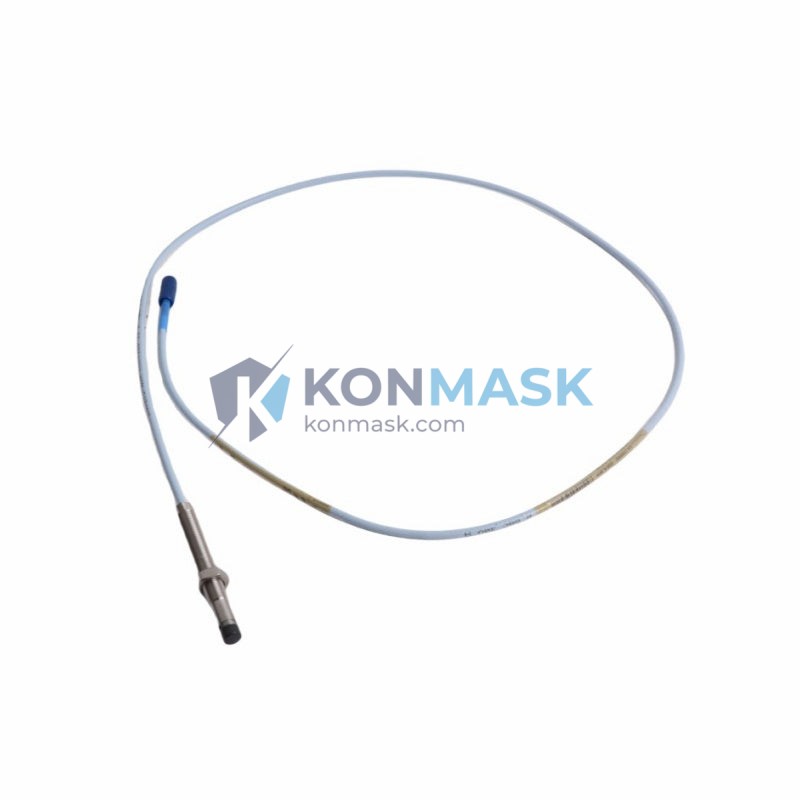

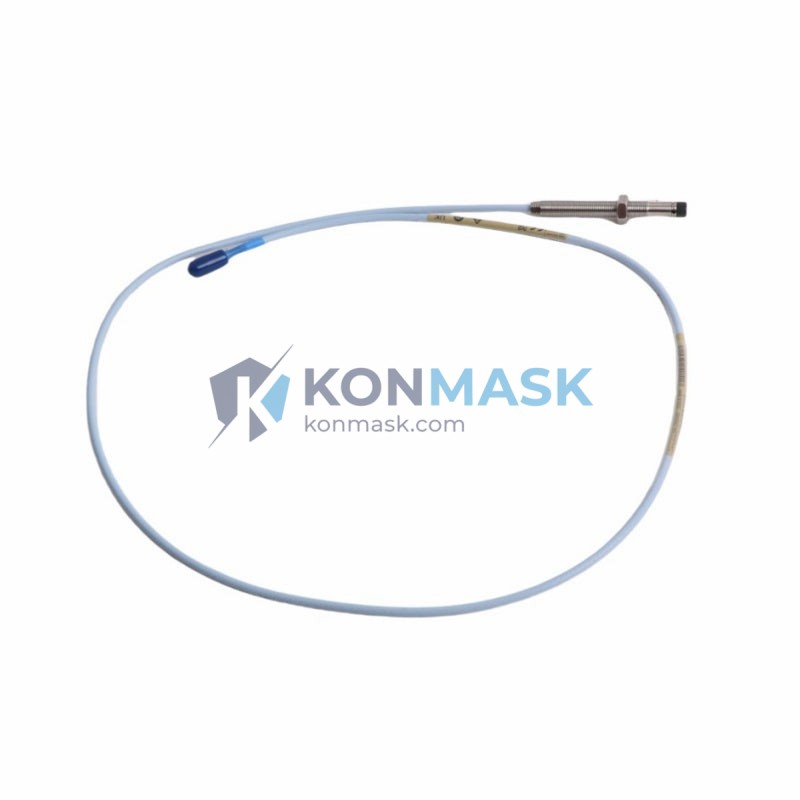

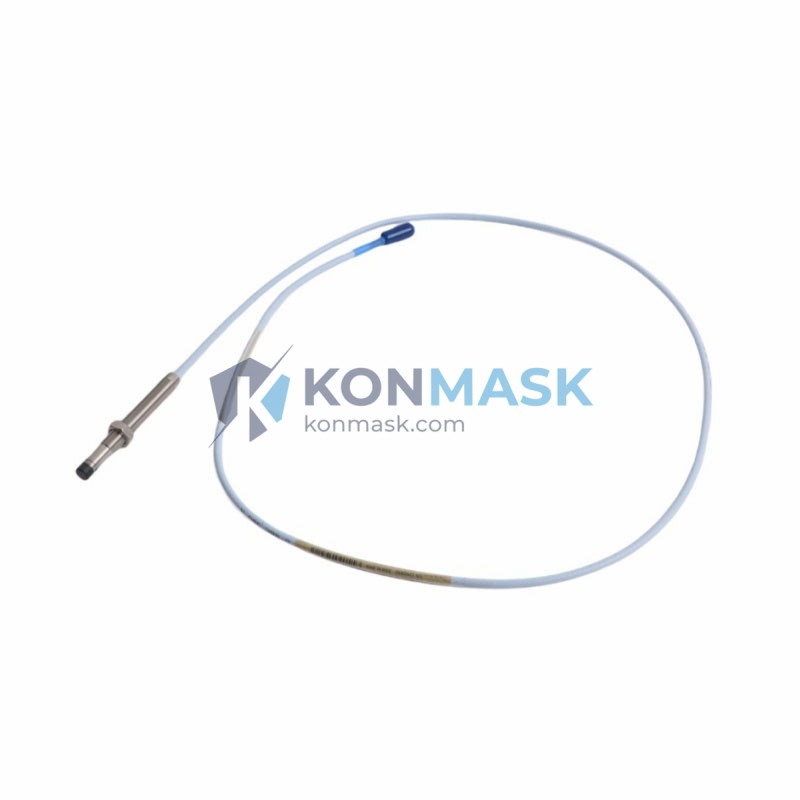

Bently Nevada 330101-00-09-15-12-CN Eddy-Current Proximity Transducer System – 3300 XL 8 mm Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in the worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. The Bently Nevada 330101-00-09-15-12-CN proximity transducer system is the precision sensing component that stands between normal operation and disaster — providing continuous, non-contact measurement of shaft radial vibration and position with micron-level accuracy.
Within the renowned Bently Nevada 3300 XL Series — the industry benchmark for machinery protection systems — the 330101-00-09-15-12-CN represents the 8 mm eddy-current proximity transducer configuration optimized for standard industrial shaft monitoring applications. This series is deployed across power generation, oil & gas, petrochemical, and heavy manufacturing facilities worldwide, and is fully compatible with Bently Nevada 3500 Series rack-based monitoring systems. Its global installed base and proven reliability make it one of the most trusted transducer systems in industrial automation.
Technical Specifications
- Part Number: 330101-00-09-15-12-CN
- Series: Bently Nevada 3300 XL
- Probe Tip Diameter: 8 mm
- System Type: Eddy-Current Proximity Transducer System
- Extension Cable Length: 9 m
- Total System Cable Length: 15 m
- Driver/Oscillator: 3300 XL compatible Proximitor® Sensor
- Output Bias Voltage: -24 VDC nominal
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: Approx. 0.25 mm to 2.25 mm (10 to 90 mil)
- Probe Temperature Range: -35°C to +177°C
- Connector Type: CN (Chinese market standard)
- Agency Approvals: CE, CSA, FM (refer to official datasheet for full certifications)
Note: Specifications are based on published Bently Nevada documentation. Always verify against the official datasheet for your specific application.
Key Features & Benefits
- Non-Contact Measurement: Eliminates mechanical wear; ideal for continuous 24/7 monitoring of rotating shafts without physical contact.
- High Sensitivity & Linearity: 7.87 V/mm output ensures precise detection of even minor shaft displacement changes critical for early fault detection.
- CN Connector Configuration: Designed for Chinese industrial standards, simplifying installation and direct replacement in domestic facilities without adapter modifications.
- 3300 XL System Compatibility: Drop-in replacement within existing 3300 XL infrastructure — no recalibration of the monitoring rack required upon substitution.
- Robust Stainless Steel Construction: Probe body withstands harsh environments including oil mist, high temperatures, chemical exposure, and continuous vibration.
- Wide Temperature Tolerance: Reliable performance from cryogenic to high-temperature process environments (-35°C to +177°C).
- OEM-Grade Traceability: Sourced from authorized channels; each unit traceable to Bently Nevada manufacturing standards with documentation available.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring per API 670.
- Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — API 670 compliant machinery protection systems.
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, process compressors in continuous-process environments.
- Heavy Manufacturing: Large induction motors, gearboxes, rolling mill drives requiring continuous condition monitoring.
- Marine & Offshore: Propulsion systems and auxiliary machinery requiring continuous vibration surveillance in harsh environments.
- Pulp & Paper / Mining: High-speed rotating equipment where unplanned downtime carries significant production cost.
System Integration & Compatible Parts
The 330101-00-09-15-12-CN integrates seamlessly within the Bently Nevada 3300 XL and 3500 Series ecosystem. Commonly paired components include:
- Bently Nevada 3300 XL Extension Cable – 330130 Series
- Bently Nevada 3300 XL Proximitor® Sensor / Driver – 330180 Series
- Bently Nevada 3500/42M Proximitor®/Seismic Monitor Module
- Bently Nevada 3500/22M Transient Data Interface
- Bently Nevada System 1® Condition Monitoring Software
Contact our technical team to confirm compatibility with your existing rack configuration before placing an order.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component undergoes a rigorous intake and verification process before shipment:
- Source Verification: Products sourced exclusively from authorized distributors and verified OEM supply chains.
- Visual & Physical Inspection: Each unit inspected for connector integrity, cable condition, probe tip condition, and label authenticity.
- Documentation Check: Traceability documents, certificates of conformance, and original packaging verified where available.
- Functional Testing: Where applicable, units bench-tested for output voltage and sensitivity prior to shipment.
- Secure Packaging: Anti-static, shock-resistant packaging with moisture protection for international freight.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page with your required quantity and delivery timeline.
- Our technical sales team confirms availability, lead time, and provides a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange secure packaging and international shipping with full tracking.
- Export documentation (commercial invoice, packing list, certificate of origin) provided for all international orders.
For urgent requirements or large-volume orders, contact us directly at support@konmask.com or call +0086 19859288691.
Why Choose Konmask.com?
- ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, vibration monitoring, and control system components — no generalist catalog noise.
- ✅ Global B2B Supply: Serving engineering firms, EPC contractors, and MRO teams across Asia, Europe, the Middle East, and the Americas.
- ✅ Fast RFQ Response: Dedicated technical sales team responds to all inquiries within 24 business hours.
- ✅ Competitive Pricing: Direct sourcing relationships enable competitive pricing without compromising authenticity or traceability.
- ✅ Export Expertise: Full export documentation, flexible Incoterms (EXW, FOB, CIF), and experience with customs requirements in 50+ countries.
- ✅ Long-Term Partnership: Supporting your entire project lifecycle — from initial procurement to ongoing spare parts management.
Frequently Asked Questions
Q: What does the “CN” suffix mean in part number 330101-00-09-15-12-CN?
A: The “CN” suffix designates a Chinese-market connector configuration. It uses a connector standard common in Chinese industrial installations and is functionally equivalent to the standard 330101 series, but with a localized connector type for easier domestic integration without adapters.
Q: Is the 330101-00-09-15-12-CN compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The 3300 XL proximity transducer system is designed to interface with Bently Nevada 3500 Series monitor modules, including the 3500/42M Proximitor®/Seismic Monitor. Always verify your specific rack module’s input requirements before installation.
Q: Can you supply a Certificate of Conformance (CoC) with this part?
A: We provide available traceability documentation with each shipment. Please specify your documentation requirements at the time of inquiry so we can confirm what is available for your specific order.
Q: What is the typical lead time for the 330101-00-09-15-12-CN?
A: In-stock units typically ship within 3–5 business days. For out-of-stock items, lead time is typically 2–6 weeks depending on supply chain. Contact us for a real-time availability check.
Q: Do you accept returns or offer a warranty?
A: We offer a quality guarantee on all products. If a unit is found to be non-conforming upon receipt, we will arrange replacement or refund. Please review our full warranty and returns policy or contact our team for details.
Q: What is the difference between the 330101 probe and the 330105 probe?
A: The 330101 is an 8 mm diameter probe optimized for standard shaft monitoring ranges, while the 330105 is a 5 mm probe designed for smaller shaft diameters or tighter installation clearances. Selection depends on your shaft size and gap requirements.
