Bently Nevada 330101-00-23-05-02-00 Proximity Transducer System – 3300 XL 8mm Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, irreversible damage to turbines, compressors, or pumps worth millions of dollars. In high-stakes industrial environments — power generation, oil & gas, petrochemical — continuous shaft proximity measurement is not optional. It is the last line of defense between normal operation and disaster.

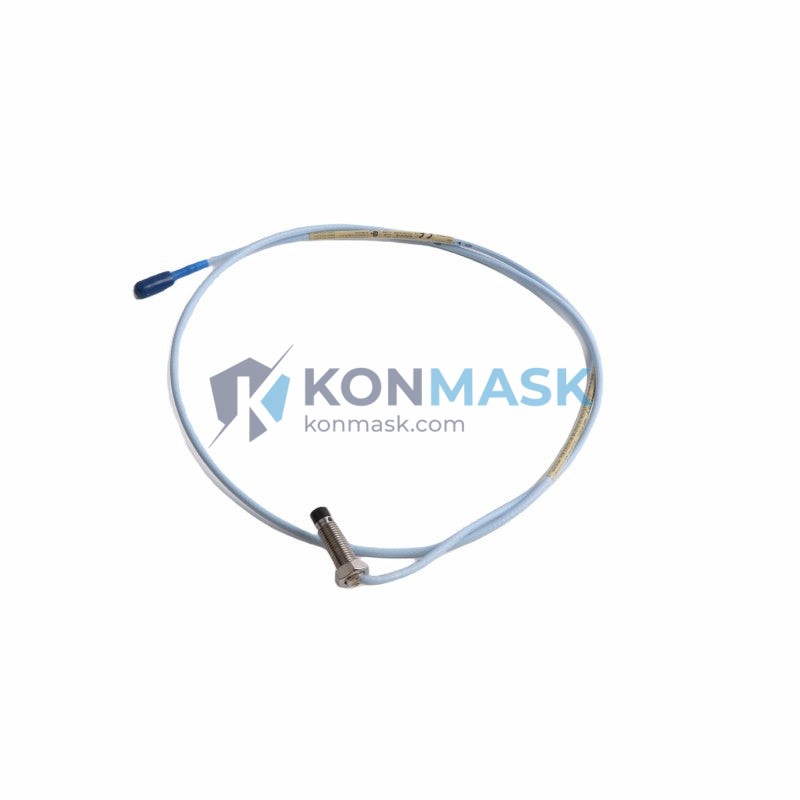

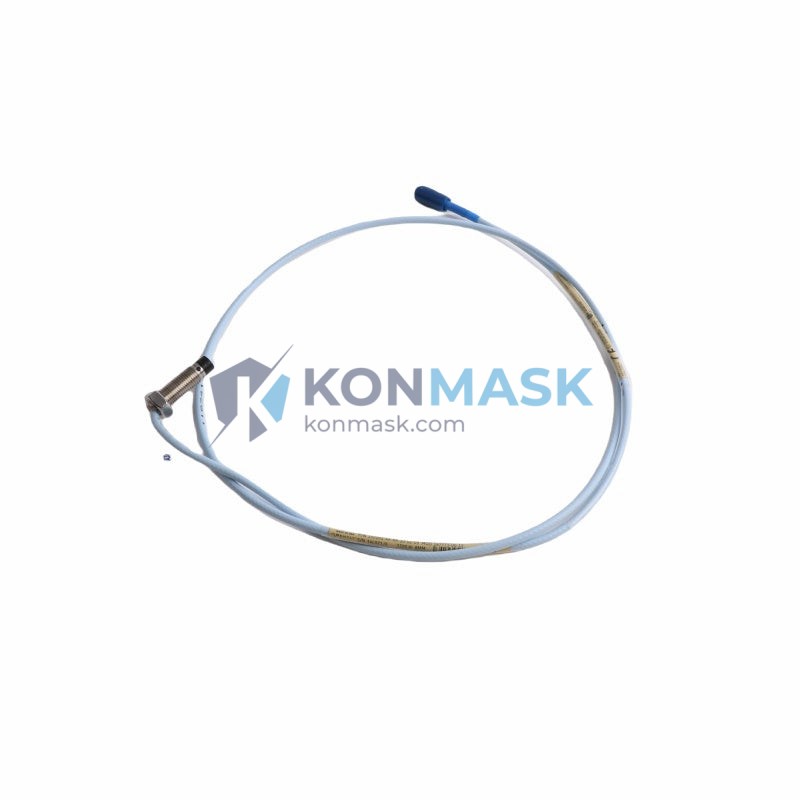

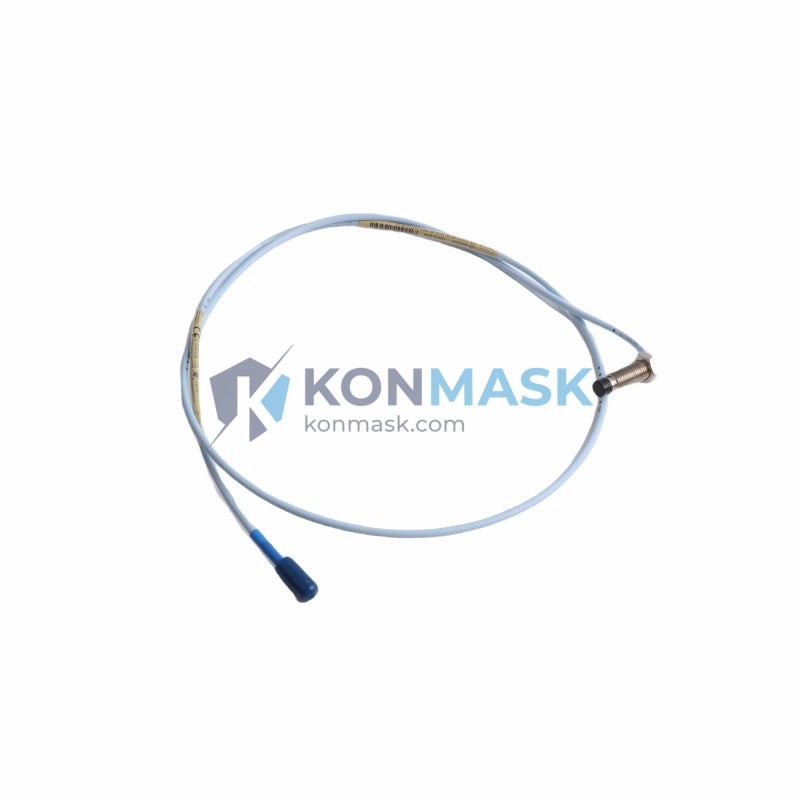

The Bently Nevada 330101-00-23-05-02-00 is a precision-engineered proximity transducer system within the globally trusted 3300 XL 8mm Series platform. Designed to deliver non-contact, eddy-current-based shaft displacement measurement, this system is the industry benchmark for rotating machinery protection. The 3300 Series is deployed across thousands of critical assets worldwide, and the 330101-00-23-05-02-00 configuration — with its specific cable length, extension cable, and connector specifications — is engineered for exact OEM replacement and seamless integration into existing Bently Nevada monitoring racks.
Technical Specifications
- Part Number: 330101-00-23-05-02-00
- Series: Bently Nevada 3300 XL 8mm Proximity Transducer System
- Type: Eddy-Current Proximity Transducer System
- Measurement: Non-contact radial shaft displacement / vibration
- Probe Tip Diameter: 8 mm (standard)
- Probe Cable Length: 5 m (as per part number configuration)
- Extension Cable Length: 2 m (as per part number configuration)
- Connector Type: Standard BNC / integral per configuration
- Operating Temperature: -35°C to +177°C (probe); -35°C to +85°C (driver)
- Output Signal: -24 VDC nominal bias voltage, linear voltage output
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 2.25 mm (10 mil to 90 mil)
- Agency Approvals: CE, FM, CSA (refer to OEM documentation for full certifications)
- Weight: 40 g (probe assembly)
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, ensuring long-term reliability in continuous 24/7 operation.
- OEM-Exact Replacement: Full part number 330101-00-23-05-02-00 ensures drop-in compatibility with existing 3300 Series monitoring systems — no recalibration of the rack required.
- High-Temperature Tolerance: Probe rated to +177°C, suitable for hot bearing housings and high-ambient turbine environments.
- Wide Linear Range: 0.25–2.25 mm linear range provides accurate measurement across normal and fault-condition shaft positions.
- Plug-and-Play Integration: Pre-matched probe, extension cable, and driver/oscillator eliminate field calibration complexity.
- Global Compliance: CE, FM, and CSA approvals support deployment in North American, European, and international facilities.
- Proven Field Reliability: The 3300 Series has accumulated decades of operational history in the world’s most demanding rotating machinery applications.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and position monitoring.
- Oil & Gas: Pipeline compressors, gas injection pumps, LNG processing trains — API 670 compliant machinery protection.
- Petrochemical & Refining: Centrifugal pumps, blowers, expanders — continuous process protection.
- Pulp & Paper / Steel: Large motor-driven equipment requiring continuous shaft monitoring.
- Marine & Offshore: Propulsion systems and auxiliary machinery on vessels and platforms.
- General Industrial: Any rotating machinery where API 670 or equivalent vibration monitoring standards apply.
System Integration & Compatible Parts
The 330101-00-23-05-02-00 is designed to operate within the Bently Nevada 3300 Series ecosystem. Compatible and commonly paired components include:
- 3300 XL 8mm Proximity Transducer System — same-series probes for multi-point installations
- Bently Nevada 3500 Series Monitoring Rack — primary rack platform for API 670 machinery protection
- 3300 Series Extension Cables — matched impedance cables for signal integrity
- Bently Nevada 3300 RAM Driver — oscillator/demodulator for signal conditioning
- Keyphasor Transducers — for phase reference in vibration analysis
Always verify the complete system configuration (probe + extension cable + driver) to ensure matched sensitivity and linear range before installation.
Our Quality Assurance Process
- Source Verification: All Bently Nevada parts are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Dimensional Inspection: Each unit undergoes physical inspection for connector integrity, cable condition, and label authenticity.
- Functional Testing: Where applicable, proximity transducer systems are bench-tested for output bias voltage and sensitivity prior to shipment.
- Secure Packaging: Anti-static, shock-protected packaging with individual part number labeling for safe international transit.
- Documentation: Certificate of conformance and test records available upon request.
How to Order
- Submit your inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 hours.
- Upon order confirmation, we arrange secure export packaging and international logistics.
- Tracking information and shipping documents (commercial invoice, packing list, COC) are provided upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC, DCS, and rotating machinery components — not a general marketplace.
- Global Stock Access: We maintain relationships with verified suppliers across Asia, Europe, and North America to source hard-to-find part numbers.
- Technical Pre-Sales Support: Our engineers can assist with cross-referencing, compatibility verification, and system configuration advice.
- Fast Response: RFQ responses within 24 hours; urgent requirements accommodated.
- Secure International Shipping: Experienced in export compliance, customs documentation, and safe packaging for sensitive industrial electronics.
- Trusted by Engineers Worldwide: Serving maintenance teams, EPC contractors, and OEM service providers across 30+ countries.
Frequently Asked Questions
Q: Is the 330101-00-23-05-02-00 a new or refurbished unit?
A: We supply both new (factory-sealed) and professionally tested surplus units. Condition is clearly stated in the quotation. All units pass our QA inspection before shipment.
Q: Can this transducer system be used as a direct replacement in a Bently Nevada 3500 rack?
A: Yes. The 3300 Series 8mm proximity transducer system is the standard input for Bently Nevada 3500 Series monitor cards. Verify the cable lengths match your installation gap requirements.
Q: What is the lead time for this part number?
A: Lead time varies by stock availability. In-stock units typically ship within 3–5 business days. Out-of-stock items are sourced within 2–4 weeks. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Yes. We offer a 90-day functional warranty on all tested surplus units and standard OEM warranty terms on new factory units.
Q: Can you supply multiple units or a complete 3300 Series system?
A: Yes. We can supply single units, bulk quantities, and complete matched probe-cable-driver systems. Please specify your requirements in your RFQ.
Q: Do you export to my country?
A: We ship internationally to most countries. Contact us with your destination for shipping options, lead times, and any applicable export documentation requirements.
