Bently Nevada 330102-00-40-10-11-05 Proximity Probe | Replacement, Equivalent & Selection Guide

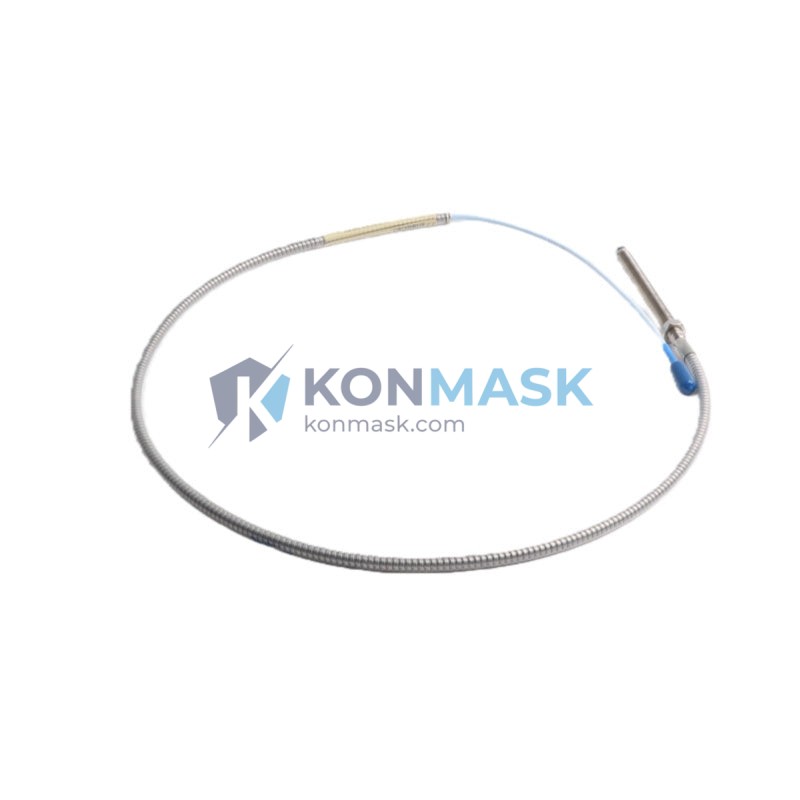

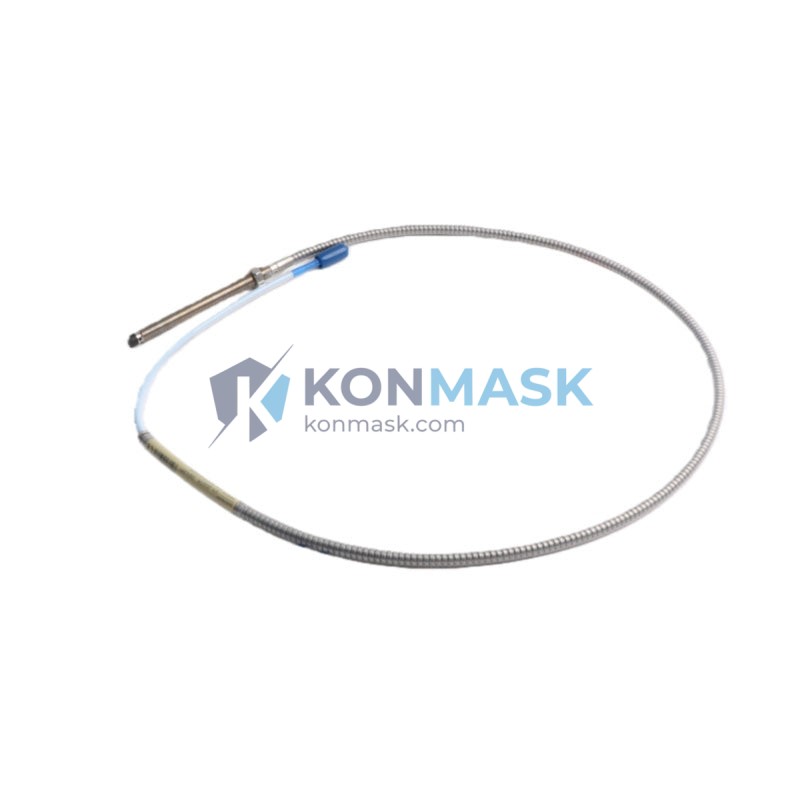

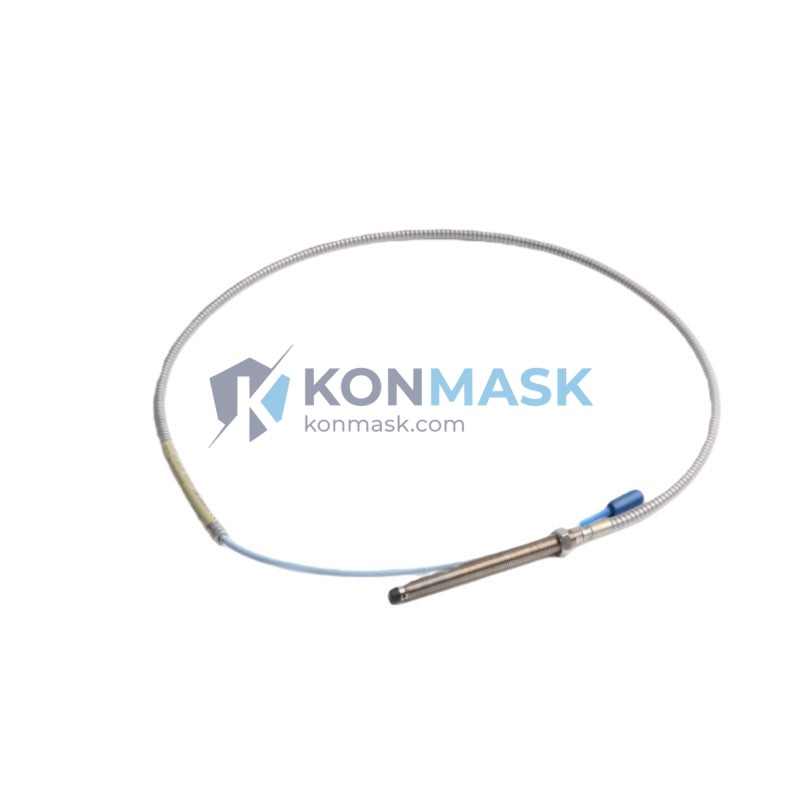

The Bently Nevada 330102-00-40-10-11-05 is an 8 mm eddy-current proximity probe designed for the 3300 XL Proximity Transducer System. It delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery — making it a critical component in turbine, compressor, and pump protection systems worldwide.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330102-00-40-10-11-05 |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 m (40 in) integral cable |
| Thread Size | M10 × 1 |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.26 mm (10 – 89 mil) |
| Frequency Response | DC – 10,000 Hz (±3 dB) |
| Temperature Range | −35 °C to +177 °C (probe body) |
| Target Material | AISI 4140 steel (standard) |
| Connector | Integral coaxial cable, armored |
| Approvals | CE, ATEX, IECEx (intrinsically safe options) |
| Weight | ~140 g |
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330102-00-40-10-11-05. Always verify electrical and mechanical compatibility before substitution:
| Part Number | Brand | Notes |
|---|---|---|
| 330102-00-40-10-10-05 | Bently Nevada | Same probe, standard (non-armored) cable variant |
| 330102-00-40-10-02-05 | Bently Nevada | Metric connector variant |
| 330104-00-40-10-11-05 | Bently Nevada | 14 mm probe — verify gap & driver compatibility |
| PR6423/010-100 | Epro (Baker Hughes) | 8 mm eddy-current probe, 3300 XL compatible driver |
| PR6423/010-101 | Epro | Extended temperature variant |
| CS-1 / CS-3 | Metrix / Wilcoxon | Functional equivalent; requires recalibration |
⚠ Note: Third-party equivalents may require driver reconfiguration and gap voltage re-verification. Contact Konmask for compatibility assessment.
Why Choose the Original Model
- Factory-calibrated sensitivity — 7.87 V/mm matched to Bently Nevada drivers for plug-and-play replacement
- Armored integral cable — the “-11-” suffix denotes armored cable construction for harsh industrial environments
- OEM traceability — full documentation and certificates of conformance available
- System-level warranty — maintains 3300 XL system warranty when using genuine parts
- Long-term availability — Konmask stocks genuine and certified-equivalent units for rapid dispatch
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing journal orbit analysis
- Differential expansion and thrust position measurement
- Gearbox and expander condition monitoring
- API 670 machinery protection systems
System Compatibility
The 330102-00-40-10-11-05 probe is designed to operate within the Bently Nevada 3300 XL Proximity Transducer System, which includes:
- Extension Cable: 330130-XX-XX (1 m or 5 m, matched to probe cable length)
- Driver / Oscillator-Demodulator: 330180-X1-05 / 330180-X1-CN (standard); 3300 XL 8 mm driver
- Monitor: 3300/16, 3500/40M, 3500/42M, 3500/45, 3500/46M (Bently Nevada 3500 rack)
- Power Supply: −24 VDC (nominal), supplied by monitor or external conditioner
Ensure total cable system length (probe + extension) matches the driver calibration (typically 5 m or 9 m total).
Selection Guide
Use the part number structure to select the correct variant:
330102 - 00 - [Cable Length] - [Thread] - [Cable Type] - [Approval]
8mm Standard 10=M10×1 11=Armored 05=CE/ATEX
Cable Length: 40=1.0m | 50=1.5m | 80=2.0m
Cable Type: 10=Standard | 11=Armored | 02=Metric connector
Approval: 05=CE/ATEX | 00=Standard
If your application requires a different cable length or approval rating, contact Konmask — we can source the exact variant.
Quality Assurance & Sourcing
- ✅ Genuine OEM units sourced from authorized Bently Nevada / Baker Hughes distribution channels
- ✅ Certified-equivalent units (Epro PR6423 series) available with full calibration certificates
- ✅ Each unit inspected and tested against sensitivity and linearity specifications before dispatch
- ✅ Certificate of Conformance (CoC) and test reports available on request
- ✅ Secure anti-static packaging with tamper-evident sealing
How to Order
- Confirm your total cable system length (probe + extension cable)
- Verify your driver model (330180 series or 3300 XL driver)
- Check installation thread (M10 × 1 standard for 330102)
- Specify approval requirements (ATEX Zone 1/2, IECEx, or standard)
- Contact Konmask with your PO or inquiry — lead time typically 3–7 business days for stocked units
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a 330102-00-40-10-10-05 (non-armored) in place of the -11- (armored) variant?
A: Electrically identical. The only difference is cable construction. Use armored (-11-) in high-vibration or abrasive environments.
Q: Is the Epro PR6423/010-100 a direct drop-in replacement?
A: Yes, when paired with a compatible Epro driver. If using a Bently Nevada 330180 driver, gap voltage re-verification is required.
Q: What gap voltage should I set for this probe?
A: Nominal gap voltage is −10.0 VDC (corresponding to ~1.0 mm gap on AISI 4140 steel target). Refer to Bently Nevada TDI 141-109-000 for full calibration procedure.
Q: Can this probe be used with the Bently Nevada 3500 system?
A: Yes. The 3300 XL probe system is fully compatible with 3500 series monitors (3500/40M, 3500/42M, 3500/45, 3500/46M).
Q: Do you provide calibration certificates?
A: Yes. CoC and calibration data sheets are available for all units. Request at time of order.
