Genuine Bently Nevada 330104-01-09-10-11-05 Eddy Current Proximity Probe | 3300 XL Series – Verified Source

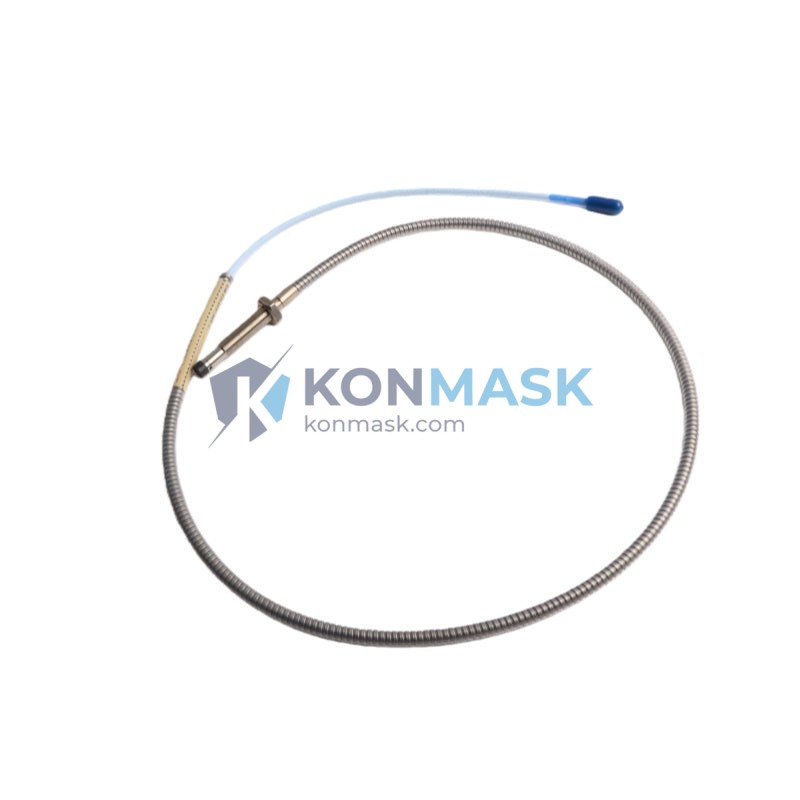

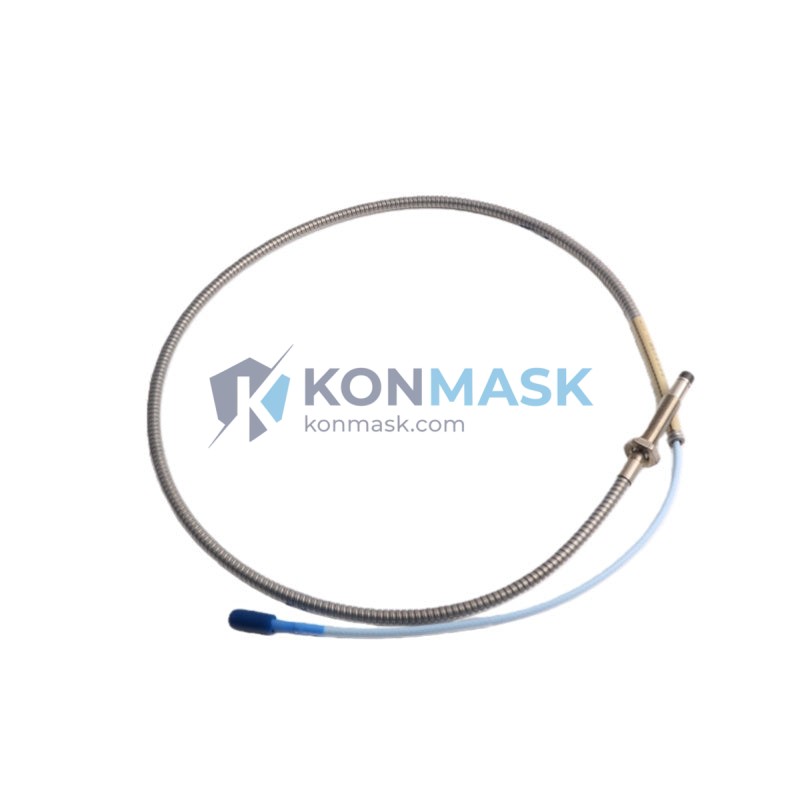

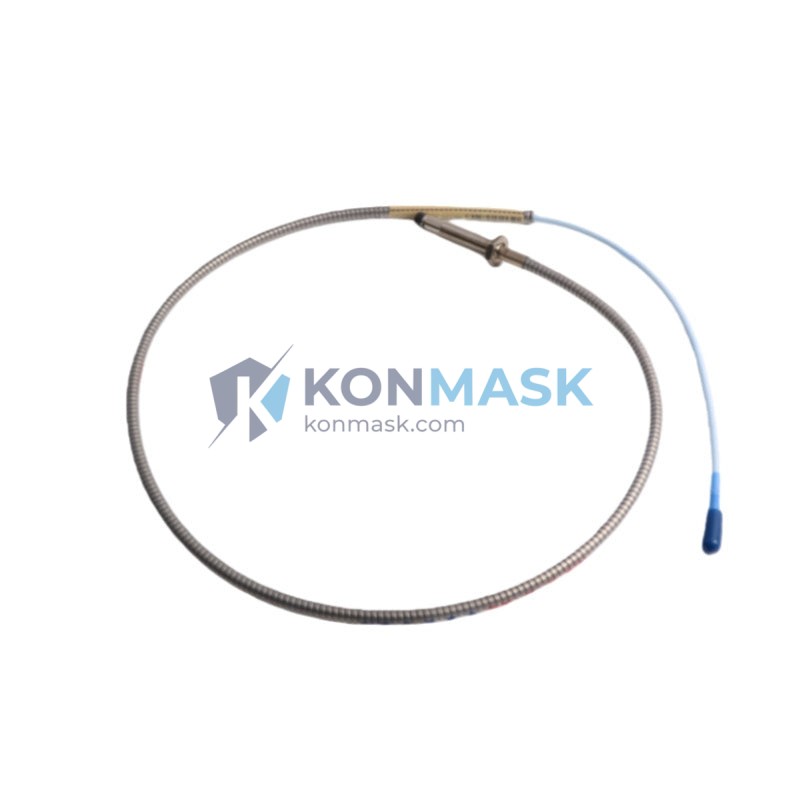

The Bently Nevada 330104-01-09-10-11-05 is a high-precision eddy current proximity probe from the industry-leading 3300 XL Series. Designed for continuous shaft vibration and position monitoring in rotating machinery, this probe delivers the measurement accuracy and long-term reliability that critical industrial applications demand. Sourced through verified supply channels and inspected before shipment by Konmask.com.
Technical Specifications
- Part Number / SKU: 330104-01-09-10-11-05
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Sensing Technology: Eddy Current (Non-contact)
- Probe Tip Diameter: 8 mm
- Cable Length: 5 m (standard extension cable)
- Operating Temperature: -35°C to +177°C
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 mm to 2.54 mm (10 to 100 mil)
- Supply Voltage: -24 VDC (nominal)
- Output: -1 VDC to -19 VDC
- Connector: Integral, armored cable
- Weight: Approx. 160 g
- Compliance: CE, RoHS
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured exclusively from authorized distributors or OEM-certified supply chains. No grey-market or refurbished stock.
- Step 2 – Physical Inspection: Each probe is visually inspected for housing integrity, connector condition, cable sheathing, and label authenticity before listing.
- Step 3 – Documentation Check: Serial numbers, date codes, and batch markings are cross-referenced against manufacturer records where available.
- Step 4 – Secure Packaging: Units are packed in anti-static, shock-resistant packaging with tamper-evident seals to ensure safe delivery.
Key Features & Benefits
- Non-contact measurement eliminates mechanical wear for extended service life
- High-frequency response captures transient vibration events in real time
- Robust armored cable withstands harsh industrial environments (oil, heat, vibration)
- Direct drop-in replacement for existing 3300 XL system installations
- Consistent sensitivity calibration reduces commissioning time
- Compact 8 mm tip fits tight machine clearances
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing displacement sensing
- Gearbox and expander machinery protection systems
- API 670-compliant machinery protection installations
Compatible System Components
- Extension Cable: Bently Nevada 330130 Series (5 m, 9 m)
- Proximitor Sensor: Bently Nevada 3300 XL 8 mm Proximitor (330180 Series)
- Monitors: Bently Nevada 3500 Series Machinery Protection System
- Junction Box: Bently Nevada 3300 XL Field Wiring Enclosure
Global Sourcing & Shipping Capabilities
Konmask.com maintains established logistics partnerships to support industrial buyers worldwide. We ship to North America, Europe, Southeast Asia, the Middle East, and beyond. Standard lead time is 3–7 business days for in-stock units. Expedited options are available upon request. All shipments include a commercial invoice, packing list, and tracking number. For large-volume or project-based orders, contact us for a dedicated freight quotation.
Certifications & Compliance Statement
The Bently Nevada 330104-01-09-10-11-05 is manufactured to meet or exceed the following standards:
- API 670 – Machinery Protection Systems
- CE Marking – European Conformity
- RoHS Directive – Restriction of Hazardous Substances
- ISO 10816 / ISO 7919 – Mechanical vibration evaluation standards
Konmask.com does not alter, re-label, or modify any manufacturer components. All products are sold as-received from the supply chain.
How to Order
- Click Add to Cart and proceed to checkout for standard orders.
- For bulk orders (5+ units), email [email protected] for volume pricing.
- For project-based procurement or BOM matching, send your parts list and we will respond within 1 business day.
- Payment accepted via major credit cards, wire transfer (T/T), and PayPal.
- A proforma invoice is available upon request before payment.
Authenticity & Trust FAQ
Q: Are these genuine Bently Nevada parts?
A: Yes. All units listed on Konmask.com are sourced from verified supply channels. We do not sell counterfeit, cloned, or refurbished parts.
Q: Can I request a certificate of conformance?
A: We provide available documentation upon request. Contact us before purchase if specific paperwork is required for your project.
Q: What is your return policy?
A: We accept returns within 30 days for unused, unopened items in original packaging. Please contact support before initiating a return.
Q: Do you offer technical support?
A: Our team has hands-on experience with Bently Nevada systems. We can assist with part identification, compatibility questions, and installation guidance.
Q: Is expedited shipping available?
A: Yes. DHL Express, FedEx International Priority, and UPS Worldwide options are available at checkout or by request.
