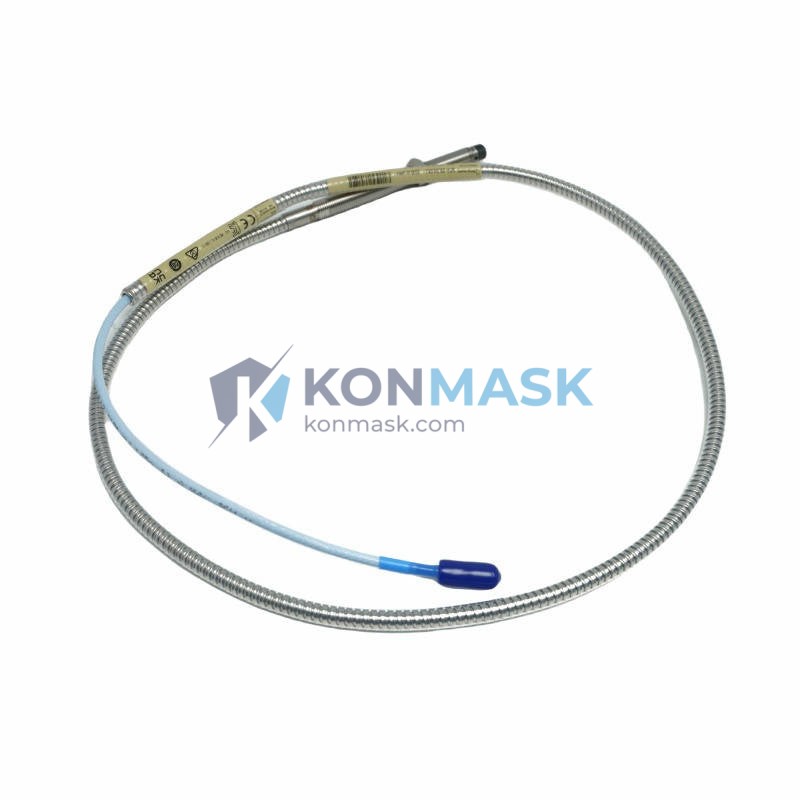

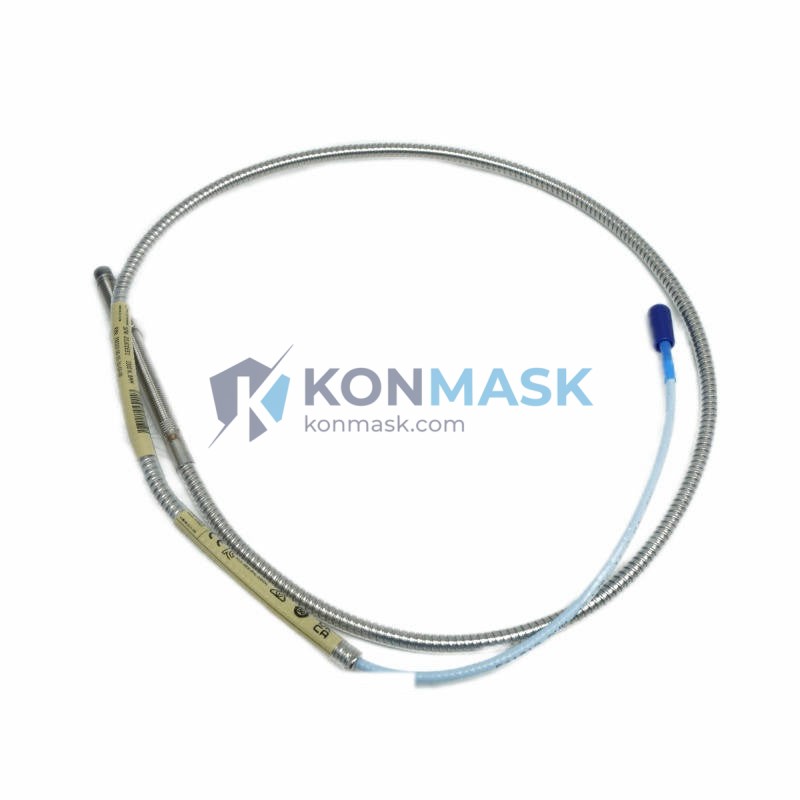

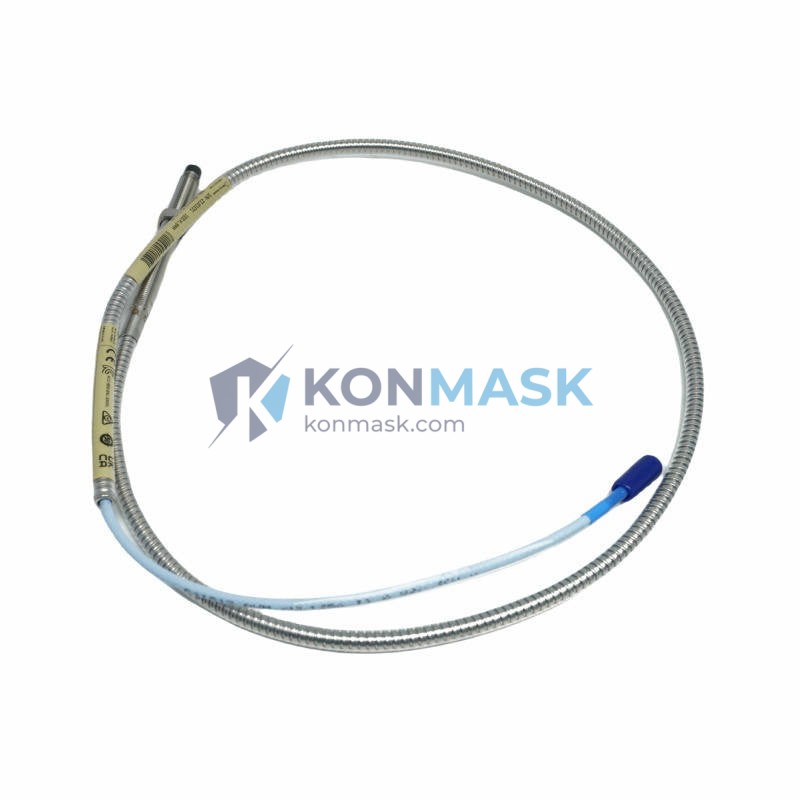

Bently Nevada 330102-08-15-10-02-00 – 8mm Proximity Transducer System | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contacting eddy-current proximity measurement in rotating machinery protection. Developed by Baker Hughes (Bently Nevada), this platform has been deployed globally in turbines, compressors, pumps, and generators where continuous shaft vibration and position monitoring is mission-critical. The 330102-08-15-10-02-00 is a complete, factory-matched transducer system comprising probe, extension cable, and proximitor/oscillator driver — all calibrated as a unified measurement chain.
Product Positioning
Designed for procurement engineers and reliability teams sourcing OEM-equivalent replacement components for existing 3300 XL installations. This system delivers direct drop-in compatibility with Bently Nevada 3300 series monitors (3300/16, 3300/20, 3500/40M, etc.) without recalibration of the monitoring rack. Konmask.com supplies this unit as a tested, traceable assembly suitable for critical-service applications in oil & gas, power generation, and heavy process industries.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330102-08-15-10-02-00 |
| Series / Platform | Bently Nevada 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Probe Cable Length | 1.5 m (5 ft) integral armored cable |
| Extension Cable Length | 1.0 m (3.3 ft) — total system cable: 2.5 m (8.2 ft) |
| Linear Range | 0.25 mm – 2.26 mm (10 – 89 mil) |
| Scale Factor (Output) | 7.87 V/mm (200 mV/mil) nominal |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Supply Voltage | –24 VDC (–20 to –26 VDC operating range) |
| Output Voltage Range | –2 VDC to –18 VDC |
| Temperature Range (Probe) | –35°C to +177°C (–31°F to +351°F) |
| Temperature Range (Driver) | –35°C to +85°C (–31°F to +185°F) |
| Target Material | AISI 4140 steel (standard); other materials require scale factor correction |
| Connector Type | 2-pin MIL-C-5015 (probe); BNC (driver output) |
| Ingress Protection | IP67 (probe body) |
| Agency Approvals | FM, CSA, ATEX, IECEx (intrinsically safe configurations) |
| Weight | Approx. 40 g (probe assembly) |
| Country of Origin | USA (Baker Hughes / Bently Nevada) |
Proven Application Environments
- Steam & Gas Turbines — shaft radial vibration, thrust position, differential expansion
- Centrifugal & Reciprocating Compressors — rotor orbit, eccentricity ratio monitoring
- Boiler Feed Pumps & Cooling Water Pumps — bearing journal displacement
- Electric Motors & Generators — air-gap measurement, shaft centerline tracking
- Gearboxes — gear mesh frequency, lateral vibration
- Petrochemical & Refinery Rotating Equipment — API 670 compliant installations
Engineering Advantages
- Factory-Matched System — probe, cable, and driver are calibrated together; no field calibration required on installation
- XL Noise Rejection — 3300 XL platform incorporates enhanced EMI/RFI shielding versus legacy 3300 series
- API 670 Compliant — meets 5th Edition requirements for non-contacting vibration transducer systems
- Wide Temperature Tolerance — probe rated to +177°C for high-temperature bearing housings
- Direct Monitor Compatibility — plug-compatible with 3300/16, 3300/20, 3500/40M, 3500/42M, and 3500/45 monitors
- Hazardous Area Rated — FM/CSA/ATEX/IECEx approvals for Zone 0/1/2 and Division 1/2 installations
System Architecture & Signal Flow
The 330102-08-15-10-02-00 operates as a three-component eddy-current measurement chain:
- Probe (330102) — 8 mm tip generates a high-frequency electromagnetic field (oscillating at ~1 MHz). As the conductive target (shaft) moves within the linear range, eddy currents induced in the target surface alter the probe’s impedance.
- Extension Cable — low-loss coaxial cable transmits the modulated RF signal from probe to driver. Cable length is a calibrated parameter; the 330102-08-15-10-02-00 configuration specifies a 1.0 m extension for a total system length of 2.5 m.
- Proximitor Driver (3300 XL) — demodulates the RF signal and outputs a DC-proportional voltage (–2 to –18 VDC) representing gap distance. This signal feeds directly into the Bently Nevada monitor rack for display, alarming, and trip logic.
Output polarity: increasing gap → more negative output voltage. Monitors are pre-configured for this convention; no inversion required.
Sourcing & Quality Verification
- Units sourced from authorized distribution channels and verified OEM surplus inventory
- Each system inspected for physical integrity: probe tip, cable armor, connector pins, and driver housing
- Part number label and date code verified against Bently Nevada documentation
- Functional bench test available on request (gap-vs-voltage linearity check)
- Traceability documentation provided upon request for critical-service procurement
Procurement Process
- Confirm compatibility — verify your monitor model and existing cable system length against the 330102-08-15-10-02-00 configuration
- Request a quote — contact support@konmask.com for volume pricing, lead time, and documentation packages
- Place order — standard payment terms; expedited shipping available for AOG/emergency requirements
- Receive & verify — inspect part number, cable lengths, and connector types upon receipt before installation
- Technical support — Konmask engineering team available for installation guidance and monitor configuration questions
Technical FAQ
Q: Is the 330102-08-15-10-02-00 compatible with the Bently Nevada 3500 series monitors?
A: Yes. The 3300 XL transducer system is electrically compatible with 3500/40M, 3500/42M, and 3500/45 proximity monitor modules. Verify the monitor’s input configuration (standard vs. extended range) before installation.
Q: Can I use a different extension cable length?
A: No. The total system cable length (probe cable + extension cable) is a calibrated parameter. Changing cable length alters the scale factor and requires a new system calibration. Always replace with the identical configuration.
Q: What target materials are supported?
A: The standard calibration is for AISI 4140 steel. Other materials (stainless steel, titanium, aluminum) will produce a different scale factor. Bently Nevada publishes correction factors for common alternative materials.
Q: Is this unit suitable for hazardous area installation?
A: Yes, with appropriate barrier/isolator. The system carries FM, CSA, ATEX, and IECEx approvals. Consult the Bently Nevada installation drawing for the specific entity parameters and associated apparatus requirements.
Q: What is the lead time for this part?
A: Typically 1–5 business days for in-stock units. Contact support@konmask.com for real-time availability.
