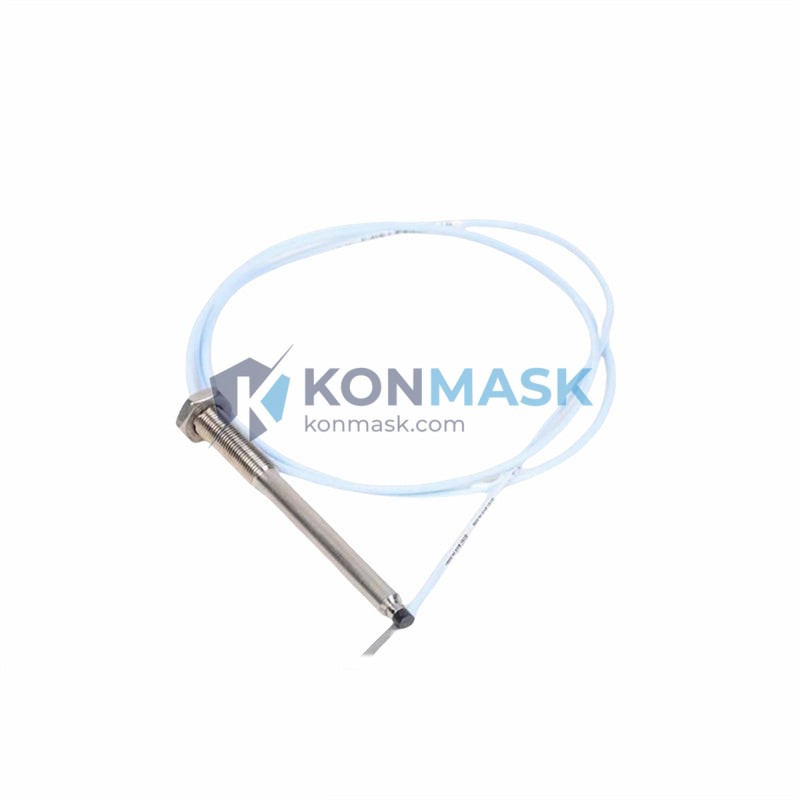

Bently Nevada 330103-00-02-05-02-00 – 8mm Eddy Current Proximity Probe | 3300 XL Transducer System
Engineering Background: The Bently Nevada 3300 XL 8mm Proximity Transducer System is the industry benchmark for continuous, non-contact measurement of shaft radial vibration, axial position, differential expansion, and eccentricity in rotating machinery. Developed by Baker Hughes (Bently Nevada), this system is deployed across power generation, oil & gas, petrochemical, and heavy industrial sectors worldwide.
Product Positioning: The 330103-00-02-05-02-00 is a precision 8mm eddy current proximity probe engineered for integration into the 3300 XL transducer system. It delivers reliable, high-resolution displacement measurements in harsh industrial environments, making it the preferred choice for procurement engineers specifying condition monitoring instrumentation for critical rotating assets.
Complete Technical Specifications
- Part Number / SKU: 330103-00-02-05-02-00
- Manufacturer: Bently Nevada (Baker Hughes)
- Series / Platform: 3300 XL 8mm Proximity Transducer System
- Probe Type: Eddy Current (Non-contact) Proximity Probe
- Probe Tip Diameter: 8 mm
- Measurement Range: 0–2 mm (linear range, typical)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: –35°C to +177°C (probe body)
- Cable Length: 5m (integral cable, as per part number configuration)
- Extension Cable Compatibility: 3300 XL Series extension cables
- Driver / Oscillator Compatibility: 3300 XL Proximitor® Sensor
- Output Signal: –24 VDC nominal (negative DC voltage proportional to gap)
- Power Supply: –24 VDC (supplied via Proximitor)
- Connector Type: Integral coaxial connector
- Housing Material: Stainless steel tip, PEEK body
- Ingress Protection: Suitable for splash and high-humidity environments
- Weight: Approx. 240 g (probe + cable assembly)
- Compliance / Certifications: CE, API 670 compatible
- Country of Origin: USA
Proven Application Environments
- Steam and gas turbines (radial shaft vibration monitoring)
- Centrifugal compressors (axial position and differential expansion)
- Pumps and motors (eccentricity and runout measurement)
- Gearboxes and expanders (high-speed rotating machinery)
- Power generation (nuclear, thermal, combined-cycle plants)
- Petrochemical and refinery critical machinery trains
- Offshore and onshore oil & gas rotating equipment
Engineering Advantages
- Non-contact measurement: Zero mechanical wear, no lubrication required, infinite service life under normal conditions
- DC response: Captures both static position and dynamic vibration in a single channel
- API 670 compatibility: Meets the international standard for machinery protection systems
- High temperature tolerance: Operates reliably in turbine bearing housings and hot gas paths
- Plug-and-play with 3300 XL ecosystem: Direct replacement for existing 3300 XL installations without recalibration of the Proximitor
- Integral cable design: Eliminates field-side connector joints, reducing signal noise and failure points
System Architecture & Signal Flow
The 330103-00-02-05-02-00 probe operates as the sensing element in a three-component eddy current transducer system:
- Proximity Probe (330103-00-02-05-02-00): Generates a high-frequency electromagnetic field at the probe tip. Eddy currents induced in the conductive target (shaft) attenuate the field proportionally to the gap distance.
- Extension Cable (3300 XL series): Transmits the modulated RF signal from the probe to the Proximitor with minimal loss.
- Proximitor® Sensor (3300 XL): Demodulates the RF signal and outputs a calibrated DC voltage (–24 VDC scale) to the monitoring system (e.g., 3500 Series rack).
The resulting analog output is directly compatible with Bently Nevada 3500 Series monitoring racks, DCS analog input cards, and safety system interfaces.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Each probe inspected for physical integrity, connector condition, and cable continuity prior to dispatch
- Original manufacturer packaging preserved where available
- Traceability documentation available upon request for critical plant applications
- Konmask.com specializes in genuine and compatible Bently Nevada instrumentation for MRO and capital project procurement
Procurement Process
- Submit your RFQ or place order directly via Konmask.com product page
- Receive order confirmation and lead time within 1 business day
- Export documentation (commercial invoice, packing list, COO) provided for international shipments
- DHL / FedEx / sea freight options available; Incoterms negotiable (EXW, FOB, CIF)
- Contact our technical team for bulk pricing, consignment stock, or long-term supply agreements
Technical FAQ
Q: Is the 330103-00-02-05-02-00 a direct replacement for older 330103 series probes?
A: Yes. The 3300 XL 8mm probe series maintains backward compatibility with 3300 XL Proximitor sensors. Verify the extension cable system code matches your installed Proximitor.
Q: What target material is required for accurate measurement?
A: The probe is calibrated for AISI 4140 steel (standard shaft material). For other alloys (stainless, titanium, Inconel), a material correction factor must be applied. Contact our engineering team for recalibration data.
Q: Can this probe be used with third-party monitoring systems?
A: The –24 VDC analog output is compatible with most DCS and safety system analog input modules. Confirm input impedance ≥ 10 kΩ and voltage range –24 VDC to 0 VDC with your system vendor.
Q: What is the typical lead time?
A: In-stock units ship within 2–3 business days. For large quantities or urgent plant shutdowns, contact support@konmask.com for expedited options.
Q: Do you provide calibration certificates?
A: Factory calibration data is available for new units. Third-party calibration services can be arranged upon request.
