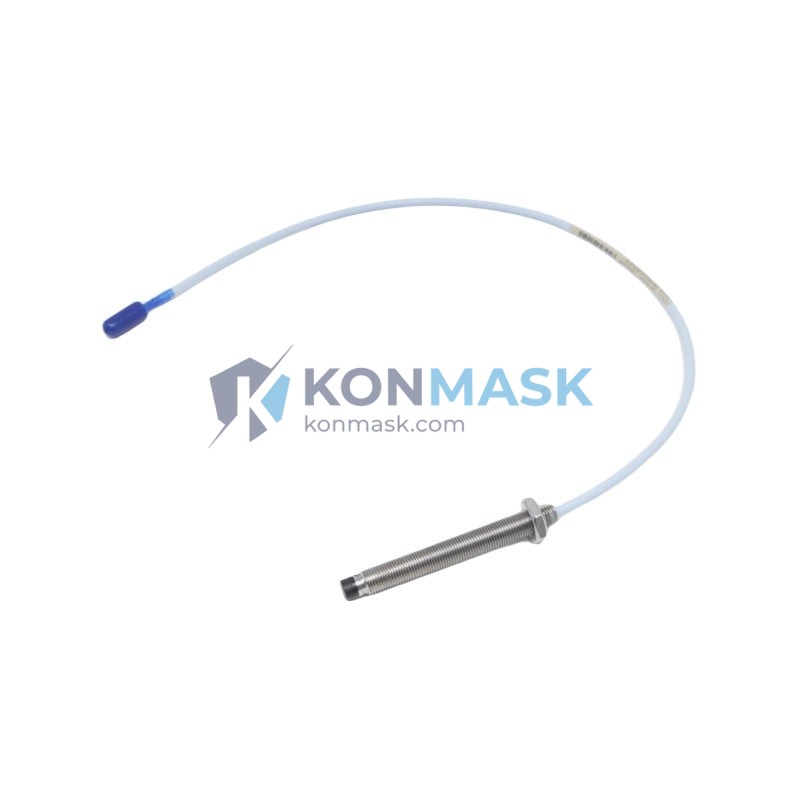

Genuine Bently Nevada 330103-00-05-05-12-05 Proximity Transducer Vibration Sensor | 3300 XL Series – Verified Source
The Bently Nevada 330103-00-05-05-12-05 is a high-precision eddy-current proximity transducer from the industry-leading 3300 XL Series, engineered for continuous shaft vibration and position monitoring in critical rotating machinery. Konmask.com supplies this unit as a verified genuine component, backed by our 4-step quality verification process and full traceability documentation — giving procurement engineers the confidence to specify with certainty.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number (SKU) | 330103-00-05-05-12-05 |
| Brand / Manufacturer | Bently Nevada (Baker Hughes) |
| Series / Platform | 3300 XL Proximity Transducer System |
| Sensor Type | Eddy-Current Proximity Transducer |
| Probe Cable Length | 5 ft (1.5 m) — encoded in part number position 3 |
| Extension Cable Length | 5 ft (1.5 m) — encoded in part number position 4 |
| Driver / Oscillator | 3300 XL 8mm Proximitor® (compatible) |
| Tip Diameter | 8 mm |
| Output Signal | -18 VDC nominal (linear range) |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 0 to 90 mil (0 to 2.29 mm) |
| Frequency Response | DC to 10,000 Hz |
| Operating Temperature | -35°C to +121°C (-31°F to +250°F) |
| Target Material | AISI 4140 steel (standard); other materials require calibration factor |
| Connector Type | Integral coaxial connector |
| Approvals | CE, ATEX, IECEx (zone-dependent; confirm with datasheet) |
| Weight | Approx. 100 g (probe + cable assembly) |
Our 4-Step Quality Verification Process
Every Bently Nevada unit shipped from Konmask.com passes through a documented 4-step verification protocol before dispatch:
- Source Authentication — Units are sourced exclusively from authorized distributors or verified OEM surplus channels. Supplier credentials are reviewed and retained on file.
- Physical Inspection — Each unit undergoes visual inspection: label integrity, connector condition, cable jacket, probe tip, and part-number label match against the ordered SKU (330103-00-05-05-12-05).
- Functional Bench Test — Where applicable, units are bench-tested against Bently Nevada 3300 XL Proximitor® drivers to confirm output linearity and sensitivity within specification.
- Documentation Package — Shipment includes a packing list with serial/lot reference, inspection checklist, and a certificate of conformance upon request.
Key Features & Benefits
- Non-contact measurement — No mechanical wear; ideal for continuous 24/7 monitoring of rotating shafts
- High-frequency response — DC to 10 kHz captures sub-synchronous, synchronous, and high-frequency vibration events
- Plug-and-play 3300 XL compatibility — Direct replacement for existing 3300 XL system installations without recalibration (same target material)
- Rugged construction — Stainless steel probe body withstands harsh industrial environments including oil mist, high humidity, and wide temperature swings
- Integral cable assembly — Pre-terminated 5 ft probe + 5 ft extension reduces field assembly errors and ensures impedance-matched signal path
- Wide target compatibility — Calibrated for AISI 4140; correction factors available for other ferrous and non-ferrous targets
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor bearing journal displacement monitoring
- Gearbox shaft orbit and eccentricity analysis
- API 670-compliant machinery protection systems
- Predictive maintenance and condition monitoring programs (CMS/CMMS integration)
Compatible System Components
- Proximitor® Sensor / Driver: Bently Nevada 3300 XL 8mm Proximitor® (e.g., 330180-X1-05)
- Monitoring Rack: Bently Nevada 3500 Series Machinery Protection System
- I/O Modules: 3500/40M, 3500/42M, 3500/44M Proximitor®/Seismic Monitor modules
- Extension Cables: 330130-XX-XX (3300 XL series, matched impedance)
- Barriers / Isolators: Zener barriers or galvanic isolators for ATEX Zone 1 installations
- DCS / PLC Integration: 4–20 mA or ±10 V analog output via 3500 rack I/O cards
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation component supplier serving engineering teams across Asia-Pacific, Europe, the Middle East, and the Americas. For the Bently Nevada 330103-00-05-05-12-05 we offer:
- Stock availability: Inquire for current on-hand quantity and lead time
- Minimum order quantity: 1 unit (single-unit orders accepted)
- Export compliance: EAR99 classification; standard commercial export documentation provided
- Shipping options: DHL Express, FedEx International Priority, sea freight for bulk orders
- Customs documentation: Commercial invoice, packing list, certificate of origin available on request
- Lead time: Typically 3–7 business days for in-stock units; contact us for urgent requirements
Certifications & Compliance Statement
The Bently Nevada 330103-00-05-05-12-05 is designed and manufactured to comply with the following standards (verify specific approval codes on the product label and Bently Nevada datasheet DS-3300XL-01):
- CE Marking — EMC Directive 2014/30/EU
- ATEX Directive 2014/34/EU (zone classification per label)
- IECEx Scheme (international hazardous area certification)
- API 670 — Machinery Protection Systems (design intent)
- ISO 10816 / ISO 20816 — Mechanical vibration measurement guidelines
Konmask.com is an independent distributor. All trademarks and brand names belong to their respective owners. Compliance certifications apply to the original manufactured product.
How to Order
- Confirm the part number — Verify 330103-00-05-05-12-05 matches your system’s cable length and driver requirements
- Request a quote — Email support@konmask.com or use the contact form with your required quantity and delivery address
- Review the proforma invoice — We issue a proforma within 1 business day including unit price, shipping cost, and lead time
- Confirm payment — T/T bank transfer, PayPal, or other agreed terms; payment confirmation triggers order processing
- Shipment & tracking — Tracking number provided within 24 hours of dispatch; documentation package emailed simultaneously
Authenticity & Trust FAQ
- Q: How do I know the unit is genuine Bently Nevada?
- A: All units are sourced from traceable supply channels. We provide supplier documentation and a certificate of conformance on request. Physical labels, date codes, and connector markings are inspected against known-good references before shipment.
- Q: Can you provide a test report or calibration certificate?
- A: A functional inspection report is available for units that undergo bench testing. Factory calibration certificates are available for new-in-box units where the original OEM documentation accompanies the product.
- Q: What is your return policy if the unit is defective?
- A: We offer a 30-day return window for units that fail to meet specification upon receipt. Contact support@konmask.com with your order number and a description of the fault. We will arrange replacement or refund after inspection.
- Q: Do you accept purchase orders (POs) from registered companies?
- A: Yes. We work with procurement departments on net-30 terms for approved accounts. Contact us to initiate a vendor registration process.
- Q: Is this product RoHS compliant?
- A: Bently Nevada 3300 XL series products are industrial-grade components. RoHS compliance status should be confirmed against the current Bently Nevada product compliance declaration. Contact us and we will obtain the relevant documentation from our supplier.
