Bently Nevada 330103-00-13-10-02-05 — Eddy Current Proximity Probe | 3300 XL 8mm Platform
Engineering Background
The 3300 XL Series represents Bently Nevada’s (a Baker Hughes company) gold standard in non-contact vibration and position measurement for rotating machinery. Deployed across power generation, oil & gas, petrochemical, and heavy industrial sectors, the 3300 XL system is the de facto standard referenced in API 670 machinery protection specifications worldwide.
Product Positioning

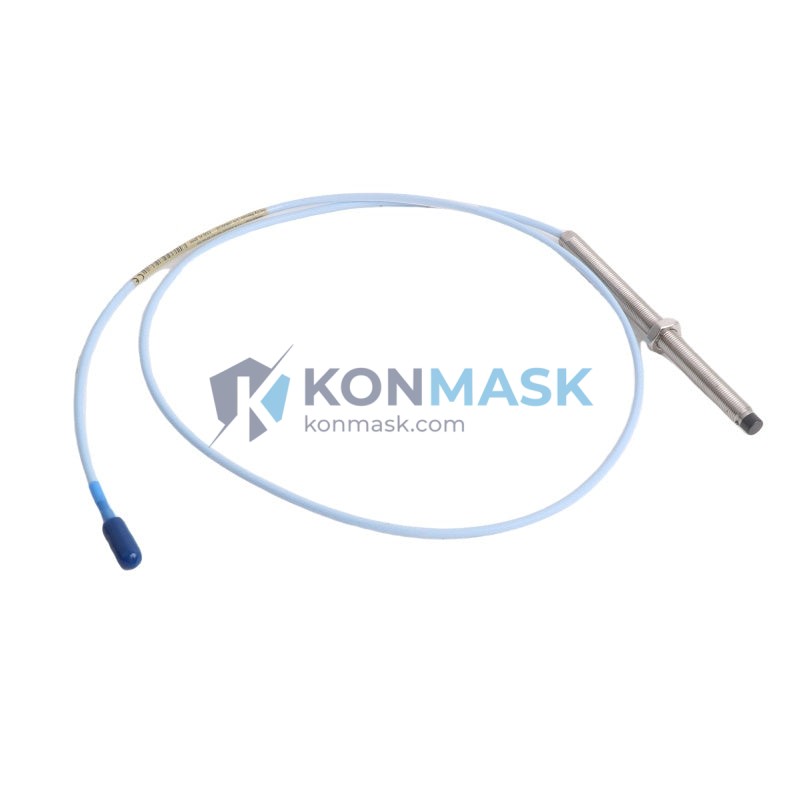

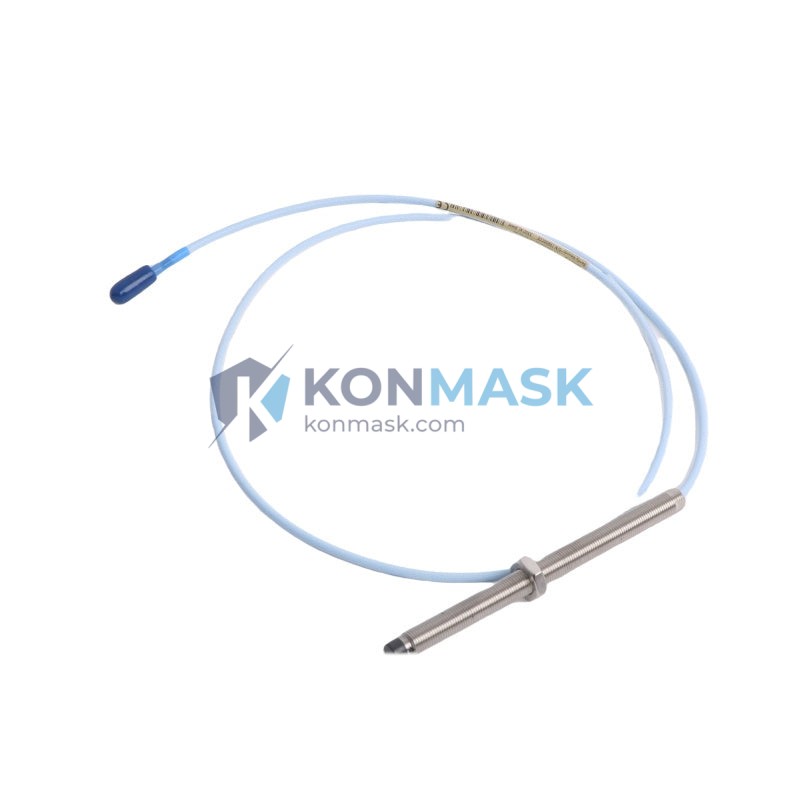

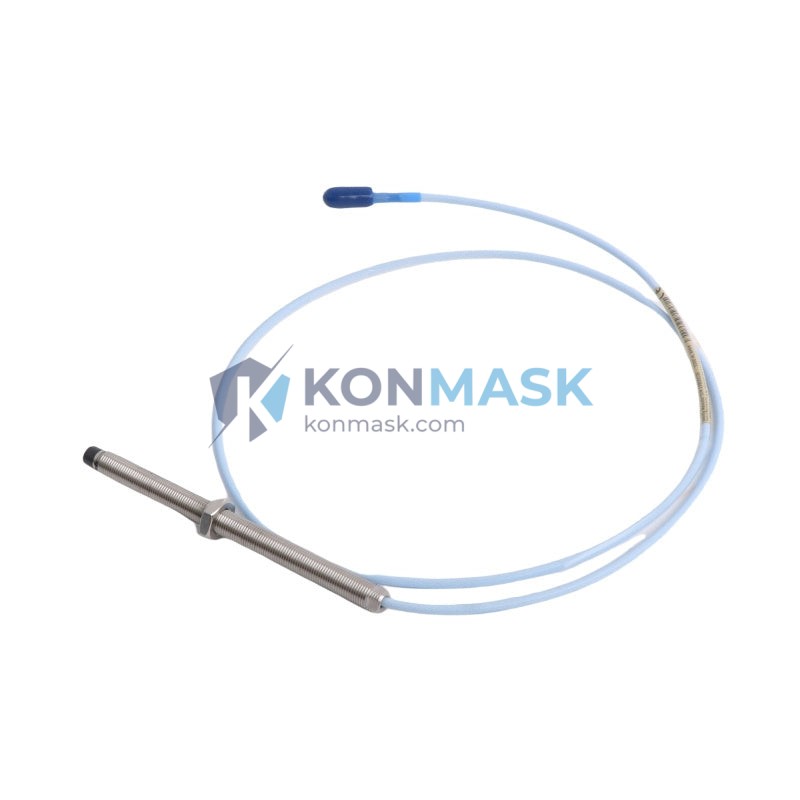

Part number 330103-00-13-10-02-05 is an 8mm eddy current proximity probe with a 5-metre (16.4 ft) integral armored cable, designed for direct integration into 3300 XL monitoring systems. It delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for turbine, compressor, and pump protection.
Complete Technical Specifications
- Part Number: 330103-00-13-10-02-05
- Series / Platform: Bently Nevada 3300 XL
- Probe Tip Diameter: 8 mm
- Measurement Principle: Eddy Current (non-contact)
- Cable Length: 5 m (16.4 ft) integral armored cable
- Sensitivity: 200 mV/mil (7.87 V/mm) nominal
- Linear Range: 0.25 mm – 2.25 mm (10 – 90 mil)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Operating Temperature: –35°C to +177°C (–31°F to +350°F)
- Supply Voltage: –24 VDC (nominal, via 3300 XL driver)
- Output Voltage Range: –2 VDC to –18 VDC
- Connector Type: Integral coaxial, compatible with 3300 XL extension cables and drivers
- Housing Material: Stainless steel tip, armored cable jacket
- Approvals / Compliance: API 670 compatible; CE marked; ATEX / IECEx available on request
- Weight: ~100 g
- Country of Origin: United States
Proven Application Environments
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor bearing proximity sensing
- Axial thrust position monitoring on critical rotating equipment
- Differential expansion measurement on large turbine trains
- Gear mesh frequency analysis in gearbox condition monitoring
- API 670-compliant machinery protection systems
Engineering Advantages
- Non-contact measurement: Zero mechanical wear, no influence on rotor dynamics
- Wide frequency bandwidth (DC–10 kHz): Captures both slow-roll runout and high-frequency vibration events
- Integral armored cable: Eliminates field-assembly errors; maintains calibrated system sensitivity
- API 670 compliance: Drop-in replacement for existing 3300 XL installations without recalibration of the monitoring system
- High temperature tolerance (to 177°C): Suitable for hot-section turbine bearing pedestals
- Plug-and-play with 3300 XL drivers: Compatible with 3300/16 and 3300/55 proximity driver modules
System Architecture & Signal Flow
The 330103-00-13-10-02-05 probe operates as the sensing element in a three-component eddy current system:
- Probe (330103-00-13-10-02-05): Generates a high-frequency electromagnetic field; detects target proximity via impedance change.
- Extension Cable (330130 series): Transmits the RF signal from probe to driver with controlled impedance. (Sold separately if required.)
- Driver / Oscillator-Demodulator (3300/16 or 3300/55): Converts impedance change to a calibrated DC voltage output for the monitoring rack.
The complete system outputs a linear –2 VDC to –18 VDC signal, directly compatible with Bently Nevada 3500 Series monitoring racks and third-party DCS/PLC inputs.
Sourcing & Quality Verification
- All units sourced through verified industrial automation supply channels
- Pre-shipment inspection: visual, dimensional, and connector integrity check
- Original manufacturer packaging preserved where available
- Traceability documentation available upon request for critical installations
- Konmask.com specializes in genuine and surplus Bently Nevada / Baker Hughes instrumentation for MRO and capital project procurement
Procurement Process
- Confirm part number 330103-00-13-10-02-05 matches your existing system cable length and driver compatibility.
- Add to cart and complete checkout — secure payment via major cards, T/T wire transfer, or trade terms for qualified accounts.
- Receive order confirmation with estimated lead time (typically 1–5 business days for in-stock units).
- Shipment via DHL / FedEx international express with full tracking; export documentation included.
- Post-delivery technical support available via email or phone.
Technical FAQ
Q: Is this probe compatible with the Bently Nevada 3500 monitoring rack?
A: Yes. The 3300 XL probe system outputs a standard –2 to –18 VDC signal compatible with 3500 Series input modules when used with the appropriate 3300 XL driver.
Q: What is the difference between 330103 and 330104 series probes?
A: The 330103 series uses a standard 8mm probe tip; the 330104 series is the high-temperature variant rated to 260°C. For standard bearing pedestal applications, 330103 is the correct choice.
Q: Can I use this probe with a non-Bently Nevada driver?
A: The probe is optimized for the 3300 XL driver ecosystem. Use with third-party drivers requires verification of oscillator frequency and sensitivity matching. Contact our technical team for guidance.
Q: Do you provide calibration certificates?
A: Factory calibration data is embedded in the part number configuration. Third-party calibration certificates can be arranged upon request for an additional fee.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For bulk or project quantities, contact us for availability and pricing.
