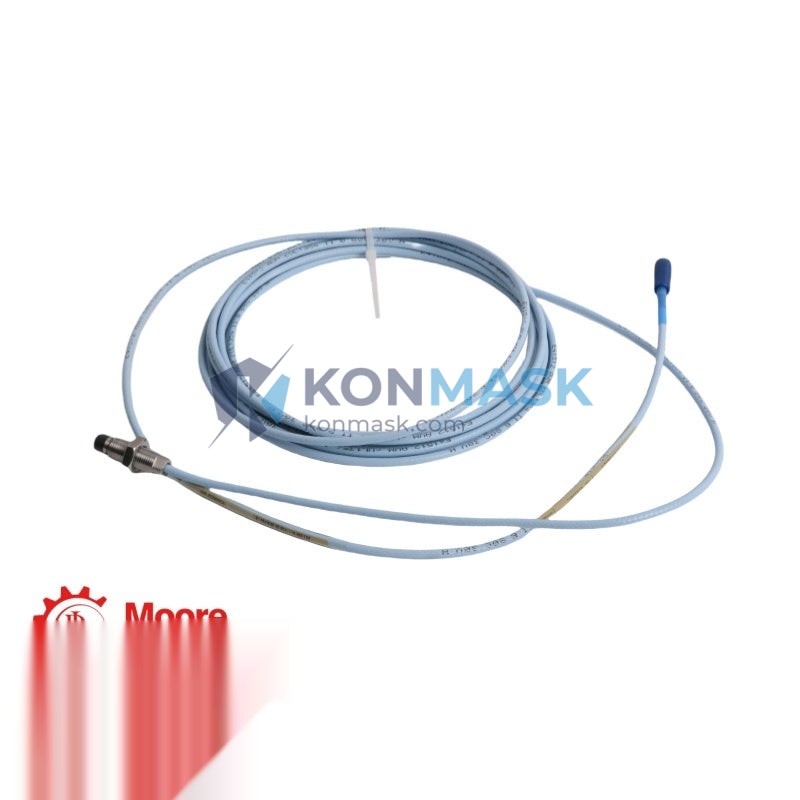

Genuine Bently Nevada 330103-01-08-10-02-00 Proximity Transducer | 3300 Series – Verified Source
The Bently Nevada 330103-01-08-10-02-00 is a high-precision proximity transducer from the industry-leading 3300 Series condition monitoring platform. Engineered for continuous shaft vibration and position measurement in rotating machinery, this sensor delivers the accuracy and reliability that critical industrial operations demand. At Konmask.com, every unit is sourced through verified channels and undergoes rigorous inspection before shipment — giving you complete confidence in what you receive.
Technical Specifications
- Part Number: 330103-01-08-10-02-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Type: Eddy-Current Proximity Transducer
- Measurement: Radial shaft vibration, axial position, differential expansion
- Output Signal: -24 VDC (nominal), linear voltage output
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Range: DC to 10,000 Hz
- Operating Temperature: -35°C to +177°C (-31°F to +350°F)
- Cable Length: 1.0 m (extension cable dependent on configuration)
- Thread: 3/8-24 UNF-2A
- Connector: 2-pin MIL-C-5015 style
- Approvals: CE, FM, CSA, ATEX (configuration dependent)
- Weight: Approx. 500 g (packaged)
Our 4-Step Quality Verification Process
Every Bently Nevada 330103-01-08-10-02-00 unit shipped from Konmask.com passes through our structured verification protocol:
- Step 1 — Source Authentication: Units are procured exclusively from authorized distributors, OEM surplus channels, or verified industrial decommissions. No grey-market or unverified sources.
- Step 2 — Physical Inspection: Our technicians inspect housing integrity, connector condition, cable sheathing, and label authenticity against Bently Nevada factory standards.
- Step 3 — Functional Bench Test: Where applicable, units are bench-tested for output linearity and sensitivity within OEM-specified tolerances using calibrated test equipment.
- Step 4 — Documentation Review: Traceability records, calibration certificates, and country-of-origin documentation are reviewed and archived for each unit.
Key Features & Benefits
- Non-contact eddy-current measurement — zero mechanical wear, indefinite service life
- Wide frequency response (DC to 10 kHz) captures both slow-roll and high-speed vibration events
- High sensitivity (7.87 V/mm) enables detection of sub-micron shaft displacement changes
- Robust stainless-steel housing rated for harsh industrial environments
- Direct drop-in compatibility with existing 3300 Series monitor racks — no reconfiguration required
- Suitable for hazardous area installations (ATEX/FM certified configurations available)
Typical Applications
- Steam and gas turbines in power generation plants
- Centrifugal compressors in oil & gas processing facilities
- Large pumps and fans in petrochemical and refining operations
- Gearboxes and expanders in LNG and chemical plants
- Hydro turbines and motor-driven equipment in utilities
- Any rotating machinery requiring API 670-compliant vibration monitoring
Compatible System Components
The 330103-01-08-10-02-00 transducer is designed to operate within the complete Bently Nevada 3300 XL System. Compatible components include:
- Extension Cables: 330130-045-00-00, 330130-080-00-00 (various lengths)
- Proximitor Sensors: 330180-X1-05, 330180-X1-CN (signal conditioning)
- Monitor Modules: 3300/16, 3300/20, 3300/25 (rack-mount monitors)
- System 1 Software: Compatible with Bently Nevada System 1 Evolution platform
- Keyphasor Modules: 3300/25 for phase reference integration
Global Sourcing & Shipping Capabilities
- Stock Availability: In-stock and lead-time units available — contact us for real-time inventory status
- Lead Time: Typically 3–7 business days for in-stock units; 2–4 weeks for sourced orders
- Shipping Destinations: Worldwide — including USA, EU, Middle East, Southeast Asia, and Australia
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN)
- Packaging: Anti-static, moisture-barrier packaging with foam cushioning for safe transit
- Customs Documentation: Full commercial invoice, packing list, and certificate of origin provided
Certifications & Compliance Statement
- Products are sourced and sold in compliance with applicable industrial equipment trade regulations
- Konmask.com does not manufacture or modify OEM products — all units retain original factory specifications
- CE Declaration of Conformity available upon request for applicable units
- ATEX and FM hazardous area certifications verified per unit configuration
- RoHS compliance documentation available for applicable configurations
How to Order
- Confirm Part Number: Verify 330103-01-08-10-02-00 matches your system’s transducer configuration (cable length, thread, connector type)
- Check Compatibility: Confirm your Proximitor and monitor model are 3300 XL Series compatible
- Request a Quote: Email [email protected] or call +0086 19859288691 with your required quantity and delivery timeline
- Receive Proforma Invoice: We issue a detailed proforma with unit price, shipping cost, and lead time within 24 hours
- Confirm & Ship: Upon payment confirmation, your order is packed, documented, and dispatched with full tracking
Authenticity & Trust FAQ
Q: Are these units genuine Bently Nevada products?
A: Yes. All units are genuine OEM parts sourced from verified industrial channels. We do not sell replicas, refurbished-as-new, or unbranded substitutes.
Q: Can you provide traceability documentation?
A: Yes. We maintain sourcing records for all units and can provide available documentation upon request, including inspection reports and calibration certificates where applicable.
Q: Do you offer a warranty?
A: We offer a 90-day functional warranty on all units. If a unit fails under normal operating conditions within 90 days, we will replace or refund at our discretion.
Q: What if I need a different cable length or configuration?
A: The 330103 series is available in multiple configurations. Contact us with your exact requirements and we will source the correct part number for your application.
Q: Can you ship to my country?
A: We ship globally. Contact us to confirm shipping options, costs, and estimated transit times for your destination.
