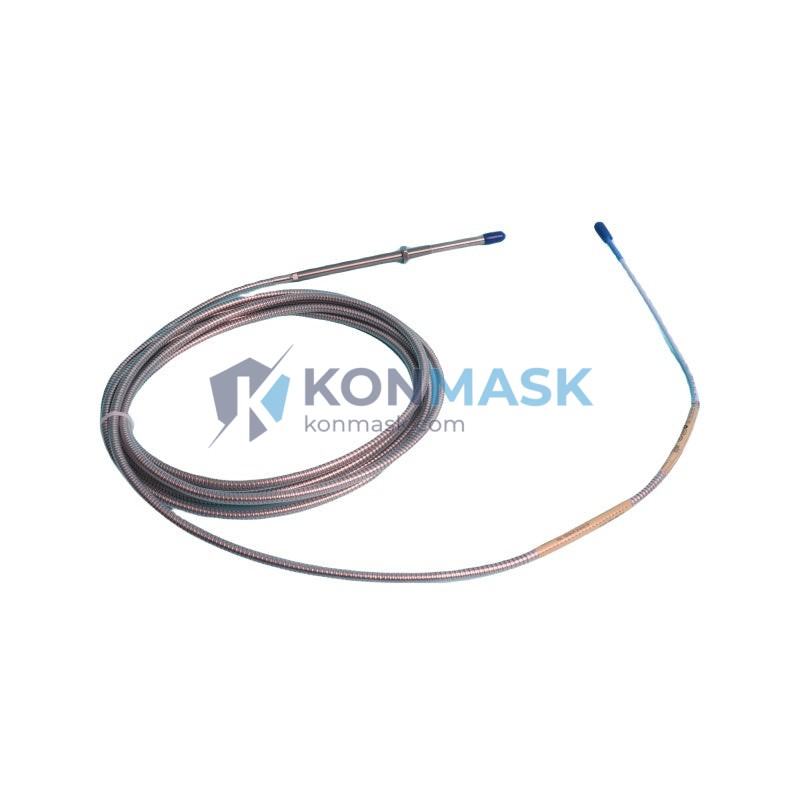

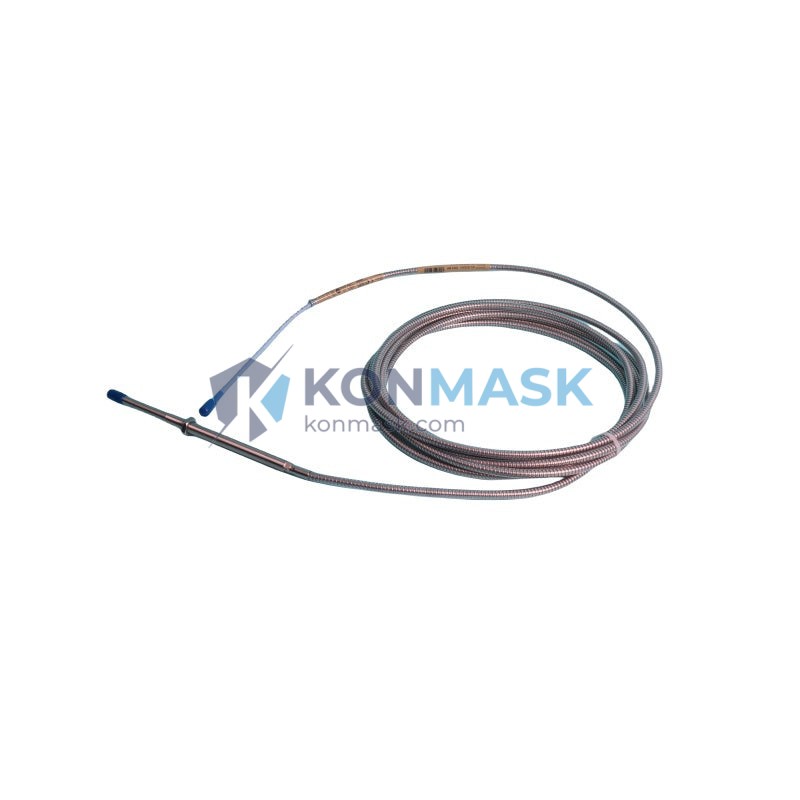

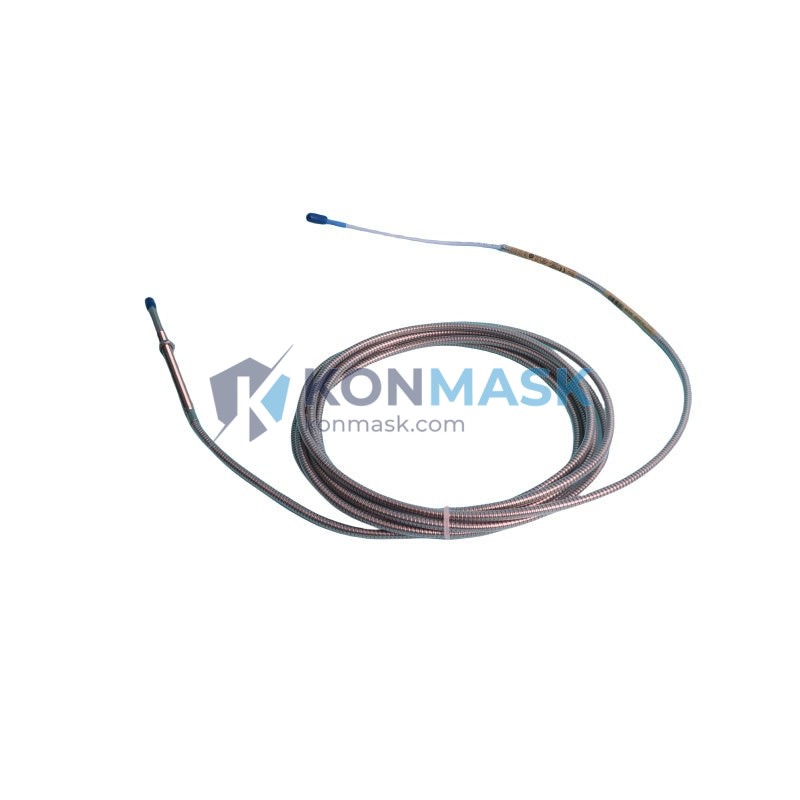

Bently Nevada 330104-00-05-50-02-05 8mm Proximity Probe – 3300 XL Proximity Transducer System
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, complete machine destruction. In high-stakes environments such as gas turbines, steam turbines, centrifugal compressors, and large pumps, the absence of a reliable proximity transducer system is not merely an inconvenience — it is an unacceptable operational risk. The Bently Nevada 330104-00-05-50-02-05 is the precision component that stands between normal operation and disaster.
The 330104-00-05-50-02-05 is a factory-configured 8 mm proximity probe within Bently Nevada’s globally trusted 3300 XL Proximity Transducer System series. Engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion, this transducer system is the de facto standard in rotating machinery protection worldwide. Deployed across power generation, oil & gas, petrochemical, and heavy industrial sectors, the 3300 XL series represents decades of field-proven reliability and is fully compatible with Bently Nevada 3500 Series machinery protection systems.
Technical Specifications
- Part Number / SKU: 330104-00-05-50-02-05
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Probe Tip Diameter: 8 mm
- Probe Cable Length: 5 m (integral)
- Extension Cable Length: 5 m
- Driver / Oscillator-Demodulator: Included in system configuration
- Measurement Type: Non-contact eddy current, radial vibration & axial position
- Output Signal: -24 VDC nominal bias voltage; linear voltage output proportional to gap
- Temperature Range (Probe): -35°C to +177°C (-31°F to +350°F)
- Agency Approvals: CE, ATEX, FM (refer to OEM datasheet for full certifications)
- Weight: Approx. 120 g
- Condition: New / Surplus New / Refurbished (specify on inquiry)
Note: All specifications are sourced from Bently Nevada OEM documentation. Konmask.com does not fabricate or alter technical parameters.
Key Features & Benefits
- Non-Contact Measurement: Eddy current technology eliminates mechanical wear, ensuring continuous operation without physical contact with the rotating shaft.
- High Sensitivity & Linearity: Delivers precise, repeatable measurements critical for API 670-compliant machinery protection systems.
- Rugged Industrial Design: Stainless steel probe body withstands harsh environments including high temperatures, oil mist, and chemical exposure.
- Plug-and-Play Compatibility: Fully interchangeable with existing 3300 XL installations; minimizes replacement downtime.
- Long Cable Reach: 5 m probe + 5 m extension cable configuration suits most standard machinery installations without additional extension.
- Global Certification: ATEX and FM approvals support deployment in hazardous area classifications worldwide.
Industry & Equipment Applications
- Power Generation: Steam turbines, gas turbines, hydro generators — shaft radial vibration and axial position monitoring.
- Oil & Gas: Centrifugal compressors, expanders, pipeline pumps — API 670 protection compliance.
- Petrochemical & Refining: Process compressors, reactor agitators, critical pump trains.
- Marine & Offshore: Propulsion turbines, auxiliary machinery on FPSOs and drilling platforms.
- Pulp & Paper / Steel Mills: Large ID/FD fans, rolling mill drives, high-speed gearboxes.
System Integration & Compatible Parts
The 330104-00-05-50-02-05 is designed to integrate seamlessly within the Bently Nevada ecosystem. Compatible and commonly paired components include:
- Monitors: Bently Nevada 3500/40M, 3500/42M, 3500/45 (Radial Vibration & Position Monitors)
- Extension Cables: 330130 Series (matched to probe/driver combination)
- Drivers (Oscillator-Demodulators): 3300 XL NSv Driver, 330180 Series
- Rack Systems: Bently Nevada 3500 Series Machinery Protection System
- Related Probes: 330104-00-06-10-02-05, 330104-00-05-05-02-05 (alternate cable lengths)
Contact Konmask.com with your existing system configuration for cross-reference and compatibility verification.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component undergoes a rigorous multi-stage quality process before shipment:
- Source Verification: Products are sourced exclusively from authorized distributors, OEM surplus channels, or certified refurbishers.
- Visual & Physical Inspection: Each unit is inspected for connector integrity, cable condition, probe tip damage, and label authenticity.
- Functional Testing: Where applicable, proximity probes are bench-tested for output voltage linearity and sensitivity against OEM specifications.
- Documentation: Traceability documentation, test reports, and certificates of conformance are available upon request.
- Secure Packaging: Anti-static, shock-resistant packaging with moisture barrier for international freight.
How to Order
- Submit an inquiry via the Contact / RFQ form on this page or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, condition, lead time, and issue a formal quotation within 24 business hours.
- Upon PO confirmation, we arrange quality inspection, documentation, and international freight (DHL / FedEx / sea freight).
We support T/T bank transfer, L/C, and other standard B2B payment terms.
Why Choose Konmask.com?
- Industrial Automation Specialists: Focused exclusively on PLC, DCS, HMI, drives, and instrumentation — we speak your engineering language.
- Global Supply Network: Access to hard-to-find, long-lead, and obsolete parts through our verified supplier network across Asia, Europe, and North America.
- Technical Pre-Sales Support: Our engineers help you verify compatibility, cross-reference part numbers, and select the correct system configuration.
- Fast Response: RFQ responses within 24 hours; emergency sourcing available for critical plant shutdowns.
- Trusted by Industry: Serving power plants, petrochemical facilities, and OEM integrators across 30+ countries.
Frequently Asked Questions
Q: Is the 330104-00-05-50-02-05 a complete transducer system or just the probe?
A: The 330104-00-05-50-02-05 is a complete 3300 XL Proximity Transducer System, which includes the 8 mm probe, integral probe cable, extension cable, and the oscillator-demodulator (driver). It is a matched, factory-configured system — not a standalone probe.
Q: Can this unit replace my existing 3300 XL probe without recalibration?
A: Yes, provided the replacement unit is the same part number and the gap distance is set correctly during installation per Bently Nevada installation procedures. The 3300 XL system is designed for direct replacement within the same series.
Q: Do you supply new, surplus, or refurbished units?
A: We supply all three conditions depending on availability. Please specify your preference and application criticality in your RFQ so we can recommend the most appropriate option.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days internationally. For sourced or refurbished units, lead time is typically 2–4 weeks. Emergency sourcing is available — contact us directly.
Q: Is this product compatible with the Bently Nevada 3500 rack system?
A: Yes. The 3300 XL Proximity Transducer System is the standard field sensor for Bently Nevada 3500 Series monitors including the 3500/40M, 3500/42M, and 3500/45 radial vibration and position monitors.
Q: Can you provide a certificate of conformance or test report?
A: Yes. Documentation packages including CoC, inspection reports, and where available, OEM calibration certificates, can be provided upon request at time of quotation.
