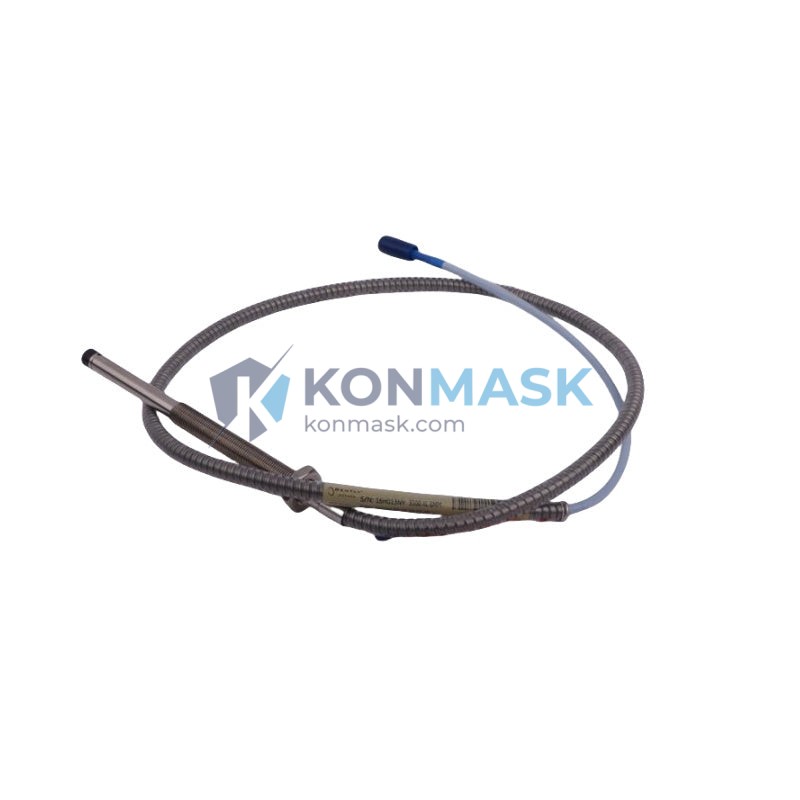

Bently Nevada 330104-00-22-10-02-CN 3300 XL 5mm Proximity Probe | Replacement, Equivalent & Selection Guide
The Bently Nevada 330104-00-22-10-02-CN is a high-precision eddy-current proximity probe from the industry-standard 3300 XL Series. Designed for continuous shaft vibration, position, and eccentricity monitoring in rotating machinery, this probe delivers reliable non-contact measurement in demanding industrial environments. Konmask.com supplies both genuine and verified-equivalent units with full traceability.
Technical Specifications
- Part Number: 330104-00-22-10-02-CN
- Series: Bently Nevada 3300 XL
- Sensing Technology: Eddy-current (non-contact)
- Probe Tip Diameter: 5 mm (8 mm body)
- Cable Length: 5 m (standard)
- Connector: CN (coaxial, standard Bently Nevada)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linear Range: 0.25 – 2.54 mm (10 – 100 mil)
- Frequency Response: 0 – 10,000 Hz
- Operating Temperature: -35°C to +177°C
- Compatible Driver/Conditioner: 3300 XL NSv, 3300 XL 8mm, Proximitor® 3300 XL
- Weight: ~1,100 g (probe + cable assembly)
- Country of Origin: USA
Compatible Replacement & Equivalent Models
The following models are functionally compatible or direct replacements for the 330104-00-22-10-02-CN. Always verify system driver compatibility before substitution.
- 330104-00-22-10-02-00 – Same probe, standard (non-CN) connector variant
- 330104-00-22-10-02-05 – 5 m cable, alternate termination
- 330180-91-00 – 3300 XL 8mm probe, compatible with same Proximitor driver (different tip size)
- 330101-00-22-10-02-CN – 3300 NSv 5mm probe, same cable/connector, lower-cost alternative
- 330105-02-12-10-02-CN – Extended-temperature variant for high-heat applications
- Emerson / GE equivalent: Post-acquisition part numbers may cross-reference under Emerson Automation Solutions catalog
Note: Third-party equivalents must be validated against your Proximitor® driver model and gap voltage calibration curve before installation.
Why Choose the Original 330104-00-22-10-02-CN
- Factory-calibrated sensitivity curve — no field re-calibration required
- Certified for API 670 machinery protection systems
- Guaranteed electromagnetic compatibility with Bently Nevada Proximitor® drivers
- Full OEM traceability and documentation available
- Proven MTBF in turbine, compressor, and pump monitoring applications
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor eccentricity and thrust position sensing
- Gearbox and fan shaft displacement monitoring
- API 670-compliant machinery protection systems
System Compatibility
- Proximitor® Sensors: 3300 XL NSv, 3300 XL 8mm Proximitor
- Monitors: Bently Nevada 3500 Series, 3300 Series rack systems
- DCS Integration: Compatible with 4–20 mA and voltage output signal conditioning modules
- Extension Cable: Requires matched 3300 XL extension cable (e.g., 330130-045-00-CN) for total system length
Selection Guide
Use the table below to select the correct 330104 variant for your application:
- Tip diameter needed? → 5 mm: 330104 series | 8 mm: 330180 series
- Cable length? → -10- = 1 m | -22- = 5 m | -35- = 9 m (confirm from part number position 3)
- Connector type? → -CN = coaxial CN | -00 = standard BNC-style
- Temperature range? → Standard (-35 to 177°C): 330104 | High-temp: 330105
- Driver compatibility? → Always match probe series to Proximitor® model — cross-series use requires re-calibration
Not sure which model fits your system? Contact our engineers with your Proximitor® part number and we’ll confirm compatibility.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment inspection: visual, dimensional, and continuity checks
- Original packaging and documentation preserved where available
- Batch traceability records maintained for B2B customers
- Export-compliant — EAR99 classification; no license required for most destinations
How to Order
- Online: Add to cart directly on this page
- Email RFQ: [email protected] — include quantity, required delivery date, and end-use application
- Phone/WhatsApp: +0086 19859288691
- Lead Time: In-stock units ship within 2 business days; sourced units 7–15 business days
- MOQ: 1 unit
Replacement & Compatibility FAQ
Q: Can I use 330104-00-22-10-02-CN with a 3300 NSv Proximitor?
A: Yes — the 3300 XL 5mm probe is backward-compatible with 3300 NSv drivers. Verify gap voltage (typically –10 VDC at mid-range).
Q: What is the difference between -CN and -00 connector suffix?
A: The -CN suffix denotes a coaxial CN-style connector common in Chinese market installations. Electrically identical; only the physical connector differs.
Q: Can a third-party 5mm eddy-current probe replace this unit?
A: Physically possible, but Bently Nevada Proximitor® drivers are calibrated for specific probe/cable/driver system combinations. Third-party substitution requires full system re-calibration and may void API 670 compliance.
Q: Is this probe suitable for high-temperature environments above 150°C?
A: The standard 330104 is rated to 177°C. For sustained operation above 150°C, consider the 330105 extended-temperature series.
Q: Do you provide calibration certificates?
A: Factory calibration documentation is included with new OEM units. Contact us for third-party calibration services.
