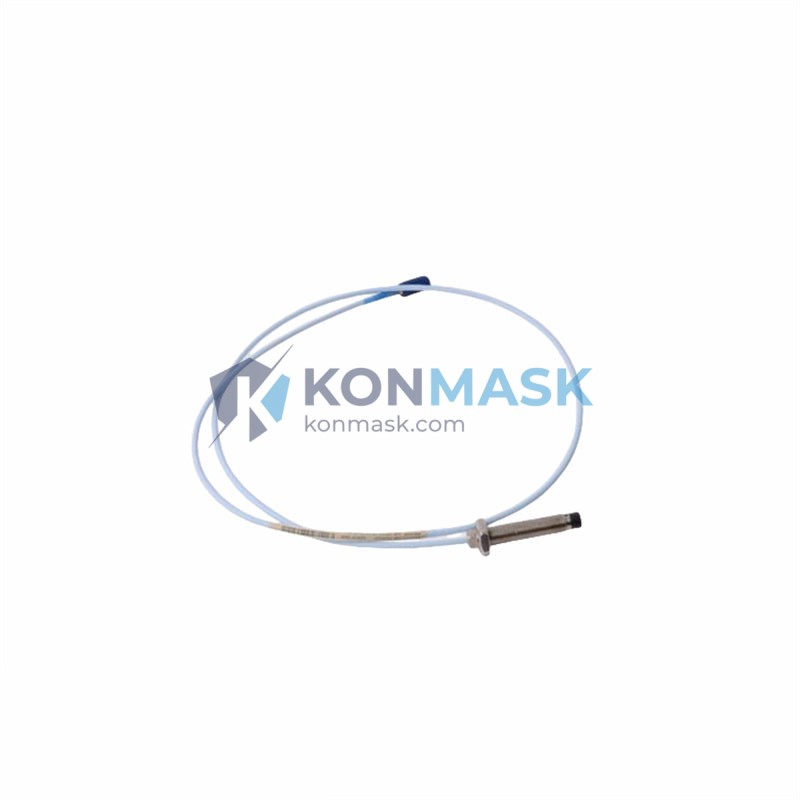

Bently Nevada 330104-02-25-10-02-00 – 25mm Proximity Transducer System | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Proximity Transducer System is the industry benchmark for non-contact vibration and position measurement in rotating machinery. Engineered to API 670 standards, this system delivers continuous, real-time shaft displacement data critical to turbomachinery protection and condition monitoring programs worldwide.
Product Positioning
The 330104-02-25-10-02-00 is a complete eddy-current proximity transducer system configured for a 25 mm (1 inch) linear measurement range with a 4–20 mA output signal. It is the preferred choice for procurement engineers specifying vibration monitoring hardware for gas turbines, steam turbines, compressors, and large rotating equipment in oil & gas, power generation, and petrochemical facilities.
Complete Technical Specifications
- Part Number: 330104-02-25-10-02-00
- Series / Platform: Bently Nevada 3300 XL Proximity Transducer System
- Measurement Principle: Eddy-current (non-contact)
- Linear Range: 25 mm (1.0 in)
- Output Signal: 4–20 mA (2-wire)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC to 10,000 Hz (–3 dB)
- Supply Voltage: 18–30 VDC
- Operating Temperature: –35°C to +121°C (–31°F to +250°F)
- Probe Tip Diameter: 25 mm
- Cable Length: 10 m (standard)
- Extension Cable: 2 m (included)
- Connector Type: MIL-C-5015 (standard)
- Target Material: AISI 4140 steel (standard calibration)
- Ingress Protection: IP67
- Compliance: API 670, CE, ATEX (Zone 1/2), IECEx
- Weight: 230 g (approx.)
- Country of Origin: USA
Proven Application Environments
- Gas turbine shaft radial vibration and axial position monitoring
- Steam turbine differential expansion and eccentricity measurement
- Centrifugal and reciprocating compressor bearing clearance monitoring
- Large motor and generator rotor orbit analysis
- Pump and fan shaft displacement in critical service
- Petrochemical, LNG, refinery, and power plant rotating equipment
Engineering Advantages
- API 670 Compliant: Meets the most stringent machinery protection standard for critical rotating equipment.
- Non-Contact Measurement: Zero mechanical wear; continuous operation without signal degradation over service life.
- Wide Frequency Bandwidth: DC to 10 kHz captures both slow-roll runout and high-frequency vibration events.
- Hazardous Area Rated: ATEX/IECEx Zone 1 & 2 certification for safe installation in explosive atmospheres.
- System Matched: Factory-calibrated as a matched probe/driver set for guaranteed linearity and interchangeability within the 3300 XL ecosystem.
- 4–20 mA Output: Long-distance signal transmission with inherent noise immunity; direct interface to DCS, PLC, and safety systems.
System Architecture & Signal Flow
The 330104-02-25-10-02-00 system comprises three matched components operating as a calibrated unit:
- Probe (330104 series): Eddy-current sensing element installed at the shaft measurement point. Generates a high-frequency oscillating electromagnetic field.
- Extension Cable (330130 series): Low-loss coaxial cable transmitting the raw oscillator signal from probe to driver. Length-matched to maintain system calibration.
- Driver / Oscillator-Demodulator (330180 series): Converts the raw probe signal into a conditioned 4–20 mA DC output proportional to gap distance. Provides power to the probe and performs temperature compensation.
Signal flow: Shaft displacement → Probe field perturbation → Extension cable → Driver demodulation → 4–20 mA output → DCS / Bently Nevada 3500 rack / Safety system
Sourcing & Quality Verification
- All units sourced from authorized distributors or verified OEM surplus channels.
- Each system undergoes incoming inspection: visual, dimensional, and functional verification against Bently Nevada factory calibration data.
- Serialized traceability maintained; calibration certificates available upon request.
- Packaging inspected for moisture ingress, connector damage, and cable integrity prior to dispatch.
- Konmask.com maintains a quality management process aligned with ISO 9001 principles for industrial automation components.
Procurement Process
- Confirm Part Number: Verify 330104-02-25-10-02-00 against your BOM or existing installation drawings.
- Request Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and availability confirmation.
- Submit PO: Standard payment terms available for qualified industrial buyers. Proforma invoice issued within 24 hours.
- Shipping: DHL Express / FedEx International Priority standard. Export documentation (CO, packing list, commercial invoice) included. Worldwide delivery.
- After-Sales: Technical support available for installation verification and system commissioning queries.
Technical FAQ
Q: Is this a complete system or just the probe?
A: This listing covers the complete matched system: probe, extension cable, and driver/oscillator-demodulator, as indicated by the full part number 330104-02-25-10-02-00.
Q: What target material is the factory calibration based on?
A: Standard calibration is performed on AISI 4140 steel. For non-standard target materials (e.g., stainless steel, titanium), a material correction factor must be applied per Bently Nevada application guidelines.
Q: Can this system interface directly with a Bently Nevada 3500 monitoring rack?
A: Yes. The 4–20 mA output is fully compatible with the 3500 series I/O modules. Verify the specific 3500 module input card specification for loop power requirements.
Q: What is the maximum cable run from driver to DCS?
A: The 4–20 mA current loop supports cable runs exceeding 300 m in typical industrial installations, subject to total loop resistance limits.
Q: Do you provide calibration certificates?
A: Yes. Factory calibration data and certificates of conformance are available upon request for each serialized unit.
