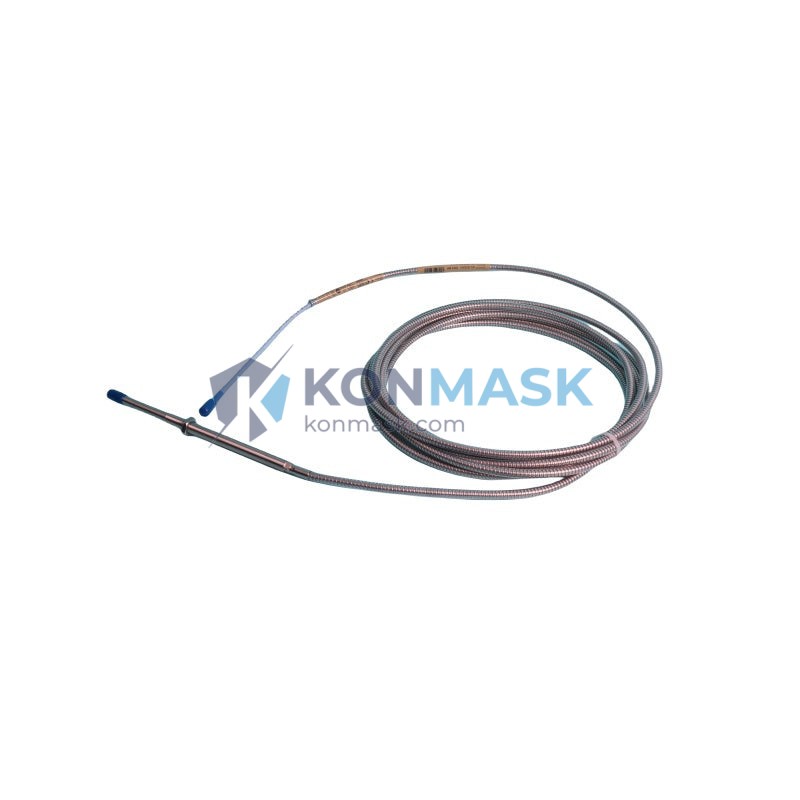

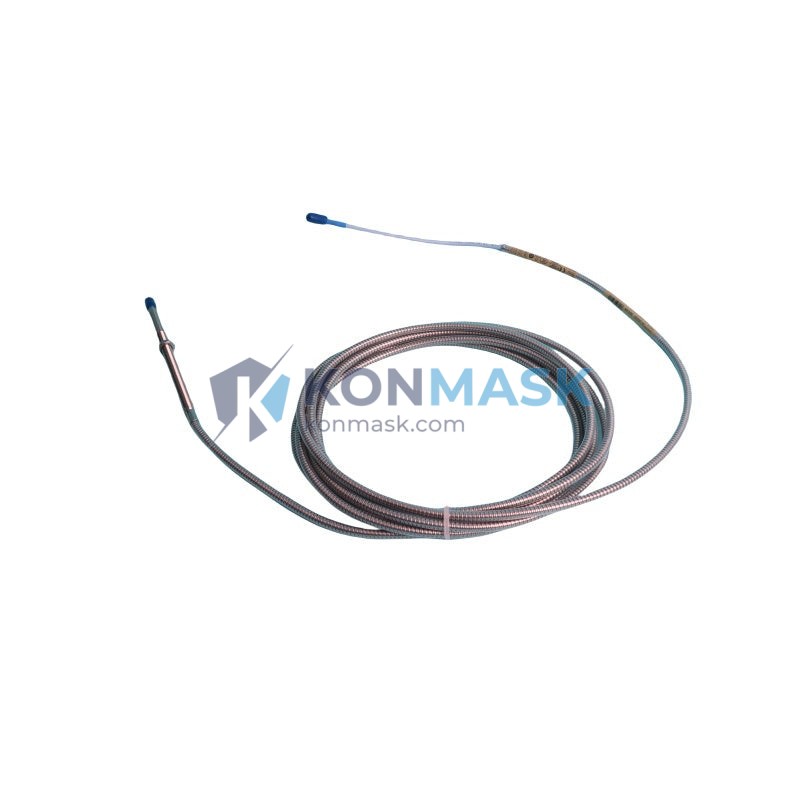

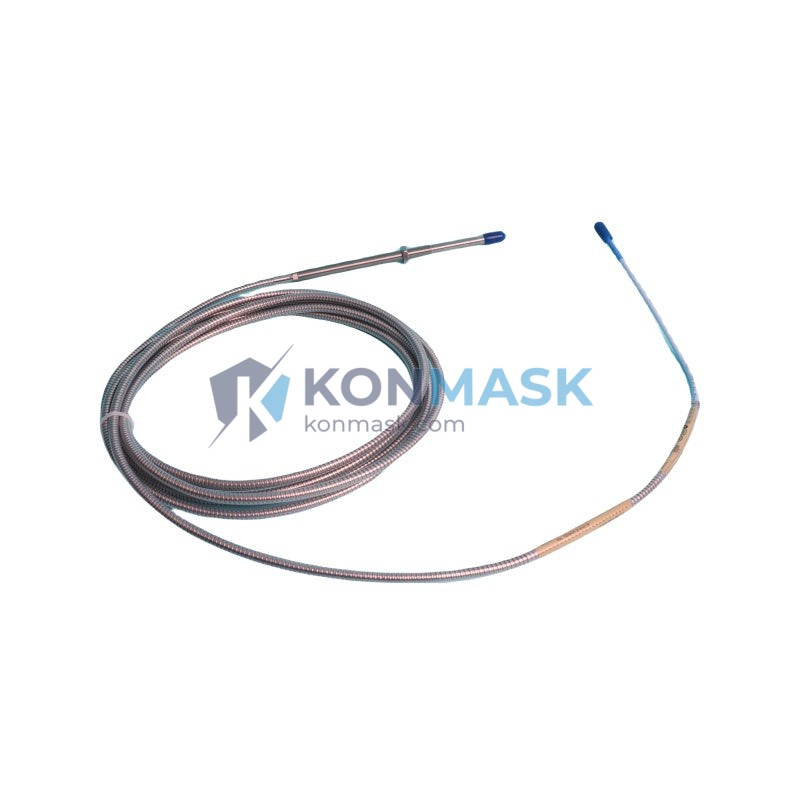

Bently Nevada 330104-05-13-10-02-05 Proximity Transducer System – 3300 XL NSv Series
When a critical rotating machine loses its shaft vibration monitoring capability, the consequences are immediate and severe: undetected rotor imbalance, bearing failures, and catastrophic machinery damage can occur within seconds. In high-stakes environments such as gas turbines, steam turbines, compressors, and pumps, the absence of a reliable proximity transducer is not merely an inconvenience — it is a direct threat to plant safety, uptime, and profitability. The Bently Nevada 330104-05-13-10-02-05 Proximity Transducer System is the precision instrument that stands between normal operation and unplanned shutdown.
The 330104-05-13-10-02-05 is a fully configured proximity transducer assembly within Bently Nevada’s industry-leading 3300 XL NSv (Non-Standard Voltage) Series. Engineered for demanding industrial environments, this model delivers eddy-current-based, non-contact shaft displacement measurement with exceptional linearity and long-term stability. As part of the 3300 XL platform — the global standard for machinery protection systems — this transducer is trusted by OEMs, EPCs, and end-users across petrochemical, power generation, oil & gas, and heavy manufacturing sectors worldwide.
Technical Specifications
- Part Number: 330104-05-13-10-02-05
- Series: 3300 XL NSv (Non-Standard Voltage) Proximity Transducer System
- Brand: Bently Nevada (Baker Hughes)
- Measurement Principle: Eddy-current, non-contact
- Probe Tip Diameter: 5 mm (per part number configuration)
- Cable Length: 13 ft (per part number configuration)
- Extension Cable Length: 10 ft (per part number configuration)
- Output Voltage: NSv (Non-Standard Voltage) — compatible with 3300 XL monitors
- Connector Type: Per Bently Nevada standard (02-05 suffix)
- Operating Temperature: Refer to OEM datasheet
- Approvals: Designed for use with Bently Nevada 3300 XL monitoring systems
- Weight: Approx. 300 g
Note: All specifications are based on the OEM part number configuration. Do not rely on third-party interpretations for safety-critical applications. Always verify with the official Bently Nevada datasheet.
Key Features & Benefits
- Non-Contact Measurement: Eddy-current technology eliminates mechanical wear, ensuring long service life even in continuous 24/7 operation.
- NSv Output Compatibility: Specifically calibrated for 3300 XL NSv monitors, ensuring plug-and-play replacement without recalibration of the monitoring system.
- High Linearity & Sensitivity: Delivers accurate shaft displacement readings critical for API 670-compliant machinery protection.
- Robust Construction: Designed to withstand harsh industrial environments including high temperatures, vibration, and chemical exposure.
- Complete System Assembly: Includes probe, extension cable, and proximitor/driver — a fully matched system for consistent performance.
- Drop-in Replacement: Direct OEM-equivalent replacement for existing 3300 XL NSv installations, minimizing downtime during maintenance.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps
- Power Generation: Steam turbines, hydro turbines, generator sets
- Petrochemical & Refining: Process compressors, reactor agitators, blowers
- Marine & Offshore: Propulsion systems, auxiliary machinery
- Heavy Manufacturing: Large motors, gearboxes, fans
- LNG Plants: Main refrigerant compressor trains
System Integration & Compatible Parts
The 330104-05-13-10-02-05 is designed to integrate seamlessly with the Bently Nevada 3300 XL machinery protection platform. Compatible and related components include:
- Bently Nevada 3300 XL Monitor Modules (e.g., 3300/16, 3300/20, 3300/25)
- Bently Nevada 3500 Series Rack-Based Monitoring Systems
- Other 3300 XL NSv Proximity Transducer assemblies (various cable lengths and tip diameters)
- Bently Nevada TK-3 Proximitor Extension Cables
- Bently Nevada System 1 Software for condition monitoring
When sourcing replacement parts, always match the full part number to ensure NSv output compatibility with your existing monitor configuration.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada 330104-05-13-10-02-05 unit we supply undergoes a rigorous multi-step quality verification process:
- Source Verification: Units are sourced from authorized distributors, certified surplus channels, or directly from OEM-approved supply chains.
- Visual & Physical Inspection: Each unit is inspected for physical integrity, connector condition, cable sheathing, and probe tip condition.
- Documentation Check: We verify traceability documentation, including certificates of conformance where available.
- Functional Testing: Where applicable, units are bench-tested against OEM output specifications before shipment.
- Secure Packaging: Anti-static and shock-resistant packaging ensures safe transit to your facility worldwide.
How to Order
- Submit your inquiry via the “Get a Quote” button or contact us directly at [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 24 hours.
- Upon order confirmation, we arrange secure packaging and international shipping with full tracking.
- Post-delivery support is available for installation guidance and compatibility verification.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control and automation components — no generalist catalog, just deep expertise.
- Global B2B Supply: Serving engineering firms, EPCs, plant maintenance teams, and OEM service departments across 50+ countries.
- Fast Inquiry Response: Dedicated technical sales team responds to RFQs within 24 business hours.
- Competitive Pricing: Direct sourcing relationships enable us to offer market-competitive pricing on hard-to-find parts.
- Reliable Logistics: Partnerships with DHL, FedEx, and UPS for express international delivery with full customs documentation support.
- Long-Term Partnership: We support your entire project lifecycle — from initial procurement to ongoing maintenance supply.
Frequently Asked Questions
Q: Is the 330104-05-13-10-02-05 a complete system or just the probe?
A: The 330104-05-13-10-02-05 is a complete Proximity Transducer System, including the probe, extension cable, and proximitor driver — all matched and calibrated as a system.
Q: What does “NSv” mean in the 3300 XL NSv designation?
A: NSv stands for Non-Standard Voltage. This refers to the output voltage range of the proximitor, which is calibrated specifically for use with Bently Nevada 3300 XL NSv-compatible monitor modules. It is not interchangeable with standard voltage (Sv) versions without monitor reconfiguration.
Q: Can this transducer be used with Bently Nevada 3500 series monitors?
A: The 330104-05-13-10-02-05 is designed for the 3300 XL platform. Compatibility with 3500 series monitors depends on the specific monitor module and its input configuration. Please consult your system documentation or contact our technical team before ordering.
Q: Do you provide a certificate of conformance or test report?
A: We provide available traceability documentation with each shipment. Certificate of conformance availability depends on the specific unit’s sourcing channel. Please specify your documentation requirements when submitting your inquiry.
Q: What is the typical lead time for this part?
A: Lead time varies based on current stock levels. In-stock units typically ship within 3–5 business days. For out-of-stock items, lead time is typically 2–4 weeks. Contact us for real-time availability.
Q: Do you ship internationally?
A: Yes. Konmask.com ships to customers in over 50 countries. We handle all export documentation and can arrange DDP (Delivered Duty Paid) shipping upon request.
