Bently Nevada 330104-08-10-10-02-00 Proximity Transducer System | 3300 Series

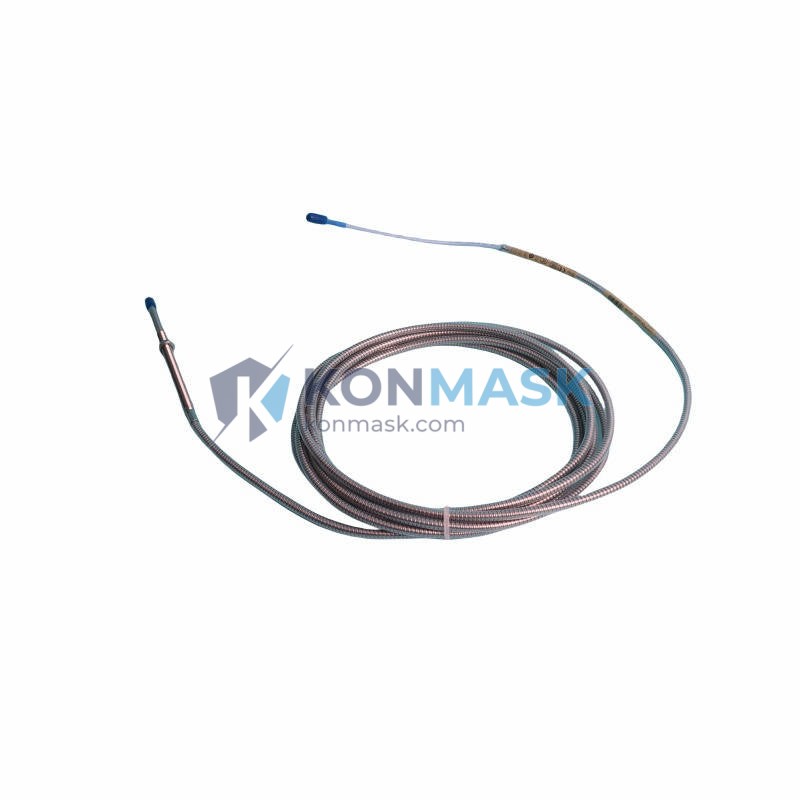

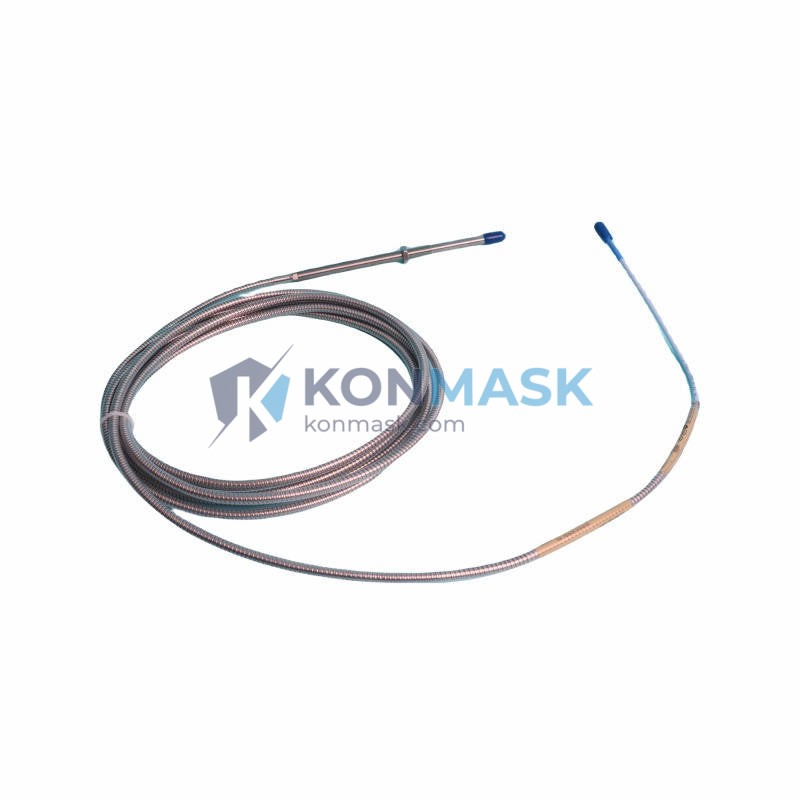

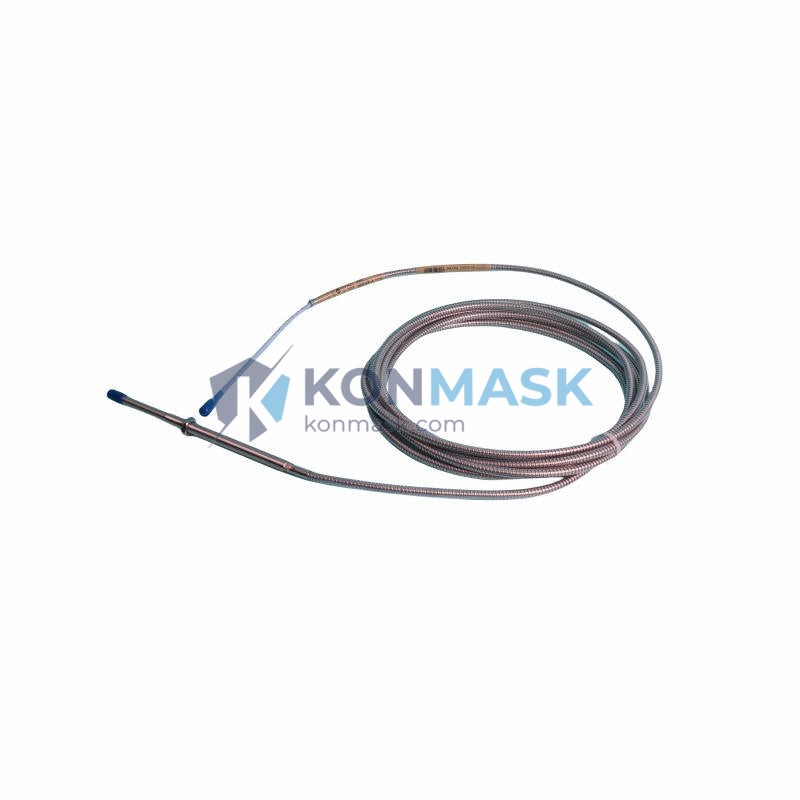

Bently Nevada 330104-08-10-10-02-00 Eddy Current Proximity Transducer – 3300 Series

In high-speed rotating machinery — turbines, compressors, pumps, and generators — shaft vibration and position data are not optional metrics. Without a reliable proximity transducer system, critical machinery operates blind: bearing failures go undetected, rotor instabilities escalate unmonitored, and catastrophic shutdowns become a matter of when, not if. The cost of a single unplanned outage in a petrochemical plant or power station can exceed hundreds of thousands of dollars per hour. The Bently Nevada 330104-08-10-10-02-00 is the precision instrument that eliminates that blind spot.

The 330104-08-10-10-02-00 is part of Bently Nevada’s industry-defining 3300 Series Proximity Transducer System — the global standard for non-contact shaft vibration and position measurement in continuous process industries. With an 8mm probe diameter, 10-foot (3m) extension cable, 10-foot (3m) armored interconnect cable, and a -02-00 driver configuration, this specific assembly is engineered for installations requiring extended cable runs in harsh industrial environments. Bently Nevada (a Baker Hughes company) proximity systems are installed in over 90% of the world’s critical rotating machinery monitoring applications, making the 3300 Series the most trusted platform in the field.

Technical Specifications

• Part Number: 330104-08-10-10-02-00
• Series: 3300 XL 8mm Proximity Transducer System
• Probe Tip Diameter: 8 mm
• Extension Cable Length: 10 ft (3.05 m)
• Interconnect Cable Length: 10 ft (3.05 m)
• Driver Configuration: -02-00 (Standard)
• Measurement Range: 0.25 mm to 2.26 mm (10 to 89 mil)
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Frequency Response: DC to 10,000 Hz
• Supply Voltage: -24 VDC (nominal)
• Output Voltage: -1 VDC to -17 VDC
• Target Material: AISI 4140 steel (standard)
• Operating Temperature: -35°C to +121°C (probe); -35°C to +66°C (driver)
• Approvals: CE, ATEX, FM, CSA (system-level)
• Weight: Approx. 80 g (probe assembly)

Key Features & Benefits

• Non-Contact Measurement: Eddy current technology eliminates mechanical wear, ensuring zero-maintenance sensing over the full equipment lifecycle.
• Extended Cable Configuration: The 10ft + 10ft cable assembly supports installations where the driver must be located away from the probe mounting point — ideal for high-temperature or high-vibration zones.
• Wide Frequency Bandwidth (DC–10 kHz): Captures both slow-roll runout and high-frequency subsynchronous/supersynchronous vibration events critical for API 670 compliance.
• High Sensitivity & Linearity: 200 mV/mil scale factor with excellent linearity across the full measurement range ensures accurate radial vibration, axial position, and differential expansion readings.
• Plug-and-Play with 3300 Monitors: Fully compatible with Bently Nevada 3300 series monitoring racks — no recalibration required when replacing like-for-like.
• Hazardous Area Rated: System-level ATEX/FM approvals support deployment in Zone 1/Division 1 classified areas common in oil & gas and chemical plants.

Industry & Equipment Applications

• Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, expanders — upstream, midstream, and downstream facilities.
• Power Generation: Steam and gas turbine-generators, boiler feed pumps, induced draft fans.
• Petrochemical & Refining: Reactor charge pumps, cracked gas compressors, process gas blowers.
• Pulp & Paper / Steel: Large induced draft fans, rolling mill drives, process line motors.
• Marine & Offshore: Propulsion turbines, LNG compressor trains, offshore platform machinery.

Measurement functions supported: radial shaft vibration, shaft absolute vibration, axial position (thrust), differential expansion, eccentricity, and speed/phase reference (Keyphasor®).

System Integration & Compatible Parts

The 330104-08-10-10-02-00 is designed to integrate seamlessly within the Bently Nevada 3300 monitoring ecosystem. Compatible and commonly paired components include:

• Monitors: 3300/16 Dual Vibration Monitor, 3300/20 Thrust Position Monitor, 3300/25 Eccentricity Monitor
• Keyphasor Modules: 3300/55 Keyphasor Module
• I/O Modules: 3300 Series I/O modules for DCS/PLC integration (4–20 mA, relay outputs)
• System 1 Software: Bently Nevada System 1 condition monitoring and diagnostics platform
• Alternative Probe Assemblies: 330104-08-10-05-02-00 (5ft cables), 330104-08-10-20-02-00 (20ft cables)

Our Quality Assurance Process

At Konmask.com, every Bently Nevada 330104-08-10-10-02-00 unit undergoes a rigorous intake and verification process before shipment:

• Visual inspection for probe tip, cable jacket, and connector integrity
• Part number and label verification against OEM documentation
• Functional continuity check on probe and extension cable assembly
• Anti-static packaging with humidity indicator cards for long-term storage protection
• Traceability documentation provided upon request

We source from authorized distributors and verified surplus channels. All units are shipped with a 90-day warranty against defects.

How to Order

1. Submit an inquiry via the Contact Us page or email support@konmask.com
2. Provide your required quantity, delivery timeline, and destination country
3. Receive a formal quotation within 1 business day
4. Confirm order and arrange payment via T/T, L/C, or other agreed terms
5. Shipment arranged via DHL, FedEx, or freight forwarder — with full export documentation

Lead Time: In-stock units ship within 3–5 business days. Contact us for urgent requirements.

Why Choose Konmask.com?

• ✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, and condition monitoring components — we speak your engineering language.
• ✅ Global B2B Supply: Serving EPC contractors, MRO teams, and plant engineers across 40+ countries.
• ✅ Fast Sourcing: Access to extensive surplus and distributor networks for hard-to-find part numbers.
• ✅ Technical Support: Pre-sales compatibility verification and post-sales installation guidance available.
• ✅ Secure Transactions: Professional export documentation, commercial invoices, and packing lists provided for customs clearance.

Frequently Asked Questions

Q: Is the 330104-08-10-10-02-00 compatible with older 3300 series monitors?
A: Yes. The 3300 XL series maintains backward compatibility with legacy 3300 series monitors. However, always verify the driver configuration matches your monitor’s input requirements before installation.

Q: Can this transducer be used on non-steel target materials?
A: The standard calibration is for AISI 4140 steel. For other target materials (e.g., titanium, Inconel, aluminum), a material correction factor or custom calibration is required. Contact us for guidance.

Q: What is the difference between the -02-00 and -01-00 driver suffix?
A: The -02-00 designates the standard 3300 XL driver module. The -01-00 is an earlier driver variant. Ensure your monitor rack accepts the -02-00 driver before ordering.

Q: Do you provide calibration certificates?
A: Calibration certificates are available upon request for an additional fee. Please specify this requirement when submitting your inquiry.

Q: What is the minimum order quantity (MOQ)?
A: MOQ is 1 piece. We accommodate both single-unit replacement orders and bulk procurement for plant turnarounds.

---
