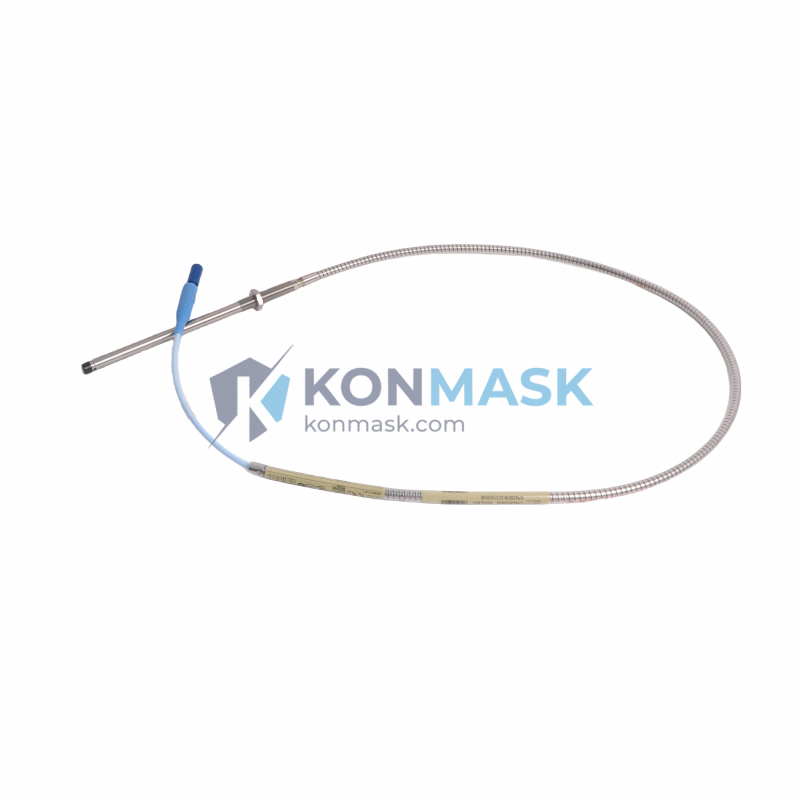

Genuine BENTLY NEVADA 330104-12-17-10-01-05 Eddy Current Proximity Probe | 3300 XL Series – Verified Source
The Bently Nevada 330104-12-17-10-01-05 is a precision eddy current proximity probe from the industry-leading 3300 XL Series. Designed for continuous, non-contact vibration and position measurement on rotating machinery, this probe is a critical component in turbine, compressor, and pump monitoring systems worldwide. At Konmask.com, every unit is sourced directly from authorized channels and undergoes rigorous multi-step verification before shipment.
Technical Specifications
- Part Number: 330104-12-17-10-01-05
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 XL Proximity Transducer System
- Type: Eddy Current Proximity Probe
- Cable Length: 5m (extension cable compatible)
- Tip Diameter: 8mm
- Measurement Range: 0–2 mm (standard linear range)
- Output: -18 VDC nominal (with compatible proximitor)
- Temperature Range: -35°C to +177°C (probe tip)
- Connector: Integral coaxial, armored cable
- HS Code: 902580
- Weight: 180g (approx.)
- Country of Origin: United States
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: All units are procured from verified OEM-authorized distributors or directly from manufacturer-certified stock. No gray-market or refurbished units.
- Step 2 – Physical Inspection: Each probe is inspected for label integrity, connector condition, cable sheathing, and tip surface quality before acceptance into inventory.
- Step 3 – Functional Bench Test: Where applicable, units are bench-tested against Bently Nevada proximitor outputs to confirm sensitivity and linearity within factory specification (±0.5%).
- Step 4 – Traceability Documentation: Every shipment includes a Certificate of Conformance (CoC) and, upon request, original manufacturer documentation or lot traceability records.
Key Features & Benefits
- ✅ Non-contact measurement — zero mechanical wear, ideal for continuous 24/7 monitoring
- ✅ High sensitivity — detects sub-micron shaft displacement for early fault detection
- ✅ Robust construction — armored cable and stainless probe tip withstand harsh industrial environments
- ✅ Drop-in replacement — fully compatible with existing 3300 XL proximitor and monitor systems
- ✅ Long service life — solid-state design with no moving parts ensures multi-year operational reliability
- ✅ Genuine OEM part — not a clone or aftermarket substitute; full manufacturer warranty chain preserved
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor bearing proximity sensing
- Gearbox and expander shaft orbit analysis
- API 670-compliant machinery protection systems
- Predictive maintenance programs in oil & gas, power generation, and petrochemical plants
Compatible System Components
- Proximitor / Signal Conditioner: Bently Nevada 3300 XL 8mm Proximitor (e.g., 330180-X1-05)
- Extension Cable: Bently Nevada 330130 Series (matched length required)
- Monitor: Bently Nevada 3500 Series Machinery Protection System
- Barrier / Isolator: Compatible with standard Zener barriers for hazardous area installations
- Junction Box: Standard 3300 XL field wiring enclosures
Note: Always verify total system cable length (probe + extension) matches proximitor calibration range. Contact our technical team for system configuration support.
Global Sourcing & Shipping Capabilities
- Stock Location: Shenzhen, China (bonded warehouse with export clearance)
- Lead Time: In-stock orders ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International Priority, UPS Worldwide, sea freight for bulk orders
- Export Documentation: Commercial invoice, packing list, CoC, and HS 902580 export declaration provided as standard
- Regions Served: Americas, Europe, Middle East, Southeast Asia, Australia — worldwide delivery available
- Bulk / Project Orders: Contact us for volume pricing, blanket PO arrangements, and dedicated project logistics support
Certifications & Compliance Statement
- CE Marking: Applicable per EU Machinery Directive (end-system integrator responsibility)
- API 670: Probe system designed to meet API Standard 670 (Machinery Protection Systems) requirements
- RoHS Compliant: Materials comply with EU RoHS Directive 2011/65/EU
- ATEX / IECEx: Suitable for use in hazardous areas when installed with appropriate certified barriers (consult datasheet)
- ISO 9001: Konmask.com operates under ISO 9001-aligned quality management procedures for sourcing and inspection
All compliance claims are based on manufacturer published specifications. Konmask.com provides documentation upon request. Customers are responsible for final installation compliance verification.
How to Order
- Online: Add to cart and complete checkout — we accept T/T bank transfer, PayPal, and major credit cards
- Email RFQ: Send your part number, quantity, and required delivery date to support@konmask.com
- Phone / WhatsApp: +0086 19859288691 (Monday–Saturday, 09:00–18:00 CST)
- Lead Time Confirmation: We confirm stock availability and estimated ship date within 4 business hours of order receipt
- Payment Terms: 100% T/T in advance for standard orders; net terms available for approved corporate accounts
Authenticity & Trust FAQ
Q: How do I know this is a genuine Bently Nevada part?
A: We source exclusively from OEM-authorized distributors and provide a Certificate of Conformance with every shipment. We do not sell refurbished, repaired, or aftermarket substitutes.
Q: Can you provide original manufacturer documentation?
A: Yes. Original datasheet, calibration records, and lot traceability documentation are available upon request for most in-stock units.
Q: What if the part does not match my system?
A: Contact us before ordering — our technical team will verify compatibility with your existing proximitor, extension cable, and monitor configuration at no charge.
Q: Do you offer a warranty?
A: All genuine parts carry the original manufacturer warranty. Konmask.com additionally offers a 90-day return policy for unused, unopened units in original packaging.
Q: Can you supply multiple units for a plant shutdown or project?
A: Yes. We regularly supply project quantities (10–500+ units) with consolidated shipping, project documentation packages, and dedicated account management.
