Rotating Machinery Vibration Monitoring Solution – BENTLY NEVADA 330130-070-00-CN | 3300 XL Series

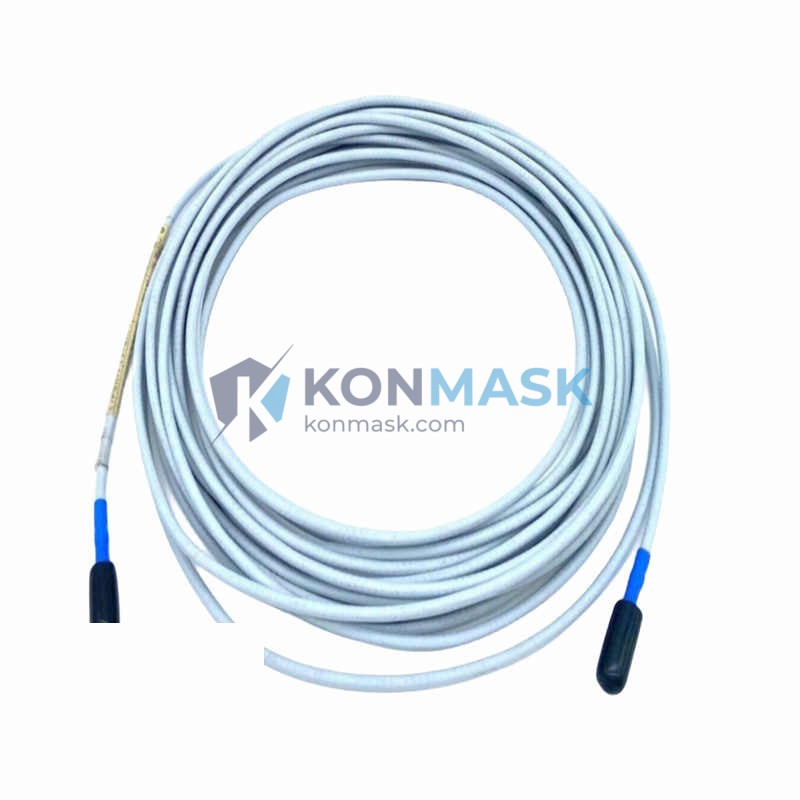

The Bently Nevada 330130-070-00-CN is a 7-metre (70-foot) extension cable engineered for use within the 3300 XL Proximity Transducer System. It bridges the gap between the proximity probe and the Proximitor® sensor, enabling precise non-contact displacement and vibration measurement on rotating shafts in critical industrial machinery. Procurement engineers and reliability teams worldwide specify this cable to maintain signal integrity across demanding installation geometries.
Where This Product Is Used
This extension cable is a mandatory system component wherever the standard probe cable length is insufficient to reach the Proximitor® sensor. Typical deployment environments include:
- Steam & Gas Turbines — shaft radial vibration and axial position monitoring per API 670
- Centrifugal Compressors — bearing journal orbit analysis in petrochemical and LNG trains
- Boiler Feed Pumps & Large Centrifugal Pumps — continuous displacement monitoring in power generation
- Gearboxes & Expanders — high-speed shaft monitoring in refinery and chemical plant service
- Motor-Driven Equipment — rotor dynamic surveillance in critical rotating assets
- Marine Propulsion Systems — shaft monitoring in confined machinery spaces requiring extended cable routing
Wherever a 3300 XL proximity probe is installed more than the standard cable length from its Proximitor® sensor, the 330130-070-00-CN provides the calibrated electrical extension required to preserve system accuracy.
Technical Specifications
| Part Number | 330130-070-00-CN |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3300 XL Proximity Transducer System |
| Component Type | Extension Cable |
| Cable Length | 7.0 m (22.97 ft) — suffix -070 denotes 7 m |
| Connector Style | Armored coaxial, field-mateable MIL-spec connectors |
| Impedance | Matched to 3300 XL system (50 Ω nominal) |
| Temperature Rating | –40 °C to +125 °C (–40 °F to +257 °F) |
| Jacket Material | Stainless steel armored / PTFE-insulated inner conductor |
| Approvals / Suffix | -CN: China market / standard configuration |
| Compatible Probes | 330100, 330101, 330103, 330104, 330105 series |
| Compatible Proximitor® | 330180, 330185, 330190 series |
| Weight (approx.) | 2.0 kg |
| Standard Compliance | API 670, IEC 60079 (Ex-rated variants), CE |
Why Engineers Specify This Model
- Calibrated System Matching — The 330130 extension cable is factory-characterized to maintain the electrical properties of the 3300 XL eddy-current loop. Substituting generic coaxial cable invalidates system calibration and voids OEM warranty.
- 7-Metre Reach — The -070 length designation covers the most common installation gap between probe tip and Proximitor® sensor in large turbomachinery pedestals and compressor trains.
- Armored Construction — Stainless steel armor protects against mechanical damage, rodent ingress, and vibration-induced fatigue in high-cycle environments.
- Drop-In Replacement — Identical form, fit, and function to OEM-supplied cables; no recalibration required when replacing like-for-like.
- Hazardous Area Compatibility — Compatible with ATEX/IECEx-certified Proximitor® sensors when installed per Bently Nevada system documentation.
Complete System Bill of Materials
A complete 3300 XL proximity measurement channel requires the following components. Konmask.com stocks all items:
| Component | Typical Part Number | Function |
|---|---|---|
| Proximity Probe | 330104-00-02-10-02-00 (8 mm) | Eddy-current sensing tip |
| Probe Cable (integral) | Supplied with probe | Connects probe to extension cable |
| Extension Cable | 330130-070-00-CN ✓ (this item) | Bridges probe cable to Proximitor® |
| Proximitor® Sensor | 330180-X1-05 / 330185-02-05 | Signal conditioning & power supply |
| Interconnect Cable | Per installation drawing | Proximitor® to monitor rack |
| Monitor Module | 3500/40M, 3500/42M, etc. | Vibration / position processing |
Contact support@konmask.com to source a complete matched system or individual replacement components.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems: extension cables must be OEM-specified to comply with Section 5 transducer system requirements.
- IEC 60079-0 / 60079-11 — Intrinsic safety compliance when used with certified Proximitor® sensors in Zone 1/Zone 2 hazardous areas.
- ISO 10816 / ISO 20816 — Mechanical vibration measurement on non-rotating parts; system accuracy depends on calibrated cable assembly.
- CE Marking — Compliant for European Economic Area installations.
- RoHS — Materials comply with EU Directive 2011/65/EU on restriction of hazardous substances.
Quality Assurance & Sourcing
Konmask.com operates a rigorous multi-stage verification process for all Bently Nevada components:
- OEM Traceability — Every unit is sourced through authorized distribution channels or directly from Baker Hughes / Bently Nevada licensed inventory. Country-of-origin and batch documentation available on request.
- Physical Inspection — Connector condition, armor integrity, and part-number label verification performed before dispatch.
- Electrical Continuity Check — Coaxial continuity and insulation resistance verified prior to shipment.
- Anti-Counterfeit Protocol — Holographic OEM labels, date codes, and connector finish are cross-referenced against Bently Nevada authentication guidelines.
- Packaging — Shipped in original OEM packaging or equivalent ESD-safe protective packaging with desiccant.
How to Source This Part
- Submit RFQ — Email support@konmask.com with part number 330130-070-00-CN, required quantity, and delivery timeline.
- Receive Quote — Pricing and lead-time confirmation within 24 business hours. Volume pricing available for orders of 5+ units.
- Order Confirmation — Purchase order accepted via email. Proforma invoice issued for prepayment or net-terms accounts.
- Quality Documentation — Certificate of conformance, packing list, and traceability records provided with shipment.
- Global Shipping — DHL / FedEx express worldwide. Export documentation (HS code, ECCN) prepared for customs clearance.
- After-Sales Support — Technical assistance available post-delivery for installation verification and system commissioning queries.
Phone / WhatsApp: +0086 19859288691 | Email: support@konmask.com
Application-Specific FAQ
- Q: Can I use a generic coaxial cable instead of the 330130-070-00-CN?
- A: No. The 3300 XL system is a calibrated eddy-current loop. The probe, extension cable, and Proximitor® sensor are characterized together. Using a non-OEM cable alters the system’s electrical characteristics, shifts the calibration curve, and will produce inaccurate vibration readings. It also violates API 670 compliance requirements.
- Q: What is the difference between 330130-070-00-00 and 330130-070-00-CN?
- A: The final suffix (-00 vs -CN) denotes the regional configuration. The -CN variant is the standard configuration for the China market and is electrically identical to the -00 variant. Both are fully interchangeable in the 3300 XL system.
- Q: Can this cable be used with 3300 NSv or 3300 RAM probes?
- A: The 330130 extension cable is designed for the standard 3300 XL eddy-current system. Compatibility with NSv or RAM variants depends on the specific Proximitor® sensor. Contact our technical team to confirm compatibility for your exact system configuration.
- Q: What is the maximum total cable length (probe cable + extension cable) for the 3300 XL system?
- A: Bently Nevada specifies a maximum total cable length of 9.0 m (30 ft) for the standard 3300 XL system. The 330130-070-00-CN (7 m) is typically paired with a 2 m probe cable to reach this limit. Consult Bently Nevada document 141536-01 for full cable length specifications.
- Q: Do you provide a certificate of conformance with the shipment?
- A: Yes. A certificate of conformance (CoC) and packing list are included with every shipment. Batch traceability documentation is available on request for critical plant applications.
- Q: What is the lead time for the 330130-070-00-CN?
- A: In-stock units ship within 3–5 business days. For out-of-stock situations, typical lead time is 4–8 weeks depending on OEM availability. Contact us for real-time stock status.
