Vibration Monitoring Solution – BENTLY NEVADA 330730-040-00-00 | 3300 Series Interconnect Cable
Where This Product Is Used

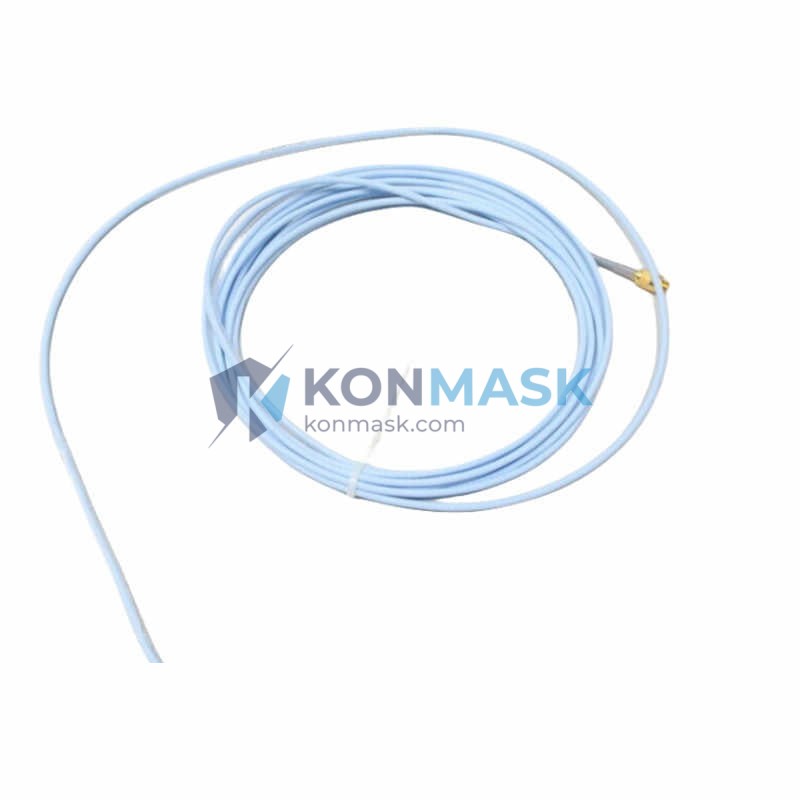

The BENTLY NEVADA 330730-040-00-00 is a precision interconnect cable engineered for use within the 3300 Series Proximity Transducer System. It serves as the critical signal-carrying link between the proximity probe and the extension cable or monitor in continuous rotating machinery surveillance applications.
Typical deployment environments include:
- Steam and gas turbine bearing vibration monitoring systems
- Centrifugal and axial compressor shaft displacement measurement
- Pump and motor radial/axial position monitoring
- Gearbox and expander machinery protection panels
- Petrochemical plant rotating equipment health monitoring
- Power generation facilities requiring API 670-compliant instrumentation
This cable is specified wherever engineers require a 40-inch (1016 mm) extension within a 3300 Series proximity loop, maintaining signal integrity from probe tip to monitor input.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330730-040-00-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Series | 3300 Proximity Transducer System |
| Cable Type | Interconnect / Extension Cable |
| Cable Length | 40 inches (1016 mm) |
| Compatible Probe Series | 3300 XL 8mm, 11mm, 14mm Proximity Probes |
| Connector Type | Coaxial, factory-terminated |
| Temperature Range | -40°C to +121°C (operating) |
| Weight | ~500 g |
| Jacket Material | Stainless steel armored / PTFE-insulated inner conductor |
| Output Signal | Compatible with -24 VDC proximity system bias voltage |
Why Engineers Specify This Model
- System-Matched Performance: Factory-calibrated to maintain the precise electrical characteristics required by the 3300 Series eddy-current proximity system — no field trimming required.
- 40-Inch Length Flexibility: The 330730-040-00-00 length designation (40 inches) fills the gap between standard probe tip and extension cable in tight machinery installations where longer runs are impractical.
- Signal Integrity: Low-loss coaxial construction minimizes capacitance variation, ensuring accurate gap voltage output across the full measurement range.
- Harsh Environment Rated: Armored jacket and PTFE insulation resist oil, steam, vibration fatigue, and high-temperature exposure common in turbomachinery enclosures.
- Drop-In Replacement: OEM-equivalent construction allows direct substitution in existing 3300 Series loops without recalibration of the monitor.
- Reduced Downtime Risk: Stocking this cable as a critical spare eliminates extended outages caused by proximity system cable failures during planned or unplanned maintenance windows.
Complete System Bill of Materials
The 330730-040-00-00 interconnect cable is one component of a complete 3300 Series proximity measurement chain. A typical system BOM includes:
- Proximity Probe — e.g., 330103-00-08-10-02-00 (8 mm, 200 mil range)
- Interconnect Cable — 330730-040-00-00 (this item, 40 inches)
- Extension Cable — e.g., 330130-045-00-CN (45-foot armored extension)
- Proximitor® Sensor / Monitor — e.g., 3300/16 or 3500/42M Proximitor Monitor
- Mounting Hardware — probe holder, lock nut, and conduit fittings
Contact support@konmask.com to source complete system assemblies or individual components.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition): The 3300 Series proximity system, including this cable, is designed to meet API 670 requirements for radial vibration, axial position, and speed measurement on critical rotating machinery.
- IEC 61511 / IEC 61508 — Functional Safety: Compatible with safety instrumented system (SIS) architectures when used with certified monitors.
- ATEX / IECEx — Intrinsically safe variants available for hazardous area (Zone 1/Zone 2) installations; confirm suffix codes for your specific classification requirement.
- RoHS Compliant — Materials comply with EU Directive 2011/65/EU on restriction of hazardous substances.
Quality Assurance & Sourcing
Konmask.com sources the BENTLY NEVADA 330730-040-00-00 through verified industrial automation supply channels. Every unit offered is:
- Inspected for physical integrity, connector condition, and jacket continuity prior to dispatch
- Stored in ESD-safe, climate-controlled warehousing to preserve electrical characteristics
- Shipped with original manufacturer packaging where available, or equivalent protective packaging
- Traceable to batch documentation upon request for quality-critical installations
We do not list counterfeit, refurbished-as-new, or specification-deviant product. If you require a Certificate of Conformance (CoC) or material traceability documentation, please state this at time of inquiry.
How to Source This Part
To place an order or request a quotation for the BENTLY NEVADA 330730-040-00-00:
- Online: Add to cart directly from this page (stock availability shown above)
- Email RFQ: support@konmask.com — include quantity, required delivery date, and destination port
- Phone / WhatsApp: +0086 19859288691 (Monday–Friday, 09:00–18:00 CST)
- Lead Time: In-stock orders typically ship within 1–3 business days; ex-stock international orders subject to export documentation timeline
- MOQ: 1 piece — no minimum order quantity for standard stocking items
Application-Specific FAQ
Q: Can the 330730-040-00-00 be used with non-Bently Nevada monitors?
A: This cable is calibrated for the Bently Nevada 3300 Series eddy-current system. Using it with third-party monitors may result in incorrect gap voltage output and measurement errors. Consult your monitor manufacturer’s compatibility documentation before substitution.
Q: What is the difference between the interconnect cable and the extension cable?
A: The interconnect cable (330730 series) connects directly to the probe body and is typically short (5–40 inches). The extension cable (330130 series) runs the longer distance from the interconnect to the monitor, often 5–30 meters. Both must be matched to the same probe series for accurate calibration.
Q: Is the 40-inch length field-cuttable?
A: No. The 330730-040-00-00 is factory-terminated and calibrated at 40 inches. Cutting or splicing the cable will alter its electrical characteristics and invalidate system calibration. Select the correct length suffix (e.g., -020 for 20 inches, -050 for 50 inches) for your installation geometry.
Q: Do you stock other lengths in the 330730 series?
A: Yes. Contact us with your required length and we will confirm availability. Common lengths include 5, 10, 20, 25, 40, and 50 inches.
Q: Can this cable be used in a hazardous (classified) area?
A: The standard 330730-040-00-00 is suitable for general industrial environments. For ATEX/IECEx Zone 1 or Zone 2 classified areas, verify the full part number suffix and consult the Bently Nevada hazardous area approval documentation. Konmask can assist with sourcing the appropriate certified variant.
