Bently Nevada 330173-00-03-10-02-00 – 8mm Eddy Current Proximity Probe | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL Series represents the industry benchmark for non-contacting shaft vibration and position measurement in rotating machinery. Developed by Baker Hughes (Bently Nevada), this platform is deployed globally in turbines, compressors, pumps, and motors where continuous, high-accuracy rotor dynamic data is mission-critical. The 330173 probe series is the 8mm standard-range transducer within this ecosystem, engineered for direct integration with 3300 XL extension cables and proximitor/driver modules.
Product Positioning

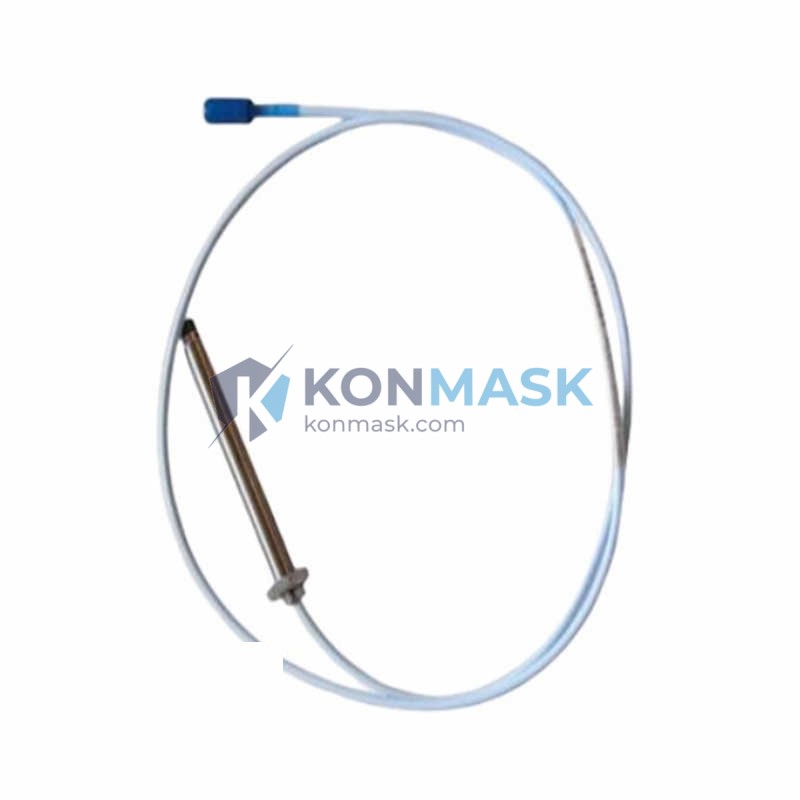

The 330173-00-03-10-02-00 is a factory-configured 8mm eddy current proximity probe with a 1-metre armored cable, metric thread body, and standard sensitivity output. It is the preferred choice for procurement engineers specifying OEM-equivalent replacements or expansion of existing 3300 XL monitoring systems. Konmask.com supplies this part as a verified, traceable unit suitable for critical-service installations.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | 330173-00-03-10-02-00 |
| Series / Platform | Bently Nevada 3300 XL |
| Sensing Technology | Eddy Current (Non-contacting) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm – 2.25 mm (10 mil – 90 mil) |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Cable Length | 1.0 m (3.28 ft) armored integral cable |
| Thread Body | M10 × 1.0 metric |
| Operating Temperature | −35 °C to +120 °C |
| Target Material | AISI 4140 steel (standard); other alloys with calibration |
| Supply Voltage | −24 VDC (via proximitor/driver) |
| Output Voltage Range | −2 VDC to −18 VDC |
| Connector | Integral coaxial, mates with 3300 XL extension cable |
| Ingress Protection | IP67 (probe body) |
| Agency Approvals | CE, ATEX (consult datasheet for zone classification) |
| Weight | Approx. 100 g |
| Country of Origin | USA (Baker Hughes / Bently Nevada) |
Proven Application Environments
- Steam & Gas Turbines – Continuous shaft radial vibration and axial position monitoring per API 670
- Centrifugal Compressors – Rotor orbit and differential expansion measurement in petrochemical trains
- Boiler Feed Pumps – High-temperature bearing journal monitoring in power generation
- Electric Motors & Generators – Air-gap and eccentricity measurement in large rotating machines
- Gearboxes – Gear mesh frequency and shaft runout detection
- Marine Propulsion Systems – Shaft alignment verification and vibration trending
Engineering Advantages
- API 670 Compliant – Meets the machinery protection standard for critical rotating equipment
- High Linearity – ±1% linearity over full operating range ensures measurement integrity
- Temperature Stability – Thermally compensated design maintains calibration from −35 °C to +120 °C
- Armored Cable – Stainless steel braid protects against mechanical damage and EMI in harsh plant environments
- Direct OEM Replacement – Pin-compatible with all 3300 XL proximitor/driver modules; no recalibration required when replacing like-for-like
- Long Service Life – Non-contacting measurement eliminates wear; MTBF exceeds 100,000 hours in typical installations
System Architecture & Signal Flow
The 330173-00-03-10-02-00 operates as the sensing element in a three-component transducer system:
- Proximity Probe (330173-00-03-10-02-00) – Generates the eddy current field and converts gap distance to a proportional voltage signal via the integral coaxial cable.
- Extension Cable (330130 Series) – Transmits the high-frequency oscillator signal between probe and proximitor over distances up to 9 m total system cable length.
- Proximitor / Driver (3300 XL 8mm, e.g. 330180) – Provides −24 VDC excitation, demodulates the RF signal, and outputs a DC voltage proportional to gap. Interfaces directly with 3500 Series monitoring racks or standalone monitors.
Total system cable length (probe + extension) must not exceed 9.0 m for specified sensitivity. Verify proximitor part number compatibility before ordering extension cables.
Sourcing & Quality Verification
- Units supplied by Konmask.com are sourced through verified industrial distribution channels with full traceability documentation available on request.
- Each probe is inspected for physical integrity, connector condition, and cable continuity prior to dispatch.
- Certificate of Conformance (CoC) and original manufacturer documentation can be provided for critical-service procurement requirements.
- Konmask.com does not supply counterfeit, refurbished-as-new, or grey-market units. All stock is clearly identified by condition (new surplus, reconditioned, or used-tested) at point of quotation.
Procurement Process
- Confirm Part Number – Verify the full 18-digit Bently Nevada part number from your existing system documentation or nameplate.
- Check System Compatibility – Confirm proximitor model and total cable length to ensure system compliance.
- Request Quote – Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and documentation requirements.
- Place Order – Purchase directly via Konmask.com checkout or submit a formal PO for B2B orders.
- Receive & Inspect – All shipments include packing list and inspection report. Contact us within 48 hours of receipt for any discrepancies.
Technical FAQ
Q: Can the 330173-00-03-10-02-00 be used with older 3300 (non-XL) proximitors?
A: The 3300 XL 8mm probe series is designed for XL-series proximitors. Cross-compatibility with legacy 3300 drivers requires sensitivity verification; contact our engineering team for guidance.
Q: What is the maximum operating temperature for the probe cable?
A: The integral armored cable is rated to +120 °C continuous. For higher ambient temperatures at the cable routing path, specify a high-temperature extension cable (330130-XX-XX series).
Q: Is factory calibration documentation available?
A: Yes. Original Bently Nevada calibration certificates can be requested at time of order for new-surplus units. Reconditioned units include Konmask.com in-house calibration reports traceable to NIST standards.
Q: What target materials require special calibration?
A: The standard calibration is for AISI 4140 steel. Stainless steel, titanium, Inconel, and other alloys require material-specific calibration factors. Bently Nevada provides calibration curves for common alloys; contact us to specify your target material.
Q: Do you offer expedited shipping for critical plant shutdowns?
A: Yes. Express air freight is available globally. Contact support@konmask.com with your required delivery date and we will confirm availability and logistics options within 2 business hours.
