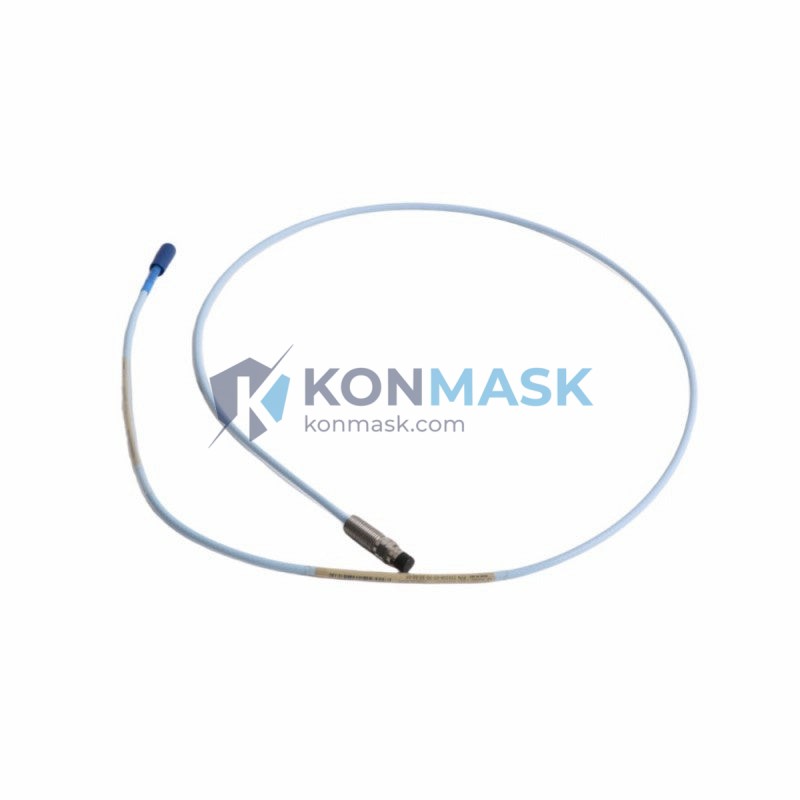

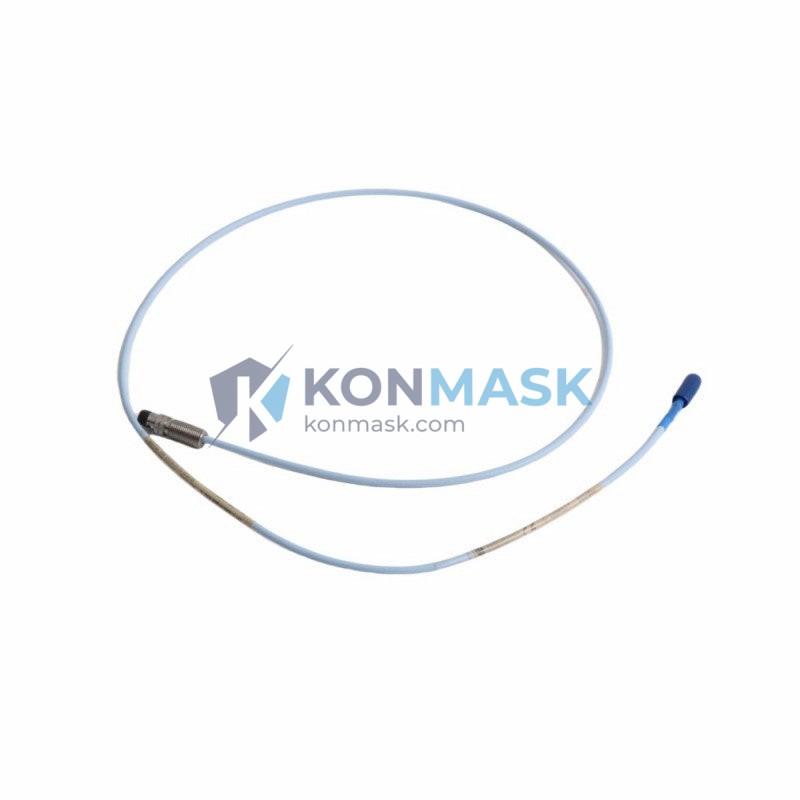

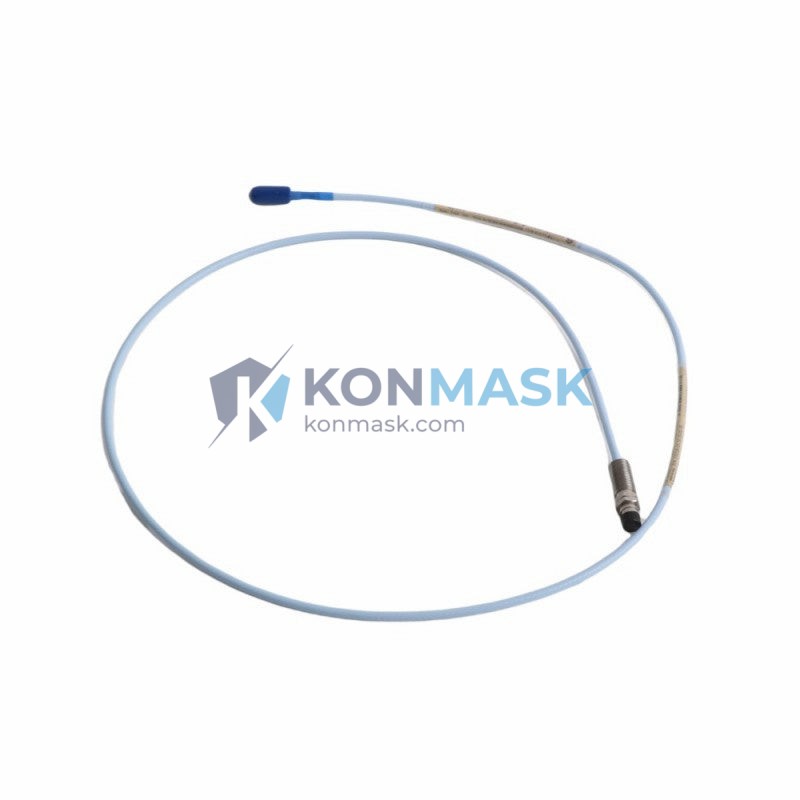

Bently Nevada 330173-00-03-10-02-CN Proximity Transducer System – 3300 Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft displacement, catastrophic bearing failure, unplanned downtime, and in worst cases, complete machinery destruction. In high-stakes environments such as turbines, compressors, and pumps, the absence of a reliable transducer system is not merely an inconvenience — it is a safety and production crisis. The Bently Nevada 330173-00-03-10-02-CN Transducer System exists precisely to prevent this scenario, delivering continuous, high-accuracy proximity measurement that keeps your machinery protection system fully operational.
Within the renowned Bently Nevada 3300 Series — the global benchmark for eddy-current proximity sensing in industrial machinery protection — the 330173-00-03-10-02-CN represents a precisely engineered configuration optimized for demanding field conditions. The 3300 Series is deployed across thousands of critical assets worldwide, trusted by major oil & gas operators, power generation facilities, and petrochemical plants. This specific model variant combines the probe, extension cable, and proximitor sensor into a fully matched system, ensuring measurement integrity from shaft surface to monitoring rack.
Technical Specifications
- Part Number: 330173-00-03-10-02-CN
- Series: Bently Nevada 3300 Series Proximity Transducer System
- Manufacturer: Bently Nevada (Baker Hughes)
- Measurement Type: Eddy-Current Non-Contact Proximity / Vibration
- System Components: Probe + Extension Cable + Proximitor Sensor (matched set)
- Output Signal: -24 VDC nominal (standard Bently Nevada output)
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Operating Temperature: Probe: -35°C to +177°C; Proximitor: -35°C to +85°C
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Approvals: CE, ATEX / IECEx (hazardous area rated)
- Weight: 220 g
- Country of Origin: USA
Note: All specifications are based on published Bently Nevada documentation. Contact us to confirm exact configuration details for your application.
Key Features & Benefits
- Matched System Accuracy: Probe, cable, and proximitor are factory-calibrated as a matched set, eliminating interchangeability errors and ensuring ±1% measurement accuracy.
- Non-Contact Measurement: Eddy-current technology provides wear-free, continuous shaft position and vibration monitoring without physical contact.
- Hazardous Area Certified: ATEX/IECEx approval makes this system suitable for Zone 1 and Zone 2 explosive atmospheres common in oil & gas and chemical plants.
- Wide Temperature Range: Engineered for extreme industrial environments, from arctic cold to high-temperature turbine housings.
- Direct Rack Compatibility: Plug-and-play integration with Bently Nevada 3300, 3500, and ADAPT.wind monitoring racks — no signal conditioning required.
- Long Service Life: Robust construction with hermetically sealed probe tip and corrosion-resistant housing for multi-year continuous operation.
- Global Installed Base: Thousands of units in service across six continents, with proven reliability in the most demanding rotating machinery applications.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumps, LNG expanders
- Power Generation: Steam turbines, hydro generators, gas turbine generators, boiler feed pumps
- Petrochemical & Refining: Reactor agitators, process compressors, critical pump trains
- Marine & Offshore: Propulsion systems, offshore platform rotating equipment
- Pulp & Paper / Steel: High-speed rolls, ID/FD fans, large motor-driven equipment
- General Industrial: Any API 670-compliant machinery protection application requiring shaft vibration and position monitoring
System Integration & Compatible Parts
The 330173-00-03-10-02-CN is designed for seamless integration within the Bently Nevada ecosystem. Compatible and commonly paired components include:
- Monitoring Racks: Bently Nevada 3500 Series (3500/22M, 3500/42M, 3500/45), 3300 Series monitors
- Extension Cables: 330130 Series (matched to this probe configuration)
- Proximitor Sensors: 3300 XL 8mm Proximitor (330180 Series)
- Keyphasor Modules: 3500/17 for phase reference in conjunction with vibration channels
- Junction Boxes: Bently Nevada field junction boxes for multi-probe installations
Contact our technical team to verify compatibility with your existing monitoring architecture before ordering.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada component undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: All units are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Visual & Physical Inspection: Probe tip, cable jacket, connector pins, and proximitor housing are inspected for damage, corrosion, or tampering.
- Label & Serialization Check: Part number, date code, and serial number are cross-referenced against manufacturer records.
- Functional Testing: Where applicable, units are bench-tested for output signal and sensitivity within Bently Nevada specifications.
- Secure Packaging: Anti-static, moisture-proof packaging with shock-absorbing foam to protect precision components during international transit.
How to Order
- Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your required quantity and delivery timeline.
- Receive a Quote: Our team will respond within 24 hours with pricing, availability, and lead time.
- Order Confirmation: Confirm your purchase order; we accept T/T bank transfer, PayPal, and other B2B payment methods.
- Shipment & Tracking: We ship via DHL, FedEx, or UPS Express with full tracking and export documentation (commercial invoice, packing list, COO).
- After-Sales Support: Our engineers are available post-delivery to assist with installation verification and system commissioning questions.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, and machinery protection components — not a general electronics marketplace.
- ✅ Global B2B Supply: Serving engineering firms, EPC contractors, and plant maintenance teams across 50+ countries.
- ✅ Fast Response: Dedicated account managers respond to all inquiries within 24 hours, with emergency sourcing available.
- ✅ Competitive Pricing: Direct relationships with authorized distributors and surplus market access enable highly competitive pricing.
- ✅ Technical Expertise: Our team includes experienced automation engineers who can advise on compatibility, installation, and system configuration.
- ✅ Secure Transactions: All orders are backed by our quality guarantee and clear return/replacement policy.
Frequently Asked Questions
- Q: Is the 330173-00-03-10-02-CN a complete system or just the probe?
- A: The 330173-00-03-10-02-CN is a complete matched Transducer System, including the proximity probe, extension cable, and proximitor sensor — all factory-calibrated as a set.
- Q: Can this transducer system be used with the Bently Nevada 3500 monitoring rack?
- A: Yes. The 3300 Series transducer system is fully compatible with the Bently Nevada 3500 Series monitoring rack, which accepts standard -24 VDC eddy-current transducer inputs.
- Q: What is the lead time for the 330173-00-03-10-02-CN?
- A: Lead time varies based on current stock. In-stock units ship within 3–5 business days. For sourced units, typical lead time is 2–4 weeks. Contact us for real-time availability.
- Q: Do you provide a certificate of conformance or test report?
- A: Yes. We provide available documentation including certificates of conformance, inspection reports, and original manufacturer labels upon request.
- Q: Is this part suitable for hazardous area (ATEX/IECEx) installations?
- A: The 3300 Series transducer systems carry ATEX and IECEx certifications for use in Zone 1 and Zone 2 hazardous areas. Always verify the specific approval markings on the unit received against your installation requirements.
- Q: Can I order a single unit, or is there a minimum order quantity?
- A: We supply single units as well as bulk orders. There is no minimum order quantity for standard inquiries.
