Vibration Monitoring Solution – Bently Nevada 330173-00-05-10-02-00 | 3300 XL Series
Where This Product Is Used
The Bently Nevada 330173-00-05-10-02-00 Proximity Transducer System is engineered for continuous, non-contact vibration and position measurement in rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – Shaft radial vibration and axial position monitoring per API 670
- Centrifugal & Reciprocating Compressors – Real-time rotor orbit and eccentricity measurement
- Pumps & Fans – Early-warning imbalance and misalignment detection
- Gearboxes – Gear mesh frequency and bearing defect monitoring
- Power Generation Plants – Continuous online machinery protection systems
- Petrochemical & Refinery Facilities – SIL-rated safety instrumented systems (SIS)
Technical Specifications
- Part Number: 330173-00-05-10-02-00
- Series: Bently Nevada 3300 XL Proximity Transducer System
- Probe Tip Diameter: 5 mm
- Cable Length: 1.0 m (standard)
- Extension Cable Length: 2.0 m
- Measurement Range: 0–2.0 mm (linear)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Supply Voltage: −24 VDC (nominal)
- Frequency Response: DC to 10,000 Hz
- Operating Temperature: −35°C to +177°C (probe); −35°C to +85°C (driver)
- Output Signal: Voltage proportional to gap distance
- Connector Type: 2-pin MIL-C-5015 (probe side)
- Weight: Approx. 220 g (complete system)
- Compliance: API 670, CE, RoHS
Why Engineers Specify This Model
- Proven 3300 XL Platform – Industry-standard architecture with decades of field reliability in critical rotating machinery
- 5 mm Probe for Tight Installations – Ideal for limited-access bearing housings where larger probes cannot be accommodated
- High Sensitivity & Linearity – 7.87 V/mm output ensures accurate gap measurement across the full operating range
- Wide Temperature Tolerance – Probe rated to +177°C for high-temperature turbine environments
- Direct Compatibility – Plug-and-play with Bently Nevada 3500 Series rack monitors and System 1 software
- API 670 Compliant – Meets machinery protection standard requirements for critical and essential machinery
Complete System Bill of Materials
The 330173-00-05-10-02-00 is a complete transducer system comprising:

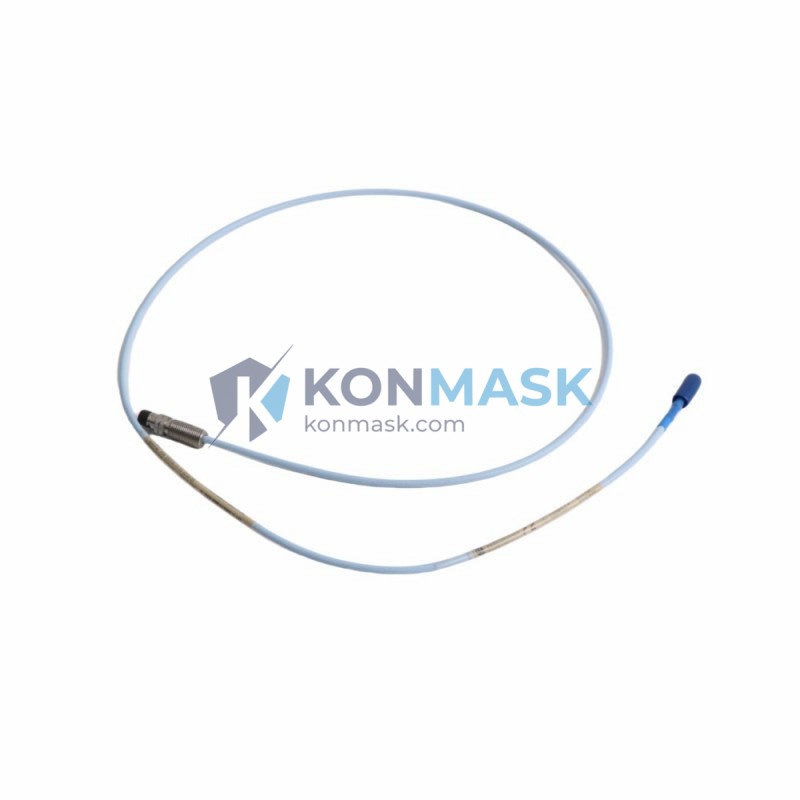

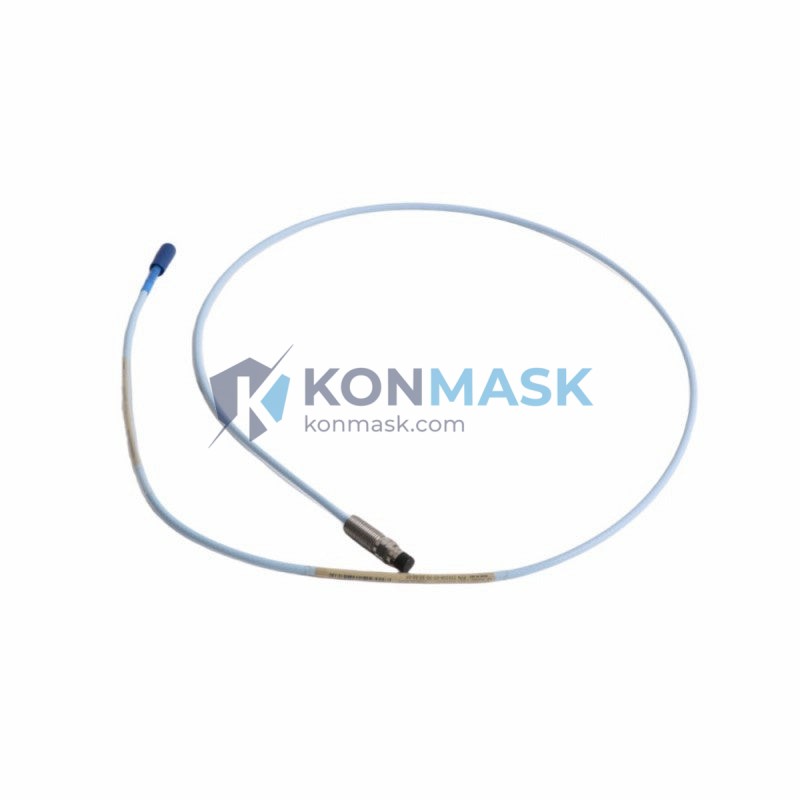

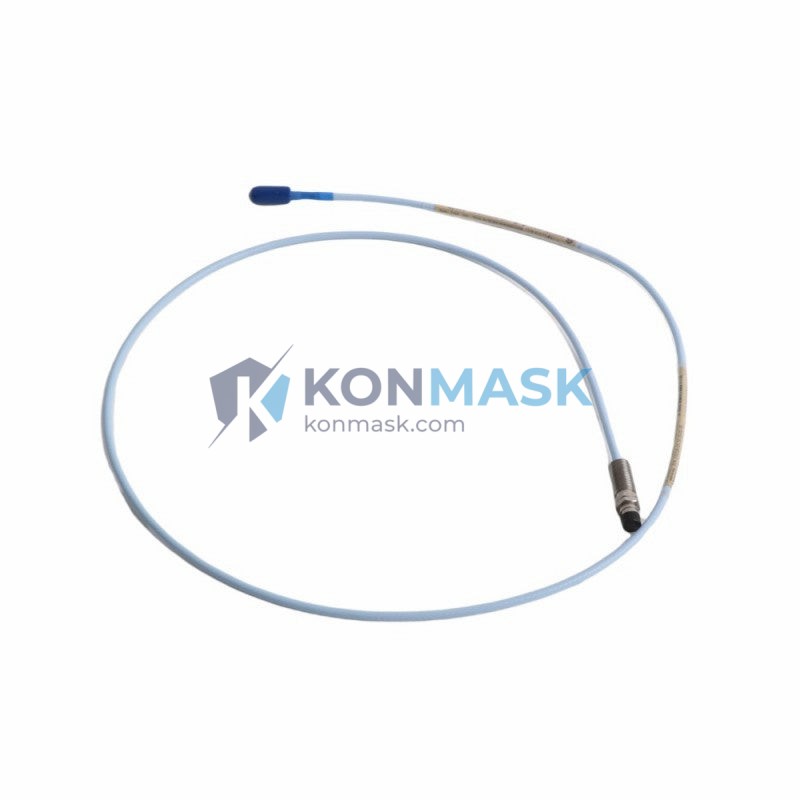

- 330173-00-05-10-02-00 Proximity Probe (5 mm tip, 1.0 m integral cable)
- 330130-080-00-00 Extension Cable (2.0 m)
- 330180-X1-05 Proximitor® Driver/Oscillator
- Mounting hardware and connector accessories
Compatible monitor modules: Bently Nevada 3500/40M, 3500/42M, 3500/45, 3500/46M.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- IEC 61511 – Functional Safety / SIL-rated applications
- CE Marking – EMC Directive 2014/30/EU
- RoHS Compliant – Restriction of Hazardous Substances
- ATEX / IECEx – Consult factory for hazardous area certified variants
Quality Assurance & Sourcing
All Bently Nevada 330173-00-05-10-02-00 units supplied by Konmask.com are:
- Sourced from authorized distributors or verified surplus channels with full traceability
- Inspected for physical integrity, connector condition, and cable continuity prior to shipment
- Shipped with original manufacturer documentation where available
- Backed by Konmask’s 90-day quality guarantee on all industrial automation components
How to Source This Part
Ready to order or need a formal quotation? Contact our industrial automation specialists:
- Email: support@konmask.com
- Phone / WhatsApp: +0086 19859288691
- Lead Time: Typically 3–7 business days for in-stock units; expedited options available
- MOQ: 1 unit
- Payment: T/T, PayPal, credit card accepted
- Export: Worldwide shipping with DHL / FedEx / UPS; export documentation provided
Application-Specific FAQ
Q: Is the 330173-00-05-10-02-00 compatible with the Bently Nevada 3500 rack?
A: Yes. This transducer system is fully compatible with all 3500 Series monitor modules including the 3500/40M, 3500/42M, and 3500/45.
Q: What is the difference between the 330173 and 330180 series?
A: The 330173 is the probe/cable assembly; the 330180 is the Proximitor driver. The 330173-00-05-10-02-00 part number includes both as a matched system.
Q: Can this probe be used in hazardous (Ex) areas?
A: Standard variants are not ATEX-certified. For hazardous area installations, please contact us for the appropriate Ex-rated variant.
Q: What target material is required?
A: The 3300 XL system is calibrated for AISI 4140 steel. For other target materials, a field calibration curve correction is required.
Q: Do you provide calibration certificates?
A: Calibration certificates from the original manufacturer are provided where available. Third-party calibration can be arranged on request.
