Bently Nevada 330173-08-18-10-02-00 Proximity Probe | 3300 Series

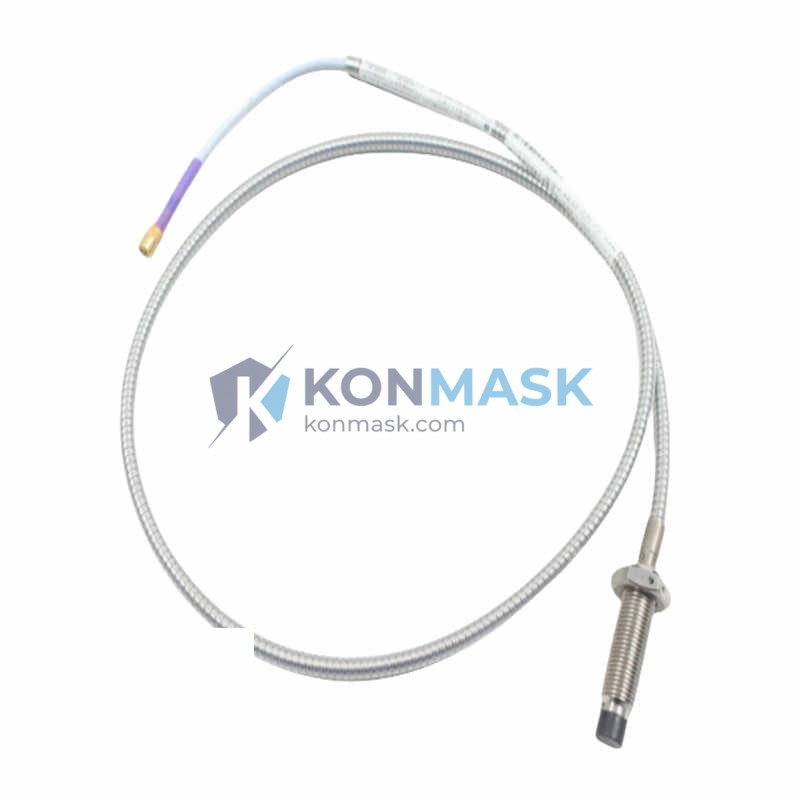

Bently Nevada 330173-08-18-10-02-00 Proximity Probe – 3300 XL Series Eddy-Current Transducer

When a critical rotating machine loses its shaft vibration monitoring capability, the consequences are immediate and severe: undetected rotor imbalance, bearing wear, or oil whirl can escalate within seconds into catastrophic machinery failure, unplanned downtime, and six-figure repair costs. In industries where turbines, compressors, and pumps run continuously around the clock, a single missing sensor is not a minor gap — it is a blind spot that puts both assets and personnel at risk. The Bently Nevada 330173-08-18-10-02-00 Proximity Probe eliminates that blind spot, delivering continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion with the precision that mission-critical machinery demands.

The 330173-08-18-10-02-00 belongs to Bently Nevada’s globally trusted 3300 XL Series — the de facto standard for machinery protection in oil & gas, power generation, petrochemical, and heavy industrial plants worldwide. Within the 3300 XL family, this specific configuration (8 mm tip diameter, 18-inch armored extension cable, 10-meter interconnect cable, 02 driver compatibility) is engineered for installations requiring a mid-range sensing gap and extended cable routing in harsh environments. Backed by Baker Hughes / Bently Nevada’s decades of rotating machinery expertise, the 3300 XL probe system is installed on hundreds of thousands of machines across six continents and is accepted by major OEMs and API 670 compliance frameworks as the benchmark proximity transducer.

Technical Specifications

• Part Number: 330173-08-18-10-02-00
• Series: Bently Nevada 3300 XL Proximity Transducer System
• Probe Tip Diameter: 8 mm
• Extension Cable Length: 18 inches (armored)
• Interconnect Cable Length: 10 meters
• Driver / Proximitor Compatibility: 02 series (3300 XL Proximitor)
• Sensing Principle: Eddy-current (non-contact)
• Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
• Operating Temperature: Refer to Bently Nevada datasheet for certified range
• Approvals: API 670 compliant system; CE / ATEX / IECEx certifications available per configuration
• Weight: Approx. 200 g (probe + cable assembly)

Note: All specifications are sourced from Bently Nevada official documentation. Konmask.com does not fabricate or alter OEM specifications.

Key Features & Benefits

• Non-Contact Measurement: Zero mechanical wear on the probe — ideal for continuous 24/7 operation on high-speed rotating shafts.
• High Sensitivity & Linearity: Consistent output across the full sensing range, enabling accurate vibration amplitude and phase measurement for predictive maintenance programs.
• Armored Extension Cable: The 18-inch armored extension provides robust protection against mechanical damage, vibration fatigue, and chemical exposure in demanding plant environments.
• 10-Meter Interconnect Cable: Allows flexible routing from the probe mounting location to the Proximitor/driver enclosure, reducing installation complexity.
• API 670 System Compliance: When paired with the compatible 3300 XL Proximitor and monitor, the complete system meets API 670 machinery protection standards — a requirement for most oil & gas and power generation facilities.
• Drop-In Replacement: Direct OEM-equivalent replacement for existing 3300 XL installations — no recalibration of the monitor system required when replacing like-for-like.
• Long Service Life: Solid-state eddy-current technology with no moving parts ensures extended MTBF and minimal maintenance intervention.

Industry & Equipment Applications

• Oil & Gas: Centrifugal compressors, gas turbines, steam turbines, expanders, and pipeline pumping stations.
• Power Generation: Steam and gas turbine-generators, boiler feed pumps, and hydro turbines.
• Petrochemical & Refining: Process compressors, reactor agitators, and critical pump trains.
• Pulp & Paper / Steel: Large fan drives, rolling mill motors, and induced draft fans.
• Marine & Offshore: Propulsion turbines and auxiliary machinery on FPSO and offshore platforms.
• General Heavy Industry: Any rotating machinery requiring API 670-compliant vibration and position monitoring.

System Integration & Compatible Parts

The 330173-08-18-10-02-00 proximity probe is designed to operate as part of the complete Bently Nevada 3300 XL Proximity Transducer System. Typical compatible components include:

• Proximitor / Driver: Bently Nevada 3300 XL Proximitor (02-series driver, e.g., 330180-X1-05)
• Vibration Monitors: Bently Nevada 3500 Series Machinery Protection System (e.g., 3500/42M, 3500/40M)
• DCS / PLC Integration: 4–20 mA or voltage output from the Proximitor interfaces directly with Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7, and other major DCS platforms.
• Mounting Hardware: Standard 3300 XL probe holders and bracket assemblies (consult Bently Nevada installation drawings for your specific machine).

Contact Konmask.com to source the complete transducer system or individual replacement components.

Our Quality Assurance Process

At Konmask.com, every industrial automation component we supply goes through a rigorous sourcing and verification process before it reaches your facility:

• Authorized & Verified Supply Chain: We source from authorized distributors and verified surplus channels with full traceability documentation.
• Visual & Functional Inspection: Each unit is inspected for physical integrity, label authenticity, and connector condition prior to dispatch.
• Authenticity Verification: Serial numbers and date codes are cross-referenced against manufacturer records where applicable.
• Secure Packaging: Anti-static and shock-resistant packaging ensures the probe and cable assembly arrive in perfect condition.
• Documentation: Material Test Reports (MTR), certificates of conformance, and original OEM documentation available upon request.

How to Order

1. Submit an Inquiry: Use the contact form on this page or email support@konmask.com with your part number and required quantity.
2. Receive a Quote: Our technical sales team will respond within 1 business day with pricing, lead time, and availability confirmation.
3. Order Confirmation: Upon agreement, we issue a proforma invoice and confirm shipping terms (EXW, FOB, CIF available).
4. Shipment & Tracking: We ship via DHL, FedEx, or UPS Express with full tracking. Export documentation (commercial invoice, packing list, COO) provided for international orders.
5. After-Sales Support: Our engineering team is available post-delivery for installation guidance and technical questions.

Why Choose Konmask.com?

• Industrial Automation Specialists: We focus exclusively on PLC, DCS, and machinery protection components — not a generalist marketplace.
• Global B2B Export Experience: We serve engineering firms, EPC contractors, and plant maintenance teams across Asia, the Middle East, Europe, and the Americas.
• Fast Response, Competitive Pricing: Inquiry-to-quote in under 24 hours. Volume discounts available for project and MRO procurement.
• Technical Depth: Our team understands the application — we can advise on system compatibility, cable routing, and Proximitor matching, not just ship a box.
• Reliable Logistics: Experienced in export compliance, customs documentation, and time-critical emergency shipments.

Frequently Asked Questions

Q: What is the sensing range of the Bently Nevada 330173-08-18-10-02-00 proximity probe?
A: The 3300 XL 8 mm probe system is designed for a linear sensing range typically between 0.25 mm and 2.25 mm (10–90 mil) gap when used with the compatible 3300 XL Proximitor. Please refer to the official Bently Nevada datasheet (document D350543) for certified gap and sensitivity specifications.

Q: Is this probe compatible with the Bently Nevada 3500 Series monitoring system?
A: Yes. When paired with the appropriate 3300 XL Proximitor (02-series driver), the output signal is fully compatible with the Bently Nevada 3500 Series Machinery Protection System monitors, including the 3500/40M and 3500/42M vibration monitor modules.

Q: Can this probe be used as a direct replacement for an existing 330173 series probe?
A: Yes, provided the cable lengths, tip diameter, and driver compatibility code match your existing installation. The 330173-08-18-10-02-00 is a direct drop-in replacement for units with the same configuration code. Contact us if you need to cross-reference a different suffix configuration.

Q: Do you provide export documentation for international orders?
A: Yes. We provide a commercial invoice, packing list, certificate of origin, and any additional documentation required for customs clearance in your country. We have experience shipping to over 30 countries.

Q: What is the lead time for the 330173-08-18-10-02-00?
A: Lead time depends on current stock availability. Please submit an inquiry for a real-time availability and lead time confirmation. Emergency/expedited shipments can often be arranged within 24–48 hours for in-stock items.

Q: Is the product covered by a warranty?
A: All components supplied by Konmask.com are covered by our standard quality guarantee. Specific warranty terms are confirmed at the time of quotation based on the supply source and condition of the unit.

---
