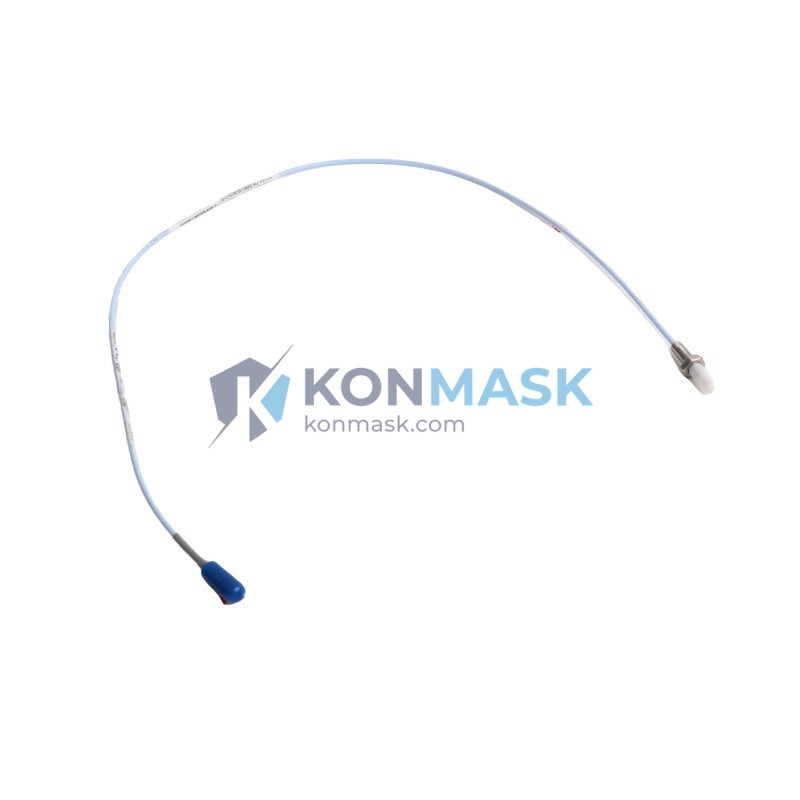

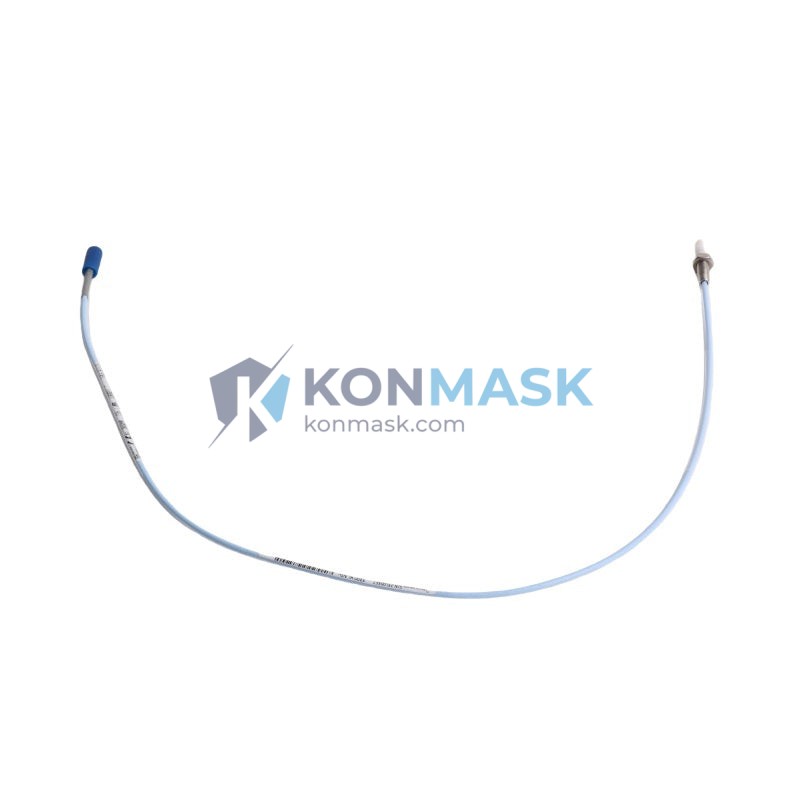

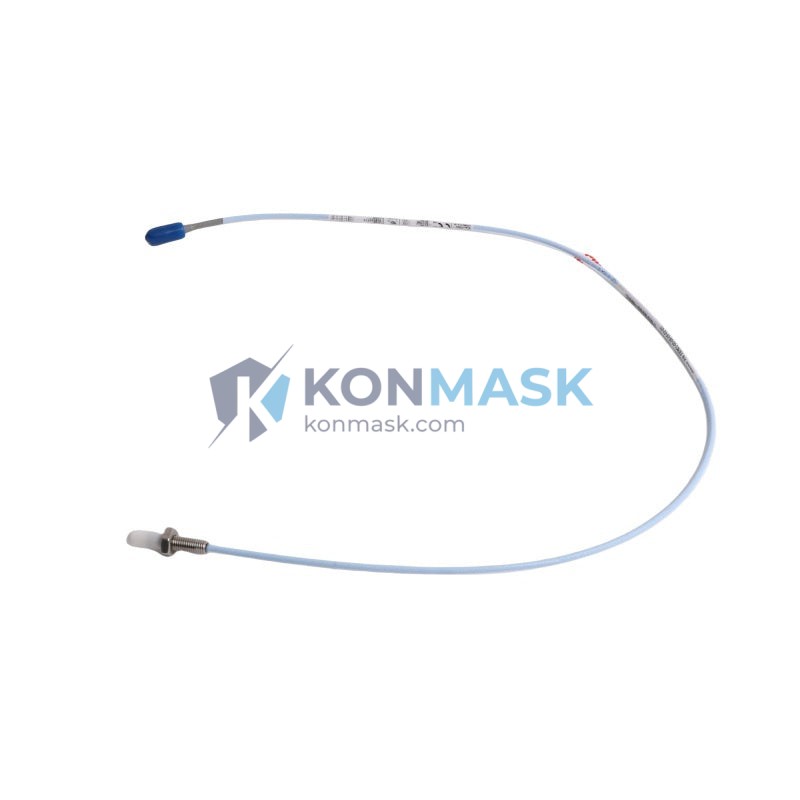

Genuine Bently Nevada 330901-00-08-10-02-05 3300 NSv Proximity Probe | 8mm Tip, 5m Cable – Verified Source
The Bently Nevada 330901-00-08-10-02-05 is a high-precision eddy-current proximity probe from the industry-leading 3300 NSv Series, engineered for continuous shaft vibration and position monitoring in critical rotating machinery. Sourced directly through verified distribution channels and subject to our 4-step authentication process before shipment.
Technical Specifications
- Part Number (MPN): 330901-00-08-10-02-05
- Series: Bently Nevada 3300 NSv
- Probe Tip Diameter: 8 mm
- Cable Length: 5 m (integral)
- Connector Type: 4-wire (standard)
- Sensing Range: 0–2 mm (linear range)
- Output: –200 mV/mil (–7.87 V/mm) nominal
- Operating Temperature: –35°C to +177°C
- Supply Voltage: –24 VDC (nominal)
- Thread Size: M10 × 1 mm
- Housing Material: Stainless steel
- Weight: Approx. 200 g
- Compliance: CE, RoHS, API 670
Our 4-Step Quality Verification Process
- Step 1 – Source Authentication: Every unit is procured exclusively from Bently Nevada authorized distributors or verified OEM surplus channels. No grey-market or counterfeit sources.
- Step 2 – Physical Inspection: Our engineers inspect housing, labeling, connector pins, and cable jacket for conformance to factory specifications.
- Step 3 – Functional Bench Test: Each probe is bench-tested for output sensitivity and linearity against Bently Nevada factory calibration standards before packaging.
- Step 4 – Documentation Review: Traceability documentation (lot number, date code, calibration record) is verified and archived. Copies available upon request.
Key Features & Benefits
- Non-contact eddy-current sensing — zero mechanical wear, indefinite service life
- High signal-to-noise ratio for reliable vibration data in harsh industrial environments
- Integral 5 m armored cable eliminates field splicing and reduces installation error
- Direct drop-in replacement for existing 3300 NSv installations — no recalibration required
- Factory-matched sensitivity ensures compatibility with 3300 XL 8mm driver/extension cable systems
- Stainless steel housing rated for high-temperature, high-vibration, and chemically aggressive environments
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Gearbox and expander shaft displacement monitoring
- API 670-compliant machinery protection systems
- Petrochemical, power generation, and LNG plant installations
Compatible System Components
- Driver/Monitor: Bently Nevada 3300 XL 8mm Proximitor® Sensor (330180 series)
- Extension Cable: Bently Nevada 330130 series (5 m, 9 m, 14 m options)
- Monitor Rack: Bently Nevada 3500 Series Machinery Protection System
- Barrier: Bently Nevada 3300 Zener Barrier (for hazardous area installations)
- Calibration Tool: Bently Nevada 330850 Proximitor Calibration Kit
Global Sourcing & Shipping Capabilities
Konmask.com maintains verified inventory of Bently Nevada 3300 NSv components and ships globally. Standard lead time is 3–7 business days for in-stock units. Expedited air freight available for critical plant shutdowns.
- Regions Served: Asia-Pacific, Middle East, Europe, Americas, Africa
- Export Compliance: All shipments comply with applicable export control regulations (EAR/ECCN)
- Packaging: Anti-static foam insert, factory-style carton, humidity indicator card
- Documentation: Commercial invoice, packing list, certificate of conformance, traceability record
Certifications & Compliance Statement
The Bently Nevada 330901-00-08-10-02-05 is designed and manufactured in compliance with:
- API 670 – Machinery Protection Systems (5th Edition)
- CE Marking – EU Electromagnetic Compatibility Directive
- RoHS – Restriction of Hazardous Substances
- ATEX / IECEx – Available in certified variants for Zone 1/2 hazardous areas (confirm variant suffix)
Konmask.com does not manufacture this product. We are an authorized reseller and verified distributor of genuine Bently Nevada components.
How to Order
- Click Add to Cart or Buy Now above.
- For bulk orders (>5 units) or urgent requirements, contact us directly at [email protected] or +0086 19859288691 for a dedicated quote.
- Provide your plant name, required delivery date, and any documentation requirements (e.g., material test reports, MSDS).
- Our team will confirm stock availability, lead time, and freight options within 24 hours.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Bently Nevada product?
A: Every unit passes our 4-step verification process (see above). We provide traceability documentation and a certificate of conformance with every shipment.
Q: Can I return the product if it doesn’t match specifications?
A: Yes. We offer a 30-day return policy for items that do not match the listed specifications. Contact [email protected] to initiate a return.
Q: Do you offer a warranty?
A: All products carry a 12-month warranty against manufacturing defects. Warranty claims are processed directly through Konmask.com.
Q: Are you an authorized Bently Nevada distributor?
A: Konmask.com sources from verified channels. For OEM authorization queries, please contact us and we will provide the relevant sourcing documentation.
Q: Can you supply other parts from the Bently Nevada 3300 NSv or 3500 series?
A: Yes. We stock a broad range of Bently Nevada components. Contact us with your full BOM for a consolidated quote.
