Vibration Monitoring Solution – Bently Nevada 330901-00-09-70-02-05 | 3300 XL NSv Series
Where This Product Is Used

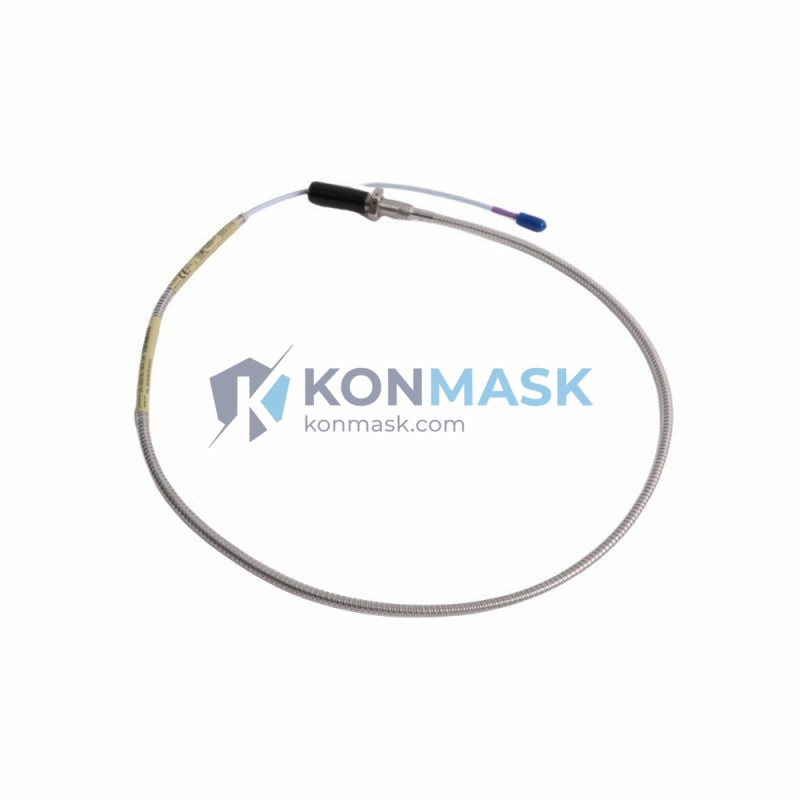

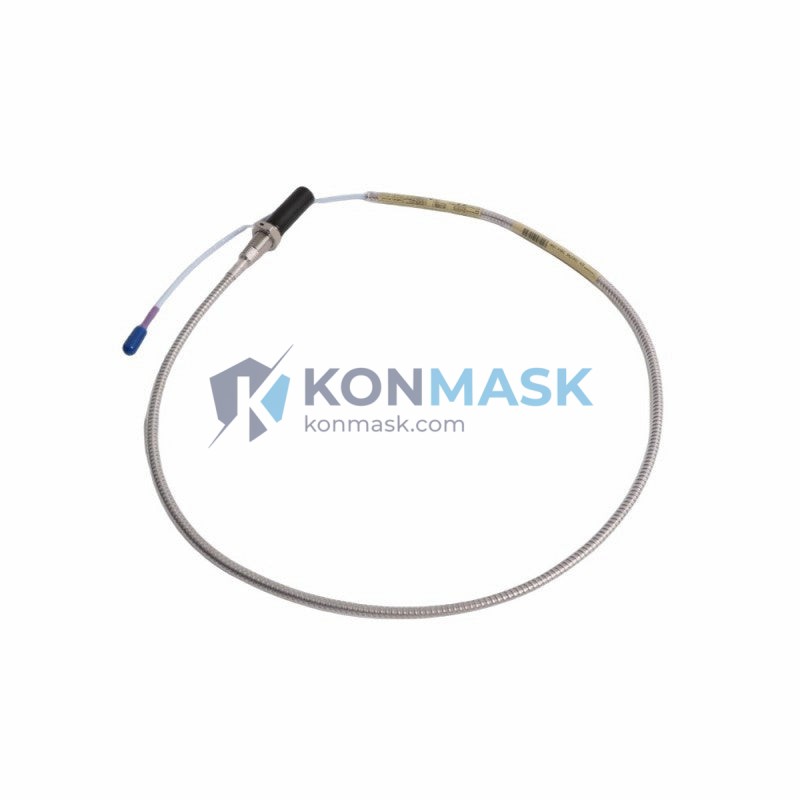

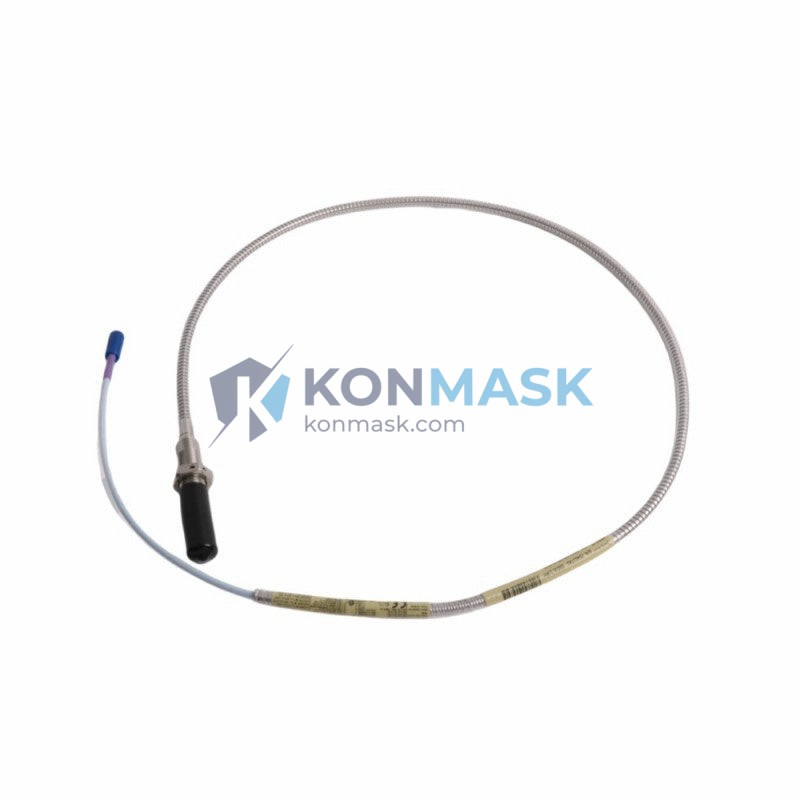

The Bently Nevada 330901-00-09-70-02-05 is a precision eddy-current proximity transducer system engineered for continuous, real-time shaft vibration and position monitoring in rotating machinery. It is widely deployed in the following critical industrial environments:
- Steam & Gas Turbines – Radial vibration and axial position measurement on high-speed turbine shafts in power generation plants.
- Centrifugal Compressors – Shaft orbit and eccentricity monitoring in petrochemical and LNG compression trains.
- Pumps & Fans – Continuous bearing clearance monitoring in large process pumps and induced-draft fans.
- Gearboxes – Gear mesh frequency analysis and shaft displacement tracking in heavy industrial gearboxes.
- Marine Propulsion Systems – Shaft alignment verification and vibration surveillance on vessel propulsion shafts.
- Paper & Steel Mills – Roll and spindle position monitoring in continuous process machinery.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330901-00-09-70-02-05 |
| Series | 3300 XL NSv (Non-Standard voltage) |
| Transducer Type | Eddy-Current Proximity Transducer |
| Cable Length | 9 m (30 ft) integral cable |
| Target Material | Steel / Stainless Steel (AISI 4140 reference) |
| Linear Range | 0.25 mm – 2.54 mm (10 – 100 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35°C to +177°C (–31°F to +350°F) |
| Supply Voltage | –24 VDC (via Proximitor® sensor) |
| Output Voltage | –2 VDC to –18 VDC |
| Connector Type | 3-pin MIL-C-5015 style |
| Housing Material | 316 Stainless Steel |
| IP Rating | IP67 |
| Weight | Approx. 60 g (transducer only) |
Why Engineers Specify This Model
- NSv (Non-Standard Voltage) Output – Delivers a wider output voltage swing, enabling higher resolution displacement measurement in demanding applications where standard ±24 V systems fall short.
- 3300 XL Platform Compatibility – Plug-and-play integration with Bently Nevada 3300 XL Proximitor® sensors and 3500 Series monitoring racks, minimizing engineering rework.
- Extended Temperature Range – Rated to +177°C, making it suitable for hot-section turbine bearing pedestals without additional thermal shielding.
- Integral 9 m Cable – Factory-terminated cable eliminates field splicing, reducing installation error and improving signal integrity in high-EMI environments.
- API 670 Alignment – Meets the measurement chain requirements of API 670 (5th Edition) for machinery protection systems in oil & gas facilities.
- Proven Field Reliability – The 3300 XL series has accumulated millions of operating hours across global power generation and hydrocarbon processing assets.
Complete System Bill of Materials
A complete 3300 XL NSv measurement chain typically includes:
- Proximity Transducer – 330901-00-09-70-02-05 (this item)
- Extension Cable – 330130-080-00-00 (8 m) or 330130-045-00-00 (4.5 m)
- Proximitor® Sensor – 330180-X1-05 (NSv, 3300 XL compatible)
- Monitor Module – 3500/42M Proximitor®/Seismic Monitor or 3500/40M Proximitor® Monitor
- I/O Module – 3500/92 or 3500/93 (Ethernet/RS-232 gateway)
- Rack – 3500/05 or 3500/15 (19-inch, 4-slot or 14-slot)
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation
- IEC 61508 – Functional Safety (SIL-capable system configurations)
- ATEX / IECEx – Hazardous area versions available (consult factory)
- CE Marking – EMC Directive 2014/30/EU compliant
- RoHS Compliant
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured verification process before dispatch:
- Visual Inspection – Housing, connector, and cable jacket checked for mechanical damage.
- Continuity & Insulation Test – Cable shield and signal conductors verified per Bently Nevada test procedures.
- Calibration Verification – Scale factor and linear range spot-checked against reference targets.
- Traceability – Serial number and date code recorded; original manufacturer documentation retained on file.
- Packaging – Anti-static bag + foam-lined carton; ESD-safe handling throughout.
How to Source This Part
- Click Add to Cart or Buy Now on this page.
- For volume orders (>5 units) or urgent requirements, email support@konmask.com for a dedicated quote within 24 hours.
- Lead time: In-stock units ship within 1–3 business days; ex-stock availability confirmed at checkout.
- Export documentation (CO, packing list, commercial invoice) provided for international shipments.
- Payment: T/T, PayPal, credit card, and trade-term (EXW/FOB Xiamen) options available.
Application-Specific FAQ
Q: Is the 330901-00-09-70-02-05 compatible with the standard 3300 XL Proximitor® (330180-X1-00)?
A: No. The NSv variant requires the NSv-specific Proximitor® sensor (330180-X1-05). Mixing standard and NSv components will result in incorrect scale factor output and potential monitor alarms.
Q: Can this transducer be used for axial position (thrust) measurement?
A: Yes. With appropriate mounting hardware and a flat target surface, the 330901 series can measure axial shaft position. Confirm the linear range covers your expected thrust travel before installation.
Q: What is the maximum gap voltage at the 2.54 mm (100 mil) end of the linear range?
A: Approximately –18 VDC (NSv output). Verify your monitor’s input range accepts this level before commissioning.
Q: Is a hazardous-area (ATEX/IECEx) version available?
A: Yes. Bently Nevada offers ATEX-certified variants of the 3300 XL series. Contact us with your zone classification and gas group for the correct part number.
Q: Do you provide calibration certificates?
A: Calibration verification reports are available upon request for an additional fee. Full OEM factory calibration certificates can be arranged for new-surplus units.
