Bently Nevada 330903-00-09-10-02-05/CN 3300 NSv Extension Cable | Replacement, Equivalent & Selection Guide

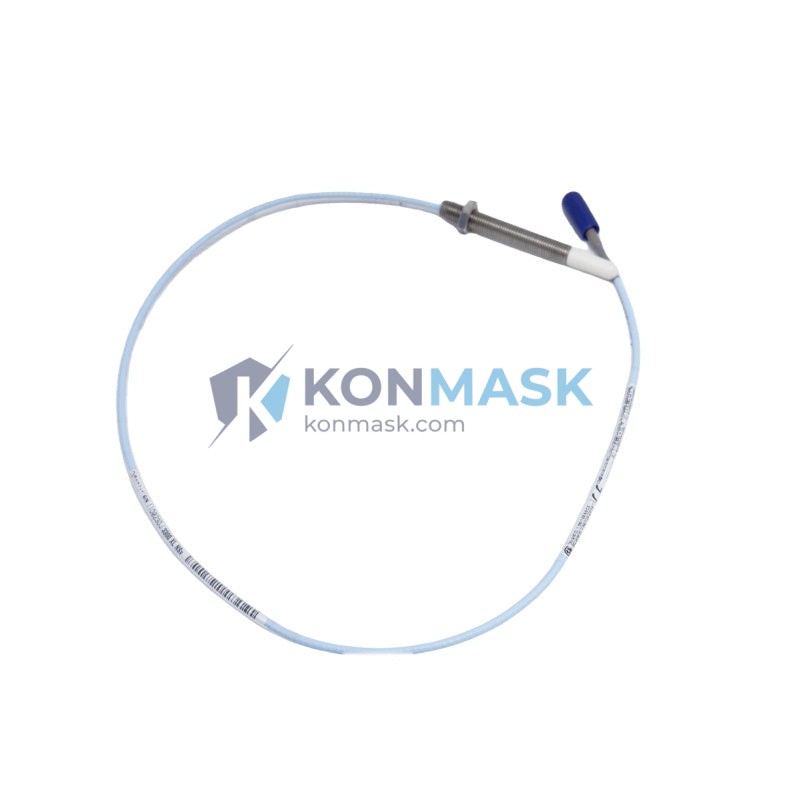

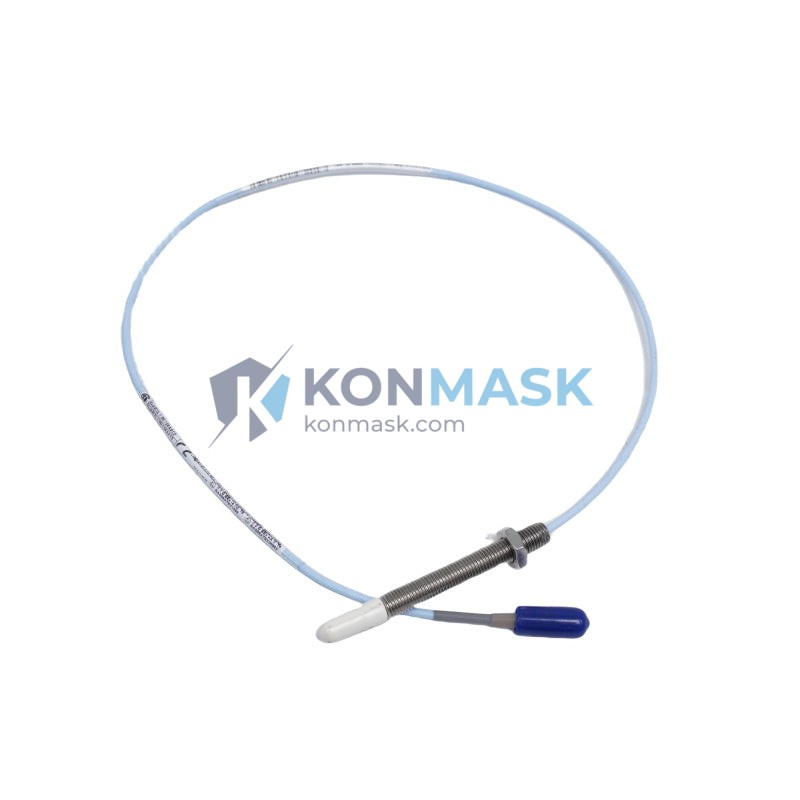

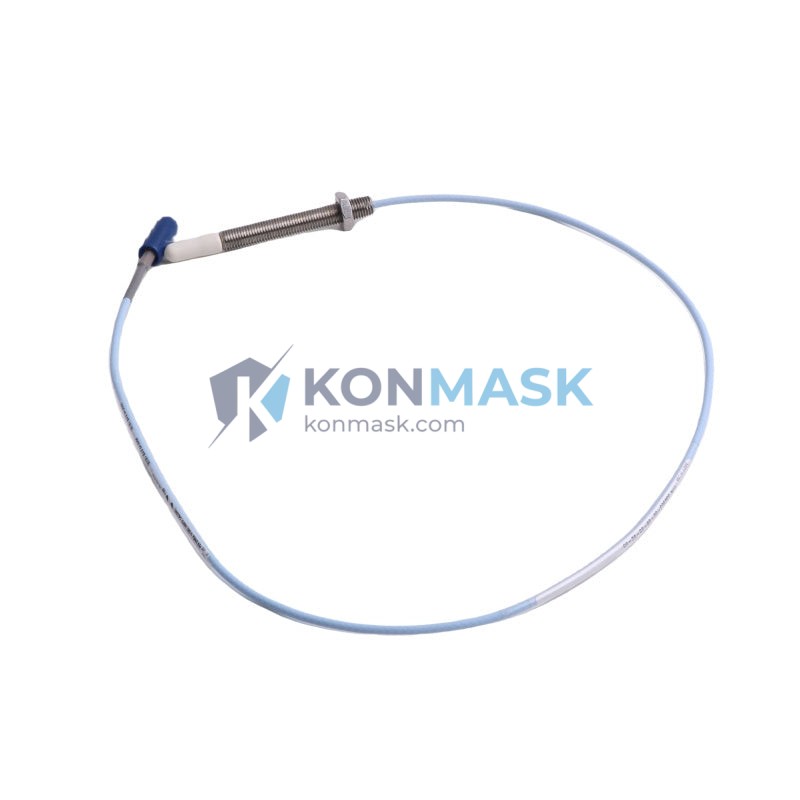

The Bently Nevada 330903-00-09-10-02-05/CN is a precision-engineered extension cable designed for the 3300 NSv (Non-contacting Vibration) Monitoring System. It serves as the critical signal-transmission link between the proximity probe and the proximitor/driver, maintaining measurement integrity in demanding industrial environments. Konmask.com stocks OEM-grade units and qualified equivalents for immediate global dispatch.
Technical Specifications
- Part Number: 330903-00-09-10-02-05/CN
- Series: Bently Nevada 3300 NSv
- Type: Proximity Probe Extension Cable
- Cable Length: 9 m (approx. 30 ft) — encoded in part number segment “-09-“
- Driver/Proximitor Compatibility: 3300 NSv Proximitor (330180 series)
- Connector Type: MIL-spec coaxial, gold-plated contacts
- Temperature Range: –55 °C to +125 °C
- Impedance: 50 Ω nominal
- Jacket Material: PTFE / stainless-steel armored (environment-rated)
- Certification: CE, RoHS; /CN suffix denotes China-market compliance variant
- Weight: ~40 g (cable assembly only)
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents. Always verify cable length, connector type, and proximitor model before substitution.
| Part Number | Length | Key Difference | Compatibility |
|---|---|---|---|
| 330903-00-05-10-02-05 | 5 m | Shorter cable run | 3300 NSv Proximitor |
| 330903-00-14-10-02-05 | 14 m | Longer cable run | 3300 NSv Proximitor |
| 330130-045-00-00 | 4.5 m | Older 3300 XL series | 3300 XL Proximitor (verify) |
| 330130-080-00-00 | 8 m | Older 3300 XL series | 3300 XL Proximitor (verify) |
| 330905-00-09-10-02-05 | 9 m | High-temp variant | 3300 NSv (high-temp apps) |
⚠ Note: Extension cables are system-matched. Mixing cable lengths or series without recalibration will affect gap voltage and measurement accuracy.
Why Choose the Original Model
- System-Calibrated: The 330903-00-09-10-02-05/CN is factory-matched to the 3300 NSv proximitor for zero-adjustment installation.
- Signal Integrity: Precision 50 Ω impedance and gold-plated connectors eliminate signal loss across the full 9 m run.
- Harsh-Environment Rated: PTFE jacket and stainless armoring resist oil, steam, and vibration in turbomachinery bays.
- Compliance Ready: /CN suffix ensures conformance with Chinese industrial standards — no additional certification required for domestic installations.
- Plug-and-Play: No field calibration needed when replacing like-for-like within the 3300 NSv system.
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial displacement measurement
- Pump and motor bearing condition monitoring
- Gearbox and expander rotor dynamics surveillance
- Petrochemical, power generation, and LNG plant machinery protection systems
System Compatibility
- Proximitor/Driver: Bently Nevada 330180-X1-05 / 330180-X1-CN series (3300 NSv)
- Probe: Bently Nevada 330900 series proximity probes (8 mm)
- Monitor: 3300/16 Dual Voting, 3300/20 Radial Vibration, 3300/25 Thrust Position
- System Platform: System 1 Condition Monitoring Software (compatible)
- Not Compatible With: 3300 XL proximitors without re-verification; 7200 series probes
Selection Guide
Use the following decision flow to confirm the correct part number for your application:
- Identify your proximitor model — confirm it is a 330180 (3300 NSv) series unit.
- Measure the required cable run — distance from probe tip to proximitor input. Select the cable length segment accordingly (e.g., “-09-” = 9 m).
- Check the environment rating — standard PTFE jacket suffices for most applications; select 330905 series for sustained temperatures above 105 °C.
- Confirm the market suffix — /CN for China-compliance installations; omit suffix for standard international units.
- Verify connector orientation — the “-02-05” suffix encodes connector configuration; do not substitute without cross-referencing the wiring diagram.
Not sure? Send your existing part number or system drawing to support@konmask.com and our engineers will confirm compatibility within one business day.
Quality Assurance & Sourcing
- Source: Authorized distributor stock and certified surplus — all units traceable to original manufacturer documentation.
- Inspection: Each cable assembly is inspected for connector integrity, jacket continuity, and impedance before dispatch.
- Packaging: Anti-static, moisture-barrier packaging with individual part-number labeling.
- Warranty: 12-month warranty against manufacturing defects.
- Counterfeit Prevention: Konmask.com does not source from unverified secondary markets. All stock includes documentation upon request.
How to Order
- Add 330903-00-09-10-02-05/CN to cart and proceed to checkout, or
- Email support@konmask.com with your PO number and required quantity for a formal quotation.
- For bulk orders (>5 units) or urgent requirements, call +0086 19859288691 for priority handling.
- Export documentation (commercial invoice, packing list, COO) provided for all international shipments.
Replacement & Compatibility FAQ
Q: Can I use a 330903-00-05-10-02-05 (5 m) cable in place of the 9 m unit?
A: Only if the physical cable run is ≤5 m. Coiling excess cable is not recommended — it introduces inductance that affects gap voltage readings.
Q: Is the /CN variant electrically identical to the standard version?
A: Yes. The /CN suffix denotes compliance documentation only; electrical and mechanical specifications are identical.
Q: Can this cable be used with a 3300 XL proximitor?
A: Not directly. The 3300 NSv and 3300 XL systems use different scale factors. Cross-series use requires full system recalibration and is not recommended without Bently Nevada engineering approval.
Q: What is the lead time if out of stock?
A: Typical lead time for restocked units is 2–4 weeks. Contact us to join the priority notification list.
Q: Do you provide a Certificate of Conformance?
A: Yes, available upon request at no additional charge.
