Vibration Monitoring Solution – Bently Nevada 330903-00-11-05-02-05 | 3300 NSv Series
Where This Product Is Used

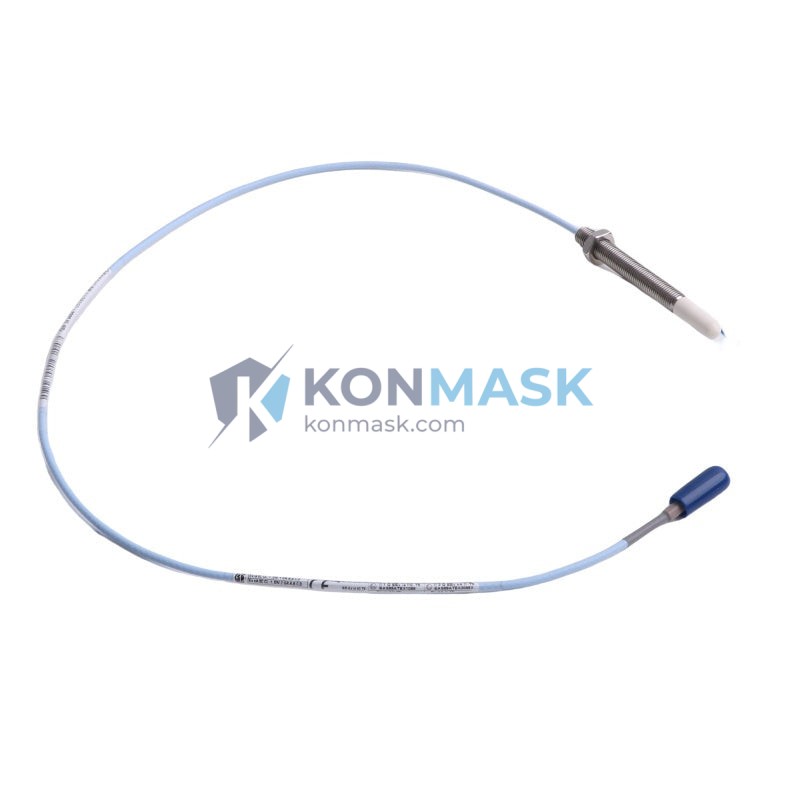

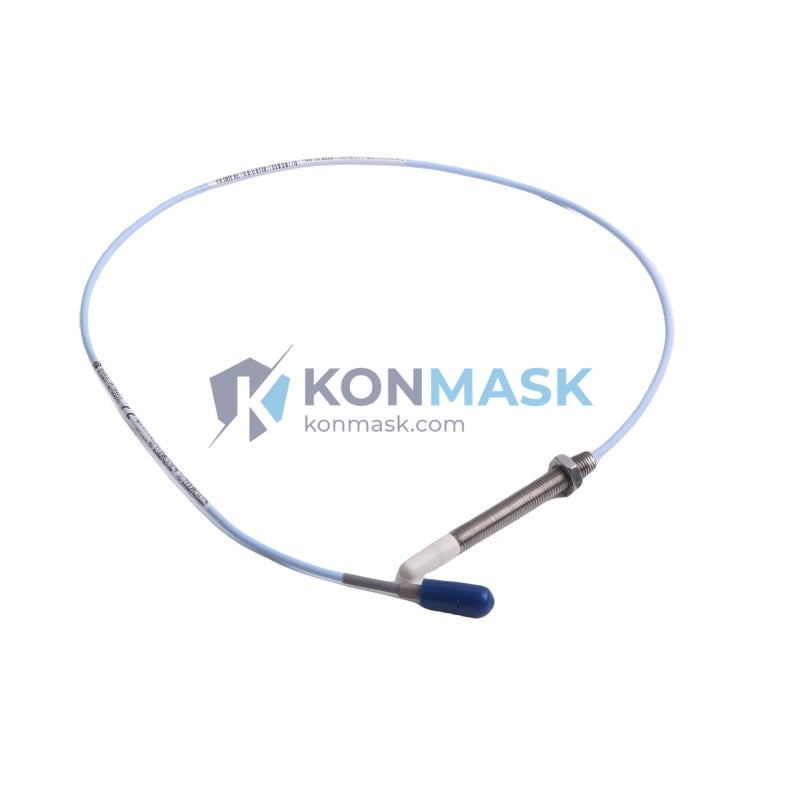

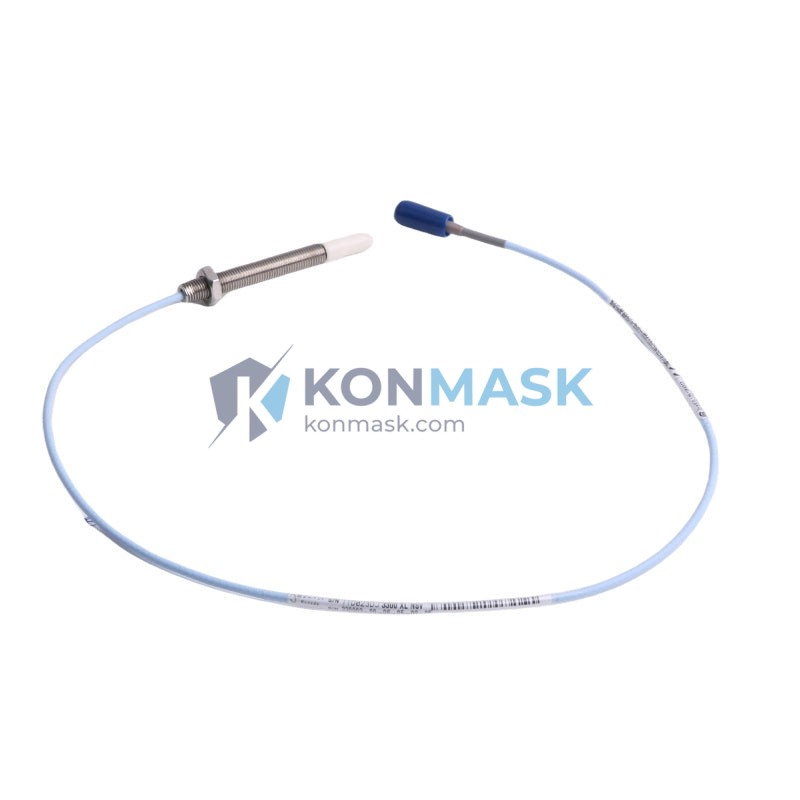

The Bently Nevada 330903-00-11-05-02-05 is a 3300 NSv Series eddy-current proximity probe engineered for continuous, non-contact shaft vibration and position measurement in rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines – radial vibration and axial position monitoring on high-speed shafts
- Centrifugal Compressors – real-time rotor orbit tracking in petrochemical and LNG plants
- Pumps & Fans – bearing-housing displacement measurement in power generation and water treatment
- Gearboxes – gear-mesh frequency analysis and shaft eccentricity detection
- Marine Propulsion Systems – shaft alignment verification and thrust-bearing wear monitoring
Technical Specifications
| Part Number | 330903-00-11-05-02-05 |
| Series | 3300 NSv (Non-Standard voltage) |
| Sensor Type | Eddy-Current Proximity Probe |
| Probe Tip Diameter | 11 mm |
| Cable Length | 5 m (standard) |
| Linear Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz |
| Operating Temperature | –35 °C to +120 °C |
| Target Material | AISI 4140 steel (standard) |
| Connector | MIL-C-5015 style |
| Approvals | CE, ATEX, IECEx (consult datasheet) |
| Weight | ~40 g |
Why Engineers Specify This Model
- Non-contact measurement eliminates mechanical wear and extends sensor service life beyond 10 years in continuous operation
- High-frequency response (DC–10 kHz) captures sub-synchronous instabilities, oil whirl, and rub events that accelerometers miss
- NSv calibration curve provides a tighter scale-factor tolerance (±1%) for API 670-compliant machinery protection systems
- 5 m integral cable reduces field-junction connection points, lowering noise floor and installation time
- Drop-in replacement for legacy 3300 XL probes – same mounting thread, same connector, same driver compatibility
Complete System Bill of Materials
For a fully functional 3300 NSv proximity measurement loop, pair this probe with:
- Extension Cable – 330130-045-00-00 (4.5 m) or 330130-090-00-00 (9 m)
- Driver / Proximitor – 3300/16 or 3300/20 NSv Proximitor Sensor
- Monitor Module – 3500/42M Proximitor / Seismic Monitor
- Rack – 3500 Machinery Protection System rack (3500/05 or 3500/15)
- Mounting Hardware – Probe holder, lock nut, and armored conduit per API 670 Annex D
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- IEC 61511 – Functional safety for SIS applications (when used with certified monitors)
- ATEX / IECEx Zone 1 & Zone 2 – Hazardous area rated (verify suffix codes)
- CE Marking – EU EMC and Low Voltage Directive compliant
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a multi-point verification process:
- Visual inspection against OEM cosmetic and labeling standards
- Continuity and insulation resistance check on probe cable and connector
- Traceability documentation (lot code, date code) provided on request
- Sourced from authorized distributors and verified surplus channels with full chain-of-custody records
- 30-day functional warranty; DOA replacement within 5 business days
How to Source This Part
- Click Add to Cart or use the Request a Quote form for volume orders (5+ units).
- Email support@konmask.com with your PO number, required delivery date, and ship-to address.
- WhatsApp / WeChat: +0086 19859288691 for urgent same-day quotations.
- Lead time: In-stock units ship within 1–3 business days; EXW Xiamen or DDP options available.
Application-Specific FAQ
Q: Is the 330903-00-11-05-02-05 compatible with the 3500/42M monitor?
A: Yes. The 3300 NSv probe is fully compatible with the 3500/42M Proximitor/Seismic Monitor when paired with the correct NSv Proximitor driver. Verify the driver part number ends in “-NSv” to ensure matching calibration curves.
Q: Can this probe measure axial position as well as radial vibration?
A: Yes. With appropriate mounting (thrust-collar target), the 330903-00-11-05-02-05 can be configured for axial position measurement within its 0.25–2.25 mm linear range.
Q: What target material correction is needed for stainless steel shafts?
A: Stainless steel (e.g., 316L) requires a target material correction factor. Consult Bently Nevada Application Note AN-028 or contact our technical team for a corrected scale factor.
Q: Do you offer calibration certificates?
A: Calibration certificates from accredited labs can be arranged for an additional fee. Please specify at time of order.
Q: What is the minimum order quantity?
A: Single units are available. Volume pricing applies at 5, 10, and 25+ units.
