Bently Nevada 330903-00-24-05-01-00 3300 XL NSv Proximity Transducer System | Replacement, Equivalent & Selection Guide

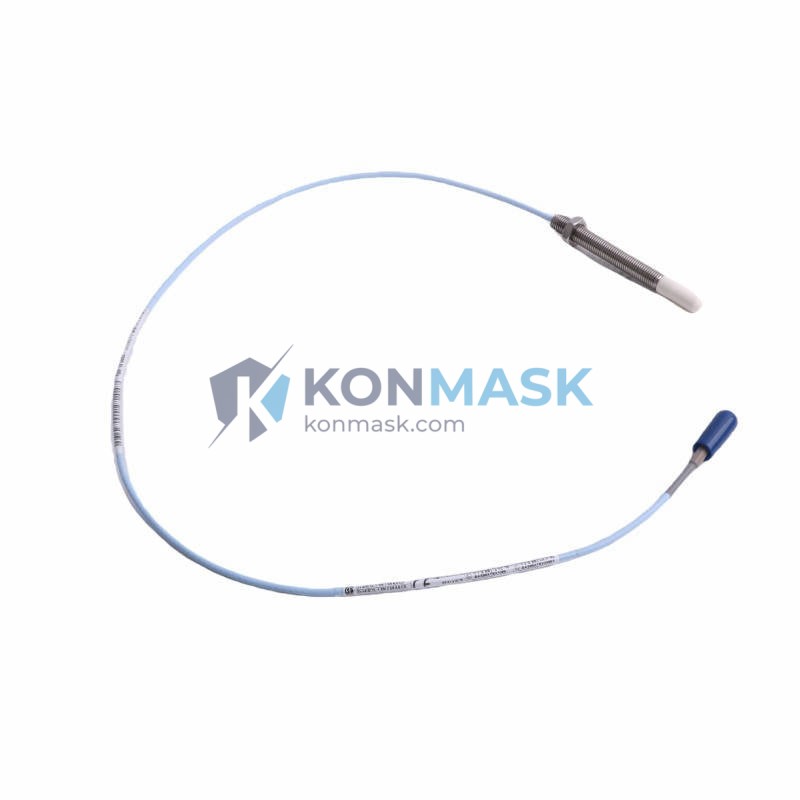

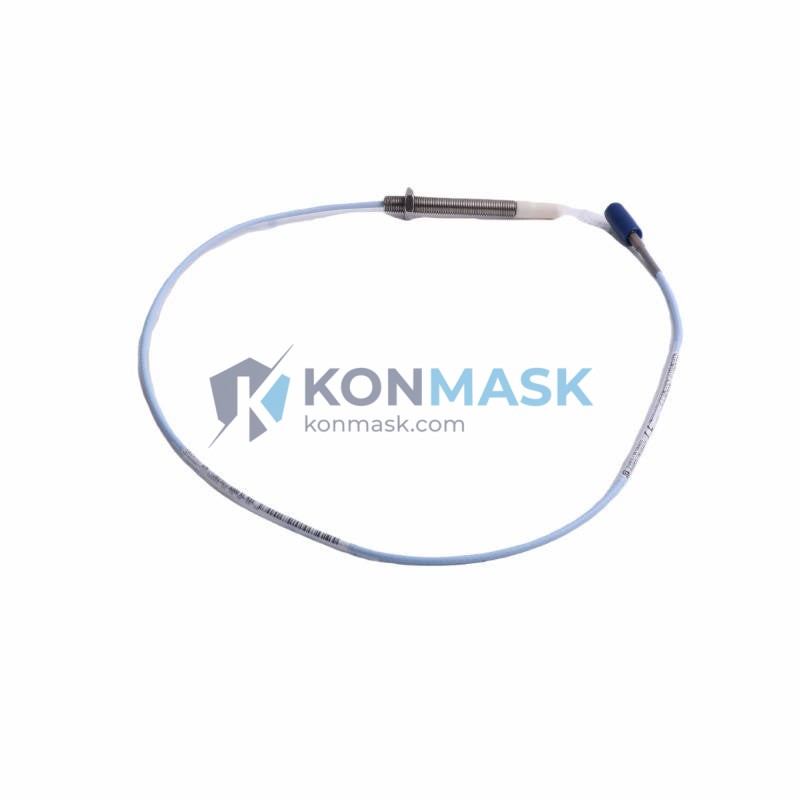

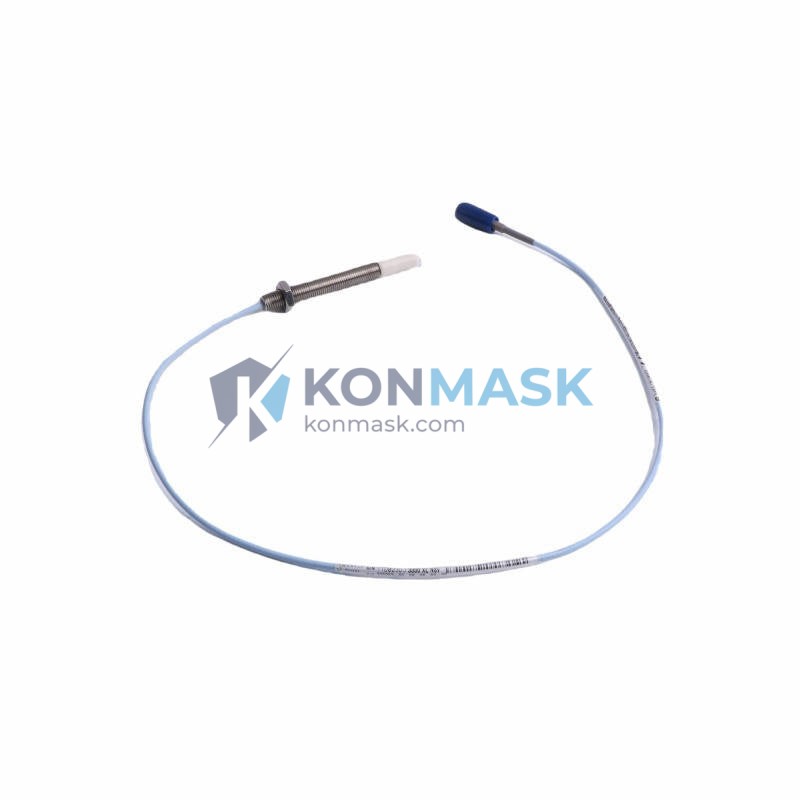

The Bently Nevada 330903-00-24-05-01-00 is a high-performance proximity transducer from the 3300 XL NSv (Non-contact Shaft Vibration) series, engineered for continuous shaft vibration and position monitoring in rotating machinery. Konmask.com supplies this module as new, surplus, and compatible replacement units — fully tested and ready to ship.
Technical Specifications
- Part Number: 330903-00-24-05-01-00
- Brand: Bently Nevada (Baker Hughes)
- Series: 3300 XL NSv Proximity Transducer System
- Sensor Type: Eddy-current proximity transducer
- Cable Length: 24 inches (approx. 610 mm)
- Thread Size: 5 mm
- Connector Type: Standard integral cable
- Measurement: Shaft radial vibration, axial position, differential expansion
- Output Signal: -24 VDC nominal (compatible with 3300 XL monitors)
- Operating Temperature: -35 degC to +120 degC (probe tip)
- Weight: ~140 g
- Certifications: CE, ATEX (consult datasheet for zone ratings)
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or drop-in replacements for the 330903-00-24-05-01-00 in most 3300 XL system configurations:
- 330903-00-24-05-02-00 — Same probe, alternate connector variant
- 330903-00-36-05-01-00 — 36-inch cable variant (longer extension)
- 330903-00-08-05-01-00 — 8-inch cable variant (shorter extension)
- 330780-50-00 — 3300 XL 8 mm proximity transducer (alternative thread size)
- 330730-040-00-00 — 3300 XL 5 mm standard probe (earlier generation)
- Emerson / Epro PR6423 series — Third-party equivalent for eddy-current proximity sensing
Always verify gap voltage, cable length, and thread specification before substitution. Contact Konmask for a compatibility check.
Why Choose the Original Model
- Factory-calibrated gap voltage (-12.0 V nominal at 1.0 mm gap) ensures measurement accuracy
- Designed and validated for Bently Nevada 3300 XL monitor cards — no reconfiguration required
- Integral cable and connector eliminate field-assembly errors
- Traceable quality documentation available for regulated industries (power, oil & gas, petrochemical)
- Long-term spare parts availability through Konmask global sourcing network
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position measurement
- Pump and motor bearing proximity sensing
- Differential expansion and thrust position monitoring
- Critical rotating machinery in power generation and refining plants
System Compatibility
- Monitor: Bently Nevada 3300 XL series (3300/16, 3300/20, 3300/25, 3300/46, 3300/55)
- Extension Cable: 330130-080-00-00 / 330130-045-00-00 (matched pair required)
- Proximitor: 330180-X1-05 / 330180-X1-08 (select per cable length)
- DCS Integration: Compatible with Emerson DeltaV, Honeywell Experion, ABB 800xA via 4-20 mA or FOUNDATION Fieldbus output from monitor card
- Safety Systems: Suitable for use in SIL-rated loops when paired with certified monitor cards
Selection Guide
Use the SKU structure to select the correct variant for your application:
- 330903 – 00 – [Cable Length] – [Thread] – [Connector] – 00
- Cable Length: 08 = 8 in | 24 = 24 in | 36 = 36 in | 50 = 50 in
- Thread Size: 05 = 5 mm | 08 = 8 mm
- Connector: 01 = Standard | 02 = Alternate
Not sure which variant fits your system? Send us your existing probe part number or monitor card model and our engineers will confirm compatibility within 24 hours.
Quality Assurance & Sourcing
- All units inspected and tested prior to shipment
- Sourced from authorized distributors, OEM overstock, and certified surplus channels
- Serialized traceability records available on request
- Packaging: anti-static bag + foam-lined carton
- Lead time: in-stock units ship within 1-3 business days; sourced units 5-15 business days
How to Order
- Confirm part number: 330903-00-24-05-01-00
- Specify quantity and required delivery date
- Add to cart or contact us for bulk / project pricing
- We issue a proforma invoice with full traceability documentation
Email: support@konmask.com | Tel: +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use a 330903-00-36-05-01-00 in place of the -24- version?
A: Yes, if the physical cable routing allows the extra length. The electrical characteristics are identical; only the cable length differs.
Q: Is the 330903-00-24-05-01-00 compatible with older 3300 (non-XL) monitors?
A: The 3300 XL NSv probes are backward-compatible with most 3300 series monitors, but gap voltage and sensitivity should be verified against your monitor card datasheet.
Q: Do you supply calibration certificates?
A: Yes. Factory calibration certificates and test reports are available for new units. Surplus units include inspection reports.
Q: What is the lead time for this part?
A: In-stock units ship within 1-3 business days. For sourced or new-from-factory units, typical lead time is 5-15 business days.
Q: Can Konmask supply the full 3300 XL NSv system (probe + extension cable + proximitor)?
A: Yes. Contact us with your system configuration and we will quote the complete matched set.
