Rotating Machinery Vibration Monitoring Solution – Bently Nevada 330903-04-10-10-01-00 | 3300 NSv Series
Where This Product Is Used

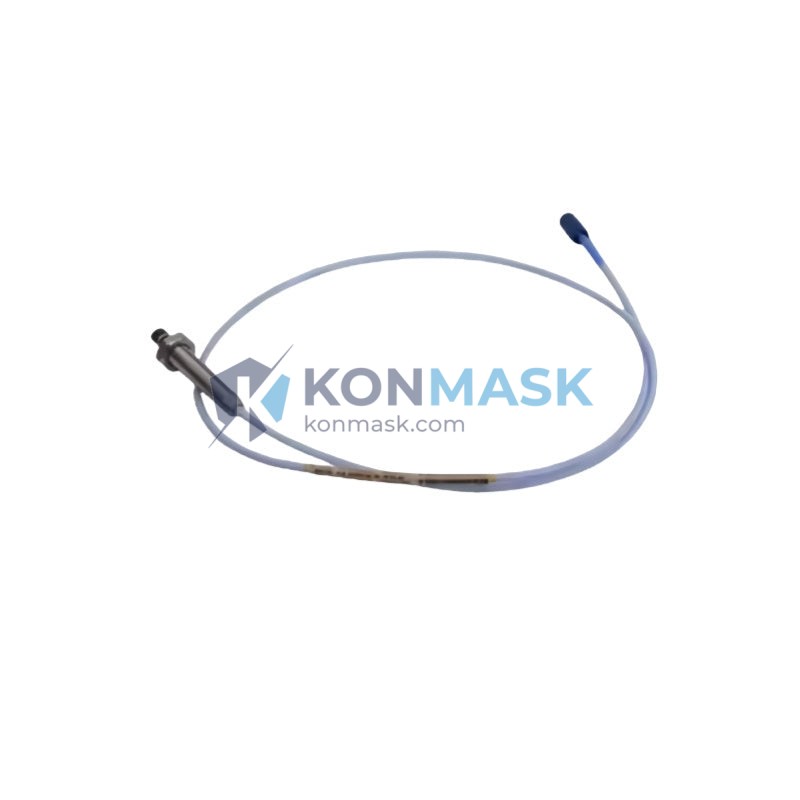

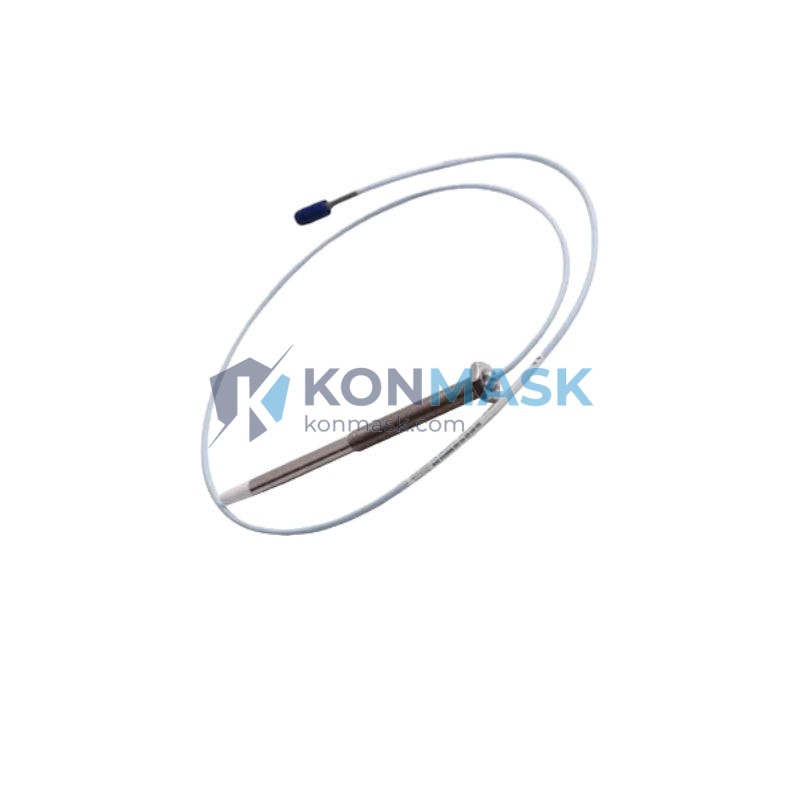

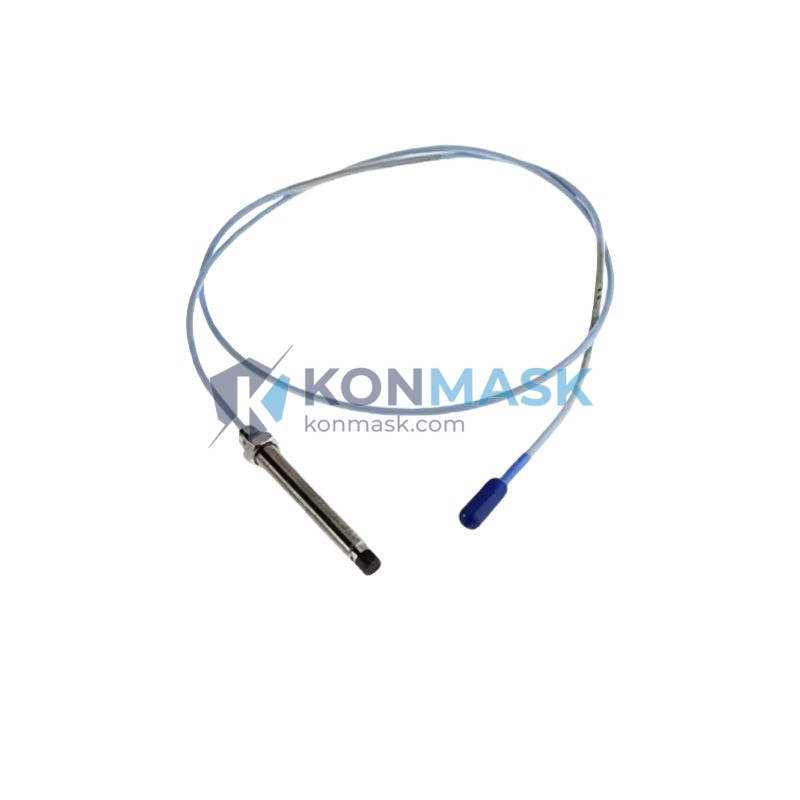

The Bently Nevada 330903-04-10-10-01-00 is a high-precision eddy-current proximity probe engineered for continuous, non-contact vibration and position measurement on rotating machinery. It is deployed in the most demanding industrial environments where shaft displacement data is safety-critical:
- Steam & Gas Turbines – Radial shaft vibration monitoring on HP/LP turbine stages in power generation plants (coal, gas, nuclear).
- Centrifugal Compressors – Continuous rotor orbit and eccentricity measurement in petrochemical, LNG, and refinery trains.
- Axial Compressors & Fans – Thrust position monitoring to detect axial instability before catastrophic failure.
- Pumps & Gearboxes – Shaft centerline trending for predictive maintenance programs in water treatment and chemical processing.
- Marine Propulsion Systems – Shaft vibration surveillance on vessel main engines and auxiliary turbines.
- Test Rigs & OEM Machinery – Precision displacement sensing in R&D dynamometers and factory acceptance testing.
Technical Specifications
- Part Number: 330903-04-10-10-01-00
- Series: Bently Nevada 3300 NSv (Non-Standard Voltage)
- Sensing Technology: Eddy-current (non-contact)
- Probe Tip Diameter: 8 mm (standard)
- Cable Length: 1.0 m (integral)
- Extension Cable: 9.0 m (system total: 10 m)
- Linear Range: 0.25 – 2.54 mm (10 – 100 mil)
- Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: DC – 10,000 Hz
- Operating Temperature: –35 °C to +177 °C (probe tip)
- Target Material: AISI 4140 steel (standard); compatible with most ferrous alloys
- Connector: 10-32 coaxial
- Weight: 323 g (probe + cable assembly)
- Compatible Driver/Monitor: Bently Nevada 3300 XL / 3500 series monitors
Why Engineers Specify This Model
- NSv (Non-Standard Voltage) Output – Delivers a –24 VDC bias output compatible with legacy 3300 series monitor cards without signal conditioning adapters.
- 10-Meter System Length – The 1 m probe + 9 m extension cable combination covers the majority of turbine pedestal installations without custom cabling.
- API 670 Compliance – Meets the mandatory machinery protection standard for critical rotating equipment in oil & gas facilities.
- Proven Field Reliability – The 3300 NSv platform has accumulated decades of runtime in power generation and petrochemical plants globally.
- Direct Drop-In Replacement – Pin-compatible with existing 330903-xx-xx-xx-xx-xx probe assemblies; no monitor reconfiguration required.
- High-Temperature Probe Tip – Rated to 177 °C, suitable for hot-section turbine bearing housings.
Complete System Bill of Materials
A fully functional 3300 NSv proximity system requires the following components:
- Probe Assembly: 330903-04-10-10-01-00 (this item – 1 m integral cable)
- Extension Cable: 330130-080-00-00 (9 m, to complete 10 m system)
- Driver / Proximitor: 330180-X1-05 (3300 NSv Proximitor Sensor)
- Monitor Card: 3500/40M or 3300/16 (Proximitor/Seismic Monitor)
- Mounting Hardware: 02-262XXX series probe holders (customer-specified)
Contact us to source the complete system or individual replacement components.
Compliance & Industry Standards
- API 670 – Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 – Mechanical vibration evaluation of machines
- IEC 61511 – Functional safety for process industry sectors (SIL-capable installations)
- CE Marking – Electromagnetic compatibility per applicable EU directives
- RoHS Compliant – Restriction of Hazardous Substances
Quality Assurance & Sourcing
Every unit supplied by Konmask.com undergoes a documented verification process:
- Visual inspection against OEM dimensional drawings
- Connector and cable continuity check
- Serialization and traceability record retained for 5 years
- Shipped in anti-static, moisture-barrier packaging with calibration data sheet
- Sourced from authorized distribution channels and verified surplus inventories
We do not supply counterfeit, re-labeled, or unverified parts. All products carry a 12-month warranty against manufacturing defects.
How to Source This Part
- Add to Cart – Click “Buy Now” for immediate checkout.
- Request a Quote – Email support@konmask.com for volume pricing, lead time, or system-level BOM quotes.
- Urgent Requirement – Call/WhatsApp +0086 19859288691 for same-day response on critical plant shutdowns.
- Export & Customs – We handle export documentation, HS code classification, and international freight for global customers.
Application-Specific FAQ
Q: Is the 330903-04-10-10-01-00 compatible with the Bently Nevada 3500 monitoring system?
A: Yes. The 3300 NSv probe is electrically compatible with 3500 series monitor cards when used with the appropriate NSv Proximitor driver. Verify the driver part number before installation.
Q: What is the difference between the 330903 and 330780 probe series?
A: The 330903 uses an 8 mm tip diameter and is optimized for the 3300 NSv driver output (–24 VDC bias). The 330780 is a 5 mm tip probe for the standard 3300 XL system. They are not interchangeable without reconfiguring the driver.
Q: Can this probe monitor non-ferrous shafts (e.g., titanium, Inconel)?
A: The standard calibration is for AISI 4140 steel. For non-standard target materials, a material correction factor must be applied. Contact our engineering team for application-specific calibration guidance.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For large quantities or system packages, lead time is typically 5–10 business days. Contact us for current stock status.
Q: Do you provide installation and commissioning support?
A: We provide technical documentation, wiring diagrams, and remote commissioning guidance. On-site support can be arranged through our partner network.
