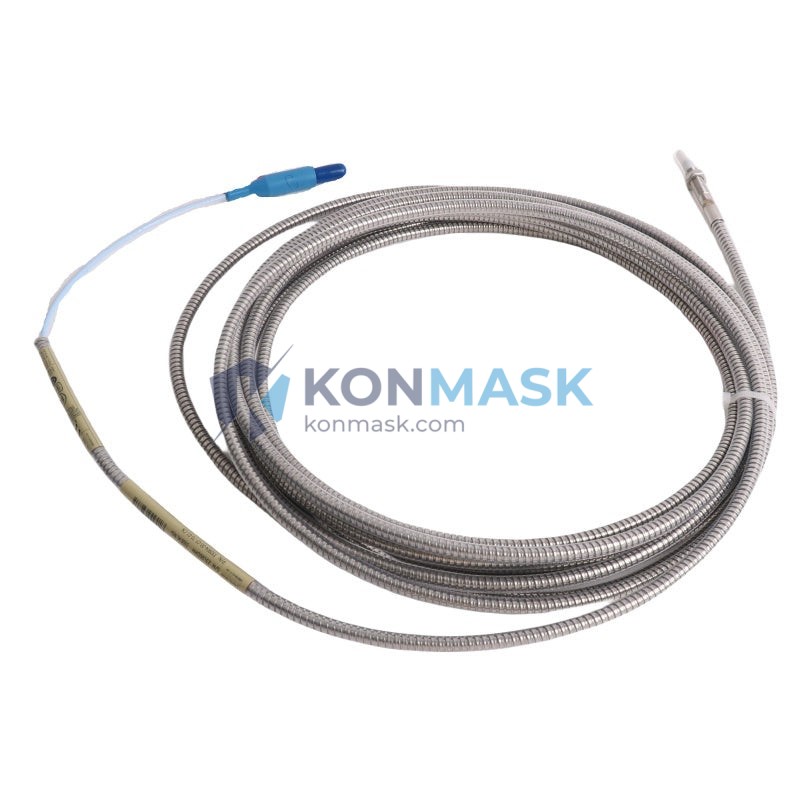

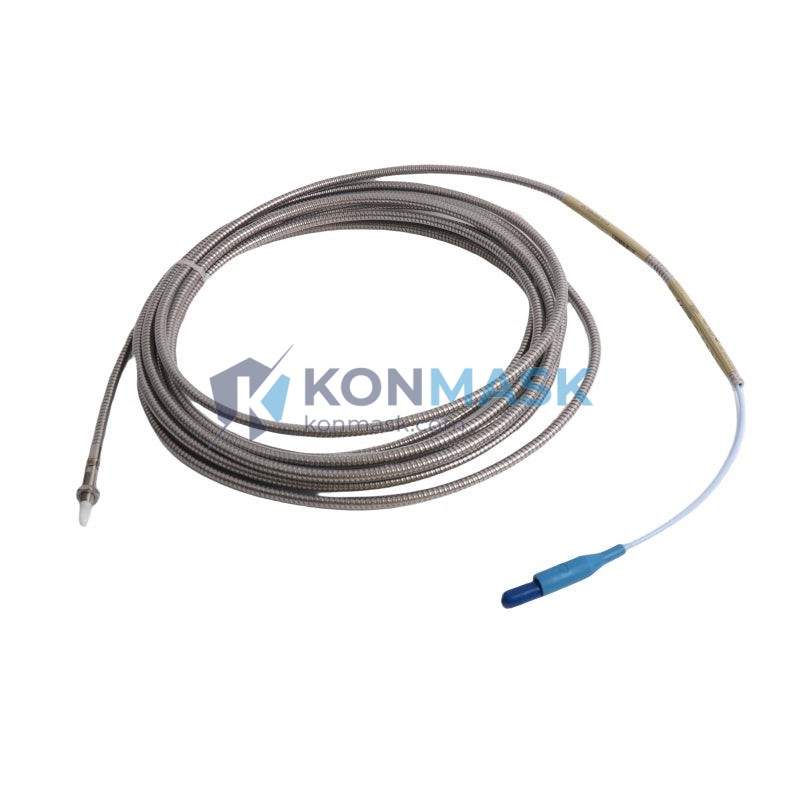

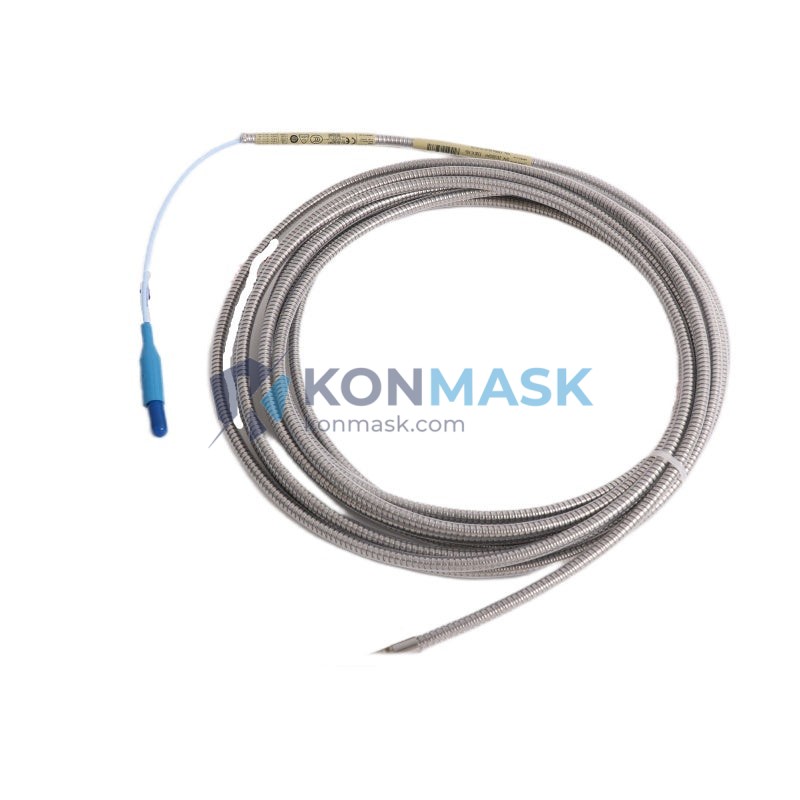

Bently Nevada 330904-00-21-10-02-05/CN Proximity Probe – 3300 NSv Series
When a critical rotating machine loses its vibration monitoring capability, the consequences are immediate and severe: undetected shaft imbalance, bearing wear, or rotor rub can escalate within minutes into catastrophic equipment failure, unplanned downtime, and six-figure repair costs. In high-stakes environments such as gas turbines, steam turbines, compressors, and pumps, continuous shaft position and vibration data is not optional — it is the last line of defense between normal operation and disaster. The Bently Nevada 330904-00-21-10-02-05/CN proximity probe is the precision sensing element that makes that protection possible.
The 330904-00-21-10-02-05/CN is a member of the Bently Nevada 3300 NSv (Non-contacting Vibration) Series — one of the most widely deployed eddy-current proximity probe systems in global industrial automation. Engineered to deliver sub-micron resolution and exceptional linearity, this specific configuration (21 mm probe, 10 mm cable, 02 connector, 05 extension, CN region variant) is optimized for installations requiring compact probe geometry with reliable signal integrity across demanding thermal and chemical environments. It is fully compatible with the 3300 XL and 3300 NSv signal conditioning systems, making it a direct-fit replacement or new-installation choice for thousands of existing monitoring architectures worldwide.
Technical Specifications
- Part Number: 330904-00-21-10-02-05/CN
- Series: Bently Nevada 3300 NSv Proximity Probe System
- Sensing Technology: Eddy-current (non-contacting)
- Probe Length: 21 mm
- Cable Length: 10 m (integral)
- Connector Type: 02 series
- Extension Cable: 05 m
- Regional Variant: CN (China / Asia-Pacific)
- Weight: 620 g (packaged)
- Compatible Drivers/Monitors: 3300 NSv, 3300 XL, 3500 Series
- Target Material: AISI 4140 steel or equivalent ferromagnetic alloy
- Operating Temperature: Per Bently Nevada 3300 NSv system specification
- Output Signal: Voltage proportional to gap distance (mV/mil or mV/µm)
Note: Specifications above are based on published Bently Nevada 3300 NSv series documentation. Always verify against the official datasheet for your specific installation requirements.
Key Features & Benefits
- Non-contacting measurement: Zero mechanical wear on the probe or target shaft, enabling continuous 24/7 monitoring without maintenance intervals.
- High-resolution eddy-current sensing: Detects shaft vibration and radial position changes at sub-micron levels, critical for API 670 compliance.
- Integral cable design: Eliminates connector joints at the probe tip, reducing signal noise and improving reliability in high-vibration environments.
- CN regional variant: Certified and configured for China and Asia-Pacific market installations, ensuring regulatory and documentation compliance.
- Plug-and-play compatibility: Direct replacement for existing 3300 NSv and 3300 XL installations — no recalibration of the monitoring system required when replacing like-for-like.
- Chemical and temperature resistance: Probe tip and cable jacket materials selected for resistance to lubricating oils, coolants, and industrial solvents.
- Long service life: Solid-state construction with no moving parts ensures MTBF measured in decades under normal operating conditions.
Industry & Equipment Applications
- Oil & Gas: Centrifugal compressors, gas turbines, pipeline pumping stations — shaft radial vibration and axial position monitoring per API 670.
- Power Generation: Steam turbines, hydro generators — rotor eccentricity and bearing clearance monitoring.
- Petrochemical & Refining: Reactor agitators, boiler feed pumps, cracked gas compressors.
- Marine & Offshore: Propulsion shaft monitoring, diesel generator sets.
- Pulp & Paper / Steel: High-speed rolls, ID fans, induced draft fans.
- General Industrial: Any rotating machinery requiring continuous condition monitoring and predictive maintenance integration.
System Integration & Compatible Parts
The 330904-00-21-10-02-05/CN is designed to operate within the complete Bently Nevada 3300 NSv ecosystem. Typical system configurations include:
- Signal Conditioners: Bently Nevada 3300 XL 8mm, 11mm, 14mm driver series
- Monitoring Systems: Bently Nevada 3500 Series Machinery Protection System
- Extension Cables: 330130 series (matched to probe cable length)
- Barriers (IS installations): Bently Nevada 3300 series Zener barriers for hazardous area compliance
- DCS Integration: 4–20 mA or voltage output to DeltaV, Ovation, ABB System 800xA, Honeywell Experion
Contact our technical team to confirm exact system compatibility for your installation before ordering.
Our Quality Assurance Process
At Konmask.com, every Bently Nevada proximity probe is sourced through verified supply channels and undergoes a multi-stage inspection process before shipment:
- Visual & mechanical inspection: Probe tip, cable jacket, and connector integrity checked against OEM specifications.
- Part number verification: Label, dataplate, and packaging cross-referenced to confirm exact model match (330904-00-21-10-02-05/CN).
- Documentation package: Certificate of conformance and traceability documentation available upon request.
- Secure packaging: Anti-static, shock-resistant packaging with humidity indicators for international air freight.
How to Order
- Submit an inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
- Our technical sales team will confirm availability, lead time, and provide a formal quotation within 1 business day.
- Upon PO receipt, we arrange quality inspection, documentation, and international shipping (DHL / FedEx / sea freight).
- Track your shipment with real-time updates until delivery to your facility.
Why Choose Konmask.com?
- Specialized in industrial automation components — PLC, DCS, vibration monitoring, and motion control.
- Global supply network with access to both new OEM stock and certified surplus inventory.
- Technical pre-sales support from engineers with hands-on field experience.
- Fast response: quotations within 24 hours, expedited shipping available for urgent plant shutdowns.
- Trusted by maintenance engineers and procurement teams across Asia-Pacific, Middle East, and Europe.
Frequently Asked Questions
Q: Is the 330904-00-21-10-02-05/CN a direct replacement for the standard 330904-00-21-10-02-05?
A: The /CN suffix denotes the China/Asia-Pacific regional variant. It is functionally equivalent to the standard part in most installations, but always verify with your system documentation or contact us for confirmation before substituting.
Q: Can this probe be used with the Bently Nevada 3500 monitoring system?
A: Yes. The 3300 NSv proximity probe series is compatible with the 3500 Series Machinery Protection System when used with the appropriate driver and I/O module configuration.
Q: What is the typical lead time for this part?
A: Lead time varies by stock availability. Contact us for a real-time availability check. Expedited options are available for urgent requirements.
Q: Do you provide a certificate of conformance?
A: Yes. A certificate of conformance and traceability documentation can be provided upon request at the time of order.
Q: What target material is required for accurate measurement?
A: The probe is calibrated for AISI 4140 steel targets. Other ferromagnetic materials may require recalibration of the driver gap voltage. Contact our technical team for guidance.
