Turbine & Rotating Machinery Vibration Monitoring Solution — Bently Nevada 330910-00-08-10-02-CN | 3300 NSv Series
Where This Product Is Used

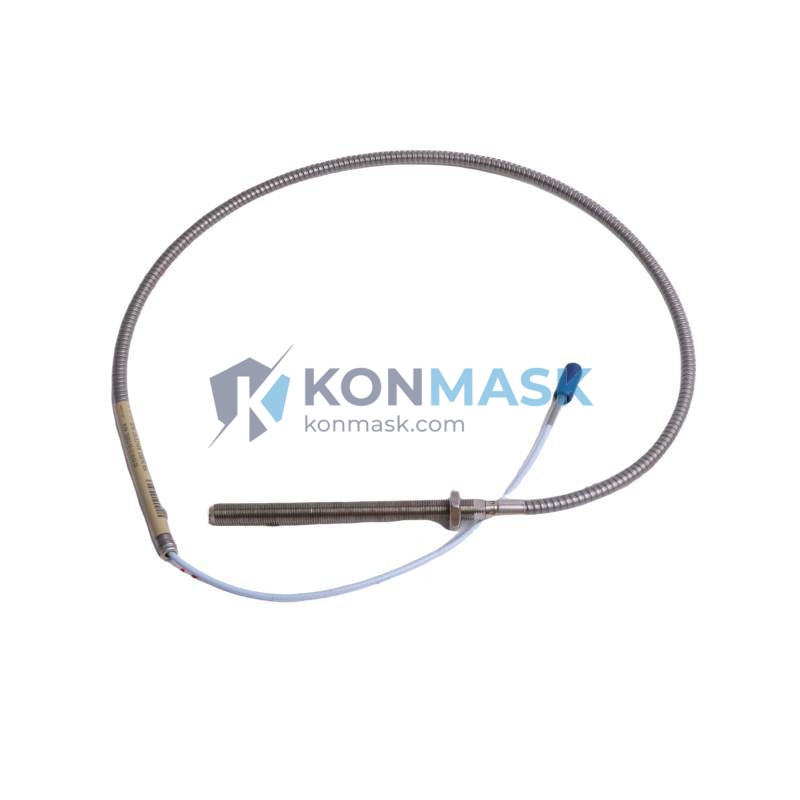

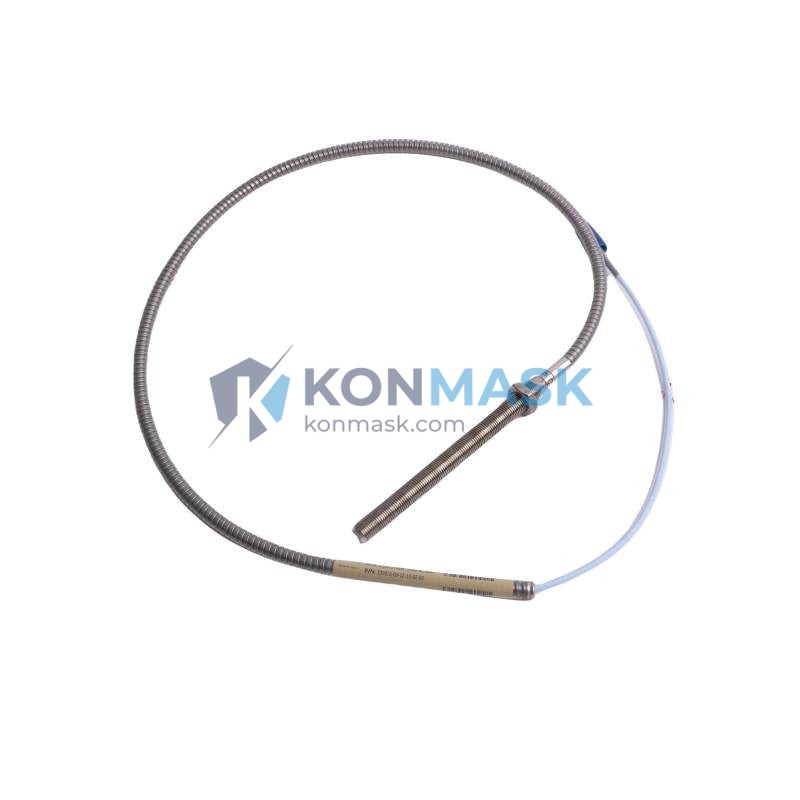

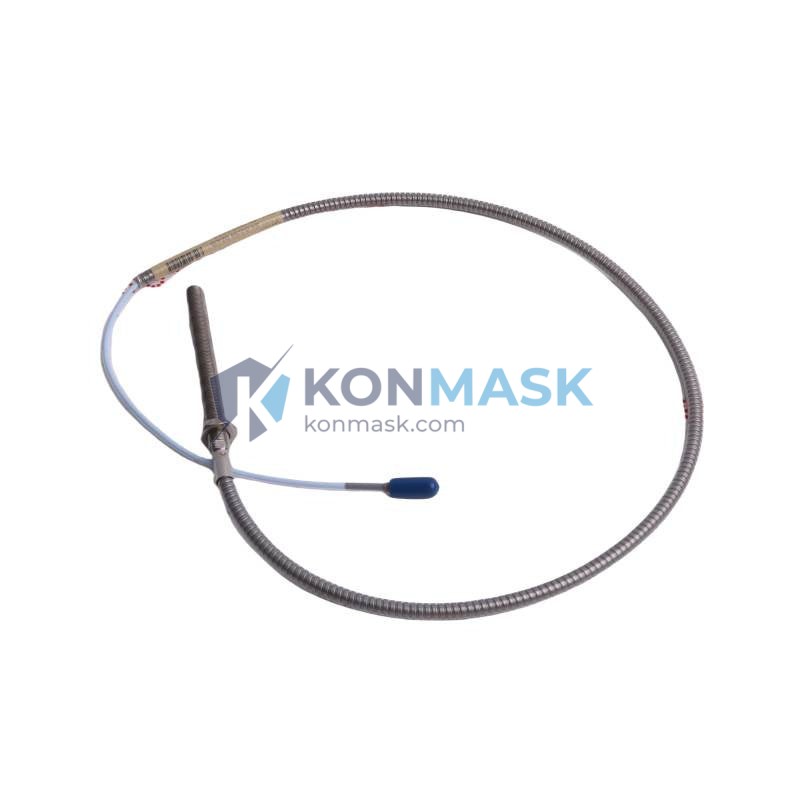

The Bently Nevada 330910-00-08-10-02-CN is a field-proven eddy-current proximity probe engineered for continuous, non-contact vibration and position measurement on critical rotating machinery. Typical deployment environments include:
- Steam & Gas Turbines — shaft radial vibration monitoring per API 670
- Centrifugal & Axial Compressors — rotor dynamic displacement measurement in petrochemical plants
- Pumps & Fans — bearing journal orbit analysis in power generation facilities
- Gearboxes — gear mesh frequency and shaft position tracking
- Marine Propulsion Systems — continuous shaft monitoring in offshore platforms
- Paper & Steel Mills — roll position and vibration feedback in heavy process industries
Wherever API 670 or ISO 10816 compliance is mandated, this probe integrates directly with Bently Nevada 3300 Series monitors and Proximitor® sensors without additional signal conditioning.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number / SKU | 330910-00-08-10-02-CN |
| Series | Bently Nevada 3300 NSv |
| Probe Tip Diameter | 8 mm |
| Cable Length | 1.0 m (extension cable sold separately) |
| Thread Size | M10 × 1.0 |
| Connector | 2-pin MIL-C-5015 (CN suffix) |
| Sensing Range (linear) | 0.25 mm – 2.25 mm (typical, AISI 4140 target) |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC – 10,000 Hz (–3 dB) |
| Operating Temperature | –35 °C to +177 °C |
| Supply Voltage | –24 VDC (via Proximitor® sensor) |
| Output Voltage Range | –1 VDC to –21 VDC |
| Weight | 140 g (probe + integral cable) |
| Housing Material | 316 Stainless Steel |
| IP Rating | IP67 |
Why Engineers Specify This Model
- NSv (Non-Standard Voltage) Architecture — wider output swing reduces signal clipping on high-amplitude vibration events common in compressor surge conditions.
- 8 mm Tip for Tight Bearing Housings — the compact tip diameter fits standard API 670 probe boss installations without machining modifications.
- CN Connector Suffix — MIL-spec connector ensures vibration-resistant, moisture-proof mating in harsh plant environments; eliminates field-splice failure modes.
- Direct 3300 Monitor Compatibility — plug-and-play with 3300/16 and 3300/20 monitor cards; no re-ranging or re-calibration required.
- Stainless Steel Body — resists corrosion in H₂S-rich or high-humidity atmospheres found in upstream oil & gas applications.
- Factory Calibration Certificate Included — each unit ships with a traceable calibration report, satisfying ISO 17025 documentation requirements.
Complete System Bill of Materials
For a fully functional 3300 NSv proximity measurement loop, the following components are required:
- Proximity Probe: 330910-00-08-10-02-CN (this item)
- Extension Cable: 330130-080-00-00 (8 m) or 330130-050-00-00 (5 m)
- Proximitor® Sensor: 330180-X1-05 (NSv, –24 VDC)
- Monitor Card: 3300/16 Dual Vibration Monitor or 3300/20 Dual Vibration Monitor
- Rack / Chassis: 3300/05 or 3300/10 Rack
- Barrier (if required): MTL 787S+ or equivalent Zener barrier for IS installations
Contact support@konmask.com for bundle pricing on complete loop assemblies.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- ISO 10816 / ISO 20816 — Mechanical Vibration Evaluation
- IEC 60079 — Explosive Atmospheres (consult factory for ATEX/IECEx variants)
- CE Marking — EMC Directive 2014/30/EU
- RoHS Compliant — Directive 2011/65/EU
Quality Assurance & Sourcing
Konmask.com sources the 330910-00-08-10-02-CN exclusively from authorized Bently Nevada distribution channels and vetted OEM-surplus inventories. Every unit undergoes the following before dispatch:
- Visual inspection against Bently Nevada cosmetic acceptance criteria
- Electrical continuity and insulation resistance check
- Scale factor verification on calibrated test stand (AISI 4140 target)
- Packaging inspection — original or equivalent ESD-safe packaging
- Serial number logging for full traceability
A 12-month functional warranty is provided on all units. Counterfeit-free guarantee backed by our supplier audit program.
How to Source This Part
- Add to Cart — click the purchase button above for immediate checkout.
- Request a Quote — email support@konmask.com with your required quantity and delivery timeline for volume pricing.
- Urgent Requirement — call or WhatsApp +0086 19859288691 for same-day stock confirmation and expedited shipping options.
- Cross-Reference — if you have an alternate part number or competitor equivalent, send it to us and we will confirm compatibility.
We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide. Export documentation (CO, packing list, commercial invoice) provided for all international orders.
Application-Specific FAQ
Q: Is the 330910-00-08-10-02-CN compatible with the older 3300/05 rack?
A: Yes. The 3300 NSv probe series is backward-compatible with all 3300 Series racks and monitor cards. No firmware update is required.
Q: What target material is the scale factor calibrated for?
A: Factory calibration uses AISI 4140 steel. For non-standard target materials (e.g., Inconel, titanium), a correction factor must be applied per Bently Nevada TIL-073.
Q: Can this probe be used in a hazardous area (Zone 1 / Division 1)?
A: The standard CN variant is not intrinsically safe. For IS installations, pair with an approved Zener barrier or galvanic isolator. Contact us for ATEX-certified variants.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 4–8 weeks from authorized channels. Contact us for current availability.
Q: Do you provide a calibration certificate?
A: Yes. A factory or third-party calibration certificate is included with every unit shipped from Konmask.com.
