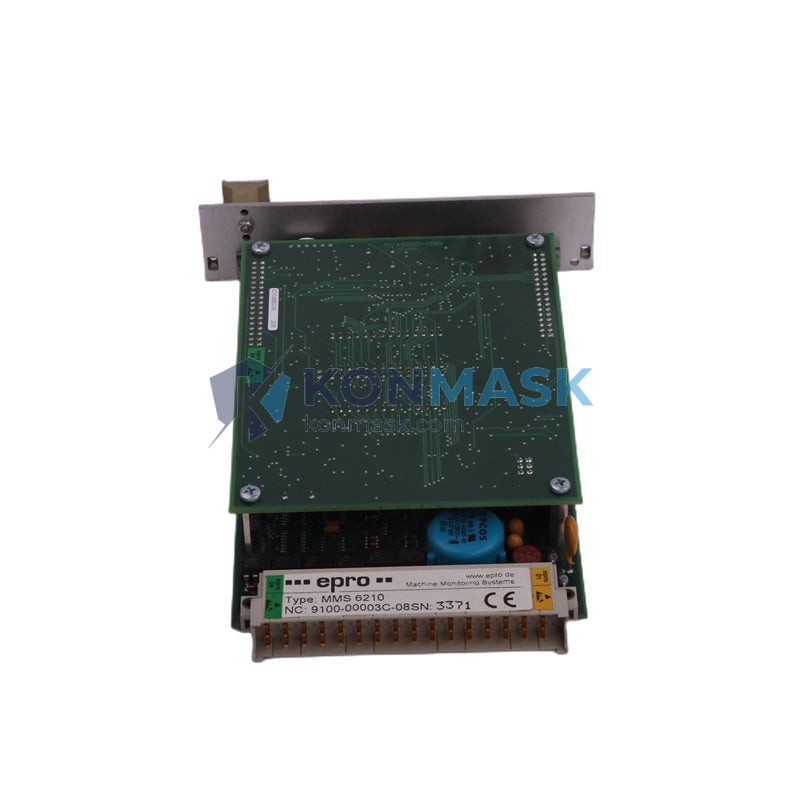

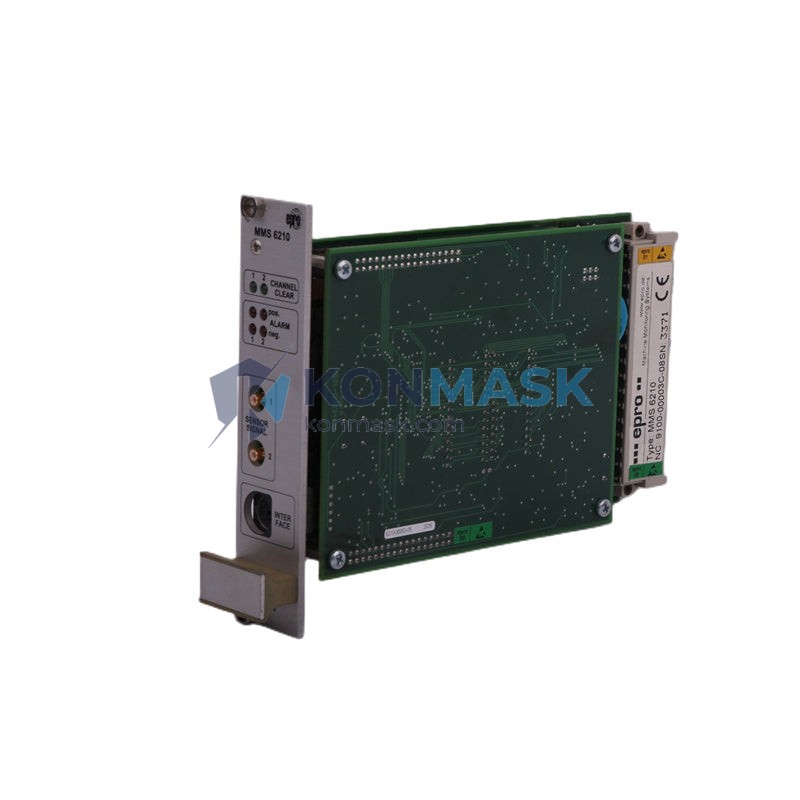

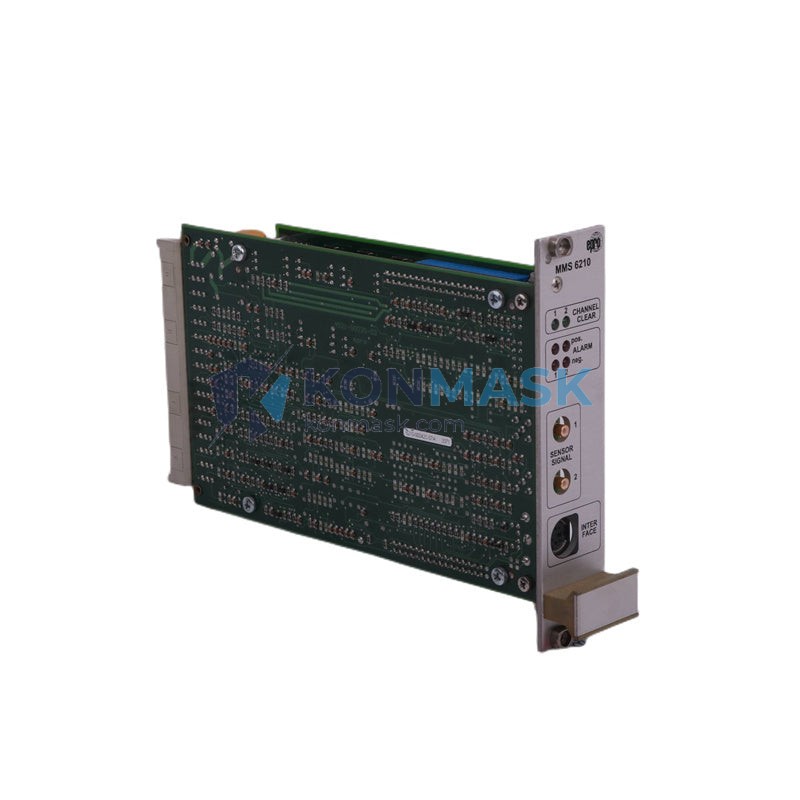

EPRO MMS6210 – Dual Channel Shaft Displacement Monitor | MMS 6000 Series
工程背景
在大型旋转机械（汽轮机、压缩机、泵组）的状态监测体系中，轴位移是判断转子轴向载荷变化、推力轴承磨损及机组喘振的核心参数。EPRO MMS6210 作为 MMS 6000 系列的双通道轴位移监测模块，专为工业级连续保护场景设计，符合 API 670 第五版标准，广泛部署于石化、电力、LNG 及海上平台等关键机组保护系统。
产品定位
MMS6210 面向需要冗余测量、高可靠性输出及 DCS/SIS 集成的采购工程师。其双通道架构在单卡内实现两路独立位移测量，显著降低机柜空间占用，同时满足 SIL 2 功能安全要求，是替换老旧 Bently Nevada 3300 系列及同类产品的优选方案。
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MMS6210 |
| Manufacturer | EPRO (part of Baker Hughes / Bently Nevada ecosystem) |
| Channels | 2 independent channels per module |
| Measurement Type | Shaft radial / axial displacement (eddy current proximity) |
| Sensor Compatibility | EPRO PR6423, PR6424 series; compatible with standard 5mm / 8mm eddy current probes |
| Measurement Range | ±25 mm (standard); configurable per probe type |
| Accuracy | ≤ ±1% full scale |
| Analog Output | 4–20 mA (per channel, isolated) |
| Relay Output | Alert / Danger relay, configurable trip setpoints |
| Power Supply | 24 VDC (via MMS 6000 backplane) |
| Communication | Modbus RTU / optional PROFIBUS DP via gateway |
| Compliance | API 670 Ed. 5, IEC 61511 (SIL 2 capable) |
| Operating Temperature | -20°C to +70°C |
| Humidity | 5–95% RH, non-condensing |
| Protection Class | IP20 (module); IP54 with enclosure |
| Dimensions | Standard MMS 6000 rack module form factor |
| Weight | Approx. 300 g |
| Certifications | CE, ATEX (Zone 2 with barrier), cULus |
Proven Application Environments
- Steam & Gas Turbines — axial thrust monitoring, rotor position protection
- Centrifugal Compressors — radial shaft orbit measurement, surge detection support
- Boiler Feed Pumps — continuous displacement trending, predictive maintenance integration
- LNG Trains & Offshore Platforms — SIL-rated protection loops, harsh environment operation
- Hydro Turbines — slow-speed shaft monitoring with extended probe ranges
- Industrial Fans & Blowers — cost-effective dual-channel coverage in single slot
Engineering Advantages
- Dual-channel in single slot — halves rack space vs. single-channel alternatives, reducing BOM cost
- Galvanically isolated outputs — eliminates ground loop interference in complex DCS wiring environments
- Hot-swap capable — MMS 6000 backplane supports module replacement without system shutdown
- Configurable via software — setpoints, damping, and output scaling adjustable through MMS Config Tool without hardware jumpers
- Backward compatible — drop-in replacement for legacy EPRO COM modules in existing MMS racks
- SIL 2 functional safety — supports IEC 61511 safety instrumented function design without additional safety relay
System Architecture & Signal Flow
The MMS6210 operates within the MMS 6000 modular rack system. Signal flow is as follows:
- Eddy Current Probe (PR6423/PR6424) → measures gap voltage proportional to shaft displacement
- Extension Cable → transmits raw probe signal to rack-mounted module
- MMS6210 Input Stage → conditions signal, applies calibration curve, filters noise
- Processing Core → compares real-time value against Alert / Danger setpoints
- Analog Output (4–20 mA) → feeds DCS historian or control loop
- Relay Output → triggers SIS / ESD on threshold breach
- Modbus RTU → streams data to plant asset management system (AMS / System 1)
Sourcing & Quality Verification
- All MMS6210 units supplied by Konmask.com are sourced from authorized distributors or verified surplus channels with full traceability documentation.
- Each unit undergoes incoming inspection: visual check, label verification (part number, revision, serial number), and functional power-on test where applicable.
- Original factory packaging, manuals, and calibration certificates are included where available.
- Counterfeit risk mitigation: we cross-reference serial numbers against EPRO/Baker Hughes databases and provide inspection photos upon request prior to shipment.
- Lead time: in-stock units ship within 3–5 business days; sourced units 2–4 weeks depending on availability.
Procurement Process
- Submit RFQ — contact support@konmask.com with quantity, required delivery date, and destination country.
- Quotation — receive itemized quote with unit price (HKD/USD), lead time, and shipping options within 24 hours.
- Order Confirmation — purchase order or online checkout; proforma invoice issued for wire transfer customers.
- Inspection & Documentation — pre-shipment photos and test report provided upon request.
- Shipping — DHL Express / FedEx International Priority; export documentation (commercial invoice, packing list, COO) included.
- After-Sales Support — 12-month warranty on verified new units; technical support via email within 1 business day.
Technical FAQ
Q: Is the MMS6210 compatible with Bently Nevada 3300 series probes?
A: Direct electrical compatibility depends on probe sensitivity (V/mm). EPRO PR6423 probes are the recommended match. Third-party probes require sensitivity verification before installation.
Q: Can the MMS6210 replace a COM module in an existing MMS rack?
A: Yes. The MMS6210 is backward compatible with MMS 6000 backplanes and replaces legacy COM-based displacement modules with software-configurable setpoints.
Q: What is the maximum cable length between probe and module?
A: Standard extension cables support up to 9 meters. For longer runs, EPRO extension cable kits with impedance matching are available.
Q: Does the module support redundant voting logic (1oo2, 2oo3)?
A: Voting logic is implemented at the SIS/ESD level. The MMS6210 provides independent channel outputs that feed into the safety logic solver; the module itself does not perform voting internally.
Q: Is calibration required after installation?
A: Factory calibration is pre-loaded. Field calibration (gap voltage vs. displacement curve) is recommended when using non-standard probe/extension combinations or after probe replacement.
