Bently Nevada 330905-08-13-10-02-05 NSv Proximity Probe | Replacement, Equivalent & Selection Guide

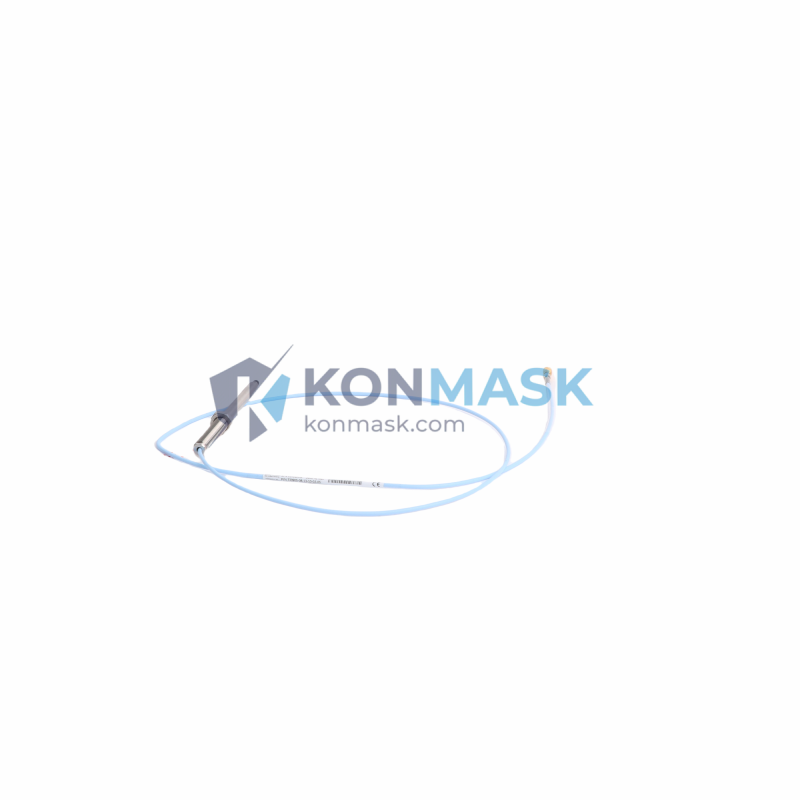

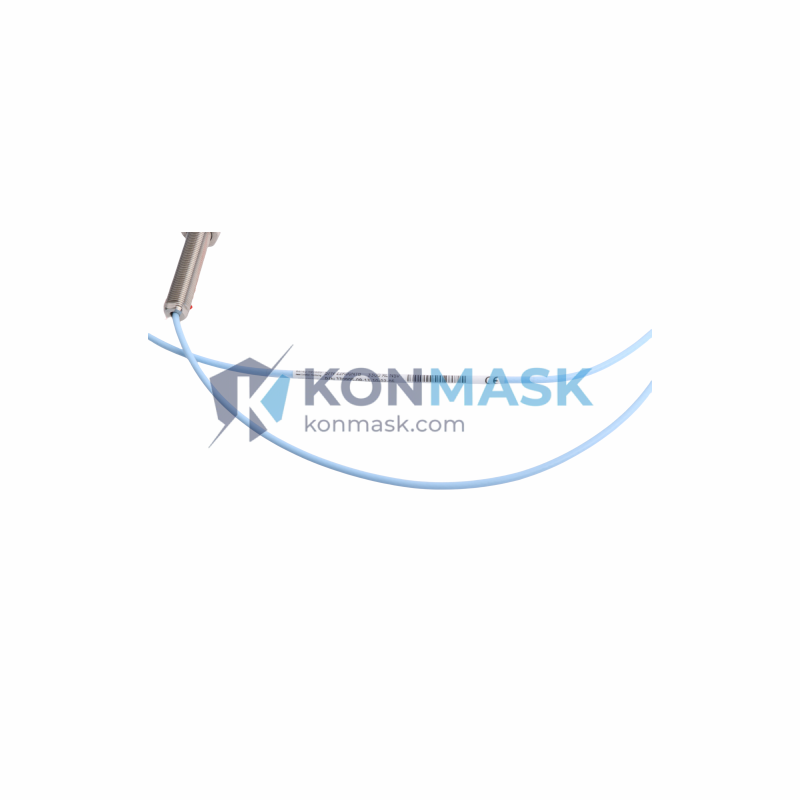

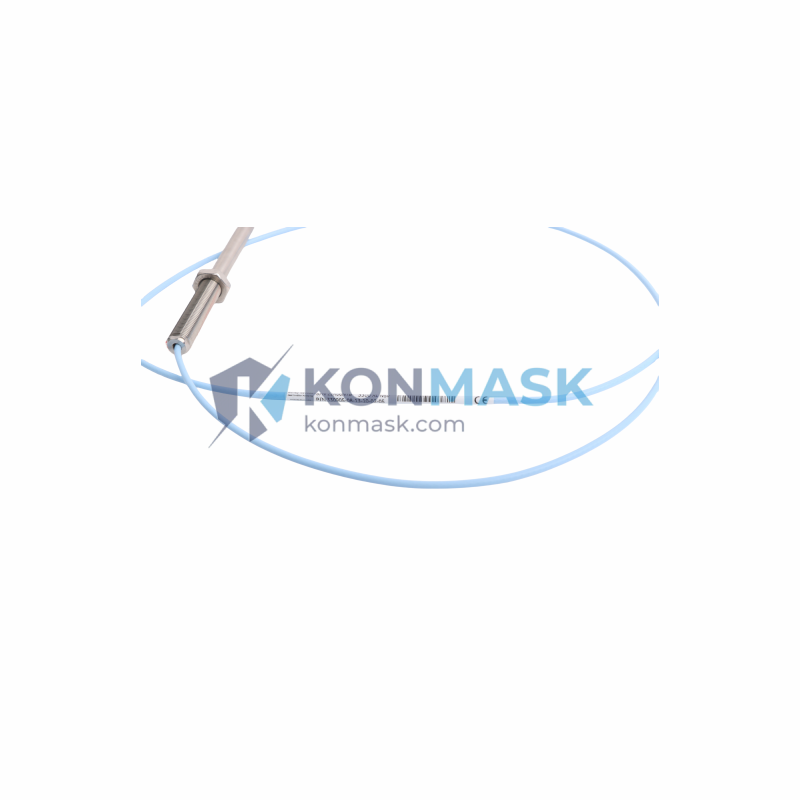

The Bently Nevada 330905-08-13-10-02-05 is an 8 mm NSv (Non-Standard voltage) eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. It is part of Bently Nevada’s industry-standard 3300 XL 8 mm proximity transducer system, widely deployed in turbines, compressors, pumps, and motors across oil & gas, power generation, and heavy industry.
Technical Specifications
- Part Number: 330905-08-13-10-02-05
- Series: 3300 XL NSv 8 mm Proximity Transducer System
- Probe Diameter: 8 mm
- Cable Length: 1.0 m (extension cable sold separately)
- Tip Material: Stainless Steel
- Temperature Range: −40 °C to +177 °C (probe tip)
- Sensitivity: 7.87 V/mm (200 mV/mil) nominal
- Linear Range: 0.25 mm to 2.54 mm (10 mil to 100 mil)
- Supply Voltage: −24 VDC (NSv system)
- Output: Voltage proportional to gap distance
- Connector: Integral armored cable with standard BNC-compatible termination
- Approvals: CE, ATEX, IECEx (refer to datasheet for zone ratings)
- Weight: ~80 g
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the 330905-08-13-10-02-05. Always verify gap, cable length, and connector compatibility before substitution.
| Part Number | Brand | Notes |
|---|---|---|
| 330905-08-13-10-02-00 | Bently Nevada | Same probe, standard termination variant |
| 330905-08-25-10-02-05 | Bently Nevada | 2.5 m cable variant |
| 330905-08-50-10-02-05 | Bently Nevada | 5.0 m cable variant |
| 3300 XL 8 mm (generic) | Bently Nevada | System-level equivalent; confirm NSv driver compatibility |
| PR6423/010-100 | Epro / GE | 8 mm eddy-current probe; requires Epro driver |
| CON021/916-000 | Epro / GE | Functional equivalent with Epro driver system |
| TQ103-A05-B00-C01 | Shinkawa | 8 mm proximity probe; verify sensitivity and driver |
Note: Third-party equivalents require driver and system compatibility verification. Contact Konmask for application-specific guidance.
Why Choose the Original Model
- OEM Accuracy: Factory-calibrated sensitivity of 7.87 V/mm ensures drop-in replacement without recalibration of the monitoring system.
- NSv System Integrity: Designed exclusively for Bently Nevada NSv drivers (e.g., 3300 XL), maintaining system certification and warranty.
- Proven Reliability: Millions of operating hours in critical rotating machinery worldwide.
- Full Traceability: Each probe ships with a calibration certificate and lot traceability documentation.
- Safety Certifications: ATEX / IECEx rated for hazardous area installations.
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor bearing proximity sensing
- Gearbox and expander shaft displacement monitoring
- API 670 compliant machinery protection systems
System Compatibility
The 330905-08-13-10-02-05 probe is designed to operate within the Bently Nevada 3300 XL NSv Proximity Transducer System. Compatible system components include:
- Drivers / Oscillator-Demodulators: 3300 XL NSv 8 mm (e.g., 330180-91-00)
- Extension Cables: 330130 series (confirm length to achieve total system cable length)
- Monitoring Systems: System 1, 3500 Series, 3300 Series rack monitors
- Not compatible with: Standard (Stdv) 3300 XL drivers or non-Bently Nevada driver systems without re-characterization
Selection Guide
Use the part number decoder below to select the correct 330905 variant for your application:
- 330905 – NSv 8 mm Proximity Probe base model
- -08 – 8 mm probe diameter
- -13 – 1.3 m integral cable length (confirm total system cable budget)
- -10 – Standard temperature range
- -02 – Armored cable jacket
- -05 – Connector / termination type
If your application requires a different cable length, temperature rating, or connector style, contact Konmask with your system drawing and we will identify the correct variant.
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels with full documentation.
- Each probe is inspected and tested prior to shipment.
- Calibration certificates and original packaging provided where available.
- Konmask maintains strict anti-counterfeit sourcing protocols for all Bently Nevada products.
How to Order
- Confirm part number: 330905-08-13-10-02-05
- Verify quantity and lead time requirements with our team.
- Add to cart or contact us for bulk pricing and expedited shipping options.
- Provide your system drawing or driver model number if substitution guidance is needed.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use a standard (Stdv) 3300 XL probe instead of the NSv version?
A: No. NSv and Stdv probes use different driver electronics and are not interchangeable without re-characterizing the system. Always match probe and driver series.
Q: What is the difference between 330905 and 330103?
A: The 330103 is a 5 mm probe; the 330905 is an 8 mm probe. They have different linear ranges and sensitivity values and are not directly interchangeable.
Q: Can Epro PR6423 replace the 330905-08-13-10-02-05?
A: Functionally similar, but requires an Epro driver system. It cannot be used with Bently Nevada NSv drivers without system modification.
Q: Do you offer exchange or repair services?
A: Yes. Contact us for repair assessment and exchange program availability.
Q: Is this probe suitable for hazardous areas?
A: Yes, subject to ATEX/IECEx zone ratings. Confirm the specific approval code on the probe label matches your installation zone requirements.
