Turbine & Rotating Machinery Vibration Monitoring Solution — Bently Nevada 330910-00-06-10-02-00 | 3300 NSv Series
Where This Product Is Used

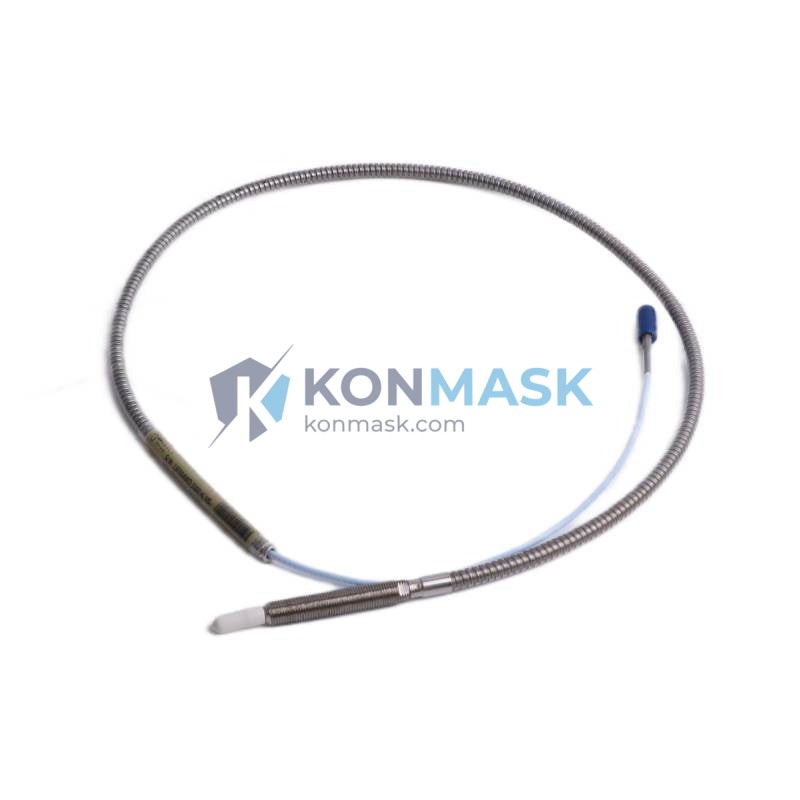

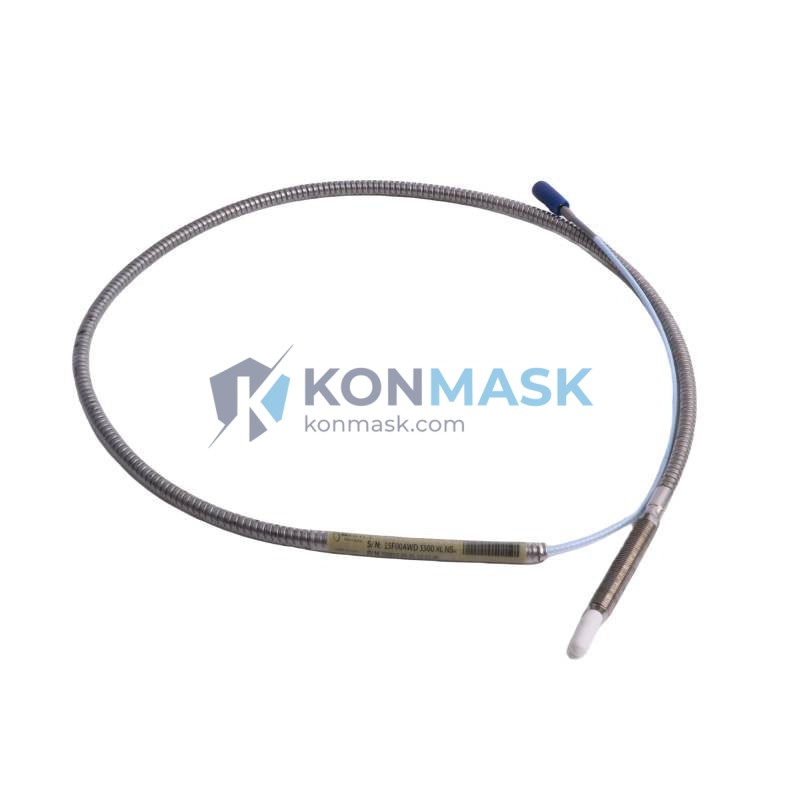

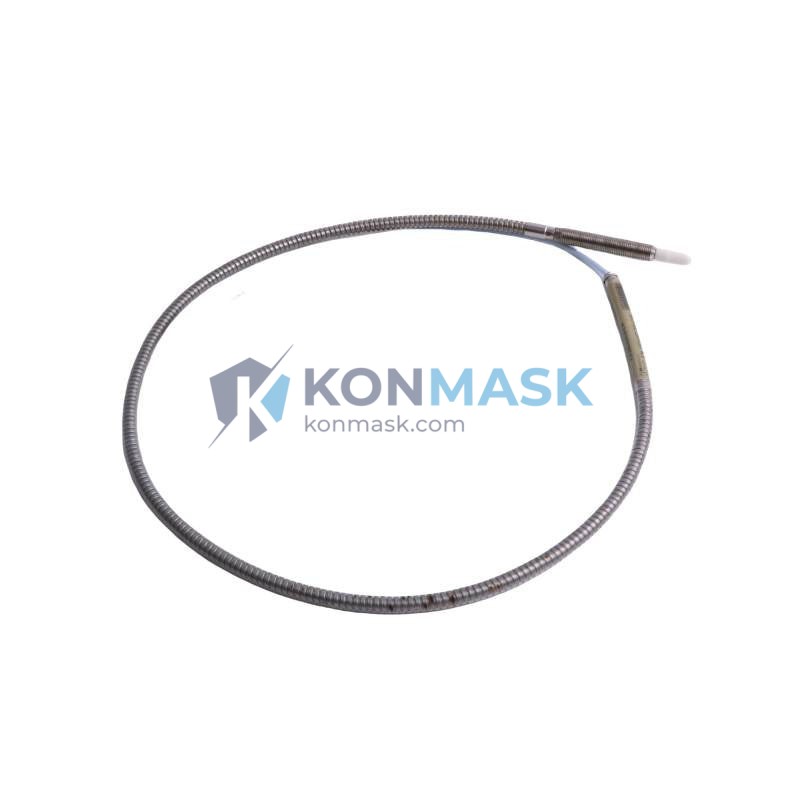

The Bently Nevada 330910-00-06-10-02-00 proximity probe is engineered for continuous, non-contact vibration and position measurement in the most demanding rotating machinery environments. Typical deployment sites include:
- Steam & Gas Turbines — shaft radial vibration monitoring per API 670
- Centrifugal Compressors — rotor dynamic displacement measurement in petrochemical plants
- Pumps & Fans — bearing journal orbit analysis in power generation facilities
- Gearboxes — differential expansion and eccentricity monitoring
- Marine Propulsion Systems — shaft position sensing in offshore platforms
- Paper & Steel Mills — roll and spindle runout detection
This probe is the field-proven choice for plant engineers who require API 670-compliant machinery protection systems integrated with Bently Nevada 3300 series monitors.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 330910-00-06-10-02-00 |
| Series | 3300 NSv (Non-Standard voltage) |
| Probe Tip Diameter | 6 mm (0.24 in) |
| Cable Length | 10 m (32.8 ft) integral cable |
| Sensitivity | 200 mV/mil (7.87 V/mm) |
| Linear Range | 0.25 mm – 2.25 mm (10 – 90 mil) |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Supply Voltage | -24 VDC (nominal) |
| Output Impedance | 100 Ω |
| Connector Type | 2-pin MIL-C-5015 (02 series) |
| Housing Material | 316 Stainless Steel |
| Ingress Protection | IP67 |
| Weight | Approx. 30 g (probe body) |
Why Engineers Specify This Model
- API 670 Compliant — meets the industry standard for machinery protection systems, accepted by EPC contractors and end-users globally
- NSv Technology — Non-Standard voltage output reduces susceptibility to EMI/RFI interference in high-noise plant environments
- 6 mm Tip for Tight Clearances — ideal for small-bore bearing housings where standard 8 mm probes cannot be installed
- 10 m Integral Cable — eliminates field splicing, reducing signal degradation and installation errors in long cable runs to junction boxes
- 316 SS Housing — resists corrosion from process gases, steam, and aggressive cleaning agents
- Direct Replacement — pin-compatible with legacy 3300 series installations; no rewiring required during maintenance turnarounds
Complete System Bill of Materials
For a fully functional Bently Nevada 3300 NSv proximity measurement loop, the following components are required:
- Proximity Probe: 330910-00-06-10-02-00 (this item)
- Extension Cable: 330130-XX-XX (length to suit installation)
- Proximitor® Sensor: 330180-X1-00 or 330190-X0-CN (3300 NSv compatible)
- Monitor Module: 3300/16 or 3500/42M (rack-mount vibration monitor)
- Power Supply: -24 VDC, minimum 50 mA per channel
- Mounting Hardware: Probe holder, lock nut, and armored conduit (site-specific)
Contact support@konmask.com for complete loop pricing and compatibility verification.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 60079 — Equipment for Explosive Atmospheres (consult datasheet for Ex rating)
- ISO 10816 / ISO 20816 — Mechanical Vibration Evaluation
- CE Marking — European Machinery Directive compliance
- RoHS Compliant — Restriction of Hazardous Substances
Quality Assurance & Sourcing
Konmask.com sources the Bently Nevada 330910-00-06-10-02-00 through verified industrial automation distributors and authorized channel partners. Every unit undergoes the following before shipment:
- Visual inspection against OEM cosmetic standards
- Dimensional verification of probe tip and connector
- Continuity and insulation resistance check on integral cable
- Packaging integrity inspection with anti-static protection
- Traceability documentation (lot number, date code) provided on request
We offer a 90-day warranty on all proximity probes against manufacturing defects. Expedited sourcing available for shutdown and turnaround projects.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly on this page for standard lead times
- Email RFQ: support@konmask.com — include quantity, required delivery date, and project name
- Phone / WhatsApp: +0086 19859288691 (Monday–Friday, 09:00–18:00 CST)
- Bulk Orders: Volume pricing available for orders of 5+ units; contact us for a tiered quote
- Urgent Shutdown Support: Same-day quotation and priority dispatch available — mention “TURNAROUND” in your inquiry
Application-Specific FAQ
Q: Is the 330910-00-06-10-02-00 compatible with the Bently Nevada 3500 rack system?
A: Yes. The 3300 NSv probe is electrically compatible with 3500 series monitors when used with the appropriate 3300 NSv Proximitor sensor (330180 or 330190 series). Verify the monitor channel configuration before installation.
Q: Can this probe be used in a hazardous area (Zone 1 / Division 1)?
A: The 330910 series has variants rated for hazardous locations. Please confirm the full part number suffix and consult the OEM datasheet or contact us to verify the Ex certification applicable to your installation.
Q: What is the maximum gap voltage for this probe?
A: At the nominal -24 VDC supply, the output at the center of the linear range (1.25 mm gap) is approximately -10.5 VDC. Full linear range spans approximately -2 VDC to -18 VDC.
Q: Can I extend the cable beyond 10 m?
A: Yes, using a Bently Nevada 330130 series extension cable. The total combined length of probe cable + extension cable must not exceed the system-qualified length specified in the Proximitor sensor datasheet (typically 5 m + 5 m or 5 m + 9 m configurations).
Q: What target material is required for accurate measurement?
A: The 3300 NSv system is calibrated for AISI 4140 steel targets. Other ferromagnetic materials will require field calibration. Non-ferrous targets are not suitable without special calibration.
