Bently Nevada 330930-040-02-00 Extension Cable | Replacement, Equivalent & Selection Guide

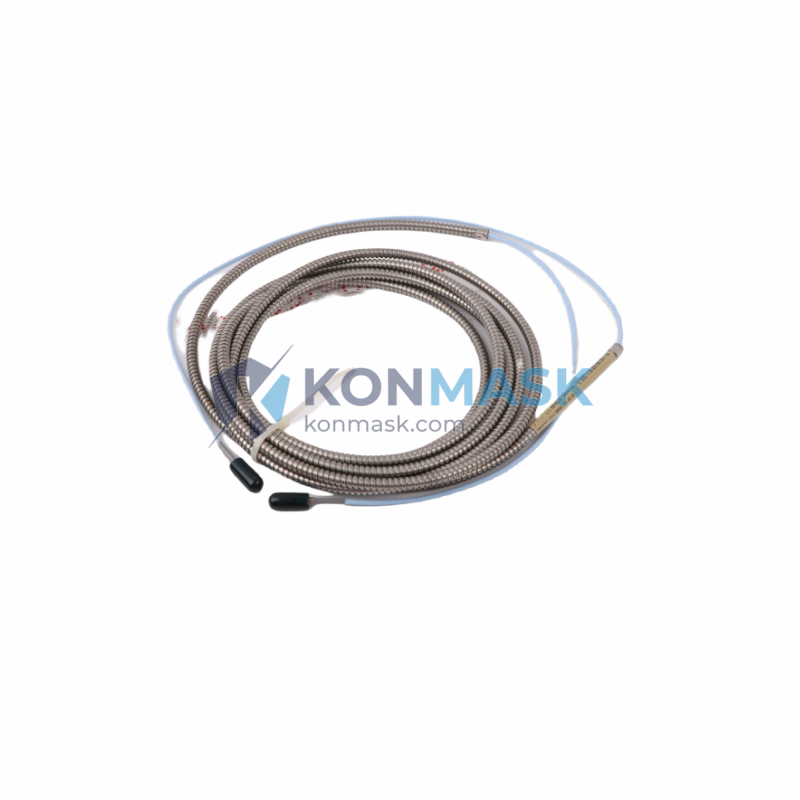

The Bently Nevada 330930-040-02-00 is a precision extension cable designed for use in 3300 Series proximity transducer systems. It serves as the critical signal-transmission link between the proximity probe and the proximitor/driver, maintaining signal integrity in demanding industrial vibration monitoring environments. At Konmask.com, we help engineers and procurement teams source original, compatible, and equivalent cables with confidence.
Technical Specifications
- Part Number: 330930-040-02-00
- Manufacturer: Bently Nevada (Baker Hughes)
- Series: 3300 Series Proximity Transducer System
- Type: Extension Cable
- Cable Length: 40 ft (12.2 m) — encoded in part number segment “-040”
- Connector Style: Standard BNC / coaxial termination compatible with 3300 Series proximitors
- Jacket Material: Armored / shielded for EMI protection
- Operating Temperature: -55°C to +125°C (typical for 3300 Series cables)
- Impedance: 50 Ω nominal
- Weight: Approx. 300 g
- Compliance: Compatible with API 670 machinery protection standards
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the 330930-040-02-00. Always verify system compatibility before substitution:
- 330930-040-00-00 — Same length, standard armor variant
- 330930-020-02-00 — 20 ft variant, same connector/jacket spec
- 330930-060-02-00 — 60 ft variant for longer cable runs
- 330130-040-02-00 — 3300 XL 8mm probe system extension cable (verify probe compatibility)
- 330180-X-05 — Armored extension cable for 3300 NSv systems
- Third-party equivalents: Must match impedance (50 Ω), connector type, shielding spec, and temperature rating
Note: Konmask.com recommends using original Bently Nevada cables for safety-critical machinery protection systems. Contact us for cross-reference verification.
Why Choose the Original 330930-040-02-00
- ✅ Factory-calibrated to work seamlessly within the 3300 Series system gap voltage range
- ✅ API 670 compliant — meets machinery protection standards for turbines, compressors, and pumps
- ✅ EMI/RFI shielded — armored jacket prevents signal noise in high-interference plant environments
- ✅ Guaranteed signal integrity — no impedance mismatch or calibration drift
- ✅ Traceability — full OEM documentation and certificates of conformance available
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Centrifugal compressor radial and axial displacement measurement
- Pump and motor bearing condition monitoring
- Rotating machinery protection systems in oil & gas, power generation, and petrochemical plants
- API 670-compliant machinery protection panels
System Compatibility
The 330930-040-02-00 extension cable is designed for use within the Bently Nevada 3300 Series proximity transducer system, which includes:
- Probes: 330103, 330104, 330105 (7.87 mm / 5 mm tip diameter)
- Proximitors/Drivers: 3300 XL proximitor modules (e.g., 330180, 330185)
- Monitors: 3500 Series rack-based machinery protection monitors
- Total cable system length: Probe cable + extension cable must equal system-calibrated total (typically 5 m, 9 m, or custom)
⚠️ Important: The total system cable length (probe + extension) must match the proximitor calibration. Mixing cable lengths without recalibration will cause measurement errors.
Selection Guide
Use the Bently Nevada 330930 part number structure to select the correct cable:
- 330930 — Extension cable base model for 3300 Series
- -040 — Cable length: 040 = 40 ft / 12.2 m (other options: 020, 060, 085, 100)
- -02 — Armor type: 02 = armored jacket (00 = standard)
- -00 — Connector/termination option
To select the right cable, confirm: (1) required cable run length, (2) probe model in use, (3) proximitor model and calibrated system length, (4) environmental requirements (armored vs. standard).
Quality Assurance & Sourcing
- 🔍 Source: Konmask.com sources from authorized distributors and verified surplus channels
- 📋 Documentation: Certificate of conformance, test reports, and OEM datasheets available on request
- 🔒 Anti-counterfeit: All units inspected for label authenticity, connector condition, and cable continuity
- 📦 Packaging: Original OEM packaging where available; protective packaging for surplus stock
- 🚚 Lead time: In-stock items ship within 1–3 business days; contact us for urgent requirements
How to Order
- Confirm your part number: 330930-040-02-00
- Verify system compatibility (probe model, proximitor model, total cable length)
- Add to cart or contact us for bulk pricing and availability
- Request a quote for OEM documentation or expedited shipping
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use a 330930-040-00-00 instead of 330930-040-02-00?
A: The -00-00 variant uses a standard (non-armored) jacket. It is electrically equivalent but may not meet environmental protection requirements in high-vibration or high-EMI installations.
Q: What happens if I use the wrong cable length?
A: The 3300 Series system is calibrated for a specific total cable length. Using a different length without recalibrating the proximitor will result in incorrect gap voltage readings and measurement errors.
Q: Is this cable compatible with the 3500 Series monitors?
A: Yes — the 3300 Series transducer system (probe + extension cable + proximitor) outputs a standard -18 VDC signal compatible with Bently Nevada 3500 Series monitor inputs.
Q: Can Konmask.com supply a custom cable length?
A: Contact us for custom length requirements. We can source or advise on factory-calibrated custom assemblies.
Q: Do you provide a warranty?
A: Yes. All products sold through Konmask.com include a quality guarantee. Contact support for warranty terms.
