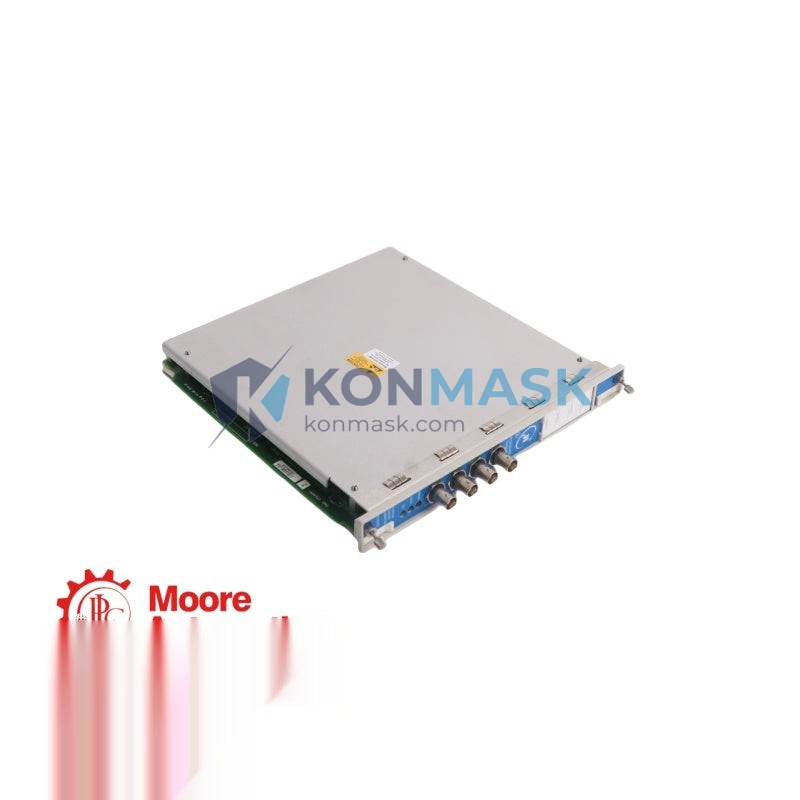

Bently Nevada 3500/45M Position Monitor – Dual-Channel Thrust & Differential Expansion | 3500 Series Machinery Protection System
Engineering Background
The Bently Nevada 3500 Series is the industry-standard modular machinery protection platform deployed across power generation, oil & gas, petrochemical, and rotating equipment facilities worldwide. Designed to API 670 standards, the 3500 rack architecture provides continuous, real-time monitoring of critical machinery parameters with deterministic response times and SIL-capable signal chains.
Product Positioning
The 3500/45M Position Monitor is a dual-channel, rack-mount module engineered for high-accuracy measurement of rotor axial position (thrust) and differential expansion on large turbomachinery. It accepts signals from Bently Nevada proximity transducers (3300 XL, 7200 Series) and delivers 4–20 mA analog outputs, relay-driven alarm/danger trips, and full integration with the 3500 rack backplane and System 1 condition monitoring software.
Complete Technical Specifications
| Model / SKU | 3500/45M |
| Brand | Bently Nevada (Baker Hughes) |
| Series / Platform | 3500 Machinery Protection System |
| Monitor Type | Position Monitor (Thrust / Differential Expansion) |
| Input Channels | 2 (dual-channel, independent) |
| Transducer Compatibility | Bently Nevada 3300 XL, 7200 Series eddy-current proximity probes |
| Measurement Range | Configurable per transducer gap range (typically –25 to +25 mm) |
| Analog Output | 4–20 mA (per channel, isolated) |
| Alarm / Danger Relays | Configurable Alert and Danger setpoints; relay outputs via 3500 rack I/O module |
| Communication | 3500 rack backplane (TDI bus); compatible with System 1 software |
| Power Supply | Supplied via 3500 rack power module (18–32 VDC) |
| Form Factor | Single-slot 3500 rack module |
| Operating Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Approvals | CE, API 670, SIL 2 capable (per system configuration) |
| Weight | 840 g (module only) |
| Country of Origin | USA |
Proven Application Environments
- Steam and gas turbine axial thrust monitoring
- Compressor differential expansion measurement in LNG and refinery trains
- Hydro-turbine shaft position tracking
- Pump and motor rotor position in critical service applications
- Retrofit and upgrade of legacy 3300 and 3500 rack installations
Engineering Advantages
- Dual-channel independence: Each channel processes, alarms, and trips independently — no single-point failure propagation.
- API 670 compliance: Meets the machinery protection standard required by EPC contractors and end-user specifications globally.
- Seamless rack integration: Plug-and-play within any 3500 rack; configuration via Rack Configuration Software (RCS) without rewiring.
- 4–20 mA isolated output: Direct interface to DCS/SCADA historians without signal conditioning.
- System 1 compatibility: Full data visibility in Bently Nevada’s condition monitoring and diagnostics platform.
- Hot-swap capable: Module replacement without rack power-down (with appropriate rack configuration).
System Architecture & Signal Flow
The 3500/45M receives raw proximity transducer signals via the 3500 I/O module terminal block. Internal signal conditioning converts gap voltage to calibrated position engineering units. The processed value is simultaneously routed to:
- The rack backplane TDI bus → System 1 software for trending and diagnostics
- The 4–20 mA analog output terminals → DCS/PLC historian inputs
- The internal comparator logic → Alert and Danger relay outputs via the relay module
All setpoints, scale factors, and transducer parameters are stored in non-volatile memory within the module and are retained through power cycles.
Sourcing & Quality Verification
- Units sourced from authorized distributors and verified OEM channels.
- Each module undergoes functional bench testing prior to shipment: power-on self-test (POST) pass, analog output calibration check, and relay actuation verification.
- Original Bently Nevada firmware version confirmed and documented.
- Packaging inspected for transit damage; serial number recorded and traceable.
- Certificate of conformance available upon request.
Procurement Process
- Submit your inquiry with required quantity and delivery timeline via support@konmask.com or the order form above.
- Receive a formal quotation with lead time, unit price, and shipping options within 1 business day.
- Confirm purchase order; payment via T/T, PayPal, or trade terms for qualified accounts.
- Module ships with test report, packing list, and tracking number.
- Post-delivery technical support available for installation and commissioning queries.
Technical FAQ
Q: Is the 3500/45M compatible with the 3500/20 power module?
A: Yes. The 3500/45M operates from the standard 3500 rack DC bus supplied by the 3500/20 or 3500/25 power modules.
Q: Can this module replace a 3500/45 (non-M variant)?
A: The 3500/45M is the enhanced version of the 3500/45. Backward compatibility depends on rack firmware and RCS version — contact us with your rack configuration for confirmation.
Q: What transducer gap range is supported?
A: The module supports the full gap range of Bently Nevada 3300 XL and 7200 Series probes. Exact range is set during RCS configuration to match the installed transducer and target material.
Q: Is a Certificate of Conformance (CoC) available?
A: Yes. CoC is provided upon request at no additional charge.
Q: What is the lead time for in-stock units?
A: In-stock units ship within 2–5 business days internationally. Express options available.
