Turbine & Rotating Machinery Temperature Monitoring Solution — Bently Nevada 3500/60 | 133811-01
Where This Product Is Used

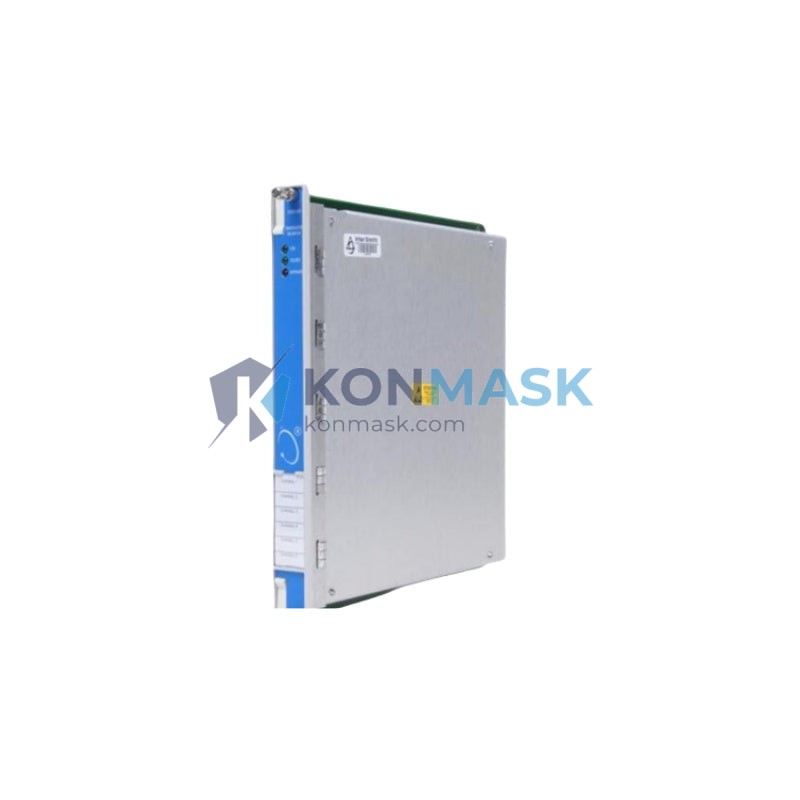

The Bently Nevada 3500/60 Temperature Monitor Module (P/N 133811-01) is purpose-built for continuous temperature monitoring in critical rotating machinery protection systems. Typical deployment environments include:
- Gas & Steam Turbines — bearing temperature surveillance in power generation plants (combined-cycle, simple-cycle, cogeneration)
- Centrifugal Compressors — monitoring journal and thrust bearing temperatures in upstream oil & gas compression trains
- Large Induction Motors & Generators — winding and bearing temperature protection in petrochemical and refinery drives
- Pumps & Fans (Critical Service) — high-availability process pumps in LNG, refining, and chemical plants
- Marine Propulsion Systems — shaft bearing temperature monitoring on LNG carriers and FPSO vessels
- Reciprocating Compressors — cylinder and packing temperature monitoring in gas processing facilities
Wherever API 670 machinery protection is mandated, the 3500/60 is the industry-standard temperature monitoring card within the Bently Nevada 3500 rack system.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 133811-01 |
| Module Type | Temperature Monitor (3500/60) |
| Series | Bently Nevada 3500 Machinery Protection System |
| Input Channels | 6 channels (RTD / Thermocouple configurable) |
| Sensor Compatibility | RTD (PT100, PT200, PT500, PT1000), Thermocouple (J, K, E, T, R, S, B types) |
| Measurement Range | –200 °C to +850 °C (sensor-dependent) |
| Accuracy | ±1 °C typical (RTD); ±2 °C typical (TC) |
| Alert / Danger Setpoints | Independently configurable per channel |
| Communication | 3500 Rack backplane (TDI / Modbus / Ethernet via gateway) |
| Power Supply | Supplied via 3500 rack backplane |
| Rack Compatibility | Bently Nevada 3500 Rack (4-slot, 14-slot) |
| Configuration Tool | System 1 / Rack Configuration Software |
| Weight | Approx. 100 g (module only) |
| Operating Temperature | 0 °C to +65 °C |
| Certifications | CE, FM, CSA (refer to current Bently Nevada datasheet) |
Why Engineers Specify This Model
- API 670 Compliance — Meets the machinery protection standard required by EPC contractors and end-users in oil & gas, power, and petrochemical industries.
- Multi-Sensor Flexibility — Single module supports both RTD and thermocouple inputs, reducing spare-parts inventory complexity.
- Independent Per-Channel Setpoints — Alert and Danger thresholds are set independently per channel, enabling precise protection tuning for mixed bearing types in a single machine train.
- Seamless 3500 Rack Integration — Plug-and-play replacement within existing 3500 racks; no rack rewiring required for like-for-like swap.
- System 1 Software Compatibility — Full integration with Bently Nevada System 1 for trending, alarming, and predictive maintenance workflows.
- Proven Field Reliability — Deployed in thousands of critical machinery trains globally; long mean-time-between-failure (MTBF) record in continuous-duty service.
Complete System Bill of Materials
A typical 3500 temperature monitoring channel requires the following components. Konmask can source all items:
- 3500/20 Rack Interface Module (RIM) — e.g., 125744-01
- 3500/15 Power Supply Module — e.g., 127610-01 (AC) or 127610-02 (DC)
- 3500/60 Temperature Monitor Module — 133811-01 (this item)
- 3500/22M Transient Data Interface (TDI) — optional, for waveform capture
- 3500 Rack (4-slot or 14-slot chassis)
- PT100 RTD Sensors or Thermocouple assemblies (application-specific)
- Bently Nevada System 1 Software License (for configuration and monitoring)
Contact support@konmask.com for a complete BOM quotation tailored to your machine train.
Compliance & Industry Standards
- API 670 — Machinery Protection Systems (5th Edition)
- IEC 61511 — Functional Safety for Process Industry (SIL-capable configurations)
- IEC 60068 — Environmental Testing (vibration, temperature, humidity)
- CE Marking — EMC Directive compliance
- FM / CSA — Hazardous area approvals (verify current certificate for your revision)
- ISO 13373 — Condition monitoring and diagnostics of machines
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for critical-service applications. Our sourcing and QA process for the 3500/60 133811-01 includes:
- Authorized & Verified Supply Chain — Units sourced from authorized distributors or directly from certified surplus channels with full traceability.
- Pre-Shipment Functional Verification — Each module is bench-tested for power-up, communication, and channel response prior to dispatch.
- Original Packaging & Documentation — Shipped with original Bently Nevada labeling, revision markings, and available calibration records.
- Warranty — 12-month warranty against manufacturing defects; replacement or full refund policy.
- Export Compliance — All shipments comply with applicable export control regulations (EAR/ECCN classification available on request).
How to Source This Part
- Confirm your rack revision — Check your existing 3500 rack firmware and RIM revision to ensure compatibility with 133811-01.
- Add to cart or request a quote — Use the Buy Now button above, or email support@konmask.com for volume pricing.
- Provide shipping details — We ship DDP/DAP worldwide; provide your Incoterms preference and destination port.
- Receive & install — Module arrives tested and ready for rack insertion. Configuration via Bently Nevada Rack Configuration Software.
- Technical support — Post-sale configuration guidance available via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: Is the 133811-01 compatible with both 4-slot and 14-slot 3500 racks?
A: Yes. The 3500/60 module is compatible with all standard Bently Nevada 3500 rack chassis sizes.
Q: Can this module replace an older 3500/60 revision in the field?
A: In most cases yes, but always verify the rack firmware version and RIM revision against the Bently Nevada compatibility matrix before installation.
Q: Does the 3500/60 support SIL-rated applications?
A: The 3500 system can be configured for SIL 1/2 applications under IEC 61511. Consult the Bently Nevada Safety Manual for the specific SIL capability of your rack configuration.
Q: What is the lead time for the 133811-01?
A: In-stock units ship within 3–5 business days. Contact us for current stock status and expedited shipping options.
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. CoC and test reports are available upon request for all units.
Q: Do you offer exchange / repair services for faulty 3500/60 modules?
A: Yes. Contact support@konmask.com to discuss exchange or repair options.
