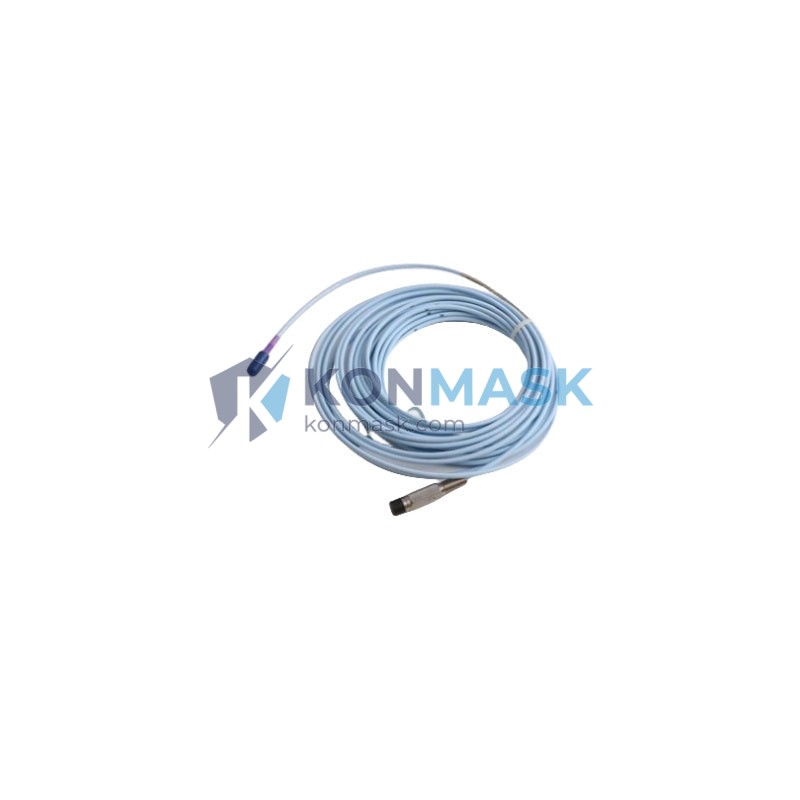

Bently Nevada 84661-30 Interconnect Cable — Proximity System Signal Conduit | 3300 XL Series Platform
Engineering Background
The Bently Nevada 3300 XL proximity measurement system is the industry benchmark for continuous shaft vibration, position, and speed monitoring in rotating machinery. The interconnect cable is the critical signal-path link between the proximity probe and the proximitor/extension cable assembly, ensuring low-noise, impedance-matched transmission of eddy-current displacement signals in demanding plant environments.
Product Positioning
The 84661-30 is an OEM-specification interconnect cable engineered for the Bently Nevada 3300 XL proximity system. It is the preferred replacement and spare-parts choice for reliability engineers and instrumentation teams maintaining turbines, compressors, pumps, and other critical rotating assets where signal integrity directly impacts machinery protection system performance.
Complete Technical Specifications
- Part Number: 84661-30
- Manufacturer: Bently Nevada (Baker Hughes)
- Compatible Platform: 3300 XL Proximity Measurement System
- Cable Type: Interconnect Cable (Probe-to-Proximitor link)
- Signal Type: Eddy-current proximity / displacement (analog DC)
- Connector Interface: OEM-matched, per Bently Nevada 3300 XL specification
- Weight: 220 g (nominal)
- Operating Temperature: Per Bently Nevada 3300 XL system rating
- Shielding: Coaxial, low-capacitance, EMI-resistant construction
- Compliance: Designed to meet Bently Nevada OEM performance standards
- Condition: New / Surplus New / Refurbished (specify at inquiry)
Proven Application Environments
- Steam and gas turbine shaft vibration monitoring
- Centrifugal and axial compressor rotor position measurement
- Pump and motor bearing displacement monitoring
- Gearbox and expander machinery protection systems
- Power generation and petrochemical plant DCS/SIS integration
- Any installation requiring Bently Nevada 3300 XL proximity system signal continuity
Engineering Advantages
- OEM Signal Integrity: Maintains the calibrated gap voltage-to-displacement linearity of the 3300 XL system — no field recalibration required when replacing like-for-like.
- Low-Noise Transmission: Coaxial construction minimizes capacitive coupling and EMI pickup in high-noise plant environments.
- Plug-and-Play Replacement: Connector geometry and cable impedance match OEM specification, enabling direct swap without system modification.
- Durability: Rated for continuous industrial service in vibration, temperature, and chemical-exposure conditions typical of rotating machinery installations.
- Reduced Downtime Risk: Stocking this cable as a critical spare eliminates extended lead-time exposure during unplanned outages.
System Architecture & Signal Flow
In the Bently Nevada 3300 XL proximity measurement chain, the signal path is:
Proximity Probe → Interconnect Cable (84661-30) → Extension Cable → Proximitor/Seismic Transducer → 3300 Monitor Rack
The 84661-30 interconnect cable occupies the first link in this chain, connecting the probe tip assembly to the extension cable. Its impedance and capacitance characteristics are factory-matched to the 3300 XL proximitor driver circuit, ensuring the system’s ±200 mV/mil (±7.87 V/mm) output sensitivity is preserved across the full measurement range.
Sourcing & Quality Verification
- Source Traceability: Units sourced from OEM-authorized channels, decommissioned plant spares, or certified surplus distributors.
- Inspection Protocol: Each unit undergoes visual inspection, connector integrity check, and continuity/insulation resistance verification prior to dispatch.
- Documentation: Certificate of conformance and test records available upon request for critical-service applications.
- Warranty: 90-day functional warranty standard; extended warranty available — contact sales for terms.
- Anti-Counterfeit: Konmask.com sources only from verified supply chains. Counterfeit proximity system components are a known industry risk — we do not trade in unverified product.
Procurement Process
- Confirm Compatibility: Verify your proximitor model and existing cable assembly part numbers against the 84661-30 specification sheet.
- Request a Quote: Contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and condition confirmation.
- Place Order: Purchase directly via Konmask.com checkout or via PO for B2B accounts.
- Shipping: Standard and expedited global shipping available. Export documentation provided for cross-border shipments.
- Incoming Inspection: We recommend incoming QC per your site’s critical-spare acceptance procedure upon receipt.
Technical FAQ
Q: Is the 84661-30 compatible with the older Bently Nevada 3300 (non-XL) system?
A: The 84661-30 is specified for the 3300 XL platform. Compatibility with legacy 3300 systems depends on connector and impedance matching — contact our technical team to confirm before ordering.
Q: Can this cable be used with third-party proximitors?
A: It is designed for Bently Nevada OEM proximitors. Use with third-party drivers may affect system calibration and is not recommended without engineering review.
Q: What is the standard lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time varies by sourcing channel — typically 2–6 weeks. Contact us for current availability.
Q: Do you provide a datasheet or wiring diagram?
A: Yes. Bently Nevada 3300 XL system documentation is available upon request. Contact support@konmask.com.
Q: Is this a new or refurbished unit?
A: Stock condition is confirmed at time of order. Both new and certified-refurbished units may be available — specify your requirement at inquiry.
