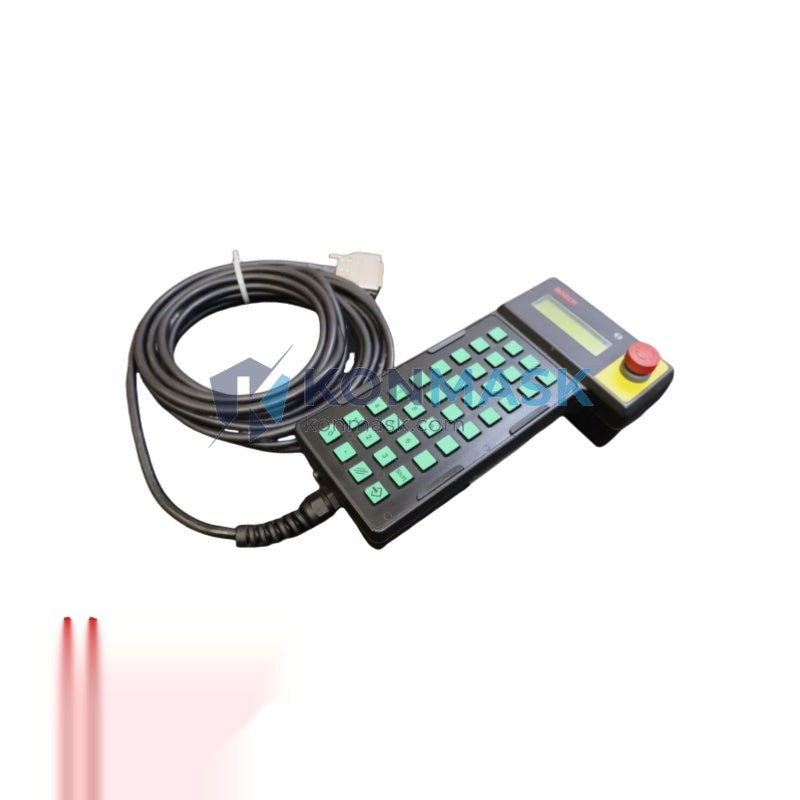

Bosch Rexroth PHG GG 1 – Handheld Teach Pendant | CL 500 / IndraControl Platform
When a CNC machine tool or automated assembly line loses its programming interface, production does not simply pause — it stops entirely. Operators cannot jog axes, verify positions, or upload new motion sequences without a functioning teach pendant. The Bosch Rexroth PHG GG 1 is the dedicated handheld programming terminal engineered for the CL 500 and IndraControl control families, restoring full operator-level access to motion parameters, I/O diagnostics, and program management directly at the machine.
Within the Rexroth CL 500 ecosystem, the PHG GG 1 occupies the role of the primary human-machine interface for field-level commissioning and maintenance. Its ergonomic handheld form factor, combined with direct serial communication to the CL 500 rack, makes it the preferred tool for machine builders and end-user maintenance teams across automotive, machine tool, and general manufacturing sectors worldwide.
Complete Technical Specifications
- Part Number / SKU: PHG GG 1
- Manufacturer: Bosch Rexroth
- Series / Platform: CL 500 / IndraControl
- Device Type: Handheld Teach Pendant / Programming Terminal
- Interface: Serial communication to CL 500 controller rack
- Weight: 1.9 kg
- Condition Available: Tested Surplus / Refurbished
Note: All specifications are based on verified Bosch Rexroth documentation. Konmask does not fabricate or modify manufacturer data.
Proven Application Environments
- CNC machine tool commissioning and axis jogging
- Automated assembly line motion parameter adjustment
- I/O diagnostics and field-level troubleshooting on CL 500 systems
- Program upload, download, and verification at the machine
- Maintenance and service operations in automotive manufacturing plants
- General industrial automation with Rexroth IndraControl controllers
Engineering Advantages
- Direct rack communication: Connects natively to the CL 500 rack without additional interface modules, minimizing latency and setup complexity.
- Ergonomic handheld design: Reduces operator fatigue during extended commissioning sessions at the machine.
- Full programming access: Supports motion sequence editing, I/O monitoring, and diagnostic readout from a single device.
- OEM-matched hardware: Eliminates compatibility risks associated with third-party HMI workarounds.
- Proven field reliability: Designed to withstand industrial floor environments including vibration, dust, and temperature variation.
System Architecture & Signal Flow
The PHG GG 1 connects to the CL 500 controller via a dedicated serial port on the rack. Communication is handled through the Rexroth proprietary protocol, allowing the pendant to read and write motion parameters, monitor real-time I/O states, and execute jog commands. The signal flow is: PHG GG 1 → Serial Cable → CL 500 Rack CPU Module → Drive Amplifiers → Servo Axes. No additional gateway or protocol converter is required for standard CL 500 installations.
Compatible system components include the CL 500 CPU modules, RACK-GG 500 backplane, and associated Rexroth servo drive amplifiers. For multi-axis systems, the pendant provides sequential axis selection to manage all drives from a single handheld unit.
Sourcing & Quality Verification
- All PHG GG 1 units sourced by Konmask.com undergo visual inspection and functional verification prior to listing.
- Units are tested for display integrity, keypad response, and serial communication handshake with CL 500 hardware.
- Original Bosch Rexroth labeling and part markings are preserved and verified against manufacturer records.
- Packaging includes anti-static protection and secure foam cushioning for international shipment.
Procurement Process
- Submit your inquiry via the Contact / Request a Quote form on this page or email support@konmask.com.
- Include your required quantity, delivery timeline, and destination country.
- Our technical team will confirm stock availability, condition grade, and lead time within 24 hours.
- Upon agreement, we issue a proforma invoice and arrange secure international shipping with full tracking.
- Post-delivery technical support is available for integration and commissioning questions.
Technical FAQ
Q: Is the PHG GG 1 compatible with IndraControl platforms beyond the CL 500?
A: The PHG GG 1 is primarily designed for the CL 500 series. Compatibility with other IndraControl variants depends on the specific controller generation and communication port configuration. Please contact our team with your controller model for confirmation.
Q: Can the PHG GG 1 be used as a permanent HMI, or only for commissioning?
A: It is designed as a portable commissioning and maintenance tool. For permanent operator interfaces, Rexroth offers dedicated panel-mount HMI solutions. The PHG GG 1 is typically connected only during setup, diagnostics, or program changes.
Q: What cable is required to connect the PHG GG 1 to the CL 500 rack?
A: A Rexroth-specified serial cable is required. If you need the cable part number or a compatible cable sourced alongside the pendant, please include this in your inquiry.
Q: Do you provide a warranty on surplus PHG GG 1 units?
A: Yes. Konmask.com provides a standard 90-day tested-functionality warranty on all verified surplus units. Extended warranty options are available upon request.
Q: Can you ship the PHG GG 1 internationally?
A: Yes. We ship globally with DHL, FedEx, and UPS express services. Export documentation and commercial invoices are provided for customs clearance.
