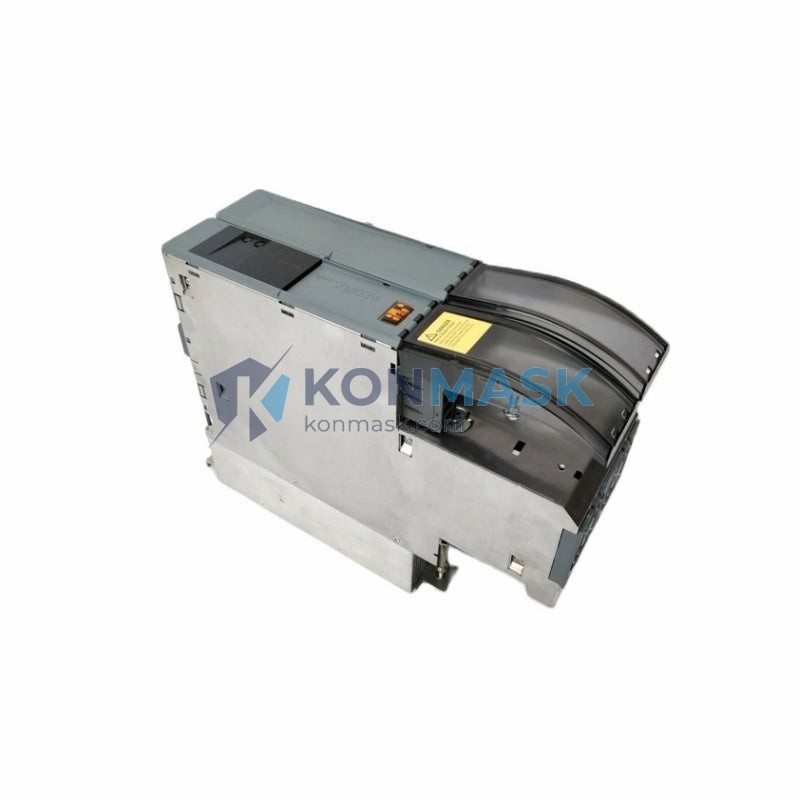

B&R 8BOP0220HC00.001-1 Drive Power Supply | Replacement, Equivalent & Selection Guide
The B&R 8BOP0220HC00.001-1 is a high-performance drive power supply unit (PSU) from the ACOPOS servo drive family, designed for demanding motion control and automation applications. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
- Part Number: 8BOP0220HC00.001-1
- Manufacturer: B&R (Bernecker & Rainer)
- Series: ACOPOS
- Function: Drive Power Supply Unit (PSU)
- Output Power: 22 kW (nominal)
- Input Voltage: 3-phase AC, 200–480 V ±10%
- Output Voltage: DC bus voltage (regulated)
- Cooling: Forced air / integrated fan
- Protection Class: IP20
- Mounting: DIN rail / panel mount
- Weight: ~17 kg
- Communication: POWERLINK / X2X Link compatible
- Certifications: CE, UL
Compatible Replacement & Equivalent Models
If the 8BOP0220HC00.001-1 is unavailable or you are evaluating alternatives, the following models offer compatible or equivalent functionality:
- B&R 8BOP0110HC00.001-1 — Lower power (11 kW) ACOPOS PSU; same series, reduced output
- B&R 8BOP0440HC00.001-1 — Higher power (44 kW) ACOPOS PSU; upward-compatible for larger drives
- Siemens 6SL3130-6AE21-0AB1 — SINAMICS S120 Active Line Module, 22 kW; cross-brand equivalent for multi-axis systems
- Lenze E94ASHE0224 — 22 kW servo inverter PSU; functional equivalent for retrofit projects
- SEW-Eurodrive MXR91A0220-503-4-00 — MOVIAXIS supply module, 22 kW class
Note: Always verify bus voltage, communication protocol, and mechanical dimensions before substitution. Contact Konmask for compatibility confirmation.
Why Choose the Original Model
- Native POWERLINK integration — Zero-configuration synchronization with B&R ACOPOS servo drives and ACOPOSmulti systems
- Regenerative capability — Feeds braking energy back to the grid, reducing energy costs in high-cycle applications
- Proven reliability — Designed for 24/7 industrial operation with full B&R firmware and diagnostic support
- Scalable architecture — Easily expanded within the ACOPOS ecosystem without rewiring
- OEM warranty compliance — Required for B&R-certified machine builders and system integrators
Typical Applications
- Multi-axis CNC machining centers
- Packaging and labeling lines
- Printing and converting machinery
- Semiconductor and electronics assembly
- Robotics and pick-and-place systems
- Plastics injection molding machines
System Compatibility
- Compatible Drives: B&R ACOPOS 8V series, ACOPOSmulti 8BVI / 8B0 series
- Compatible Controllers: B&R X20 CPU, APC910, Power Panel series
- Bus System: POWERLINK V2, X2X Link
- Software: B&R Automation Studio 4.x and above
- Firmware: Compatible with ACOPOS firmware V3.x+
Selection Guide
Use the following criteria to select the correct ACOPOS drive power supply:
- Step 1 — Calculate total drive power: Sum the continuous power demand of all connected servo axes
- Step 2 — Apply derating factor: Size the PSU at 120–130% of calculated load for thermal headroom
- Step 3 — Verify input voltage: Confirm 3-phase supply voltage matches 200–480 V range
- Step 4 — Check DC bus compatibility: Ensure all connected drives share the same DC bus voltage class
- Step 5 — Confirm communication protocol: POWERLINK or X2X Link must match your controller configuration
- Step 6 — Review cabinet space: Verify panel depth and DIN rail capacity for the 8BOP0220HC00.001-1 footprint
Quality Assurance & Sourcing
- All units sourced from authorized B&R distributors or verified industrial surplus channels
- Each unit undergoes visual inspection and functional verification before shipment
- Original packaging and documentation preserved where available
- Traceability records maintained for serial number and batch
- Warranty: 12 months from date of shipment (new units); 90 days (refurbished/tested units)
How to Order
- Confirm part number: 8BOP0220HC00.001-1
- Specify quantity and required delivery timeline
- Contact us via email or phone for stock confirmation and pricing
- Receive proforma invoice and arrange payment
- Unit ships within 1–3 business days (subject to stock availability)
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use the 8BOP0220HC00.001-1 to replace an older ACOPOS PSU?
A: Yes, provided the DC bus voltage and POWERLINK version are compatible. Consult the B&R ACOPOS hardware manual for cross-version compatibility tables.
Q: Is the 8BOP0220HC00.001-1 compatible with third-party servo drives?
A: No. This PSU is designed exclusively for the B&R ACOPOS ecosystem and uses proprietary DC bus and communication interfaces.
Q: What is the lead time for new units?
A: Typically 1–3 business days from stock. For factory-new orders, lead time may extend to 8–14 weeks. Contact us for current availability.
Q: Can Konmask provide a tested/refurbished unit?
A: Yes. Refurbished units are available with a 90-day warranty and full functional test report.
Q: How do I verify the firmware version before installation?
A: Connect via B&R Automation Studio and check the ACOPOS firmware version under the drive configuration tree. Minimum recommended: V3.25.
