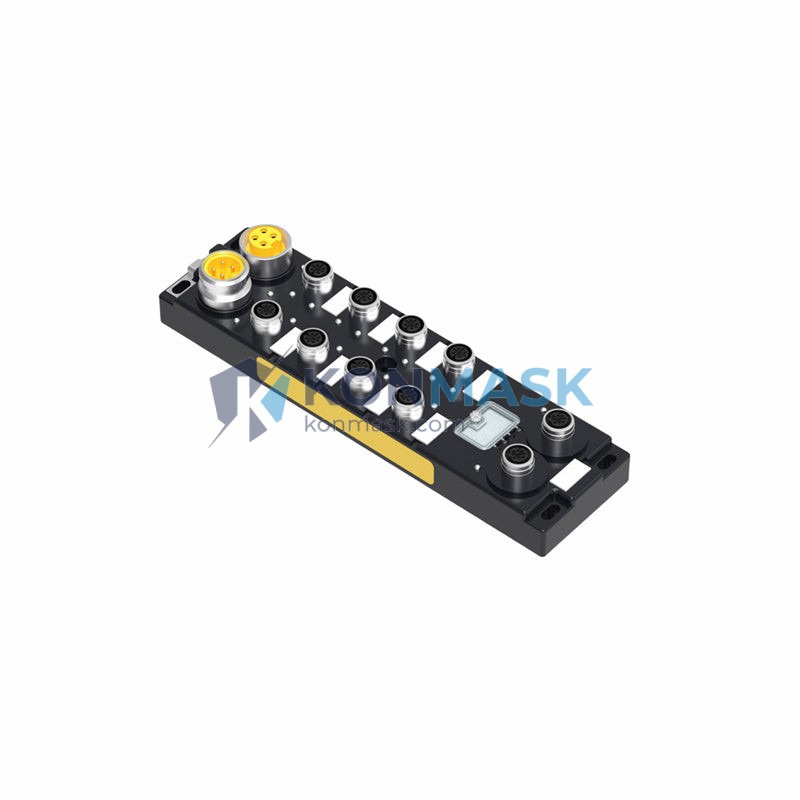

Industrial Automation Solution – BRAD TCDEI-8D0P-DYU-G02 | Digital Input Module Series
Where This Product Is Used
The BRAD TCDEI-8D0P-DYU-G02 is a field-proven 8-channel digital input module engineered for demanding industrial environments. Engineers and system integrators deploy this module across a wide range of applications:
- Automotive Assembly Lines — Real-time discrete signal acquisition from proximity sensors, limit switches, and safety interlocks on body-in-white and powertrain lines.
- Food & Beverage Processing — IP67-rated connectivity for washdown zones where moisture ingress is a constant risk; monitors conveyor position, fill-level sensors, and door interlocks.
- Packaging Machinery — High-speed detection of product presence, jam conditions, and end-of-travel positions on form-fill-seal and cartoning equipment.
- Material Handling & Intralogistics — Distributed I/O at conveyor junctions, sorter diverters, and AGV docking stations to reduce cabinet wiring and extend PLC reach to the field.
- Machine Tool & CNC — Spindle-ready, door-open, and tool-change confirmation signals routed through a compact, DIN-rail-free module mounted directly at the machine.
- Water & Wastewater Treatment — Valve position feedback and pump run/fault status collection in wet, chemically aggressive enclosures.
Technical Specifications
- Part Number: TCDEI-8D0P-DYU-G02
- Brand / Manufacturer: BRAD (Turck BRAD)
- Module Type: 8-Channel Digital Input
- Input Channels: 8 × PNP (sourcing) discrete inputs
- Supply Voltage: 24 VDC (nominal)
- Protection Rating: IP67 — fully dust-tight, protected against temporary immersion
- Connector Style: M12 (Euro-style) field-wireable connectors
- Mounting: Direct machine / panel mount; no DIN rail required
- Weight: 670 g
- Communication Interface: DeviceNet / compatible fieldbus (per series designation)
- Operating Temperature: -25 °C to +70 °C
- Housing Material: Glass-fiber reinforced thermoplastic
Why Engineers Specify This Model
- IP67 Sealed Housing — Eliminates the need for a separate protective enclosure, cutting BOM cost and installation time on the factory floor.
- 8-Channel Density — Consolidates eight discrete field signals into a single compact node, reducing cable runs and junction boxes.
- PNP Input Compatibility — Directly interfaces with the majority of modern inductive, capacitive, and photoelectric sensors without additional signal conditioning.
- M12 Quick-Disconnect — Pre-wired sensor cables snap on in seconds; no tools required for field replacement, minimizing MTTR.
- Distributed I/O Architecture — Moves intelligence to the machine level, shortening scan times and reducing PLC backplane slot consumption.
- Proven BRAD / Turck Lineage — Backed by decades of fieldbus and connectivity expertise; globally stocked with long product lifecycle commitments.
Complete System Bill of Materials
For a fully operational distributed digital input node, engineers typically pair the TCDEI-8D0P-DYU-G02 with:
- M12 PNP proximity or photoelectric sensors (e.g., Turck Bi series, Banner Q series)
- M12 cordsets — straight or right-angle, 2 m / 5 m / 10 m lengths
- 24 VDC DIN-rail power supply (e.g., Phoenix Contact QUINT, Siemens SITOP)
- DeviceNet scanner card or compatible fieldbus master module
- Terminating resistors (120 Ω) for DeviceNet trunk ends
- Cable tray / conduit for field routing
Compliance & Industry Standards
- IEC 61131-2 — Programmable controllers: equipment requirements and tests
- EN 61000-4 series — EMC immunity (ESD, EFT, surge, conducted RF)
- IP67 per IEC 60529
- CE Marking — EU Machinery Directive and EMC Directive compliant
- RoHS compliant — restricted hazardous substances
- UL / cUL listed (verify current listing on manufacturer datasheet)
Quality Assurance & Sourcing
Every BRAD TCDEI-8D0P-DYU-G02 unit offered through Konmask.com is:
- Sourced directly from authorized BRAD / Turck distribution channels or verified surplus with full traceability documentation.
- Inspected for label integrity, connector condition, and housing damage prior to dispatch.
- Shipped with original manufacturer packaging where available.
- Supported by our 90-day quality guarantee — if the part fails to perform to specification, we replace or refund.
How to Source This Part
Ready to order or need a formal quotation for your procurement team?
- Online: Add to cart directly at Konmask.com — secure checkout, multiple payment methods accepted.
- Email RFQ: support@konmask.com — include quantity, required delivery date, and destination country.
- Phone / WhatsApp: +0086 19859288691 — speak directly with an automation parts specialist.
- Lead Time: In-stock units ship within 1–3 business days; ex-stock international orders typically arrive in 5–10 business days via DHL / FedEx.
Application-Specific FAQ
Q: Can the TCDEI-8D0P-DYU-G02 be used with NPN (sinking) sensors?
A: This model is configured for PNP (sourcing) inputs. For NPN sensor compatibility, consult the BRAD TCDEI series for the NPN variant or use an inline signal converter.
Q: What PLC brands is this module compatible with?
A: Via its DeviceNet interface, it integrates with Allen-Bradley (Rockwell), Omron, Mitsubishi, Siemens (with DeviceNet master), and any IEC 61158-compliant DeviceNet master.
Q: Is IP67 sufficient for outdoor installation?
A: IP67 protects against temporary immersion up to 1 m for 30 minutes. For permanent outdoor or UV-exposed installations, additional weatherproof enclosures are recommended.
Q: Can I order a single unit, or is there a minimum order quantity?
A: Konmask.com supplies single units through to bulk orders. Contact us for volume pricing on quantities of 5 or more.
Q: Do you provide a certificate of conformance (CoC)?
A: Yes. CoC and traceability documentation are available upon request for MRO and OEM procurement requirements.
