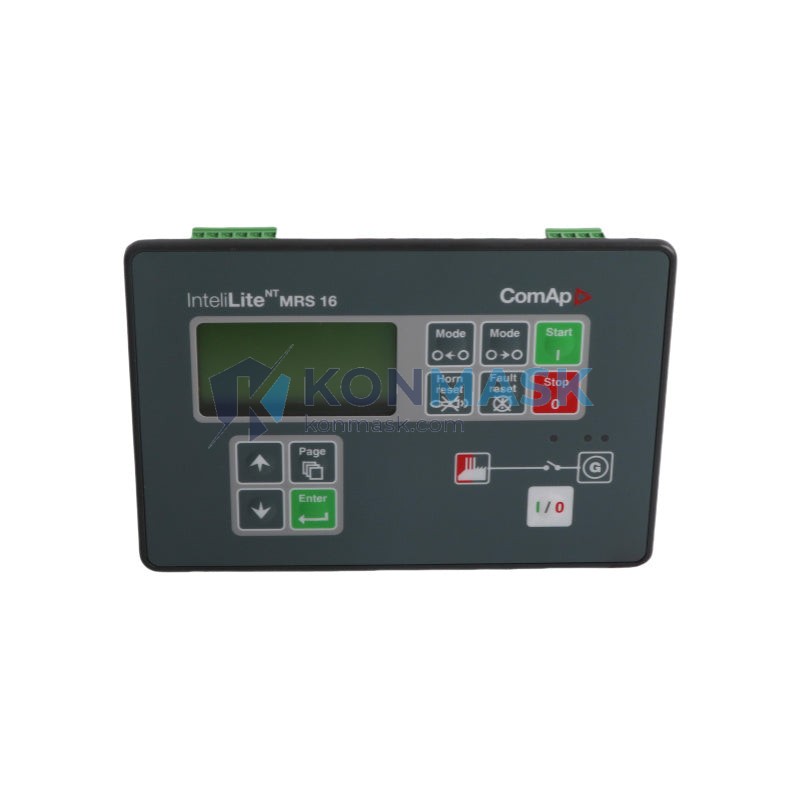

Genset & CHP Parallel Control Solution — COMAP IL-NT MRS16 | InteliLite NT Series
Where This Product Is Used
The COMAP IL-NT MRS16 is a dedicated engine control module engineered for applications where multiple generating sets must operate in parallel or in a master/slave configuration. Typical deployment environments include:
- Data centers & mission-critical facilities — N+1 or 2N genset redundancy schemes requiring seamless load sharing and automatic mains failure (AMF) response
- Combined Heat & Power (CHP) plants — coordinating multiple gas or diesel gen-units for baseload and peak-shaving duty
- Industrial & manufacturing sites — continuous-process plants (cement, steel, paper) where uninterrupted power is non-negotiable
- Telecom & broadcast infrastructure — remote tower sites and broadcast facilities with multi-gen backup
- Marine & offshore platforms — auxiliary power management on vessels and offshore rigs
- Rental power fleets — OEM integrators building standardized multi-gen rental sets
Technical Specifications
| Part Number / SKU | IL-NT MRS16 |
| Brand / Manufacturer | COMAP (ComAp a.s., Czech Republic) |
| Series | InteliLite NT (IL-NT) |
| Module Type | Multi-unit Parallel / Remote Slave Controller |
| Control Mode | AMF (Automatic Mains Failure), MRS (Multi-unit Remote Slave) |
| Communication | RS-485 (Modbus RTU), optional Ethernet / CAN |
| Display | Backlit LCD with LED status indicators |
| Inputs / Outputs | 16 binary inputs, configurable analog inputs, relay outputs |
| Supply Voltage | 8–36 V DC (battery-powered) |
| Operating Temperature | -20 °C to +70 °C |
| Protection Rating | IP54 (front panel) |
| Mounting | Panel-mount, DIN-rail compatible |
| Weight | ~400 g |
| Certifications | CE, UL (pending model variant) |
Why Engineers Specify This Model
- True multi-unit parallel capability — the MRS16 variant is purpose-built for master/slave architectures; up to 32 units can be networked via RS-485 without additional PLCs
- 16 configurable binary inputs — more I/O than standard IL-NT variants, enabling complex protection and signaling logic without external relay modules
- Proven AMF logic — sub-second mains failure detection with configurable dead-bus and live-bus transfer sequences
- SCADA-ready — native Modbus RTU allows direct integration with SCADA, BMS, and energy management systems
- Wide DC supply range — 8–36 V DC tolerates battery voltage fluctuations during cranking without brownout resets
- Field-upgradeable firmware — configuration and firmware updates via PC (InteliConfig software, free download)
Complete System Bill of Materials
For a fully functional multi-gen parallel panel using the IL-NT MRS16, engineers typically specify:
- COMAP IL-NT MRS16 — slave controller (this unit, one per genset)
- COMAP IL-NT AMF25 or AMF20 — master controller (one per system)
- COMAP IB-Lite or IB-NT — inter-controller communication bridge (optional, for Ethernet)
- COMAP CM3-RS232 or CM3-RS485 — communication module for SCADA integration
- Shielded RS-485 cable (Belden 9841 or equivalent) — inter-unit bus wiring
- 24 V DC UPS / battery charger — control power supply
- Motorized ACB / MCCB with shunt trip — generator circuit breaker
- Current transformers (CTs) — per phase, matched to generator rating
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- IEC 60068 — Environmental testing (temperature, vibration, humidity)
- IEC 61000 — Electromagnetic compatibility
- ISO 8528 — Reciprocating internal combustion engine driven alternating current generating sets
- NFPA 110 — Standard for Emergency and Standby Power Systems (compatible application)
- RoHS compliant — Restriction of Hazardous Substances Directive 2011/65/EU
Quality Assurance & Sourcing
All COMAP modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes the following before dispatch:
- Visual inspection for physical damage, label integrity, and connector condition
- Firmware version verification against COMAP’s official release matrix
- Functional power-on test confirming display, LED, and communication port operation
- Anti-static packaging with humidity indicator card
- Certificate of conformity available on request
We do not supply grey-market, refurbished, or counterfeit goods. All units carry the original manufacturer’s serial number and are traceable to batch records.
How to Source This Part
- In-stock orders — add to cart and check out; most orders ship within 1–3 business days from our warehouse
- Bulk / project orders (5+ units) — contact us for volume pricing and lead-time commitment: support@konmask.com
- Urgent / emergency procurement — call or WhatsApp +0086 19859288691 for same-day quotation
- OEM / system integrator accounts — request a trade account for net-30 terms and dedicated account management
- Export & customs — we handle export documentation (commercial invoice, packing list, CO) for international shipments; HS Code: 8537.10
Application-Specific FAQ
Q: Can the IL-NT MRS16 operate as a standalone controller without a master unit?
A: No. The MRS16 is a slave module designed to receive commands from a master controller (e.g., IL-NT AMF25). It cannot independently manage mains monitoring or load-bus decisions.
Q: How many MRS16 slave units can be connected to one master?
A: Up to 32 slave units can be networked on a single RS-485 bus segment (1,200 m max cable length at 19,200 baud).
Q: Is InteliConfig software included?
A: InteliConfig is a free download from COMAP’s website. A USB–RS-232 or USB–RS-485 adapter is required for PC connection; we can supply compatible cables on request.
Q: What is the difference between IL-NT MRS16 and IL-NT MRS11?
A: The MRS16 provides 16 binary inputs versus 11 on the MRS11, enabling more complex protection relay and signaling logic without external I/O expanders.
Q: Can this module be used with gas engines (CHP)?
A: Yes. The IL-NT MRS16 is engine-agnostic and supports diesel, gas, and dual-fuel prime movers via configurable analog and binary inputs.
