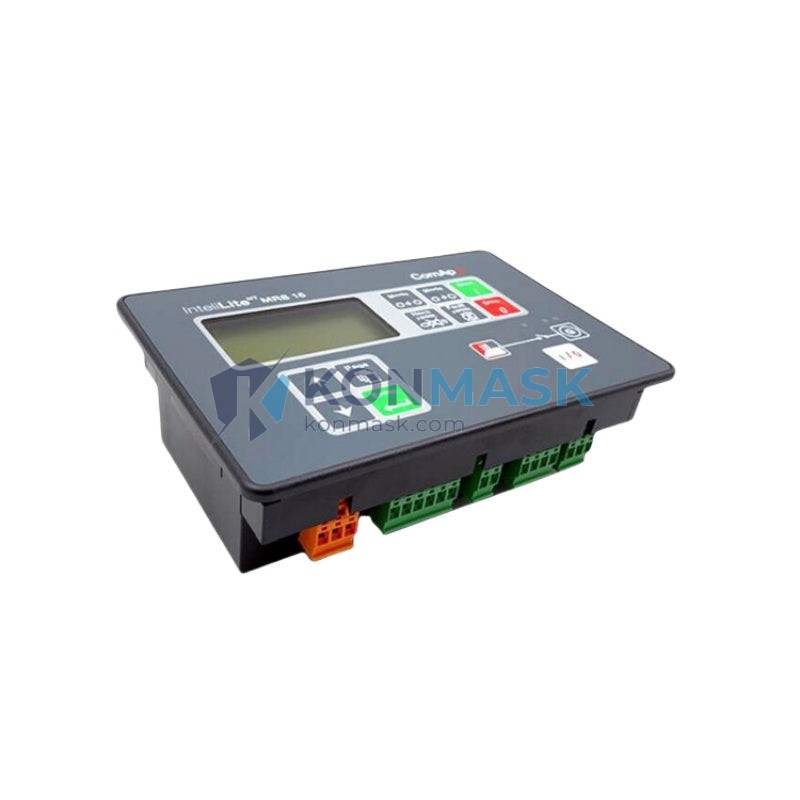

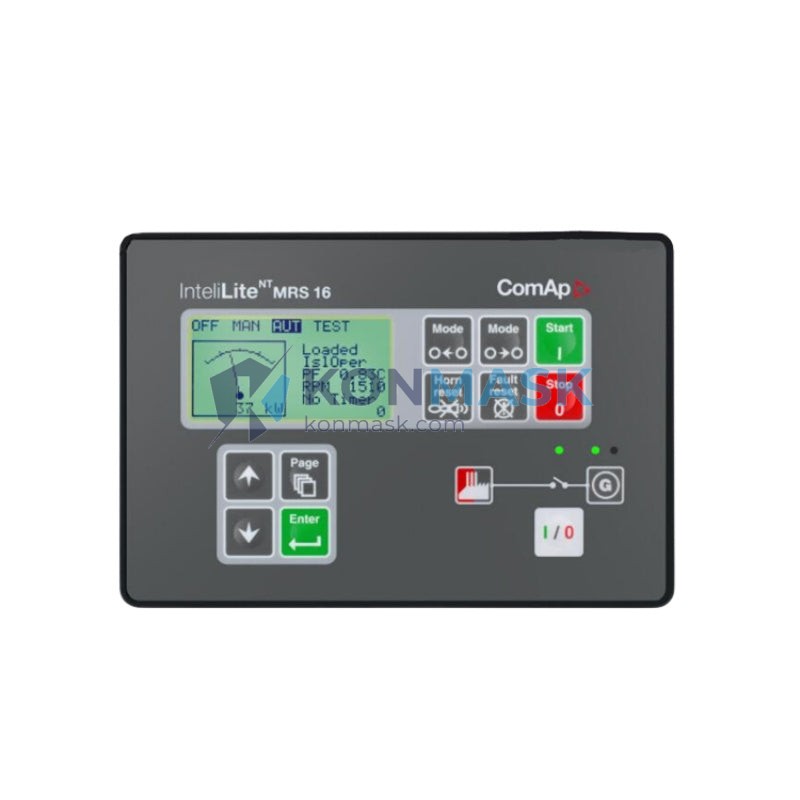

Standby & Prime Power Generation Solution — ComAp IL-NT MRS16 | IL-NT Series
Where This Product Is Used
The ComAp IL-NT MRS16 is deployed wherever reliable, uninterrupted power generation is mission-critical. Engineers and system integrators specify this controller across a broad range of industrial and commercial applications:
- Data Centers & Server Rooms — Automatic Mains Failure (AMF) control ensures seamless switchover during grid outages, protecting uptime SLAs.
- Hospitals & Healthcare Facilities — Meets stringent backup power requirements; supports life-safety load management and regulatory compliance.
- Telecom Base Stations & Remote Sites — Compact form factor and remote monitoring capability make it ideal for unmanned, off-grid installations.
- Industrial Plants & Manufacturing — Protects production lines from power interruptions; integrates with SCADA and BMS systems via standard protocols.
- Commercial Buildings & Retail — Manages standby gensets for elevators, HVAC, and emergency lighting systems.
- Marine & Offshore Platforms — Robust design tolerates vibration, humidity, and wide temperature ranges typical of marine environments.
- Mining & Oil & Gas — Reliable operation in harsh, remote environments where generator availability is non-negotiable.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IL-NT MRS16 |
| Manufacturer | ComAp (Czech Republic) |
| Series | IL-NT (InteliLite NT) |
| Controller Type | Gen-set / Generator Controller |
| Operating Mode | AMF (Automatic Mains Failure), MRS (Manual Remote Start) |
| Display | Backlit LCD with LED indicators |
| Binary Inputs | 16 configurable binary inputs |
| Binary Outputs | 8 relay outputs |
| Analog Inputs | 4 analog inputs (configurable) |
| Communication | RS-232, optional RS-485 / Ethernet via plug-in modules |
| Supply Voltage | 8 – 36 V DC |
| Operating Temperature | -20 °C to +70 °C |
| Protection Rating | IP65 (front panel) |
| Mounting | Panel mount, DIN rail compatible |
| Dimensions | 180 × 130 × 57 mm (approx.) |
| Weight | ~100 g (controller unit) |
| Certifications | CE, UL (refer to current ComAp datasheet) |
Why Engineers Specify This Model
- Proven IL-NT Platform — The InteliLite NT series is a globally trusted standard in genset control, with millions of units deployed across six continents.
- 16 Binary Inputs (MRS16 Variant) — Expanded I/O over the base MRS model allows more complex protection and monitoring schemes without external I/O expanders.
- AMF + MRS Dual Mode — Supports both fully automatic mains failure response and manual remote start, giving operators maximum operational flexibility.
- Wide DC Supply Range (8–36 V) — Compatible with 12 V and 24 V battery systems; tolerates voltage fluctuations common in generator environments.
- IP65 Front Panel — Dust-tight and splash-proof; suitable for panel doors exposed to industrial environments.
- Plug-in Communication Modules — Field-upgradeable RS-485 or Ethernet modules enable SCADA integration and remote monitoring without controller replacement.
- Intuitive Configuration — PC-based LiteEdit software provides straightforward parameter setting, event log review, and firmware updates.
- Long Product Lifecycle — ComAp maintains spare parts and firmware support for IL-NT series, reducing long-term obsolescence risk.
Complete System Bill of Materials
A typical IL-NT MRS16 genset control panel installation includes the following components. Konmask.com can source all items:
- ComAp IL-NT MRS16 — Main controller (this unit)
- ComAp IL-NT RS232-485 — Serial communication plug-in module (optional)
- ComAp IL-NT ETHERNET — Ethernet plug-in module for remote monitoring (optional)
- ComAp CM-GPRS — GPRS modem for remote SMS/data (optional)
- Current transformers (CT) — Matched to generator output rating
- Magnetic pickup sensor (MPU) — Engine speed sensing
- Pressure & temperature senders — Engine protection inputs
- ATS / Transfer switch — Mains / generator changeover
- 24 V DC power supply — Controller and relay supply
- Panel enclosure & DIN rail hardware
Compliance & Industry Standards
- CE Marking — Complies with EU Low Voltage Directive and EMC Directive.
- UL Listing — Recognized for North American markets (verify current listing status with ComAp).
- ISO 8528 — Designed for use in genset systems conforming to reciprocating internal combustion engine driven alternating current generating sets standards.
- IEC 60068 — Environmental testing compliance for temperature, humidity, and vibration.
- RoHS Compliant — Restriction of Hazardous Substances directive compliance.
Quality Assurance & Sourcing
Konmask.com specializes in industrial automation components for B2B buyers who cannot afford counterfeit or substandard parts. Our sourcing process for the ComAp IL-NT MRS16 includes:
- Authorized & Verified Supply Chain — Units sourced from authorized distributors and verified secondary market channels with full traceability.
- Pre-shipment Inspection — Each unit undergoes visual inspection, label verification, and functional power-on check before dispatch.
- Original Packaging — Shipped in OEM packaging with original documentation where available.
- Warranty Support — 12-month warranty against manufacturing defects; replacement or refund policy for DOA units.
- Export Documentation — Full commercial invoice, packing list, and certificate of origin provided for international shipments.
How to Source This Part
- Add to Cart — Click “Add to Cart” above and proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Request a Quote — For bulk orders (5+ units) or project BOM sourcing, email support@konmask.com for volume pricing.
- Lead Time — In-stock units ship within 3–5 business days. Out-of-stock items: 2–4 weeks typical lead time. Contact us to confirm availability.
- Shipping — DHL Express, FedEx, and sea freight options available. Export to 80+ countries.
- Technical Support — Pre-sales engineering support available via email or WhatsApp: +0086 19859288691.
Application-Specific FAQ
Q: What is the difference between IL-NT MRS and IL-NT MRS16?
A: The MRS16 variant provides 16 binary inputs versus the standard MRS model, enabling more comprehensive engine protection monitoring (e.g., additional temperature sensors, fuel level, door contacts) without requiring an external I/O expansion module.
Q: Can the IL-NT MRS16 be used for parallel genset operation?
A: No. The IL-NT series is designed for single genset AMF/MRS applications. For parallel operation of multiple generators, ComAp’s InteliGen or InteliSys series is recommended.
Q: Is LiteEdit software included?
A: LiteEdit PC configuration software is available as a free download from ComAp’s official website. A standard RS-232 cable is required to connect the controller to a PC for configuration.
Q: What communication protocols does the IL-NT MRS16 support?
A: Natively RS-232. With optional plug-in modules: RS-485 (Modbus RTU), Ethernet (Modbus TCP / SNMP), and GPRS. This enables integration with SCADA, BMS, and remote monitoring platforms.
Q: Can Konmask.com supply the full control panel BOM for this project?
A: Yes. We regularly supply complete project BOMs for system integrators. Send your parts list to support@konmask.com and we will provide a consolidated quote.
Q: Do you ship to Southeast Asia, Middle East, and Africa?
A: Yes. We export to 80+ countries. DHL Express is the standard courier for most destinations. Sea freight is available for large orders.
