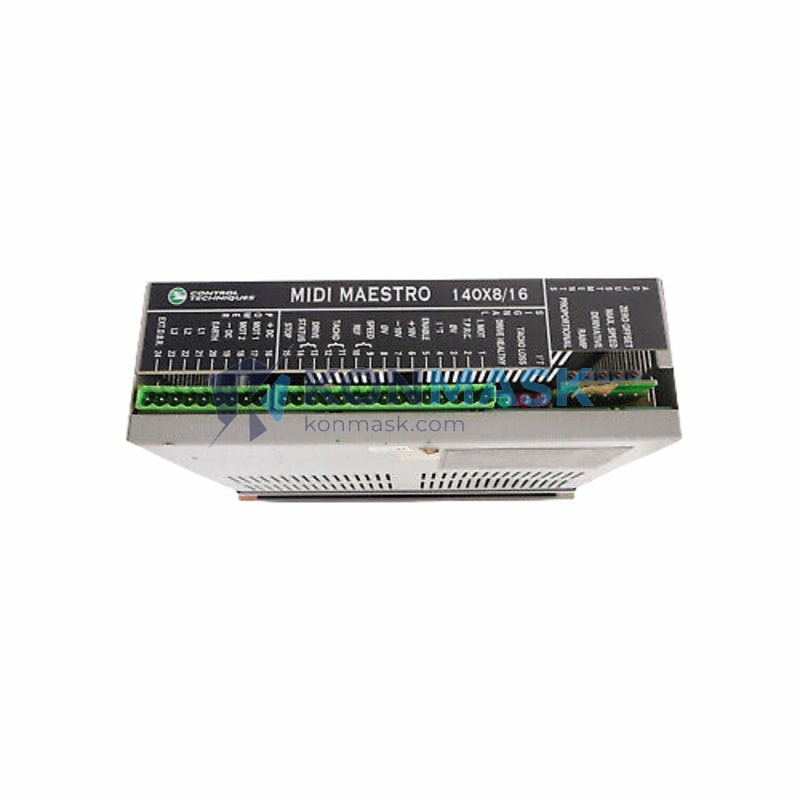

Control Techniques MAESTRO 140X8/16 – Multi-Axis Servo Drive Controller | MAESTRO Platform
The Control Techniques MAESTRO 140X8/16 is an advanced multi-axis motion controller engineered for high-performance servo drive coordination in demanding industrial automation environments. Designed for system integrators and OEM machine builders who require deterministic, synchronized multi-axis control, the MAESTRO platform delivers the processing power and I/O density needed for complex motion profiles.
As an authorized distributor and technical sourcing partner, Konmask.com supplies the MAESTRO 140X8/16 with full traceability documentation, making it the preferred procurement channel for MRO engineers and capital equipment projects across Asia-Pacific and global markets.
Complete Technical Specifications
- Model: MAESTRO 140X8/16
- Manufacturer: Control Techniques (Nidec Group)
- Platform: MAESTRO Multi-Axis Motion Controller
- Axis Count: Up to 8 axes (expandable to 16 axes)
- Drive Interface: Compatible with Unidrive M / Digitax ST servo drives via CT-Net / SLM
- Motion Profiles: Point-to-point, linear interpolation, circular interpolation, electronic gearing, camming
- Programming Environment: SyPTPro (IEC 61131-3 compliant)
- Communication Ports: Ethernet, RS-232/485, CT-Net
- I/O: Configurable digital I/O via expansion modules
- Power Supply: 24 VDC
- Weight: 1,890 g (approx.)
- Origin: United Kingdom
- Compliance: CE, UL
Proven Application Environments
- Packaging machinery – synchronized multi-axis pick-and-place and form-fill-seal lines
- Printing and converting – register control and tension management across multiple driven axes
- Textile and winding machinery – electronic gearing for precision winding profiles
- Semiconductor handling – high-speed, low-vibration multi-axis positioning
- Robotics and gantry systems – coordinated Cartesian motion with real-time interpolation
- Food and beverage – hygienic-design machine integration with deterministic cycle times
Engineering Advantages
- Scalable axis count: 8-axis base configuration expandable to 16 axes without controller replacement, protecting capital investment
- Deterministic real-time control: Hard real-time task scheduling ensures microsecond-level synchronization across all axes
- IEC 61131-3 compliance: SyPTPro supports Ladder, Structured Text, Function Block Diagram, and Sequential Function Chart — reducing re-training costs
- Tight drive integration: Native CT-Net and SLM bus eliminates third-party fieldbus latency when paired with Unidrive M or Digitax ST
- Compact form factor: DIN-rail mountable controller minimizes panel footprint in space-constrained enclosures
- Proven global install base: Thousands of MAESTRO units deployed across Europe, Asia, and the Americas
System Architecture & Signal Flow
The MAESTRO 140X8/16 operates as the central motion coordinator in a distributed servo architecture. The controller communicates with individual Unidrive M or Digitax ST servo drives over the high-speed CT-Net or SLM serial bus, issuing real-time position, velocity, and torque demand signals. Supervisory PLC or HMI systems connect via Ethernet or RS-232/485 for recipe management and status monitoring. Digital I/O expansion modules attach directly to the MAESTRO backplane, providing machine-level interlock and sensor integration without additional fieldbus hardware.
Sourcing & Quality Verification
- Traceability: Every unit supplied with manufacturer serial number and date code verification
- Inspection: Pre-shipment functional check and cosmetic inspection per Konmask QC protocol
- Authenticity: Sourced exclusively from authorized channels and verified distributor networks — counterfeit-free guarantee
- Packaging: Original or equivalent ESD-safe packaging with desiccant for long-haul shipping
- Documentation: Certificate of conformity and packing list provided with every shipment
Procurement Process
- Submit RFQ via Konmask.com product page or email [email protected]
- Receive availability confirmation and lead-time quote within 24 business hours
- Review and approve proforma invoice
- Payment processed via T/T, PayPal, or approved credit terms
- Unit dispatched with tracking number and shipping documents (commercial invoice, packing list, CoC)
- Post-delivery technical support available via email or WhatsApp
Technical FAQ
Q: Is the MAESTRO 140X8/16 compatible with third-party servo drives?
A: The MAESTRO platform is optimized for Control Techniques drives via CT-Net/SLM. Third-party drive integration is possible via Ethernet or pulse/direction outputs depending on firmware version — consult our engineers for compatibility assessment.
Q: What programming software is required?
A: SyPTPro is the native programming environment. It is available from Control Techniques and supports all IEC 61131-3 languages. Konmask can advise on software licensing procurement.
Q: Can the axis count be expanded after installation?
A: Yes. The 140X8/16 designation indicates 8-axis base with 16-axis capability. Expansion typically requires additional drive connections and a firmware/license update — no hardware controller replacement needed.
Q: What is the typical lead time?
A: In-stock units ship within 3–5 business days. Out-of-stock items are sourced within 2–6 weeks depending on global supply chain conditions. Contact us for real-time availability.
Q: Do you provide a warranty?
A: Konmask provides a 90-day functional warranty on all units. Extended warranty options are available upon request.
