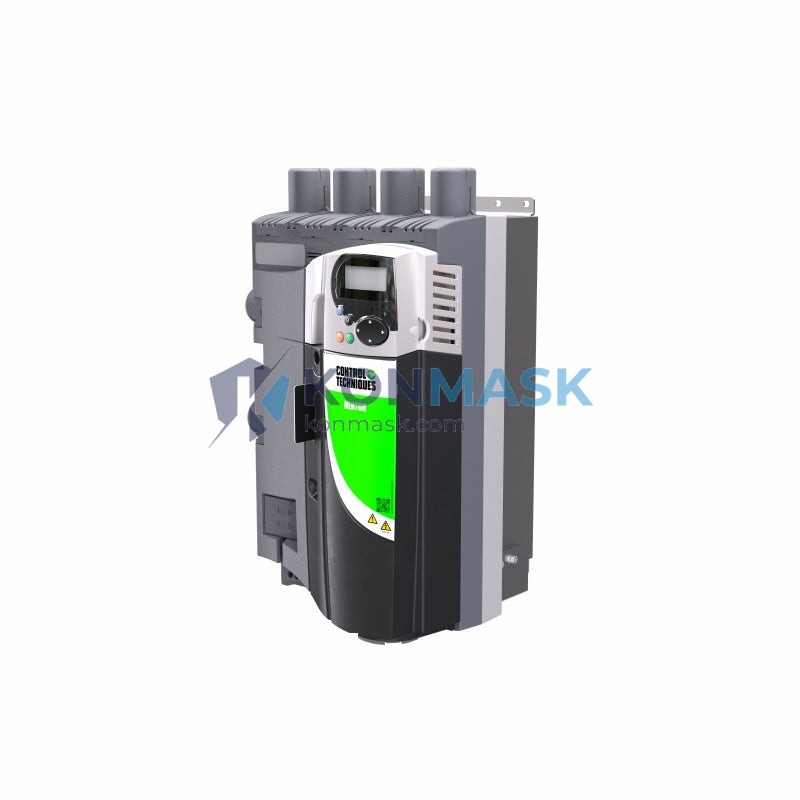

Control Techniques MP210A4R Four-Quadrant DC Drive – Mentor MP Series
When a high-power DC motor loses its drive controller, the consequences on the production floor are immediate and costly: conveyor lines halt, winding machines lose tension control, and extruders freeze mid-process. Unplanned downtime in DC-motor-driven applications can cascade into hours of lost output and expensive mechanical stress on connected equipment. The Control Techniques MP210A4R is the precision answer to these critical demands — a robust, four-quadrant DC drive engineered to keep your process running with full regenerative control in both motoring and braking modes.
Within the Mentor MP series, the MP210A4R occupies a high-current, mid-voltage position — rated at 210 A continuous output current with a 480 V AC three-phase input. The Mentor MP platform is one of the most widely deployed DC drive families in global industrial automation, trusted by OEMs and end-users across metals, paper, plastics, and material handling sectors. Its four-quadrant topology makes it the preferred choice wherever regenerative braking, rapid deceleration, or bidirectional torque control is required.
Technical Specifications
- Model / Part Number: MP210A4R
- Brand / Manufacturer: Control Techniques (Nidec)
- Series: Mentor MP
- Drive Type: Four-Quadrant Regenerative DC Drive
- Continuous Output Current: 210 A
- AC Supply Voltage: 380–480 V AC, Three-Phase
- Supply Frequency: 50/60 Hz
- Armature Voltage Output: Up to 500 V DC
- Field Supply: Single-phase, programmable field current
- Control Method: Fully digital, closed-loop speed and torque
- Communication Options: RS-485 (Modbus RTU); optional fieldbus modules (PROFIBUS, DeviceNet, EtherNet/IP)
- Protection Rating: IP20 (panel-mount)
- Ambient Temperature: 0–40 °C (operating)
- Standards: CE, UL, cUL
Note: All specifications are based on published Control Techniques documentation. Verify with the official datasheet for your specific application.
Key Features & Benefits
- Four-Quadrant Operation: Full regenerative capability enables smooth, controlled deceleration and energy recovery — critical for winders, hoists, and test stands.
- Fully Digital Control: Precise speed and torque regulation with auto-tuning reduces commissioning time and improves process repeatability.
- Programmable Field Controller: Integrated field weakening control extends the speed range of DC motors without external field regulators.
- Flexible Fieldbus Integration: Optional SI modules support PROFIBUS-DP, DeviceNet, CANopen, and EtherNet/IP for seamless PLC/SCADA integration.
- Compact Panel-Mount Design: IP20 enclosure optimizes cabinet space while maintaining full accessibility for commissioning and maintenance.
- Advanced Diagnostics: Onboard fault logging and parameter cloning via SmartCard accelerate troubleshooting and spare-drive swap-out.
- Wide Motor Compatibility: Suitable for separately excited DC motors across a broad armature voltage range.
Industry & Equipment Applications
- Metals & Steel: Rolling mills, coilers, uncoilers, and tension reels requiring four-quadrant torque control
- Paper & Printing: Winder/unwinder drives, press line drives, and web tension control systems
- Plastics & Rubber: Extruder main drives, calender drives, and haul-off units
- Material Handling: Overhead cranes, hoists, and conveyor systems with regenerative braking
- Test & Dynamometer: Motor test rigs requiring bidirectional torque and speed control
- Marine & Offshore: Winch drives and anchor handling equipment
System Integration & Compatible Parts
The MP210A4R is designed to integrate within broader Control Techniques and third-party automation architectures. Compatible and commonly paired components include:
- Mentor MP Series Drives: MP75A4R, MP105A4R, MP155A4R, MP350A4R (scalable current ratings within same platform)
- SI Option Modules: SI-PROFIBUS, SI-DeviceNet, SI-CANopen, SI-EtherNet/IP
- Remote Keypads: MD-Keypad, MD-Keypad-LCD for remote parameter access
- SmartCard: Parameter backup, cloning, and firmware management
- Line Reactors & EMC Filters: Recommended for compliance with EN 61800-3 in industrial environments
- Encoder Feedback Modules: For closed-loop speed control applications
Our Quality Assurance Process
At Konmask.com, every Control Techniques MP210A4R unit we supply undergoes a structured verification process before shipment:
- ✅ Source Verification: Units are sourced from authorized distributors or verified surplus channels with full traceability.
- ✅ Visual & Physical Inspection: Enclosure integrity, terminal condition, label legibility, and connector completeness are checked.
- ✅ Firmware & Parameter Check: Where applicable, firmware version and factory default parameters are confirmed.
- ✅ Documentation: Original manuals, certificates, and test records are provided upon request.
- ✅ Secure Packaging: Anti-static packaging with shock-absorbing materials for international freight.
How to Order
- Submit your inquiry via the Contact / Quote Request form on this page.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice and arrange secure international shipment (DHL, FedEx, UPS, or sea freight).
📧 Email: [email protected] | 📞 WhatsApp/Tel: +0086 19859288691
Why Choose Konmask.com?
- 🌐 Global B2B Supplier — Serving industrial buyers in 50+ countries
- ⚡ Fast Response — Quotes within 24 hours, urgent orders prioritized
- 🔒 Verified Stock — Traceable sourcing, no counterfeit risk
- 🛠️ Technical Support — Engineering team available for application guidance
- 📦 Flexible Shipping — Express air freight and sea freight options worldwide
- 📋 Full Documentation — Datasheets, certificates, and customs paperwork on request
Frequently Asked Questions
- Q: Is the MP210A4R the same as the MP210A4?
- A: The “R” suffix denotes the four-quadrant (regenerative) variant. The MP210A4 (without R) is a two-quadrant drive. Ensure you select the correct variant for your application — regenerative braking requires the “R” version.
- Q: What DC motor armature voltage does the MP210A4R support?
- A: The drive supports armature voltages up to approximately 500 V DC when supplied from a 480 V AC three-phase source. Consult the Mentor MP datasheet for the exact armature voltage output curve.
- Q: Can the MP210A4R be used with an encoder for closed-loop speed control?
- A: Yes. With the appropriate encoder feedback option module installed, the drive supports closed-loop speed control for high-precision applications.
- Q: Do you supply the Mentor MP series in other current ratings?
- A: Yes. Konmask.com stocks and sources the full Mentor MP range. Contact us with your required current rating and we will confirm availability.
- Q: What is the warranty on your MP210A4R units?
- A: We offer a standard inspection warranty covering physical and functional integrity at time of shipment. Extended warranty terms are available — please discuss with our sales team.
