CNC Machining & Robotics Motion Control Solution – DANHER AKM22C-ANMN2-00 | AKM Series
Where This Product Is Used

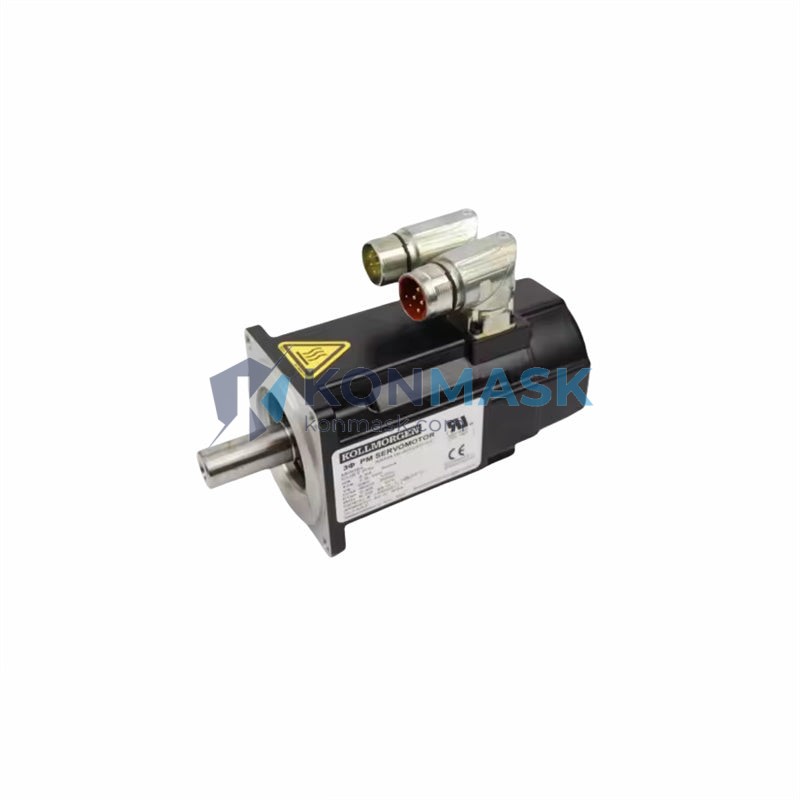

The DANHER AKM22C-ANMN2-00 is an AKM Series AC brushless servo motor engineered for precision motion control across demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers – Axis feed drives on milling, turning, and grinding machines requiring tight positional accuracy and smooth velocity control.
- Industrial Robotics – Joint actuators in articulated and SCARA robots where compact frame size and high torque density are critical.
- Packaging & Labeling Lines – High-cycle pick-and-place, indexing conveyors, and form-fill-seal machines demanding repeatable positioning.
- Semiconductor & Electronics Assembly – Precision gantry and stage systems where low cogging and smooth motion profiles are mandatory.
- Printing & Converting Equipment – Web tension control and register drives requiring fast dynamic response.
- Medical Device Manufacturing – Cleanroom-compatible motion axes with low EMI emissions.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | DANHER (Danaher Motion) |
| Part Number / SKU | AKM22C-ANMN2-00 |
| Series | AKM – Kollmorgen AKM Series AC Brushless Servo Motor |
| Frame Size | Size 2 (60 mm flange) |
| Motor Type | AC Brushless Permanent Magnet Servo Motor |
| Winding Code | C (medium voltage winding) |
| Feedback | N – No feedback (customer-supplied encoder or resolver) |
| Brake | N – No holding brake |
| Shaft | 2 – Standard smooth shaft |
| Connector Style | 00 – Standard connector orientation |
| Weight | 1,260 g (approx.) |
| Ingress Protection | IP65 (shaft seal standard) |
| Insulation Class | Class F (155 °C) |
| Operating Temperature | 0 °C to +40 °C ambient |
Note: Full electrical parameters (continuous stall torque, peak torque, rated speed, back-EMF constant) are available in the official DANHER/Kollmorgen AKM Series datasheet. Contact us for the complete specification sheet.
Why Engineers Specify This Model
- High Torque Density – AKM Series motors deliver industry-leading torque-to-inertia ratios in a compact 60 mm frame, reducing machine footprint without sacrificing performance.
- Low Cogging Torque – Skewed stator laminations minimize velocity ripple, critical for surface-finish quality in CNC and semiconductor applications.
- Flexible Feedback Integration – The “N” feedback option allows system integrators to pair the motor with their preferred encoder or resolver, maximizing design flexibility.
- Robust Construction – IP65 sealing and Class F insulation ensure reliable operation in coolant-splash and elevated-temperature environments.
- Broad Drive Compatibility – Fully compatible with Kollmorgen AKD, S700, and third-party servo drives supporting standard motor feedback protocols.
- Proven Global Installed Base – Thousands of AKM22C units deployed worldwide in aerospace, automotive, and electronics manufacturing.
Complete System Bill of Materials
For a fully operational servo axis using the AKM22C-ANMN2-00, engineers typically specify:
- Servo Drive – Kollmorgen AKD-P00306-NBEC-0000 or equivalent AKD series drive
- Feedback Device – Incremental encoder (e.g., Heidenhain ERN 1381) or SFD3 smart feedback device
- Power Cable – Kollmorgen CFD motor power cable, shielded, drag-chain rated
- Feedback Cable – Kollmorgen CFB feedback cable, matched to encoder type
- Coupling – Zero-backlash bellows or jaw coupling, 14 mm bore
- 24 VDC Control Power Supply – For drive logic and I/O
- Safety Module – STO (Safe Torque Off) relay or safety PLC for CE/machinery directive compliance
Contact Konmask.com for bundled system pricing and compatibility verification.
Compliance & Industry Standards
- CE Marking – Low Voltage Directive (LVD) 2014/35/EU & EMC Directive 2014/30/EU
- UL/cUL Listed – UL 1004 (Rotating Electrical Machines)
- RoHS Compliant – Directive 2011/65/EU
- ISO 9001:2015 – Manufactured under certified quality management system
- REACH Compliant – No substances of very high concern (SVHC)
Quality Assurance & Sourcing
Konmask.com sources the AKM22C-ANMN2-00 through verified industrial automation supply channels. Every unit undergoes the following before shipment:
- Visual inspection for physical damage, label integrity, and connector condition
- Part number and date code verification against manufacturer documentation
- Insulation resistance check (winding-to-frame, >100 MΩ at 500 VDC)
- Shaft runout and bearing smoothness check
- Anti-static packaging with desiccant for long-term storage protection
Counterfeit-free guarantee: all products are traceable to authorized distribution or OEM surplus channels.
How to Source This Part
- Request a Quote – Email support@konmask.com or call +0086 19859288691 with your required quantity and delivery timeline.
- Receive Availability & Pricing – We confirm stock status, lead time, and unit price within 24 business hours.
- Place Order – Secure checkout via this product page or via purchase order (PO) for qualified B2B accounts.
- Inspection & Dispatch – Units are inspected, photographed, and shipped with full documentation (datasheet, test record, packing list).
- Global Delivery – DHL Express, FedEx, or freight forwarding to any destination. Export documentation (commercial invoice, packing list, COO) included.
Application-Specific FAQ
Q: Is the AKM22C-ANMN2-00 compatible with Kollmorgen AKD drives?
A: Yes. The AKM22C is natively supported by the full AKD drive family. Use Kollmorgen WorkBench software to auto-configure motor parameters via the motor database.
Q: What encoder should I pair with the “N” (no feedback) variant?
A: Common choices include Heidenhain ERN 1381 (incremental, 2048 ppr), Renishaw RM22 (magnetic), or Sick Stegmann SRS50 (absolute). Shaft diameter is 14 mm — verify coupling bore compatibility.
Q: Can this motor be used in a vertical axis application?
A: Yes, but since the AKM22C-ANMN2-00 has no holding brake (“N” brake option), an external fail-safe brake or counterbalance must be added for vertical load retention on power loss.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. Out-of-stock lead time is typically 4–8 weeks from manufacturer. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. Konmask.com offers a 90-day functional warranty on all servo motors. Extended warranty options are available for volume orders.
Q: Can I return the motor if it doesn’t fit my application?
A: Unused, unopened units may be returned within 30 days. Custom-configured or opened units are non-returnable. Contact support before ordering if you have compatibility questions.
