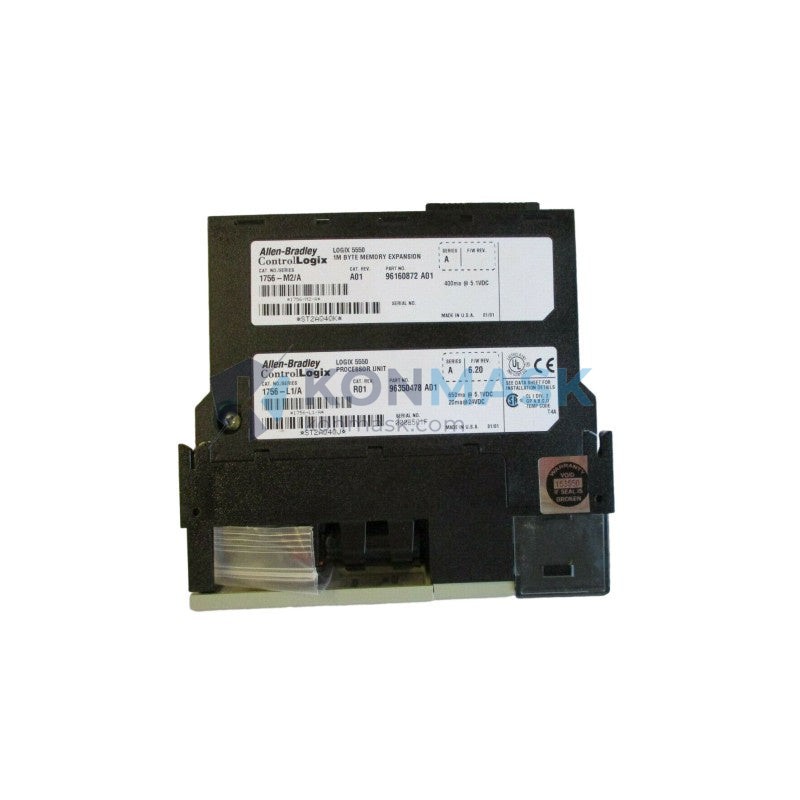

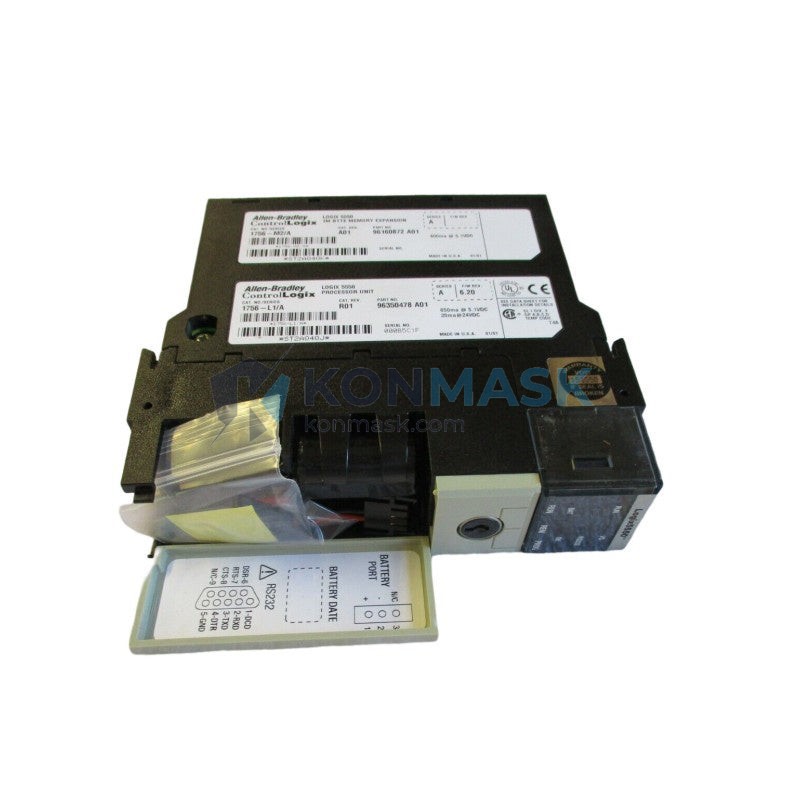

Allen-Bradley 1756-L1M2 ControlLogix Logix5550 Processor | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1756-L1M2 is a ControlLogix series programmable logic controller (PLC) processor manufactured by Rockwell Automation. Based on the Logix5550 CPU engine, it serves as the central execution unit within a 1756 ControlLogix chassis, coordinating I/O, motion, safety, and network communication tasks in demanding industrial automation environments.
Buyers searching for a 1756-L1M2 replacement, a Logix5550 equivalent, or a compatible substitute processor for their ControlLogix system will find this page covers everything needed to make a confident, specification-accurate sourcing decision — including direct drop-in options, functional equivalents, and cross-brand alternatives.
Technical Specifications
- Catalog Number: 1756-L1M2
- Series / Processor: ControlLogix / Logix5550
- User Memory: 750 KB
- I/O Memory: 478 KB
- Tasks Supported: 32 (1 continuous + 31 periodic/event)
- Programs per Task: 100
- Communication Ports: 1 × RS-232 (DF1/DH-485)
- Backplane Slots Required: 1
- Power Supply: Via 1756 chassis backplane
- Operating Temperature: 0 °C to 60 °C
- Certifications: UL, CE, C-Tick
- Firmware: RSLogix 5000 / Studio 5000 compatible
- Weight: ~300 g
- Key replacement-decision parameters: memory size (750 KB), task count (32), and RS-232 port — verify these match your application before substituting.
Compatible Replacement & Equivalent Models
1. Direct Drop-in Replacements
These models share the same form factor, backplane interface, and firmware compatibility. They can replace the 1756-L1M2 with no chassis or wiring changes:
- 1756-L1M2 (new production run) — identical catalog number, latest firmware revision
- 1756-L55M12 — same Logix5550 engine, 1.5 MB memory upgrade; drop-in with expanded capacity
- 1756-L55M16 — Logix5550, 3.75 MB; direct slot replacement, higher memory headroom
- Prerequisite: Chassis must be 1756 series; firmware version must be validated against existing project file.
2. Functional Equivalents (Same Platform, Higher Generation)
These are newer ControlLogix processors that are functionally equivalent and offer backward project compatibility via Studio 5000 conversion:
- 1756-L61 — ControlLogix 5561, 2 MB; recommended upgrade path from L1M2
- 1756-L62 — ControlLogix 5562, 4 MB; suitable when memory expansion is required
- 1756-L63 — ControlLogix 5563, 8 MB; for large multi-axis or safety-integrated systems
- Note: Project files require re-compilation in Studio 5000; I/O tree and tag database are preserved.
3. Cross-Brand Alternatives
For applications where platform migration is acceptable, these third-party PLCs offer comparable processing capability:
- Siemens S7-300 CPU 315-2 DP — comparable task handling; requires full re-engineering of ladder logic to STL/FBD
- Mitsubishi Q06UDEHCPU — high-speed equivalent; GX Works2/3 programming environment
- Schneider Electric Modicon M340 CPU — IEC 61131-3 compatible; suitable for greenfield substitution
- Important: Cross-brand substitution requires complete I/O remapping, network reconfiguration, and HMI re-integration. Consult Konmask engineering before proceeding.
Why Choose the Original Model
- Precision-Matched Performance: The 1756-L1M2 is factory-calibrated to Rockwell Automation’s exact Logix5550 specifications — no performance drift from third-party replication.
- Certified Compliance: Carries UL, CE, and C-Tick certifications; critical for regulated industries including food & beverage, pharmaceuticals, and energy.
- Seamless Firmware Compatibility: Fully validated against RSLogix 5000 and Studio 5000 project files without conversion risk.
- Rockwell EtherNet/IP Ecosystem: Native integration with 1756 communication modules, ControlNet, and DeviceNet without gateway overhead.
- OEM Warranty & Support: Eligible for Rockwell Automation TechConnect support contracts and authorized service center repair.
- Long-Term Spare Parts Availability: Konmask maintains verified stock with full traceability documentation for MRO and capital project sourcing.
Typical Applications
- Automotive Manufacturing: Body-in-white welding lines, transfer press control, and robotic cell coordination
- Oil & Gas: Pipeline SCADA integration, compressor station control, and wellhead automation
- Food & Beverage: Batch processing, CIP sequence control, and packaging line synchronization
- Water & Wastewater: Pump station control, SCADA-linked treatment plant automation
- Pharmaceutical: Clean-room environmental control, validated batch manufacturing (21 CFR Part 11 environments)
- Material Handling: Conveyor routing, sortation systems, and warehouse automation controllers
System Compatibility
- 1756-A4 / A7 / A10 / A13 / A17 — ControlLogix chassis (4, 7, 10, 13, 17 slot)
- 1756-PA72 / PB72 — ControlLogix power supply (AC/DC)
- 1756-ENBT / EN2T — EtherNet/IP communication module
- 1756-CNB / CNBR — ControlNet bridge module
- 1756-DNB — DeviceNet scanner module
- 1756-M02AE / M03SE — Servo drive interface modules
- 1756-IB16 / OB16E — Digital I/O modules (16-point DC input/output)
- Studio 5000 Logix Designer v21+ — Programming and configuration software
Selection Guide
Answer these three questions to confirm the 1756-L1M2 — or its replacement — is right for your system:
- Is your chassis a 1756 ControlLogix series? If yes, the 1756-L1M2 and its direct equivalents are slot-compatible. If not, contact Konmask for cross-platform guidance.
- Does your project require more than 750 KB of user memory? If yes, consider the 1756-L55M16 or 1756-L61 as functional equivalents with expanded capacity.
- Are you migrating from a legacy Logix5550 system? If yes, Konmask can assist with firmware version matching and project file validation to ensure a seamless substitute installation.
Not sure which model fits? Contact Konmask at support@konmask.com — our engineers respond within 24 hours with a verified recommendation.
Quality Assurance & Sourcing
All 1756-L1M2 units supplied by Konmask are sourced through authorized distribution channels and verified MRO surplus with full chain-of-custody documentation.
4-Step Inspection Process:
- Visual Inspection: Housing integrity, label authenticity, and connector condition check
- Firmware Verification: Bootloader and firmware revision confirmed against Rockwell Automation release notes
- Functional Bench Test: Power-on self-test (POST), backplane communication, and RS-232 port validation
- Documentation Package: Serial number log, test report, and certificate of conformance issued with each unit
Available Documentation: Certificate of Conformance · Test Report · Datasheet · MSDS (where applicable) · Export Compliance Documentation
How to Order
- Submit Your Inquiry: Email support@konmask.com with catalog number, required quantity, and delivery timeline — or use the product page contact form.
- Receive Quotation: Konmask will confirm availability, pricing, lead time, and applicable documentation within 24 hours.
- Confirm & Ship: Upon order confirmation, units are inspected, packaged to IPC/JEDEC standards, and dispatched with full tracking.
Replacement & Compatibility FAQ
Q: Can the 1756-L55M12 directly replace the 1756-L1M2?
A: Yes. The 1756-L55M12 is a direct drop-in replacement for the 1756-L1M2 — same Logix5550 processor, same backplane slot, with 1.5 MB memory versus 750 KB. No chassis or wiring changes are required; firmware revision should be matched to your existing project file.
Q: Is the 1756-L61 compatible with a system originally built around the 1756-L1M2?
A: The 1756-L61 (ControlLogix 5561) is compatible at the chassis and I/O level and is the recommended upgrade-path equivalent. The project file must be re-compiled in Studio 5000; all tags and I/O configurations are retained. Konmask can assist with the migration process.
Q: Are there cross-brand substitutes that are equivalent to the 1756-L1M2 for new installations?
A: For greenfield projects where platform lock-in is not a constraint, the Siemens S7-300 CPU 315-2 DP and Mitsubishi Q06UDEHCPU are functional substitutes with comparable scan-time performance. However, these are not drop-in replacements — full re-engineering of the control program, HMI, and network topology is required. Contact Konmask for a migration feasibility assessment.
