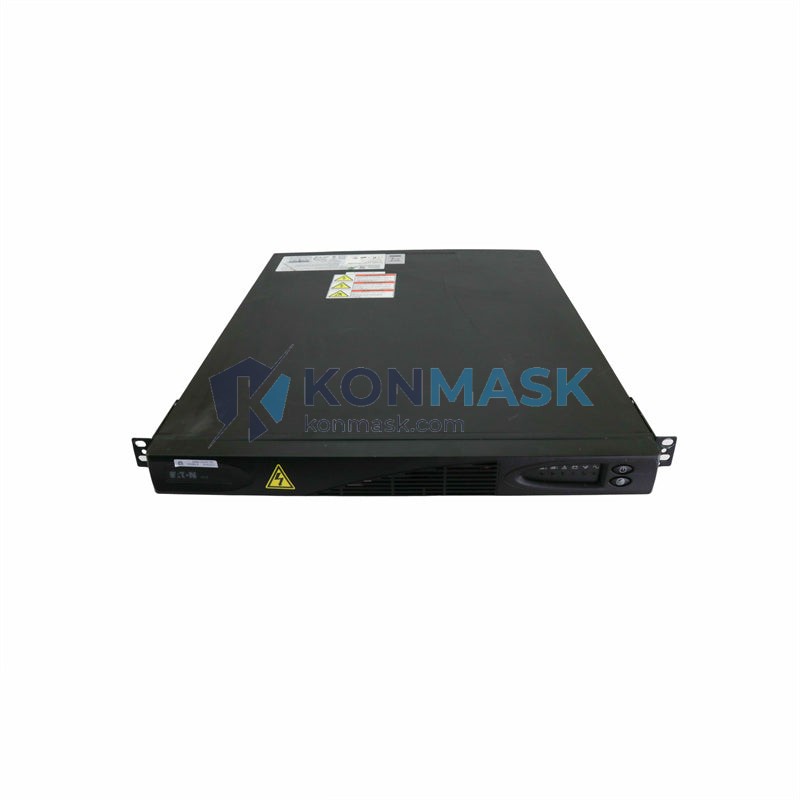

EATON PW5115-1500I-RM-BLK – 1500VA Rack-Mount UPS Power Module | PW5115 Series
Engineering Background
The EATON PW5115 series is a line-interactive UPS platform engineered for mission-critical industrial and IT infrastructure environments. The PW5115-1500I-RM-BLK variant delivers 1500VA / 1050W of conditioned power in a compact 2U rack-mount form factor, providing seamless protection against power outages, voltage sags, surges, and line noise — all of which are common threats to PLC controllers, DCS workstations, HMI panels, and edge computing nodes on the plant floor.
Product Positioning
Designed for procurement engineers sourcing reliable power conditioning for automation cabinets, server racks, and control rooms, the PW5115-1500I-RM-BLK bridges the gap between enterprise-grade UPS reliability and the compact footprint demanded by industrial enclosures. Its AVR (Automatic Voltage Regulation) technology ensures downstream PLC modules and I/O cards receive stable, clean power without switching to battery unnecessarily — extending battery service life and maximizing system uptime.
Complete Technical Specifications
- Part Number / SKU: PW5115-1500I-RM-BLK
- Brand / Manufacturer: EATON (formerly Powerware)
- Series / Platform: PW5115
- Topology: Line-Interactive with AVR
- Output Power Capacity: 1500 VA / 1050 W
- Input Voltage: 220 / 230 / 240 VAC (auto-sensing)
- Output Voltage: 220 / 230 / 240 VAC (selectable)
- Input Frequency: 50 / 60 Hz (auto-sensing)
- Output Waveform: Simulated Sine Wave (on battery); Pure Sine (on-line)
- Transfer Time: ≤ 4 ms (typical)
- Battery Type: Sealed Lead-Acid (VRLA), maintenance-free
- Typical Backup Time (full load): ~5 min @ 1050 W; ~15 min @ 50% load
- Form Factor: 2U Rack-Mount (RM)
- Color: Black (BLK)
- Communication Interface: RS-232 serial; optional USB / SNMP card slot
- Software Compatibility: EATON Intelligent Power Manager (IPM); LanSafe
- Operating Temperature: 0 °C to 40 °C
- Storage Temperature: -15 °C to 45 °C
- Humidity: 0–95% RH (non-condensing)
- Dimensions (H × W × D): 88 × 430 × 480 mm (2U)
- Unit Weight: ~19.5 kg (with battery)
- Certifications: CE, IEC 62040-1, IEC 62040-3, RoHS
- Country of Origin: China
Proven Application Environments
- PLC control panels (Siemens S7, Allen-Bradley ControlLogix, Mitsubishi MELSEC)
- DCS workstations and engineering stations (Honeywell, ABB, Emerson)
- HMI / SCADA server racks in process industries
- Industrial Ethernet switches and managed network infrastructure
- Edge computing nodes and IoT gateways on the plant floor
- Telecommunications equipment rooms and data center edge racks
- Medical device power conditioning (non-life-support auxiliary circuits)
Engineering Advantages
- AVR without battery cycling: Corrects voltage fluctuations ±15% without switching to battery, preserving battery capacity for true outages.
- Hot-swappable battery option: Enables zero-downtime battery replacement in 24/7 production environments.
- Compact 2U rack footprint: Fits standard 19-inch industrial and IT racks without sacrificing power density.
- EATON IPM software integration: Enables graceful OS shutdown, power event logging, and remote monitoring via SNMP.
- High input voltage window: Tolerates wide grid fluctuations common in industrial zones and developing-market power grids.
- RoHS compliant: Meets EU environmental directives for export to European markets.
System Architecture & Signal Flow
The PW5115-1500I-RM-BLK operates on a line-interactive topology:
- Normal Operation: AC mains → AVR buck/boost transformer → filtered AC output to load. Battery remains on float charge.
- Voltage Sag / Surge: AVR automatically compensates without battery engagement. Transfer time = 0 ms.
- Power Outage: Static bypass switch activates in ≤ 4 ms. Battery → inverter → regulated AC output. Load experiences no interruption.
- Battery Low: UPS signals connected systems via RS-232 / USB. Graceful shutdown sequence initiated via IPM software.
- Mains Restored: UPS returns to normal operation; battery recharge begins automatically.
Sourcing & Quality Verification
- All units sourced through verified EATON authorized distribution channels or certified secondary market suppliers.
- Each unit undergoes incoming inspection: visual check, battery load test, AVR function verification, and communication port test.
- Serial numbers cross-referenced against EATON’s product database for authenticity confirmation.
- Original OEM packaging preserved where available; repackaged units clearly labeled.
- Warranty: 12-month Konmask operational warranty covering defects in materials and workmanship.
Procurement Process
- Inquiry: Submit your BOM or part number to [email protected] or via the product page.
- Quote: Receive a formal quotation with lead time, MOQ, and shipping options within 1 business day.
- Order Confirmation: Purchase order accepted via Shopify checkout, bank transfer (T/T), or trade assurance.
- Inspection & Dispatch: Unit tested, documented, and dispatched with packing list and test report.
- Delivery: DHL / FedEx / UPS express (3–7 days worldwide); sea freight available for bulk orders.
- After-Sales: Technical support via email and WhatsApp; RMA process available within warranty period.
Technical FAQ
Q: Is the PW5115-1500I-RM-BLK compatible with 110V / 120V systems?
A: No. The RM-BLK variant is designed for 220–240 VAC input/output (IEC markets). For 120V North American applications, refer to the PW5115-1500 (tower) or PW5115RM2U variants.
Q: Can I replace the battery myself?
A: Yes. The PW5115 series supports user-replaceable battery modules. EATON replacement battery part: PW9130L1500R-XL2U or compatible VRLA equivalent. No tools required for hot-swap.
Q: Does this UPS support pure sine wave output on battery?
A: The PW5115 produces a stepped approximated sine wave on battery. For loads requiring true sine wave (e.g., active PFC power supplies), consider EATON’s 9PX or 5PX series.
Q: What communication cards are compatible?
A: The PW5115 accepts EATON’s Network Management Card (NMC) for SNMP/web monitoring. Slot type: Mini-slot (MS). Compatible cards: EATON Network-MS, ConnectUPS-X.
Q: What is the minimum order quantity?
A: MOQ is 1 unit. Volume pricing available for orders of 5+ units. Contact us for project pricing.
