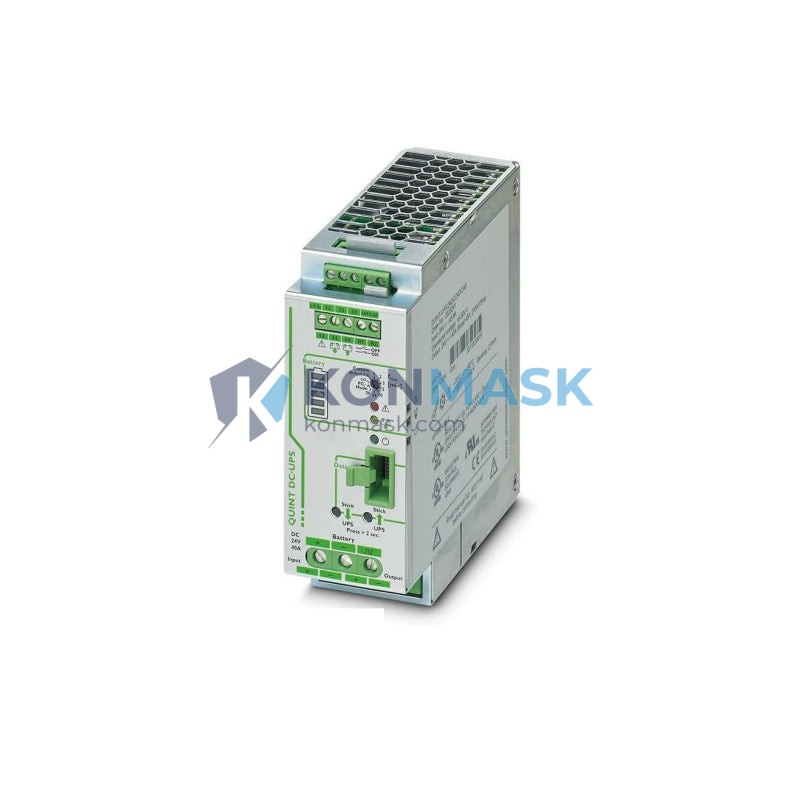

Genuine Phoenix Contact QUINT-UPS/24DC/24DC/40 UPS Module | QUINT Series – Verified Source
The Phoenix Contact QUINT-UPS/24DC/24DC/40 (Part No. 2320241) is a high-performance industrial uninterruptible power supply designed for 24 VDC systems requiring continuous, reliable backup power. As an authorized distributor and verified sourcing partner, Konmask.com supplies only genuine Phoenix Contact components with full traceability.
Technical Specifications
| Manufacturer | Phoenix Contact |
| Part Number | 2320241 |
| Model / SKU | QUINT-UPS/24DC/24DC/40 |
| Series | QUINT-UPS |
| Input Voltage | 24 VDC |
| Output Voltage | 24 VDC |
| Output Current | 40 A |
| Output Power | 960 W |
| Mounting | DIN Rail (35 mm) |
| Protection Class | IP20 |
| Operating Temperature | -25 °C to +60 °C |
| Weight | 3,300 g |
| Certifications | CE, UL, cULus |
Our 4-Step Quality Verification Process
Every Phoenix Contact component shipped from Konmask.com passes our rigorous 4-step verification protocol before dispatch:
- Source Authentication — Parts are procured exclusively from Phoenix Contact authorized channels or certified surplus distributors with documented chain of custody.
- Physical Inspection — Housing, labeling, date codes, and connector integrity are inspected against OEM reference standards.
- Functional Bench Test — Output voltage, current delivery, and battery management signaling are verified under load conditions.
- Documentation Review — Datasheet revision, CE/UL markings, and part number cross-reference are confirmed prior to packaging.
Key Features & Benefits
- Seamless 24 VDC bridging — zero transfer time to battery backup ensures uninterrupted PLC and control system operation
- 40 A continuous output supports high-demand automation panels and multi-axis drive systems
- Integrated battery management with deep-discharge protection extends battery service life
- Compact DIN-rail form factor simplifies panel integration without additional mounting hardware
- Status signaling outputs enable remote monitoring via SCADA or PLC digital inputs
- Wide operating temperature range (-25 °C to +60 °C) suits harsh industrial environments
Typical Applications
- PLC and DCS control cabinet backup power
- Industrial automation and robotics panels
- Process control systems in oil & gas, chemical, and water treatment plants
- Building automation and HVAC control systems
- Railway and transportation signaling infrastructure
- Machine tool and CNC control power conditioning
Compatible System Components
- Battery Modules: Phoenix Contact QUINT-BAT/24DC series
- Power Supplies: Phoenix Contact QUINT-PS/24DC series (upstream primary supply)
- Monitoring: Phoenix Contact QUINT-AMON/24DC battery monitoring module
- Surge Protection: Phoenix Contact TRABTECH 24 VDC surge arresters
- DIN Rail: Standard 35 mm EN 60715 steel or aluminum rail
Global Sourcing & Shipping Capabilities
Konmask.com operates as a cross-border industrial components supplier headquartered in China, serving customers across Asia-Pacific, Europe, the Middle East, and the Americas. We offer:
- EXW, FOB Xiamen, CIF, and DDP Incoterms available
- Express courier (DHL / FedEx / UPS) and sea freight consolidation
- Export documentation: commercial invoice, packing list, CO, and FORM E upon request
- Lead time: in-stock items ship within 3–5 business days; sourced items within 10–20 business days
- Minimum order: 1 unit; volume pricing available for orders of 5+ units
Certifications & Compliance Statement
The Phoenix Contact QUINT-UPS/24DC/24DC/40 (2320241) carries the following certifications:
- CE — Compliant with EU Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
- UL / cULus — Listed for use in North American industrial control equipment
- RoHS — Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
All units supplied by Konmask.com are sourced with original manufacturer documentation. Counterfeit components are never knowingly stocked or sold.
How to Order
- Add this listing to your cart and proceed to checkout, or
- Contact us directly for volume pricing, lead-time confirmation, or alternative part numbers:
- Email: [email protected]
- WhatsApp / Phone: +0086 19859288691
- Provide your shipping destination and preferred Incoterm for a freight quotation
- We issue a proforma invoice (PI) within 1 business day
Authenticity & Trust FAQ
Q: Are these genuine Phoenix Contact parts?
A: Yes. All units are sourced through verified supply channels. We do not sell relabeled, refurbished, or counterfeit goods.
Q: Can you provide a certificate of conformance (CoC)?
A: Yes, a CoC is available upon request for orders of any quantity.
Q: What is your return policy for defective units?
A: Defective units confirmed by inspection are eligible for replacement or refund within 30 days of receipt.
Q: Do you offer technical support for integration?
A: Our engineering team can assist with wiring diagrams, compatibility checks, and application guidance. Contact us via email or phone.
Q: Can I order a single unit?
A: Yes, minimum order quantity is 1 unit with no surcharge.
